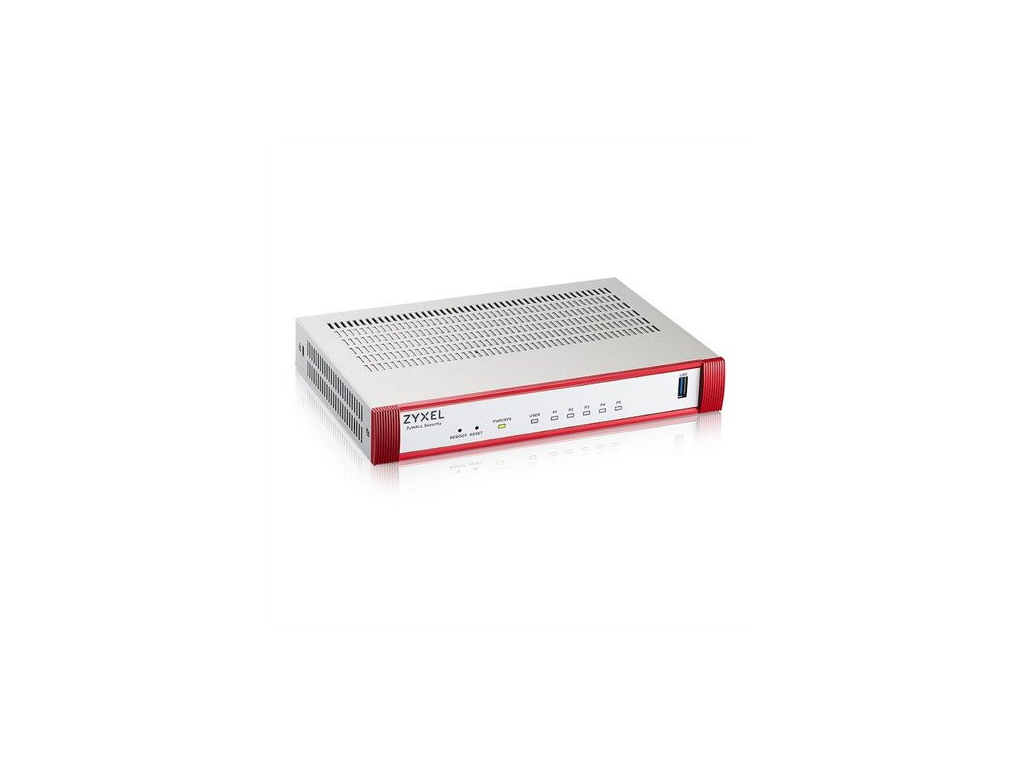

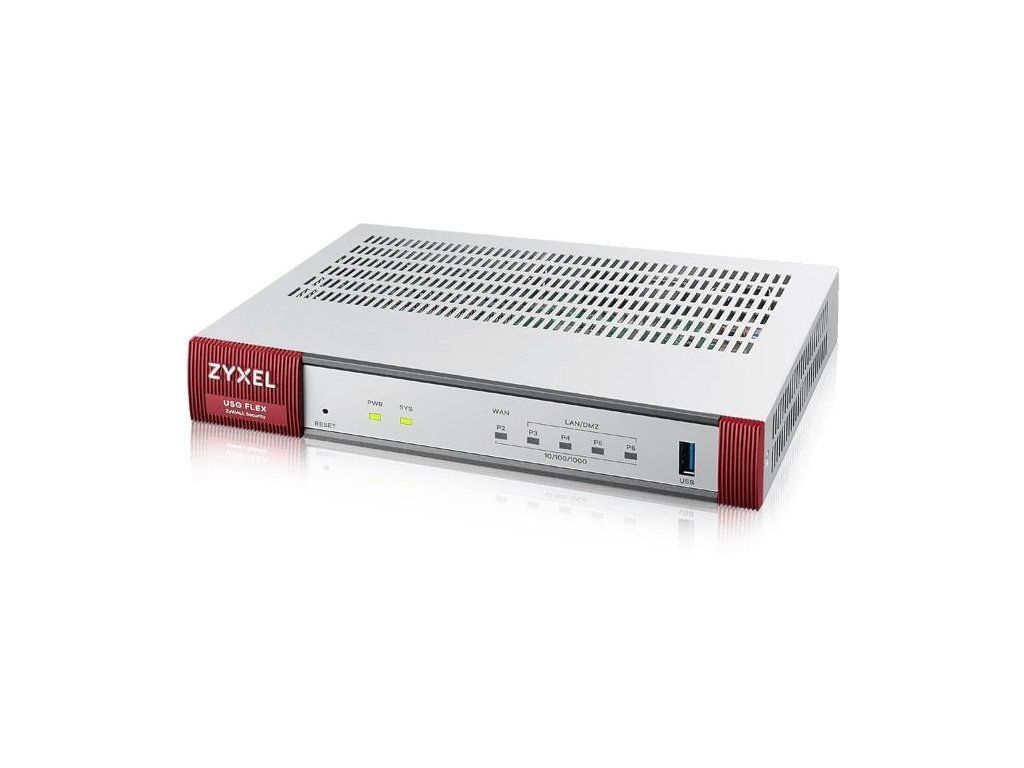

Zyxel USG FLEX 50 H, 5 Gigabit user-definable ports, 1*USB with 1 YR Gold Security Pack USGFLEX50H-EU0102F ZyXEL

Popis produktu

Zyxel USG FLEX 50 H, 5 Gigabit user-definable ports, 1*USB with 1 YR Gold Security Pack

USG FLEX H series provides secure, fast protection with ground-breaking high performance for Virtual Private Networks (VPN) and Unified Threat Management (UTM), a multi-layered approach to protecting the Firewall, the network infrastructure and connected users by leveraging Zyxel’s high-performance hardware and state-of-the-art AI Security Cloud architecture.

Ultra High Performance
Ultra-high Performance powered by our next-generation multi-core hardware and Fastpath technology to create ultra-high efficiency. The USG FLEX H series can boost performance by up to 3x, optimizing utilization of its processors and allowing Zyxel to deliver superior performance to satisfy the needs required by demanding and high-speed networks.

Port Flexibility, Multi-G and PoE+
With 2.5 Gbps and 10 Gbps Port Speed options, The USG FLEX H also features software-defined ports, allowing you true flexibility in the configuration and tailoring of each USG FLEX H as required (WAN or LAN).


Network interfaces

100M/1G Ethernet (RJ-45)

5

100M/1G/2.5G Ethernet (RJ-45)

-

1G/2.5G/5G/10G Ethernet (RJ-45)

-

1G SFP/10G SFP+

-

IEEE 802.3at (PoE+) Port

-

Total PoE budget (watts)

30

USB 3.0 Type-A

1

Console port

Yes (RJ-45)

Rack-mountable

-

Fanless

Yes

System Capacity & Performance*1
SPI firewall throughput (Mbps)*2

2,000

VPN throughput (Mbps)*3

500

IPS throughput (Mbps)*4

1,000

Anti-Malware throughput (Mbps)*4

600

UTM throughput (Anti-malware & IPS, Mbps)*4

600

Max. TCP concurrent sessions*5

100,000

Max. concurrent IPsec VPN tunnels*6

20

Recommended gateway-to-gateway IPsec VPN tunnels

5

Concurrent SSL VPN users

15

VLAN interface

8

Key Features
Security Service*7

Anti-Malware

Yes

IPS

Yes

Application Patrol

Yes

Web filtering

Yes

Reputation Filter

Yes

SecuReporter

Yes

Sandboxing

Yes

Security Profile Sync

Yes

Device Insight

Yes

Secure WiFi*8

Yes

SSL (HTTPS) inspection

Yes

Two-Factor Authentication

Yes

VPN, Management & Connectivity

VPN

IKEv2/IPSec, SSL

Nebula Centralized Management

Yes

Device HA

-

Power Requirements
Power input

50H: 12V DC, 2A

50HP: 19V DC,3.42A

Max. power consumption (Watt Max.)

50H: 8.86

50HP: 48.65

Heat dissipation (BTU/hr)

50H: 32.42

50HP: 175.73

Physical Specifications
Item

Dimensions (WxDxH)(mm/in.):

216 x 143 x 33/8.50 x 5.63 x 1.30


Weight (kg/lb.):

50H: 1.02/ 2.26

50HP: 1.04/ 2.31

Packing

Dimensions (WxDxH)(mm/in.):

278 x 189 x 99/10.94 x 7.44 x 3.89


Weight (kg/lb.):

50H: 1.27/ 2.80

50HP: 1.55/3.41

Included accessories

Power adapter

Power cord (50HP only)

RJ-45 to RS-232 cable for console connection

Environmental Specifications
Operating

Temperature: 0°C to 40°C / 32°F to 104°F

Humidity: 10% to 90% (non-condensing)

Storage

Temperature: -30°C to 70°C / -22°F to 158°F

Humidity: 10% to 90%(non-condensing)

MTBF (hr)

50H:

40°C/ 596100.85308 hr

25°C/ 945046.81927 hr


50HP:

40°C/ 402515.716 hr

25°C/ 665839.12962 hr

Acoustic noise

-

Certifications
EMC

FCC Part 15 (Class B)

CE EMC (Class B)

RCM (Class B)

BSMI

Safety

LVD (EN62368-1)

BSMI
