Zyxel GS1915-8EP 8-portový gigabitový webový inteligentný PoE switch, 8x gigabitový RJ45, bez ventilátora, 60W PoE rozp GS1915-24E-EU0101F ZyXEL

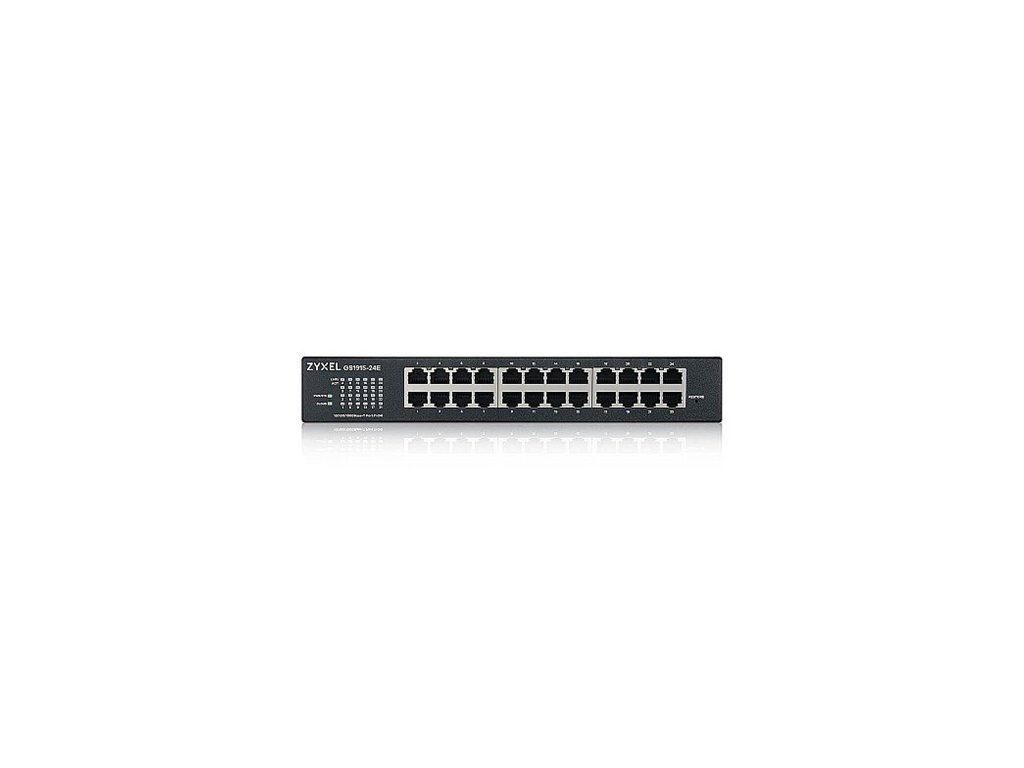

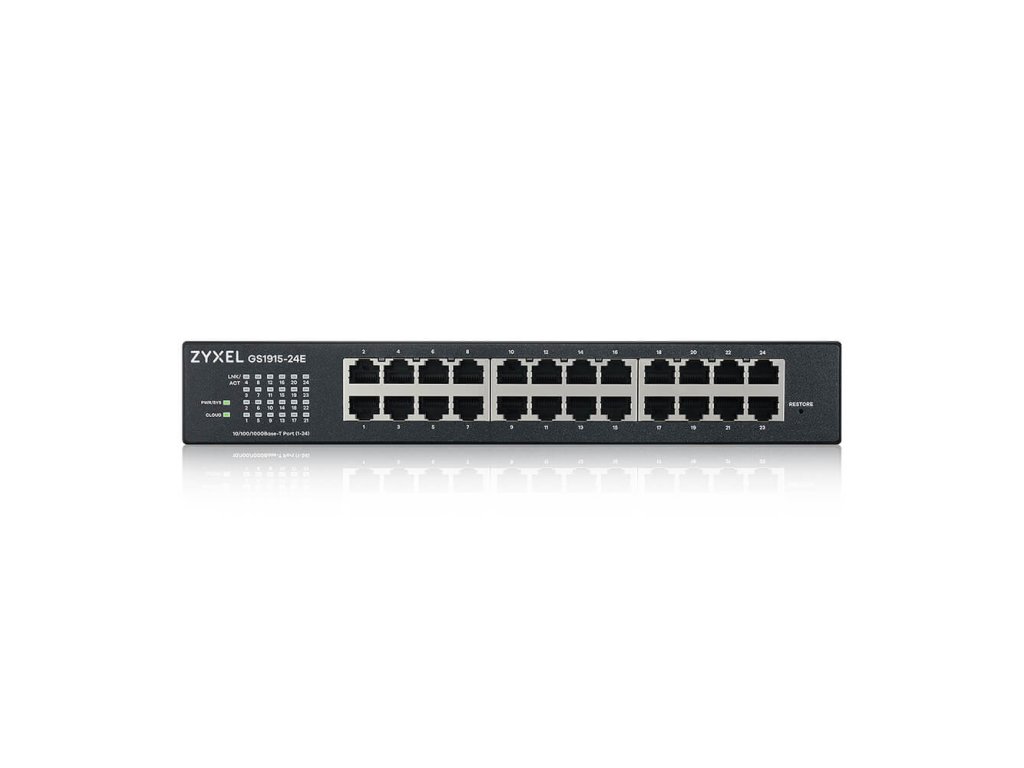

Zyxel GS1915-24E, 24-port GbE Smart hybrid mode Switch, standalone or NebulaFlex Cloud, rackmount, fanless
Item Features
Standard Compliance
IEEE 802.3 10BASE-T Ethernet*
IEEE 802.3u 100BASE-TX Ethernet*
IEEE 802.3ab 1000BASE-T Ethernet*
IEEE 802.3x flow control
IEEE 802.3af PoE*
IEEE 802.3at PoE+*
IEEE 802.3az EEE support/Green Ethernet
IEEE 802.1p CoS support*
* Cloud and standalone modes supported features
Resilience and Availability
IEEE 802.1D Spanning Tree Protocol (STP)*
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)*
IEEE 802.3ad LACP* (max # trunks/links per trunk):
8/8EP: 4 groups/8 links per group
24E/24EP: 8 groups/8 links per group
Loop guard*
Dual configuration files
Dual images*
* Cloud and standalone modes supported features
Traffic Control
802.1Q Static VLANs: 256*
Port-based VLAN
Voice VLAN*
MAC-based VLAN
Vendor ID based VLAN*
VLAN Trunking*
LACP algorithm of source/destination IP
* Cloud and standalone modes supported features
Security
Layer 2 MAC filtering
Static MAC forwarding
SSH v2
SSL
Port isolation*
Port security
MAC freeze
CPU protection
SHA2 HTTPS Certification
Login authentication by RADIUS
RADIUS accounting
Authorization on RADIUS
Multiple RADIUS servers
DHCP Snooping
* Cloud and standalone modes supported features
Quality of Service (QoS)
802.1p queuing methods: SPQ, WRR, WFQ
Storm control: broadcast, multicast, unknown unicast (DLF)*
Port-based rate limiting (ingress/ egress)*
802.3x flow control
802.1p Class of Service (SPQ, WFQ, SPQ/WFQ combination capable)
DiffServ (DSCP)
* Cloud and standalone modes supported features
Layer 2 Multicast
L2 Multicast*
Static L2 Multicast Forwarding
IGMP snooping (v1, v2, v3)*
* Cloud and standalone modes supported features
Manageability
SNMP v1*, v2c*, v3
SNMP trap group
RMON (1, 2, 3, 9)
ICMP echo/echo reply
Syslog*
Display port utilization*
IEEE 802.1AB LLDP
IEEE 802.1AB LLDP-MED
Custom default
Support NebulaFlex for Cloud Management
* Cloud and standalone modes supported features
IPv6 Management
IPv6 over Ethernet (RFC 2464)
IPv6 addressing architecture (RFC 4291)
Dual stack (RFC4213)
ICMPv6 (RFC4884)
Path MTU (RFC 1981)
Minimum Path MTU size of 1280 (RFC 5905)
Encapsulation for maximum PMTU size of 1500
Neighbor Discovery (RFC4861)
Device Management
Standalone management by Web interface
Cloud management by Nebula Control Center*
Setup Wizard
Management through Web, SNMP
Remote firmware upgrade by FTP/Web
Configuration saving and retrieving
DHCP client*
DHCP relay per VLAN
Daylight saving*
NTP (IPv4/IPv6)
Port mirroring*
Schedule PoE*
PoE default consumption mode*
* Cloud and standalone modes supported features
MIB
Zyxel private common MIB
RFC 1066 TCP/IP-based MIB
RFC 1213, 1157 SNMPv2c/v3 MIB
RFC 1493 bridge MIB
RFC 1643 Ethernet MIB
RFC 1757 RMON group 1, 2, 3, 9
RFC 2011, 2012, 2013 SNMPv2 MIB
RFC 2233 SMIv2 MIB
RFC 2358 Ethernet-like MIB
RFC 2674 bridge MIB extension
RFC 2819, 2925 Remote Management MIB
RFC 3621 Power Ethernet MIB
RFC 4293 Management Information Base (MIB) for IP
RFC 4292 IP forwarding table MIB
RFC 4022 management information base for transmission control protocol
RFC 4113 management information base for user datagram protocol
Zyxel One Network
ZON Utility*
Discovery of Zyxel switches, APs and gateways
Centralized and batch configurations:
IP configuration
IP renew
Device factory reset
Device reboot
Device locating
Web GUI access
Password configuration
One-click quick association with Zyxel AP Configurator (ZAC)
Automatic detection of the latest firmware
Displays device serial number and hardware version
Cloud mode on/off option for Hybrid series devices
* Cloud and standalone modes supported features
Smart Connect
Discover neighboring devices
One-click remote management access to the neighboring Zyxel devices
Reset neighboring devices remotely to factory defaults
Power cycle neighboring powered devices (PoE switches only)
Certifications
EMC
CE, FCC, RCM, Class A
BSMI CNS 13438
Safety
LVD EN 62368-1
BSMI CNS 14336-1
RoHS
Item Features
Standard Compliance
IEEE 802.3 10BASE-T Ethernet*
IEEE 802.3u 100BASE-TX Ethernet*
IEEE 802.3ab 1000BASE-T Ethernet*
IEEE 802.3x flow control
IEEE 802.3af PoE*
IEEE 802.3at PoE+*
IEEE 802.3az EEE support/Green Ethernet
IEEE 802.1p CoS support*
* Cloud and standalone modes supported features
Resilience and Availability
IEEE 802.1D Spanning Tree Protocol (STP)*
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)*
IEEE 802.3ad LACP* (max # trunks/links per trunk):
8/8EP: 4 groups/8 links per group
24E/24EP: 8 groups/8 links per group
Loop guard*
Dual configuration files
Dual images*
* Cloud and standalone modes supported features
Traffic Control
802.1Q Static VLANs: 256*
Port-based VLAN
Voice VLAN*
MAC-based VLAN
Vendor ID based VLAN*
VLAN Trunking*
LACP algorithm of source/destination IP
* Cloud and standalone modes supported features
Security
Layer 2 MAC filtering
Static MAC forwarding
SSH v2
SSL
Port isolation*
Port security
MAC freeze
CPU protection
SHA2 HTTPS Certification
Login authentication by RADIUS
RADIUS accounting
Authorization on RADIUS
Multiple RADIUS servers
DHCP Snooping
* Cloud and standalone modes supported features
Quality of Service (QoS)
802.1p queuing methods: SPQ, WRR, WFQ
Storm control: broadcast, multicast, unknown unicast (DLF)*
Port-based rate limiting (ingress/ egress)*
802.3x flow control
802.1p Class of Service (SPQ, WFQ, SPQ/WFQ combination capable)
DiffServ (DSCP)
* Cloud and standalone modes supported features
Layer 2 Multicast
L2 Multicast*
Static L2 Multicast Forwarding
IGMP snooping (v1, v2, v3)*
* Cloud and standalone modes supported features
Manageability
SNMP v1*, v2c*, v3
SNMP trap group
RMON (1, 2, 3, 9)
ICMP echo/echo reply
Syslog*
Display port utilization*
IEEE 802.1AB LLDP
IEEE 802.1AB LLDP-MED
Custom default
Support NebulaFlex for Cloud Management
* Cloud and standalone modes supported features
IPv6 Management
IPv6 over Ethernet (RFC 2464)
IPv6 addressing architecture (RFC 4291)
Dual stack (RFC4213)
ICMPv6 (RFC4884)
Path MTU (RFC 1981)
Minimum Path MTU size of 1280 (RFC 5905)
Encapsulation for maximum PMTU size of 1500
Neighbor Discovery (RFC4861)
Device Management
Standalone management by Web interface
Cloud management by Nebula Control Center*
Setup Wizard
Management through Web, SNMP
Remote firmware upgrade by FTP/Web
Configuration saving and retrieving
DHCP client*
DHCP relay per VLAN
Daylight saving*
NTP (IPv4/IPv6)
Port mirroring*
Schedule PoE*
PoE default consumption mode*
* Cloud and standalone modes supported features
MIB
Zyxel private common MIB
RFC 1066 TCP/IP-based MIB
RFC 1213, 1157 SNMPv2c/v3 MIB
RFC 1493 bridge MIB
RFC 1643 Ethernet MIB
RFC 1757 RMON group 1, 2, 3, 9
RFC 2011, 2012, 2013 SNMPv2 MIB
RFC 2233 SMIv2 MIB
RFC 2358 Ethernet-like MIB
RFC 2674 bridge MIB extension
RFC 2819, 2925 Remote Management MIB
RFC 3621 Power Ethernet MIB
RFC 4293 Management Information Base (MIB) for IP
RFC 4292 IP forwarding table MIB
RFC 4022 management information base for transmission control protocol
RFC 4113 management information base for user datagram protocol
Zyxel One Network
ZON Utility*
Discovery of Zyxel switches, APs and gateways
Centralized and batch configurations:
IP configuration
IP renew
Device factory reset
Device reboot
Device locating
Web GUI access
Password configuration
One-click quick association with Zyxel AP Configurator (ZAC)
Automatic detection of the latest firmware
Displays device serial number and hardware version
Cloud mode on/off option for Hybrid series devices
* Cloud and standalone modes supported features
Smart Connect
Discover neighboring devices
One-click remote management access to the neighboring Zyxel devices
Reset neighboring devices remotely to factory defaults
Power cycle neighboring powered devices (PoE switches only)
Certifications
EMC
CE, FCC, RCM, Class A
BSMI CNS 13438
Safety
LVD EN 62368-1
BSMI CNS 14336-1
RoHS
Dodatočné parametre
Kategória: | Prepínače (switch) |
---|---|
Záruka: | 24 mesiacov |
Hmotnosť: | 2.26 kg |
