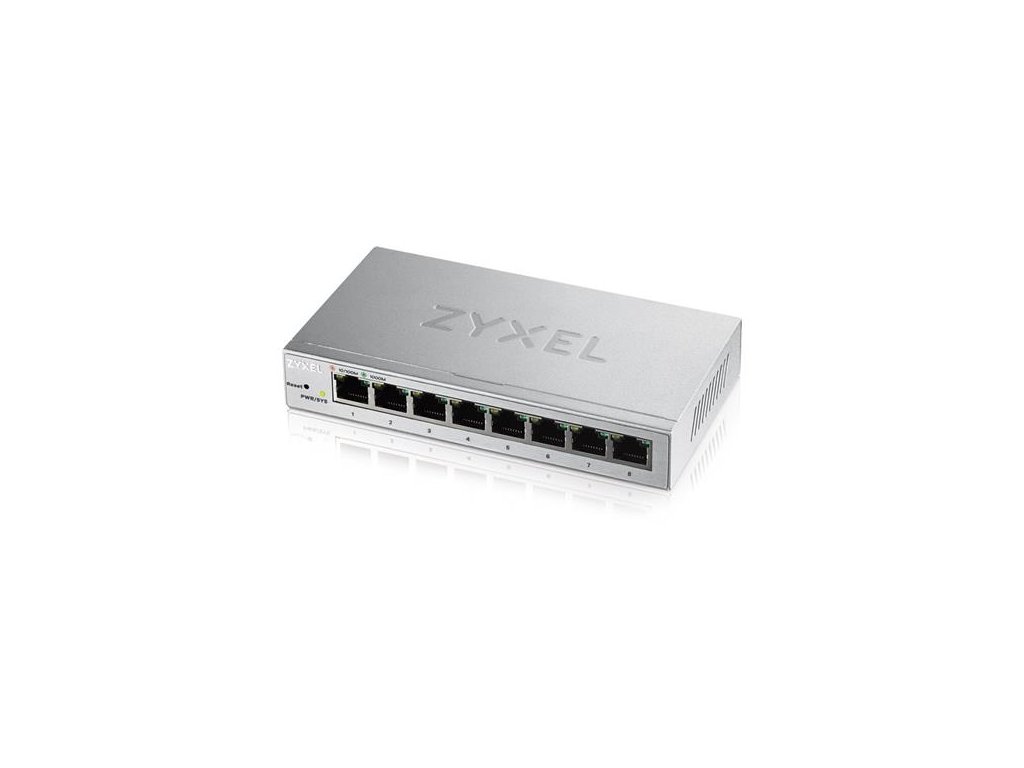

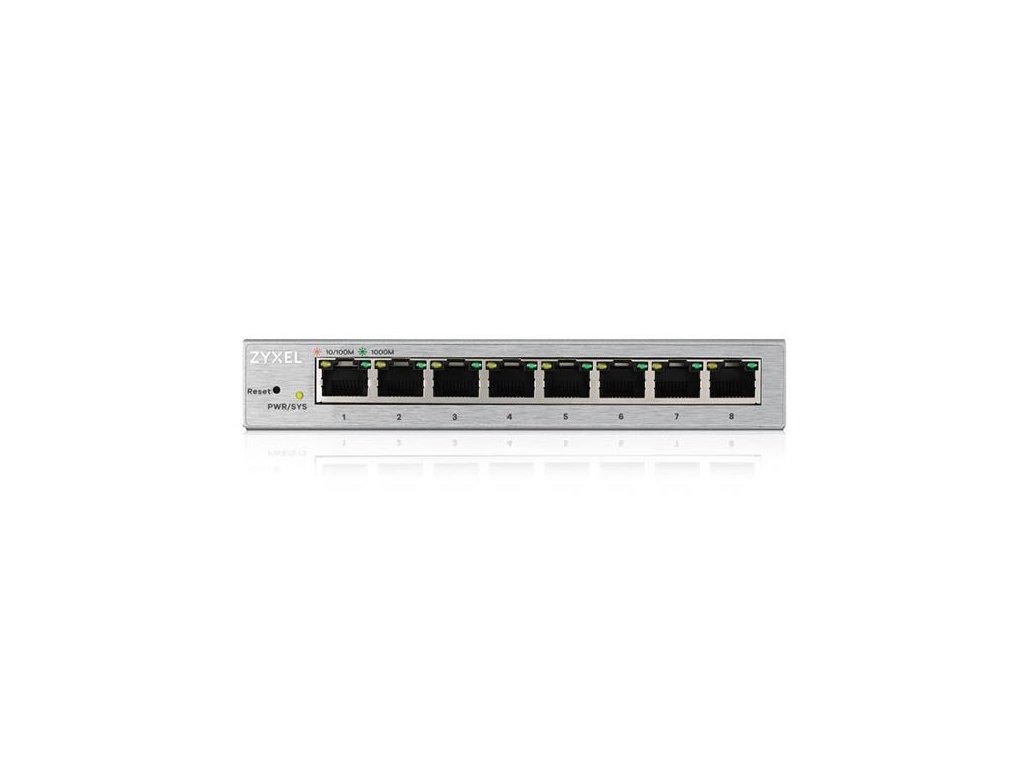

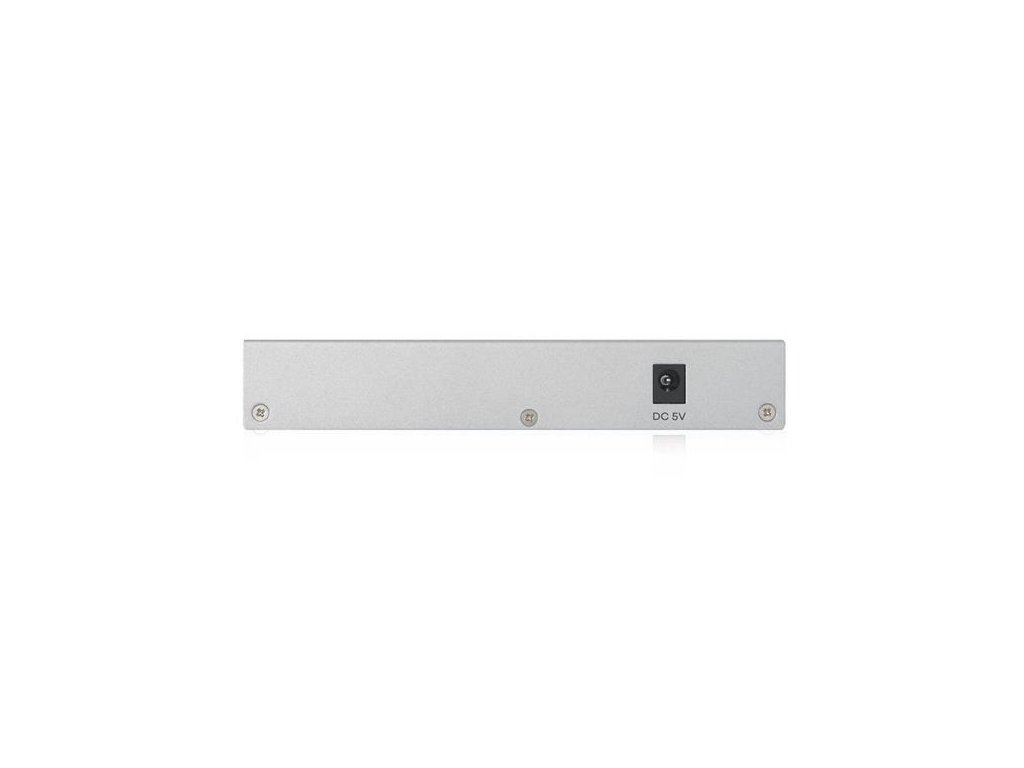

ZyXEL GS1200-8, 8 Port Gigabit webmanaged Switch GS1200-8-EU0101F

Models
GS1200-8
Description 8-Port Web Managed Gigabit Switch
Case Metal

Auto MDI/MDI-X Yes
Store and Forward Yes
Full Duplex Capability Yes
Flow Control Yes

10/100 Mbps Ethernet Ports -
10/100/1000 Mbps Ethernet Ports 8
10/100/1000 Mbps Ethernet PoE+ Ports -

Switching Capacity 16 Gbps
MAC Address 4K
Memory Buffer 192 KB
Jumbo Frames Up to 9 KB

Web GUI Yes
802.3x Flow Control Yes
DHCP Client Yes
802.1Q VLAN Yes
WRR Priority QoS Yes
Port-based QoS Yes
802.1p CoS Yes
Broadcast Storm Control Yes
Loop Detection /Prevention Yes
IGMP Snooping v1/v2/and v3 Compatitble Yes
Link Aggregation Yes
Port Mirroring Yes

Fanless Yes
Power Saving by Detecting Link Status & Cable Length Yes

Input voltage 5V DC/1A
Power supply External
Maximum power consumption (watt) 4.37
PoE power budget (watt) -

Item dimensions (WxDxH) 155x 85 x 26 mm
(6.1” x 3.0” x 1.0”)
Item weight 325g (0.72 lb.)
Packing dimensions (WxDxH) 161 x 90 x 95 mm
(6.3” x 3.5” x3.7”)
Packing weight 497g (1.10 lb.)

Operating Temperature
0°C to 40°C/32°F to 104°F
Humidity
10% to 90% (non-condensing)
Storage Temperature
-40°C to 70°C/-40°F to 158°F
Humidity
10% to 90% (non-condensing)
Models
Description
Case

Auto MDI/MDI-X
Store and Forward
Full Duplex Capability
Flow Control

10/100 Mbps Ethernet Ports
10/100/1000 Mbps Ethernet Ports
10/100/1000 Mbps Ethernet PoE+ Ports

Switching Capacity
MAC Address
Memory Buffer
Jumbo Frames

Web GUI
802.3x Flow Control
DHCP Client
802.1Q VLAN
WRR Priority QoS
Port-based QoS
802.1p CoS
Broadcast Storm Control
Loop Detection /Prevention
IGMP Snooping v1/v2/and v3 Compatitble
Link Aggregation
Port Mirroring

Fanless
Power Saving by Detecting Link Status & Cable Length

Input voltage
Power supply
Maximum power consumption (watt)
PoE power budget (watt)

Item dimensions (WxDxH)
Item weight
Packing dimensions (WxDxH)
Packing weight

Operating
Storage


*All specifications are subject to change without notice.
