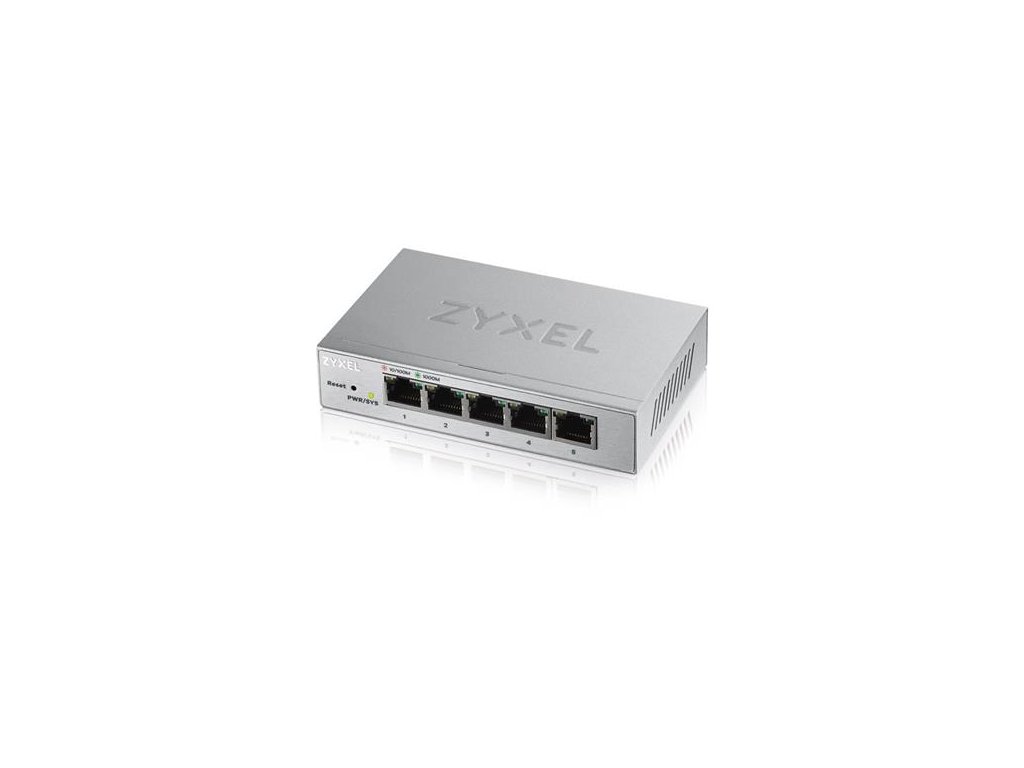

GS1200-5
5-Port Web Managed Gigabit Switch
Case Metal
Key Features
Auto MDI/MDI-X Yes
Store and Forward Yes
Full Duplex Capability Yes
Flow Control Yes
Hardware
10/100 Mbps Ethernet Ports -

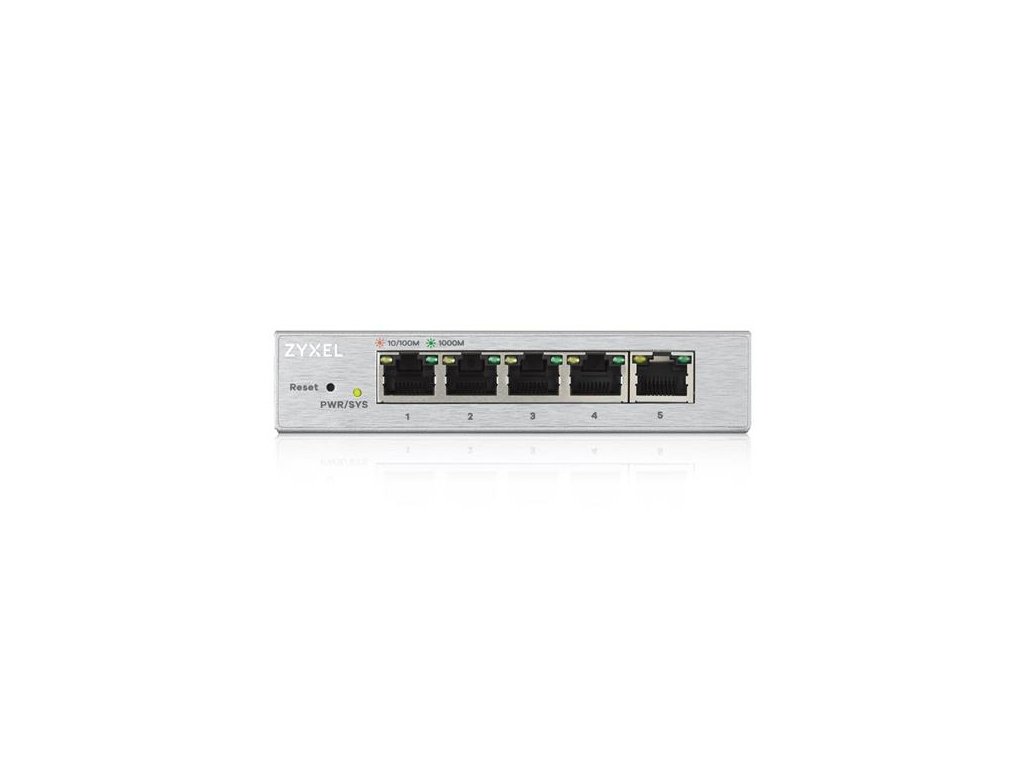

10/100/1000 Mbps Ethernet Ports 5
10/100/1000 Mbps Ethernet PoE+ Ports -
Performance
Switching Capacity 10 Gbps
MAC Address 2K
Memory Buffer 128 KB
Jumbo Frames Up to 9 KB
System Features
Web GUI Yes
802.3x Flow Control Yes
DHCP Client Yes
802.1Q VLAN Yes
WRR Priority QoS Yes
Port-based QoS Yes
802.1p CoS Yes
Broadcast Storm Control Yes
Loop Detection /Prevention Yes
IGMP Snooping v1/v2/and v3 Compatitble Yes
Link Aggregation Yes
Port Mirroring Yes
Green Features
Fanless Yes
Power Saving by Detecting Link Status & Cable Length Yes
Power

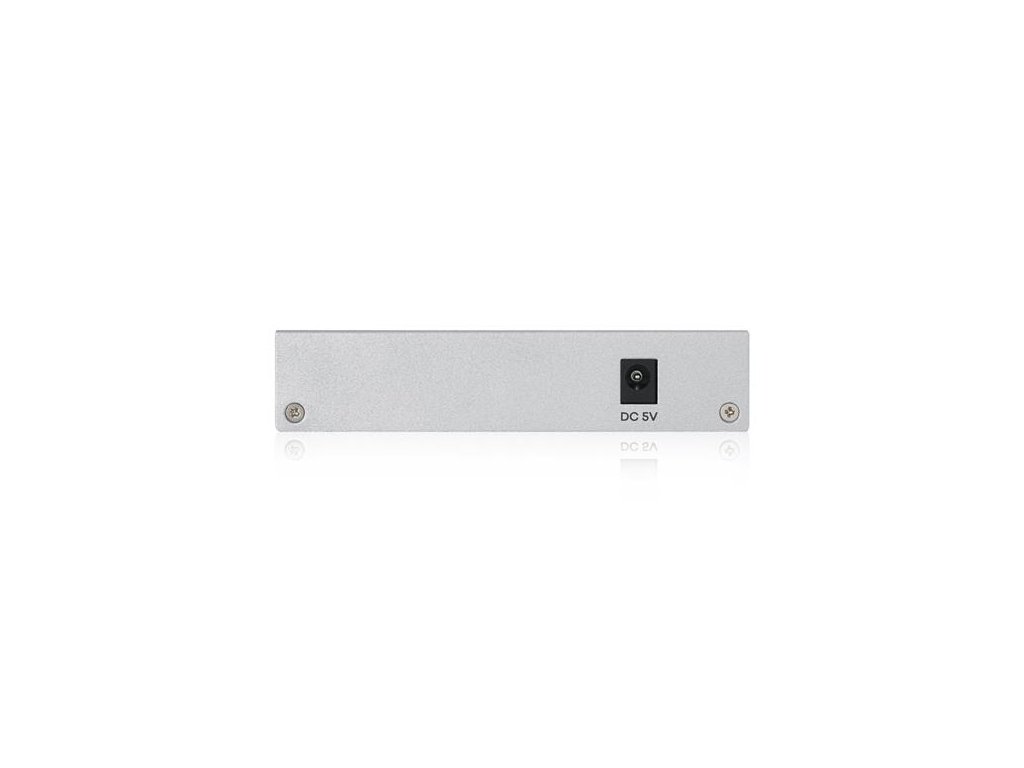

Input voltage 5V DC/1A
Power supply External
Maximum power consumption (watt) 2.67
PoE power budget (watt) -
Physical Specifications
Item dimensions (WxDxH) 121x 75 x 26mm
(4.8” x 3.0” x 1.0”)
Item weight 233g (0.51 lb.)
Packing dimensions (WxDxH) 127 x 82 x 95 mm
(5.0” x 3.2” x 3.7”)
Packing weight 388g (0.86 lb.)
Environmental Specifications
Operating Temperature
0°C to 40°C/32°F to 104°F
Humidity
10% to 90% (non-condensing)
Storage Temperature
-40°C to 70°C/-40°F to 158°F
Humidity
10% to 90% (non-condensing)
Models
Description
Case
Key Features
Auto MDI/MDI-X
Store and Forward
Full Duplex Capability
Flow Control
Hardware
10/100 Mbps Ethernet Ports
10/100/1000 Mbps Ethernet Ports
10/100/1000 Mbps Ethernet PoE+ Ports
Performance
Switching Capacity
MAC Address
Memory Buffer
Jumbo Frames
System Features
Web GUI
802.3x Flow Control
DHCP Client
802.1Q VLAN
WRR Priority QoS
Port-based QoS
802.1p CoS
Broadcast Storm Control
Loop Detection /Prevention
IGMP Snooping v1/v2/and v3 Compatitble
Link Aggregation
Port Mirroring
Green Features
Fanless
Power Saving by Detecting Link Status & Cable Length
Power
Input voltage
Power supply
Maximum power consumption (watt)
PoE power budget (watt)
Physical Specifications
Item dimensions (WxDxH)
Item weight
Packing dimensions (WxDxH)
Packing weight
Environmental Specifications
Operating
Storage
*All specifications are subject to change without notice.
