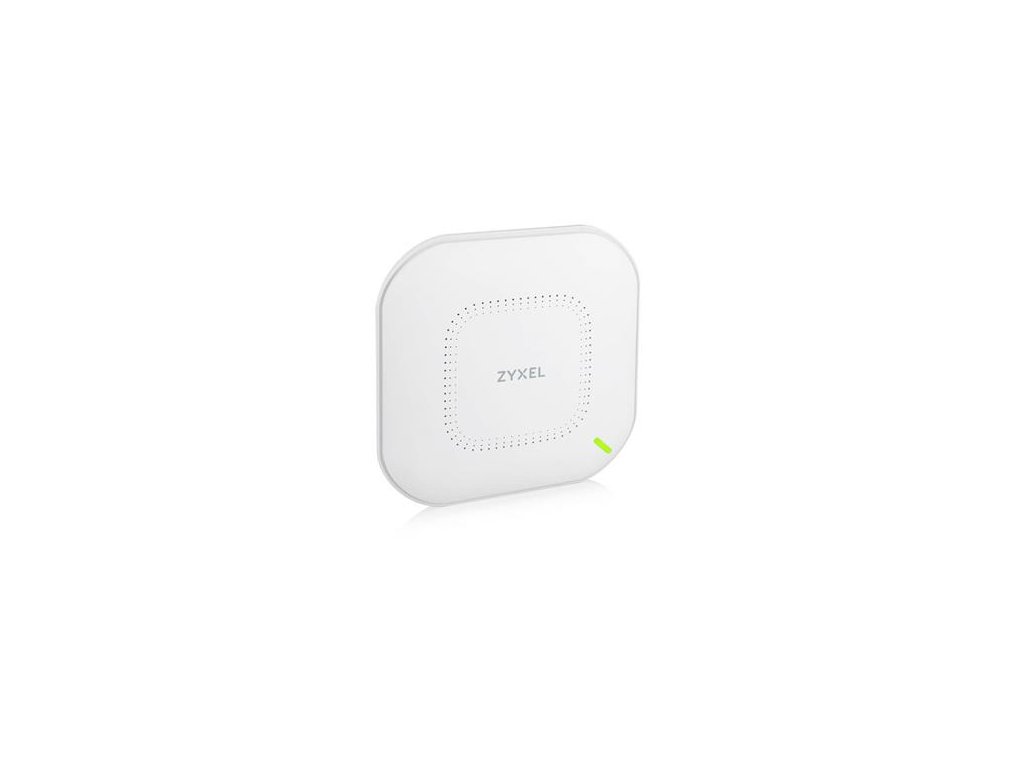

ZYXEL AP WAX510D, Single Pack 802.11ax 2x2 WAX510D-EU0101F ZyXEL

Wireless
Standard IEEE802.11 ax/ac/n/g/b/a
MIMO MU-MIMO
Wireless speed 2.4GHz: 575Mbps
5GHz: 1200Mbps
Frequency band 2.4 GHz (IEEE 802.11 b/g/n)

USA (FCC): 2.412 to 2.462 GHz
Europe (ETSI): 2.412 to 2.472 GHz

5 GHz (IEEE 802.11 a/n/ac)

USA (FCC): 5.15 to 5.35 GHz; 5.725 to 5.850 GHz
European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz

Bandwidth 20-, 40- and 80-MHz
Conducted typical transmit output power US (2.4GHz/5GHz): 23/26dBm
EU (2.4GHz/5GHz): 20/25dBm
RF Design
Antenna type 2x2 dual-optimized antenna
Antenna gain 2.4GHz: Peak Gain 5dBi
5GHz: Peak Gain 6dBi
Minimum Receive sensitivity Min. Rx sensitivity up to -101 dBm
WLAN feature
Band Steering Yes
WDS Future Support
Mesh AP (By License) Future Support
Mesh AP for multiple SSID with VLAN Future Support
Smart mesh Future Support
Fast roaming Pre-authentication, PMK caching and 802.11r
DCS (Auto Channel) Yes
Load balancing Yes
Security
Wireless Security

WPA
WPA-PSK
WPA-Enterprise (WPA/WPA2/WPA3)

Access management

L2-isolation
MAC filtering
Rogue AP detection
EAP
IEEE 802.1X
RADIUS authentication

Networking
IPv6 Yes
VLANs Yes
WMM Yes
U-APSD Yes
DiffServ marking Yes
Management
Operating mode

Nebula Cloud managed
Controller-managed
Standalone

ZON Utility

Discovery of Zyxel switches, APs and gateways
Centralized and batch configurations
IP configuration
IP renew
Device factory reset
Device reboot
Device locating
Web GUI access
Firmware upgrade
Password configuration
One-click quick association with Zyxel AP Configurator (ZAC)

Zyxel AP Configurator

Batch AP configuration
Batch AP firmware upgrade
Batch AP profile backup

Zyxel Wireless Optimizer

WiFi AP planning
WiFi coverage detection
Wireless health management

Web UI/ CLI Yes
SNMP Yes
Physical Specifications
Item Dimensions (WxDxH)(mm/in.)
180 x 180 x 39 / 7.09 x 7.09 x 1.54
Weight (g/lb.)
453g / 1
Packing Dimensions (WxDxH)(mm/in.)
229 x 216 x 64 / 9.02 x 8.5 x 2.52
Weight (g/lb.)
770g / 1.7
Included accessories

Mount plate
Mounting screws

MTBF (hr) 635,837
Physical Interfaces
Ethernet port

1 x 10/100/1000M LAN

Power

PoE (802.3)at: power draw 17 W
DC input : 12 VDC 1.5A

Environmental Specifications
Operating Temperature
0°C to 50°C/32°F to 122°F
Humidity
10% to 95% (non-condensing)
Storage Temperature
-30°C to 70°C/-22°F to 158°F
Humidity
10% to 90% (non-condensing)
Certifications
Radio

FCC Part 15C
FCC Part 15E
ETSI EN 300 328
EN 301 893
LP0002

EMC

FCC Part 15B
EN 301 489-1
EN 301 489-17
EN55022
EN55024
EN61000-3-2/-3
EN60601-1-2
BSMI CNS13438

Safety

Safety EN 60950-1
IEC 60950-1
BSMI CNS14336-1
