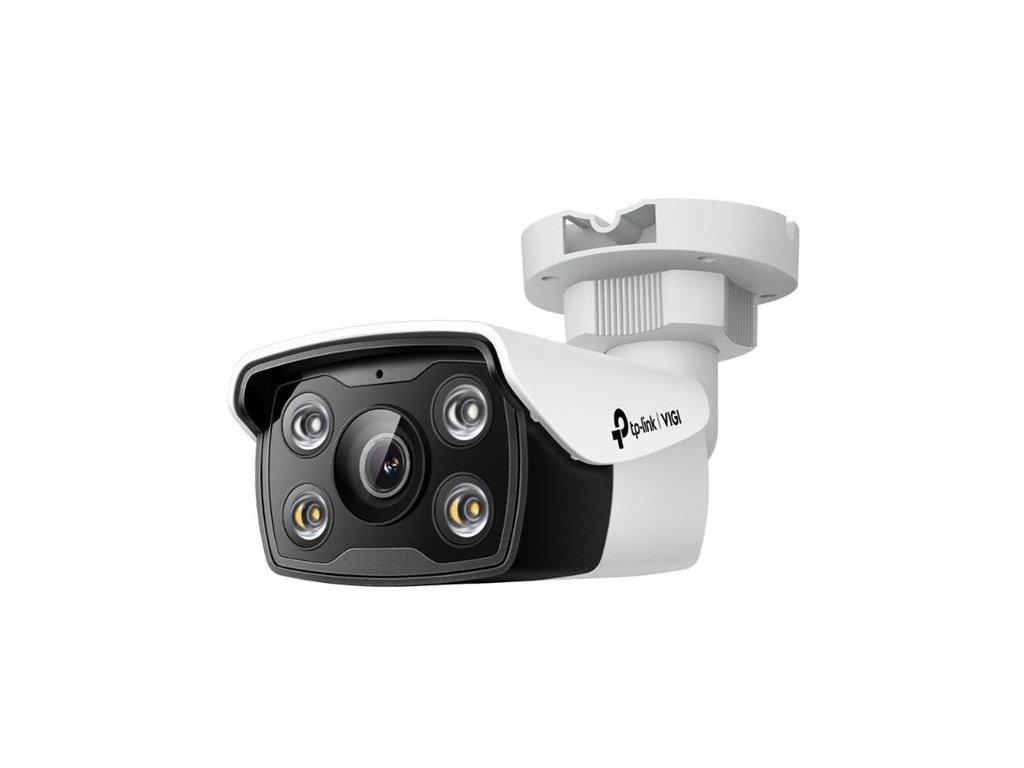

VIGI C350(4mm) 5MP Full-Color Bullet Network cam. TP-link

VIGI 5MP plnofarebná sieťová kamera Bullet

5MP Super-High Definition: Fotoaparát je dodávaný s 5MP – viac než dostatočným počtom pixelov na zachytenie niektorých diskrétnejších detailov.

24h Full-Color: Získajte 24-hodinové farebné detaily, dokonca aj v podmienkach úplnej čiernej, s objektívom s veľkou clonou, snímačom s vysokou citlivosťou a pripojenými doplnkovými svetlami.

Klasifikácia ľudí a vozidiel: Rozlišuje ľudí a vozidlá od iných objektov, takže dostávate presnejšie upozornenia na udalosti.

Inteligentná detekcia: Aktívne zisťuje abnormálne udalosti, ako je narušenie oblasti a prekročenie čiary, a okamžite vám posiela upozornenia.

Analýzy ľudí a vozidiel: Rýchlo vyhľadajte ľudí a vozidlá, ktoré vás zaujímajú, pomocou série atribútov, čo vám umožní zlepšiť efektivitu vyhľadávania.

Aktívna obrana: Okamžite varujte potenciálnych narušiteľov zvukom a svetlom, keď dôjde k abnormálnym udalostiam.

Obojsmerný zvuk: Vďaka podpore hlasového interkomu môžete viesť obojsmernú konverzáciu pri sledovaní kanála odkiaľkoľvek.

IP67 Vodotesný: Spoľahlivý IP67 pre stabilný vonkajší výkon.

H.265+?: Komprimuje veľkosť videa bez obetovania kvality videa, znižuje zaťaženie siete a šetrí miesto na disku.

Smart Video Enhancement: Profesionálne technológie VIGI spracovávajú videá tak, aby výrazne zlepšili ich kvalitu, ktorá je životne dôležitá pre vaše monitorovanie, vrátane Smart IR, True WDR, 3D DNR a Night Vision.

Flexibilná správa a ukladanie: Prevezmite plnú kontrolu nad svojou bezpečnosťou prostredníctvom štyroch metód správy: webového používateľského rozhrania, používateľského rozhrania NVR, aplikácie VIGI a správcu zabezpečenia VIGI. Pre každú metódu je k dispozícii miestne úložisko, ako aj vstavané úložisko so slotom na kartu SD (až 256 GB).



CAMERA

Image Sensor 1/2.7” Progressive Scan CMOS

Day/Night Switch Unified/ Scheduled/ Auto

Shutter Speed 1/3 to 1/10000 s

Slow Shutter Yes

Minimum Illumination 0.005 Lux; 0 Lux with IR/white light

Day/Night Mechanism IR Cut Filter

LENS

Type Fixed Focal Lens

Focal Length 2.8 mm/4 mm/6 mm

Aperture F1.6

FOV 2.8mm:

Horizontal FOV: 109°, Vertical FOV: 57°, Diagonal FOV: 128°



4mm:

Horizontal FOV: 90°, Vertical FOV: 48°, Diagonal FOV: 107°



6mm:

Horizontal FOV: 56°, Vertical FOV: 30.5°, Diagonal FOV: 66°

Lens Mount M12*P 0.5

DORI Distance 2.8 mm

Detect: 63 m (206 ft)

Observe: 26 m (85 ft)

Recognize: 12 m (39 ft)

Identify: 6 m (19 ft)



4 mm

Detect: 80 m (262 ft)

Observe: 33 m (109 ft)

Recognize: 16 m (52 ft)

Identify: 8 m (26 ft)



6 mm

Detect: 120 m (393 ft)

Observe: 50 m (164 ft)

Recognize: 24 m (78 ft)

Identify: 12 m (39 ft)

ANGLE ADJUSTMENT (MANUAL)

Range Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°

ILLUMINATOR

IR LED Quantity: 2

Range: 30m

Wavelength: 850nm

White LED Quantity: 2

Range: 30m

Illuminator On/Off Control Auto/Scheduled/Always on/Always off

VIDEO

Max. Resolution 2880 X 1620

Main Stream Frame Rate:

50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps



Resolution:

2880x1620,2688x1520, 2304x1296, 2048x1280, 1920x1080,1280x720



Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.

Sub-Stream Frame Rate:

50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps



Resolution:

704x576,640x480, 352x288, 320x240



Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.

Bit Rate Control CBR, VBR

Video Compression Main Stream: H.265+/H.265/H.264+/H.264

Sub-Stream: H.265/H.264

H.264 Type Main Profile/High Profile

H.264+ Main Stream Supported

H.265 Type Main Profile?

H.265+ Main Stream Supported?

Video Bit Rate Main Stream: 256 Kbps to 6 Mbps

Sub-Stream: 64 Kbps to 512 Kbps


Image Settings Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software

Image Enhancement BLC/3D DNR/HLC/SmartIR

Wide Dynamic Range 120 dB



Note: When People & Vehicle Analytics is enabled, only DWDR is supported.

SNR ? 52 dB

Image Parameters Switch Yes

Privacy Mask Up to 4 Masks

ROI 1 Region

OSD Setting Yes

AUDIO

Audio Communication Two-Way Audio

Audio Input Yes

Audio Output Yes

Audio Compression Yes

Audio Sampling Rate 8KHz

Environment Noise Filtering Yes

Audio Bit Rate 64 Kbps(G.711 alaw)

NETWORK

Protocol TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS

ONVIF Yes

API Open Network Video Interface (Profile S)

Simultaneous Live View 3 Main Streams & 3 Sub-Streams

Client VIGI App, VIGI Security Manager

Web Browser Google Chrome® 57 and above

Firefox® 52 and above

Safari® 11 and above

Microsoft® Edge 91 and above

Cloud Yes

Security Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

ALARM AND EVENT MANAGEMENT

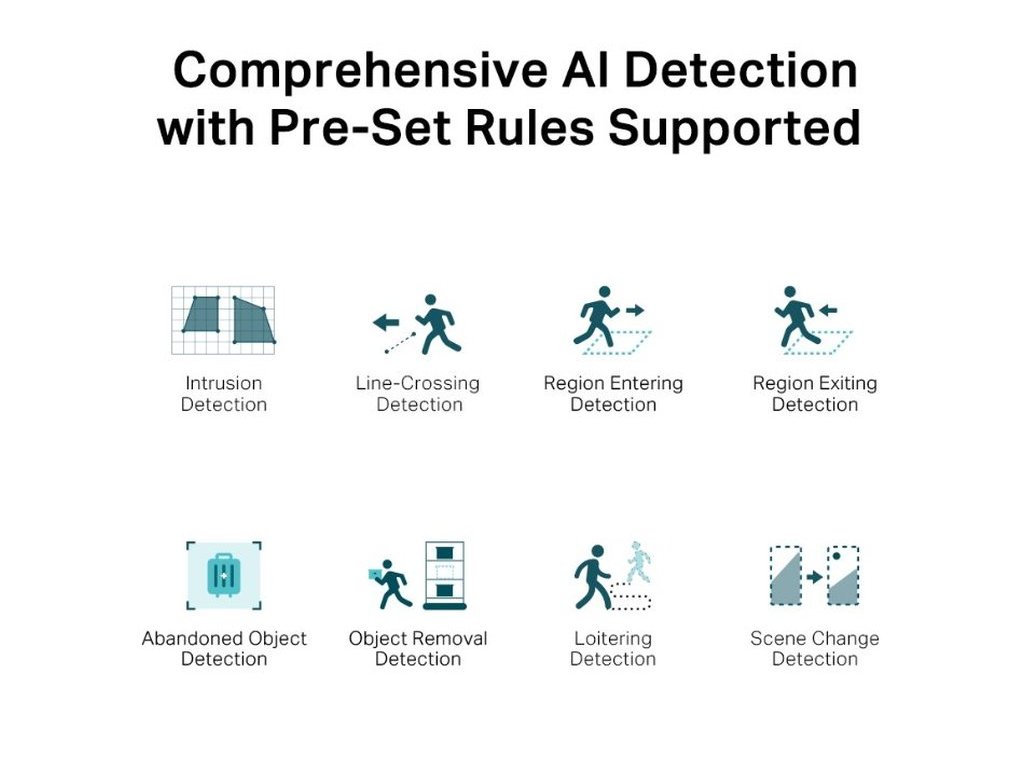

Smart Event Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection, Loitering Detection, Scene Change Detection

Basic Event Motion Detection, Video Tampering Detection, Exception ( Illegal Login), Scene Change Detection

Alarm Linkage Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing

Linkage Method N/A

Output Notification Message Push

DEEP LEARNING FUNCTION

People & Vehicle Analytics Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.

Face Capture N/A

Face Comparison N/A

INTERFACES

Network Interface 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE

Alarm N/A

Reset Button Yes

Power DC Power Port

On-board Storage Built-In Memory Card Slot, Support MicroSD Card, up to 256 GB

Built-in Microphone Yes; Records Anything Going on within a 15-ft Radius of the Camera

Built-in Speaker Yes

Audio N/A

GENERAL

Operating Temperature -30–60 °C

Storage Temperature -40–60 °C

Operating Humidity 95% or Less (Non-Condensing)

Storage Humidity 95% or Less (Non-Condensing)

Package Contents VIGI Network Camera

Quick Start Guide

Waterproof Cable Attachments

Mounting Accessories

Material Plastic

Power Supply 12V DC ± 5%, Max. 9 W, 5.5 mm Coaxial Power Plug

PoE: 802.3af/at, class 0, Max. 10.5 W

Protection IP67

Product Dimensions (L x W x H) 78.42× 186.88× 71.55 mm

Certifications CE, NTRA, VCCI, KC, BSMI, FCC, IC
