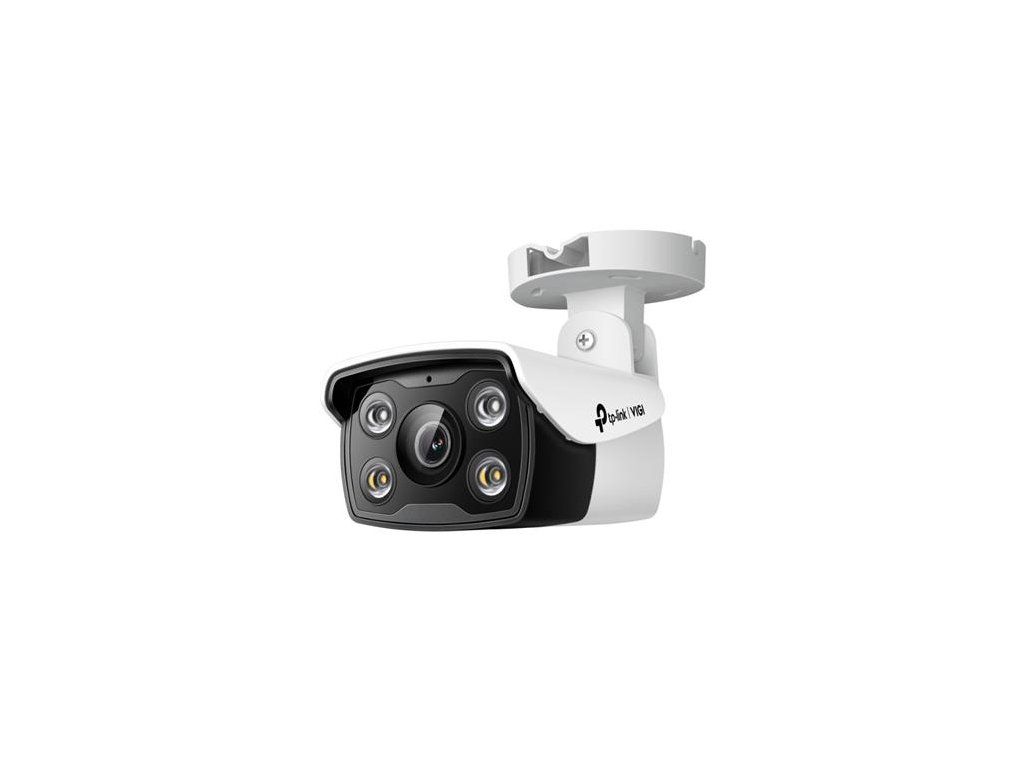

VIGI C340(6mm) 4MP Outdoor barevná Bullet Net Cam TP-link

VIGI C340

VIGI 4 MPx vonkajšia bullet sieťová kamera s plnofarebným nočným videním

Vysoké rozlíšenie 4 MPx: Kamera má rozlíšenie 4 MPx – viac ako dosť pixelov na to, aby zachytila ??niektoré diskrétnejšie detaily.

Nepretržité farebné snímanie: Spoľahnite sa na 24hodinové snímanie farebných detailov aj v čiernočiernej tme vďaka vysoko citlivému snímaču a bielemu LED prísvitu.

Vodeodolnosť : Spoľahlivé krytie IP66 pre stabilnú vonkajšiu prevádzku.

Inteligentná detekcia (detekcia osôb, detekcia pohybu, narušenie priestoru, prekročenie línie, neoprávnená manipulácia s kamerou): Prijímajte oznámenia a kontrolujte videokanály, keď niekto prekročí hranicu, vstúpi do nastavenej oblasti alebo prekáža kamere.

H.265+: Kamery prenášajú komprimovaný krištáľovo čistý obraz bez toho, aby využívali ďalšiu šírku pásma, a šetria tak miesto na disku, znižujú zaťaženie siete a náklady na monitorovanie – to všetko bez zníženia kvality obrazu.

PoE / 12 V DC: Dva spôsoby napájania vám poskytnú nielen väčšie pohodlie, ale aj mimoriadne uľahčia zapojenie.‡

Objektív 2,8/4/6 mm: Kamera C340 sa dodáva s tromi rôznymi typmi objektívov, ktoré lepšie vyhovujú vašim bezpečnostným potrebám, či už potrebujete širokouhlý objektív na pokrytie uzavretých priestorov, alebo dlhší objektív na dlhšie vzdialenosti v otvorených priestoroch.

Aplikácia VIGI: Spravujte svoje zabezpečenie priamo z dlane pomocou aplikácie VIGI.



CAMERA

Image Sensor 1/3” Progressive Scan CMOS

Shutter Speed 1/3 to 1/10000 s

Slow Shutter Yes

Minimum Illumination 0 lux with IR/white Light

Day/Night Mechanism IR Cut Filter

Day/Night Switch Day/Night/Auto/Schedule-Switch

Lens Fixed focal lens (2.8 mm / 4 mm / 6 mm)

Aperture 2.8 mm: F1.6

4 mm: F1.6

6 mm: F1.6

Lens Mount M12

Viewing Angle (2.8mm) Horizontal FOV: 102°, Vertical FOV: 55°, Diagonal FOV: 122°

(4mm) Horizontal FOV: 79°, Vertical FOV: 43°, Diagonal FOV: 93°

(6mm) Horizontal FOV: 50°, vertical FOV: 27°, Diagonal FOV: 59°

IR Working Distance 30m

Illumination Distance 30 m

Weatherproof Rating IP66

Digital Noise Reduction 3D DNR

WDR DWDR

LENS

Type Fixed Focal Lens

Focal Length 2.8 mm/4 mm/6 mm

Aperture 2.8 mm: F1.6

4 mm: F1.6

6 mm: F1.6

FOV 2.8mm:

Horizontal FOV: 102°, Vertical FOV: 55°, Diagonal FOV: 122°



4mm:

Horizontal FOV: 79°, Vertical FOV: 43°, Diagonal FOV: 93°



6mm:

Horizontal FOV: 50°, vertical FOV: 27°, Diagonal FOV: 59°

Lens Mount M12

DORI Distance 2.8 mm

Detect: 64 m (209 ft)

Observe: 27 m (87 ft)

Recognize: 13 m (42 ft)

Identify: 6 m (21 ft)



4 mm

Detect: 80 m (262 ft)

Observe: 33 m (109 ft)

Recognize: 16 m (52 ft)

Identify: 8 m (26 ft)



6 mm

Detect: 128 m (420 ft)

Observe: 53 m (175 ft)

Recognize: 26 m (84 ft)

Identify: 13 m (42 ft)

VIDEO

Max. Resolution 2560 X 1440

Main Stream Frame Rate:

50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps



Resolution:

2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720



Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.

Sub-Stream Frame Rate:

50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps



Resolution:

640x480, 352x288, 320x240



Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.

Bit Rate Control CBR, VBR

Video Compression Main Stream: H.265+/H.265/H.264+/H.264

Sub-Stream: H.265/H.264

H.264 Type Main Profile/High Profile

H.264+ Main Stream Supported

H.265 Type Main Profile

H.265+ Main Stream Supported

Video Bit Rate Main Stream: 256 Kbps to 4 Mbps

Sub-Stream: 64 Kbps to 512 Kbps

ILLUMINATOR

IR LED Quantity: 2

Range: 30m

Wavelength: 850nm

White LED Quantity: 2

Range: 30m

Illuminator On/Off Control Auto/Scheduled/Always on/Always off

ANGLE ADJUSTMENT (MANUAL)

Range Pan: -90° to 90°,

Tilt: -90° to 90°


Image Settings Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°)

Image Enhancement BLC/3D DNR/HLC/SmartIR

Wide Dynamic Range DWDR

SNR ? 52 dB

Image Parameters Switch Yes

Privacy Mask Up to 4 Masks

ROI 1 Region

OSD Setting Yes

AUDIO

Audio Communication Two-Way Audio

Audio Input Yes

Audio Output Yes

Audio Compression Yes

Audio Sampling Rate 8KHz

Environment Noise Filtering Yes

Audio Bit Rate 64 Kbps(G.711 alaw)

NETWORK

Security Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

Network Storage NAS (NFS, SMB/ CIFS)

Protocol TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS

API ONVIF

Simultaneous Live View 3 Main Streams & 3 Sub-Streams

Client VIGI App, VIGI Security Manager

Web Browser Google Chrome® 57 and above

Firefox® 52 and above

Safari® 11 and above

Microsoft® Edge 91 and above

Cloud Yes

ONVIF Yes

INTERFACES

Network Interface 1 RJ45 10/100M Self-Adaptive Ethernet Port

Audio Input Built-in Microphone

Audio Output Built-in Speaker

Alarm N/A

Reset Button Yes

Power DC Power Port

Button Reset Button

On-board Storage Built-In Memory Card Slot, Support MicroSD Card, Up to 256 GB

Built-in Microphone Yes; Records Anything Going on within a 15-ft Radius of the Camera

Built-in Speaker Yes

Audio N/A

ALARM AND EVENT MANAGEMENT

Smart Event Area Intrusion Detection, Line-Crossing Detection, People Detection

Basic Event Motion Detection, Video Tampering Detection, Exception ( Illegal Login)

Alarm Linkage Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing

Linkage Method N/A

Output Notification Message Push

GENERAL

Package Contents VIGI Network Camera

Quick Start Guide

Waterproof Cable Attachments

Mounting Accessories

Operating Temperature -30–60 °C

Storage Temperature -40–60 °C

Storage Humidity 95% or Less (Non-Condensing)

Operating Humidity 95% or Less (Non-Condensing)

Dimensions( H X W X D ) 78 × 70 × 174 mm

Material Plastic

Weight 195g

General Features Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening

Net Weight 0.28 Kg

Gross Weight 0.42 Kg

Power Consumption 12V DC: Max 7.5W

PoE: Class 0

Power Supply 12V DC ± 5%, 5.5mm Coaxial Power Plug

PoE (802.3af/at, class 0)

Protection IP66

Product Dimensions (L x W x H) 78× 174 × 70 mm

Certifications CE, RCM, BSMI, VCCI, RoHS, NTRA, KC

VIDEO/IMAGE

Video Compression Main stream: H.265+/H.265/H.264+//H.264

Sub-Stream: H.265/H.264

Frame Rate & Resolutions Main Stream

Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080



Sub-Stream

Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution: 640x480, 352x288, 320x240

Video Streaming Main Stream

Sub-Stream

Image Settings Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software

Image Enhancement BLC/3D DNR/Prevent Overexposure to Infrared Light

Video Bit Rate Main Stream: 256 Kbps to 4 Mbps

Sub-Stream: 64 Kbps to 512 Kbps

SMART FEATURE-SET

Smart Event Area Intrusion Detection, Line-Crossing Detection, Human Detection

Basic Event Motion Detection, Camera Tampering Detection, Exception ( illegal login)

Linkage Method Trigger Notification: ONVIF, HTTPS

Region of Interest 1 Region
