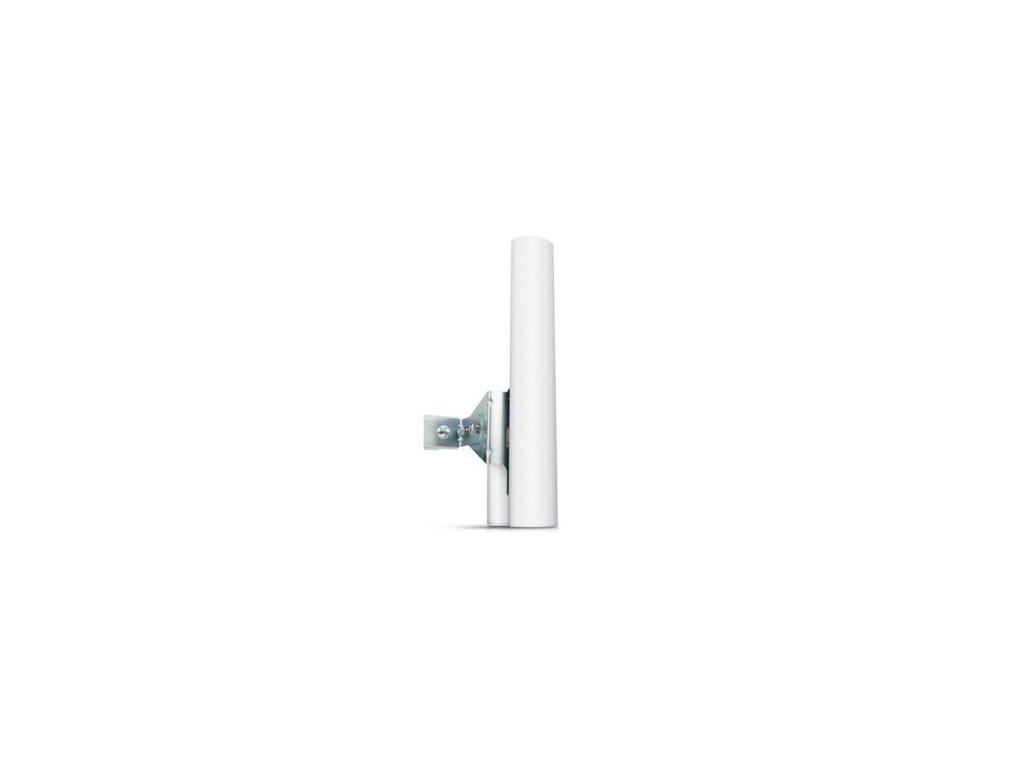

UBNT sektor.anténa 5GHz MIMO 17dBi 90° rocket kit AM-5G17-90 Ubiquiti
5 GHz, 90º, 17 dBi antenna for sector coverage in Point-to-MultiPoint (PtMP) networks.
2x2 dual-polarity performance
Robust mechanical design for outdoor application use
Compatible with Rocket Prism 5AC
Technical Specifications
AM-5G17-90
Dimensions 367 x 63 x 41 mm (14.4 x 2.5 x 1.6")
Weight 1.1 kg (2.4 lb)
Frequency Range 4.90 - 5.85 GHz
Gain 16.1 - 17.1 dBi
HPOL Beamwidth 72° (6 dB)
VPOL Beamwidth 93° (6 dB)
Electrical Beamwidth 8°
Electrical Downtilt 4°
Max. VSWR 1.5:1
Wind Survivability 200 km/h (125 mph)
Wind Loading 26 N @ 160 km/h (6 lbf @100 mph)
Polarization Dual-Linear
Cross-pol Isolation 22 dB Min.
ETSI Specification EN 302 326 DN2
Mounting Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included
Dodatočné parametre
| Kategória: | WIFI antény a príslušenstvo |
|---|---|
| Záruka: | 24 mesiacov |
| Hmotnosť: | 1.35 kg |
