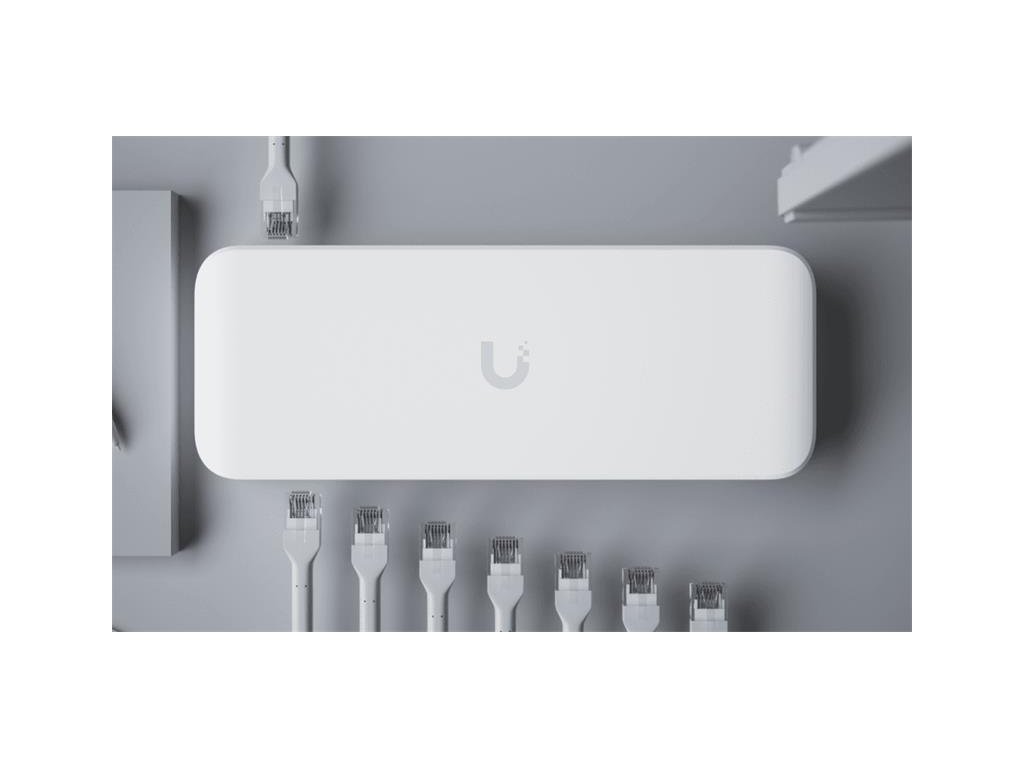

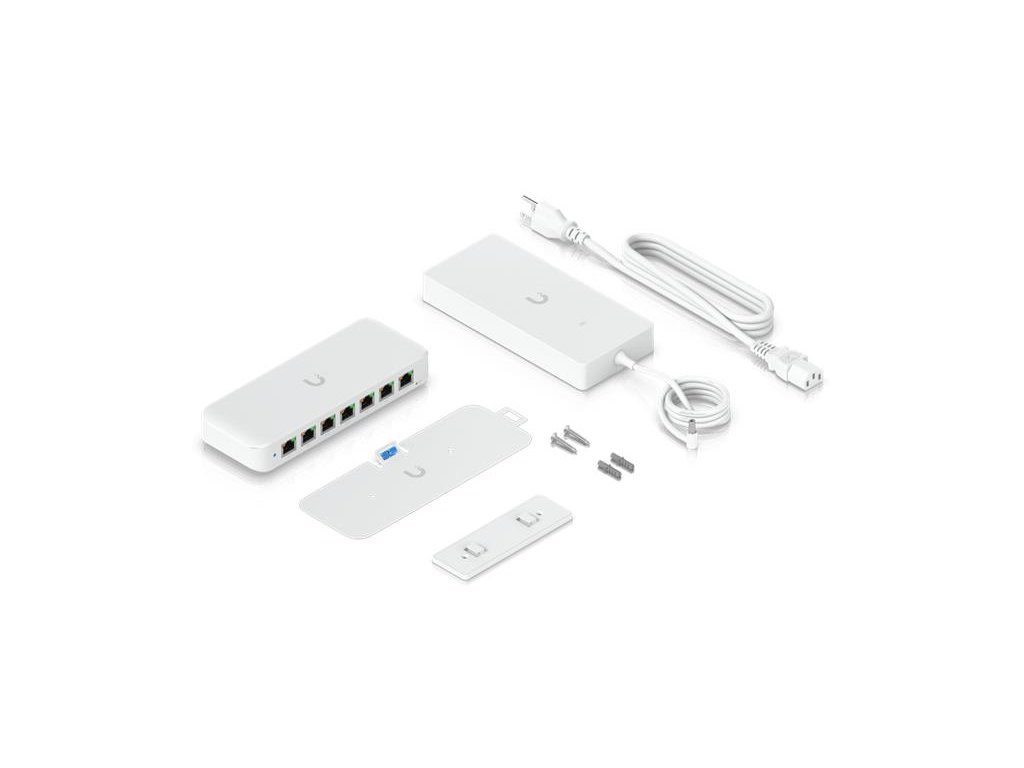

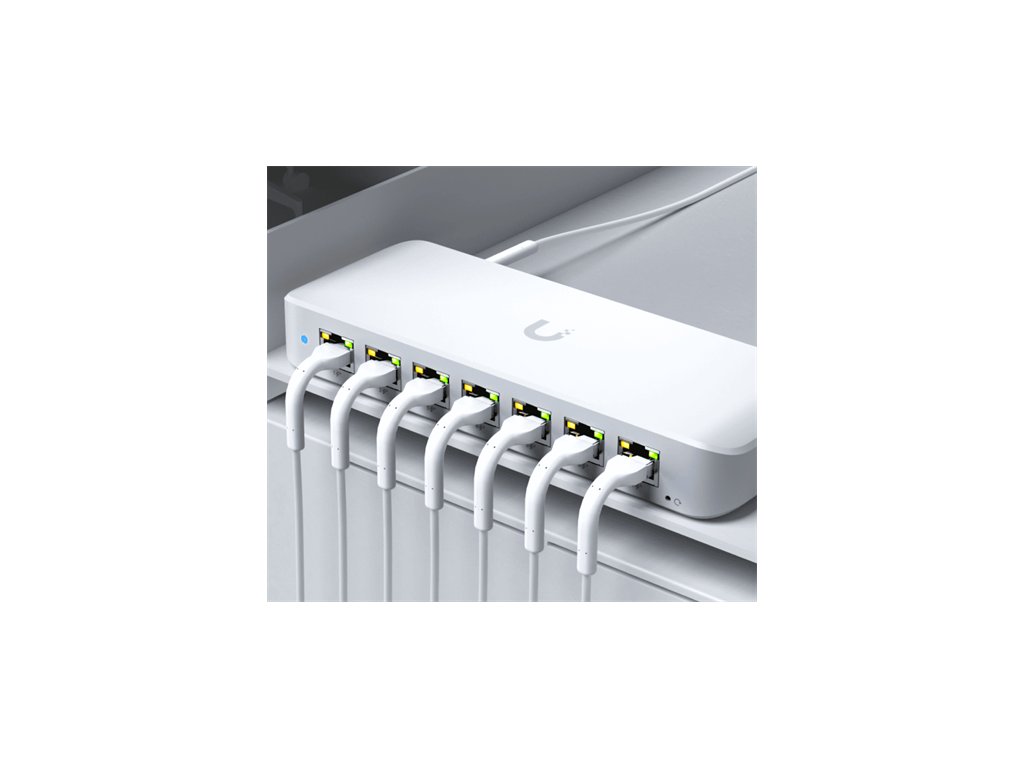

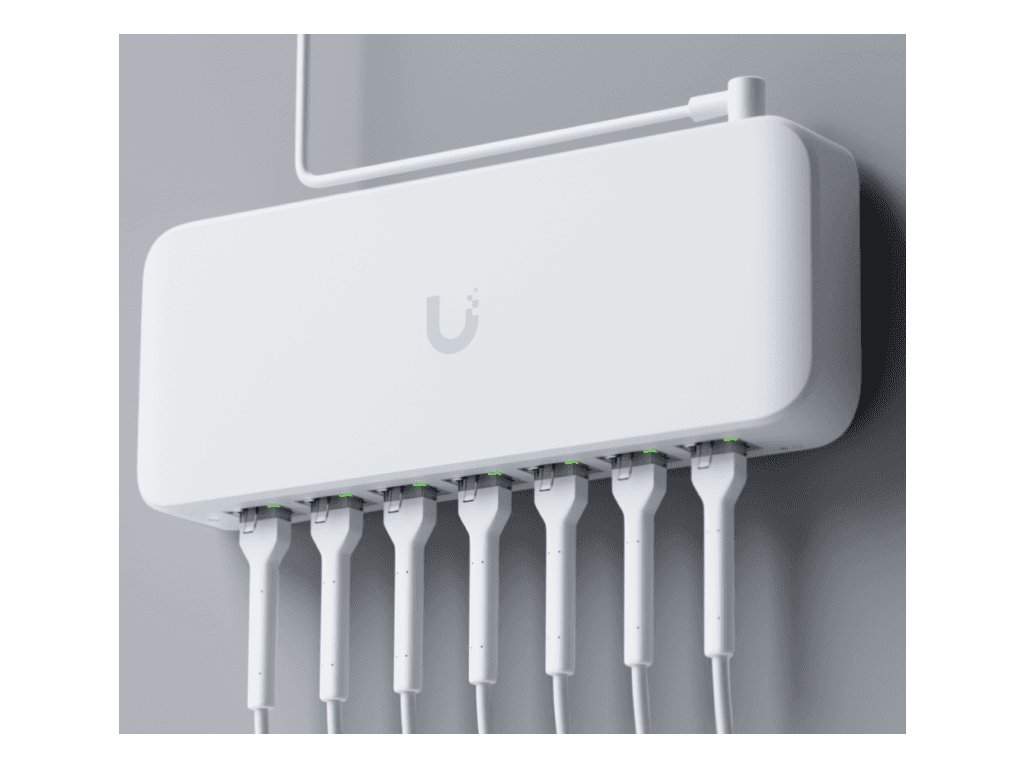

Ubiquiti USW-Ultra-210W, Switch Ultra 210W

Popis produktu

Technical Specifications



Mechanical

Dimensions 203 x 76 x 33 mm (8 x 3 x 1.3")

Weight Device: 320 g (11.3 oz)

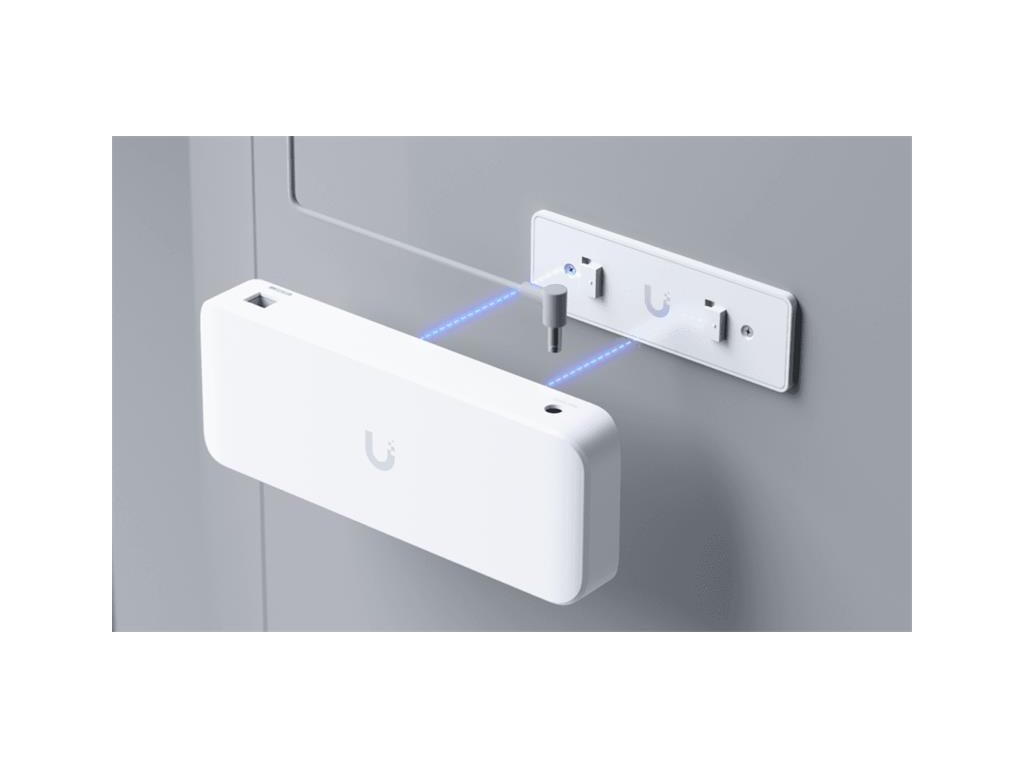

Wall mount: 45 g (1.6 oz)

210W adapter: 770 g (1.7 lb)

Enclosure material Polycarbonate



Hardware

Management interface Ethernet In-Band

Networking interface (8) GbE RJ45 ports

PoE interface (7) PoE/PoE+ (Pins 1, 2+; 3, 6-)

(1) PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)

Total non-blocking throughput 8 Gbps

Switching capacity 16 Gbps

Power method (1) 54V, 3.9A power adapter (Included)

PoE++ (Pins 1, 2+; 3, 6- and 4, 5+; 7, 8-)

Power supply 54V, external, 3.9A/210W

Supported voltage range 44—57V DC

Max. power consumption 9W with PoE input (Excluding PoE output)

8W with AC adapter input (Excluding PoE output)

Total available PoE PoE++ input: 42W

PoE+ input: 16W

60W PoE adapter input: 42W

60W AC adapter input: 52W

210W AC adapter input: 202W*

*At 45° C (113° F) operating temperature. Reduced to 161W (230V) or 121W (115V) at 60° C (140° F)

Max. PoE+ wattage per port by PSE  30W

Button Factory reset

Ambient operating temperature PoE++ input: -30 to 60° C (-22 to 140° F)

60W AC adapter input: -20 to 45° C (-4 to 113° F)

210W AC adapter input: -20 to 60° C (-4 to 140° F)

Ambient operating humidity 10 to 90% noncondensing

Certifications CE, FCC, IC



Switching Features

Layer 2 features

Port isolation

Storm control

Port mirroring

Multicast / broadcast rate limiting

Flow control

Jumbo frames

Egress rate limit



LEDs

System Status

Ethernet PoE

Link/activity



Application Requirements

UniFi Network  Version 8.0.7 and later
