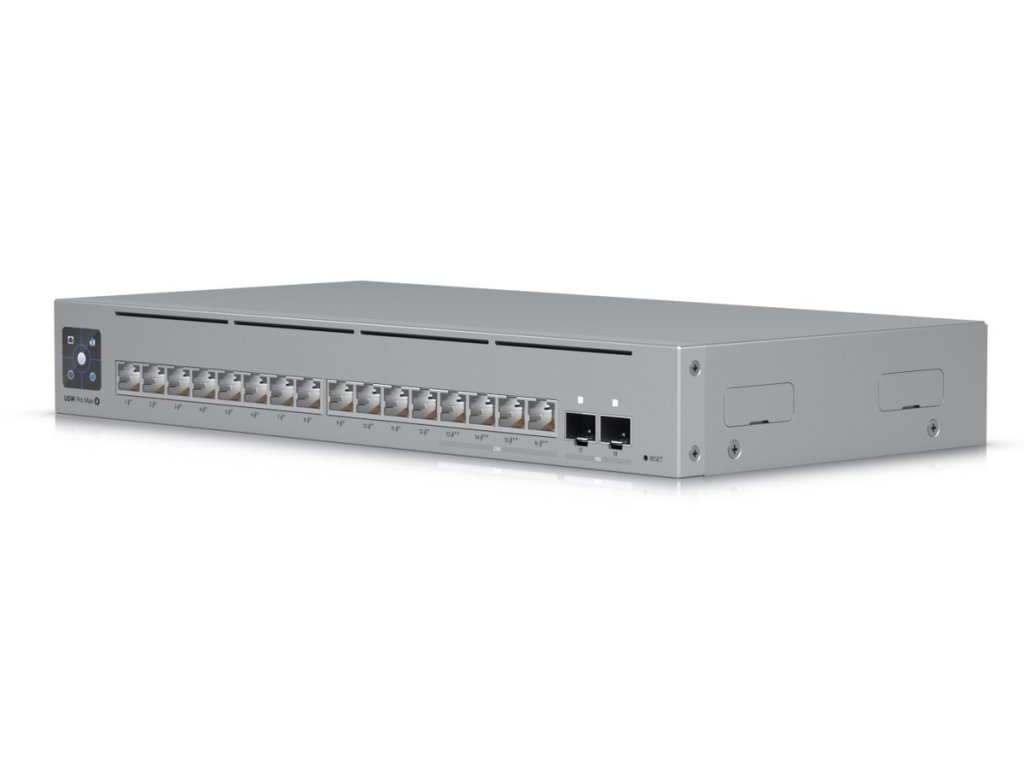

Ubiquiti USW-Pro-Max-16-PoE, UniFi Switch Pro Max 16 PoE

Popis produktu

A 16-port, Layer 3 Etherlighting™ switch with 2.5 GbE, PoE++ output, and versatile mounting options.

Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*

(4) 2.5 GbE PoE++ ports

(12) GbE PoE+ ports

(2) 10G SFP+ ports

180W total PoE availability

Versatile desktop, wall, and rack** mounting

Silent, fanless cooling system

*Pair with UniFi Etherlighting Patch Cables for optimal brightness.

**Requires add-on Rack Mount accessory.

Mechanical

Dimensions 325.1 x 160 x 43.7 mm (12.8 x 6.3 x 1.7")

Weight 2.1 kg (4.6 lb)

Enclosure material SGCC steel



Hardware

Management interface Ethernet In-Band

Networking interface (12) GbE RJ45 ports

(4) 1/2.5 GbE RJ45 ports

(2) 10G SFP+ ports

PoE interface (12) PoE/PoE+ (Pins 1, 2+; 3, 6-)

(4) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)

Total non-blocking throughput 42 Gbps

Switching capacity 84 Gbps

Forwarding rate 62.496 Mpps

Power method DC adapter

Power supply 54V, 210W

Max. power consumption 30W (Excluding PoE output)

Total available PoE 180W

Max. PoE wattage per port by PSE PoE: 15.4W

PoE+: 30W

PoE++: 60W

Voltage range PoE mode PoE: 44—57V

PoE+/PoE++: 50—57V

LCM display (1) 1.3" touchscreen

Button Factory reset

Ambient operating temperature -5 to 40° C (23 to 104° F)

Ambient operating humidity 10 to 90% noncondensing

Certifications CE, FCC, IC



Switching Features

Layer 2 features IGMP snooping

STP / RSTP with priorities and port-level disable

Port isolation

Storm control

Voice VLAN

Port mirroring

LACP port aggregation

Multicast / broadcast rate limiting

MAC address blocking

Flow control

802.1X control

Jumbo frames

Proprietary loop protection

DHCP snooping / guarding

Egress rate limit

LLDP-MED

Port restricted by MAC

Device isolation with ACLs



Layer 3 features

DHCP for locally-managed networks

DHCP relay

Inter-VLAN routing between networks on same switch

Static routing between local networks

Network isolation with ACLs

Etherlighting™

Ethernet Locating

Speed/link

Native VLAN/network

SFP+ Locating

Speed/link

Native VLAN/network



Application Requirements

UniFi Network Version 8.1.127 and later
