Ubiquiti USW-Pro-8-PoE UniFi Switch Pro 8 PoE

Popis produktu

Technical Specifications



Mechanical

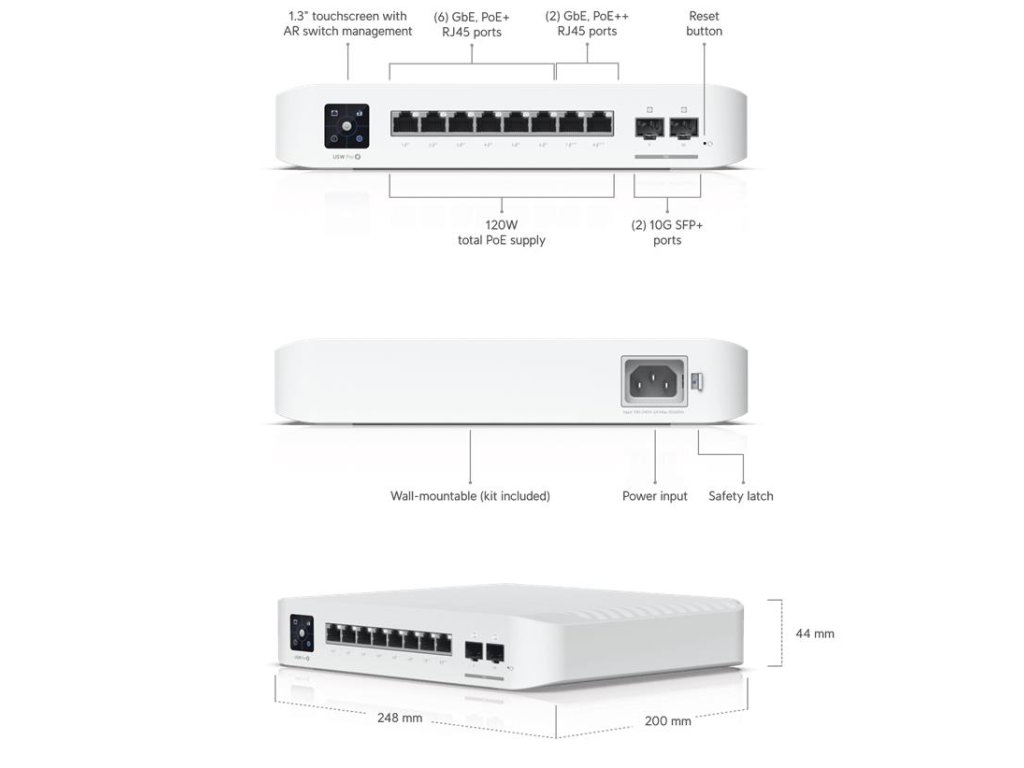

Dimensions 200 x 248 x 44 mm (7.9 x 9.8 x 1.7")

Weight 2.1 kg (4.6 lb)

Enclosure materials Polycarbonate, metal

Mount material Polycarbonate



Hardware

Management interface Ethernet In-Band

Networking interface (8) GbE RJ45 ports

(2) 10G SFP+ ports

PoE interface (6) PoE/PoE+ (Pins 1, 2+; 3, 6-)

(2) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)

Total non-blocking throughput 28 Gbps

Switching capacity 56 Gbps

Power method Universal input, 100—240V AC, 2A Max.

Power supply AC/DC, internal

Supported voltage range 100—240V AC

Max. power consumption 30W (Excluding PoE output)

Total available PoE 120W

Max. PoE wattage per port by PSE  PoE: 15W

PoE+: 30W

PoE++: 60W

Voltage range PoE mode  PoE: 44—57V

PoE+: 50—57V

PoE++: 50—57V

LCM display  (1) 1.3" touchscreen

LEDs  RJ45 ports: link/activity

Button Factory reset

Ambient operating temperature -5 to 45° C (23 to 113° F)

Ambient operating humidity 10 to 90% noncondensing

Certifications CE, FCC, IC



Switching Features

Layer 2 features

IGMP snooping

STP / RSTP with priorities and port-level disable

Port isolation

Storm control

Voice VLAN

Port mirroring

LACP port aggregation

Multicast / broadcast rate limiting

MAC address blocking

Flow control

802.1X control

Jumbo frames

Proprietary loop protection

DHCP snooping / guarding

Egress rate limit

LLDP-MED

Port restricted by MAC

Device isolation with ACLs

Layer 3 features

DHCP for locally-managed networks

DHCP relay

Inter-VLAN routing between networks on same switch

Static routing between local networks



Application Requirements

UniFi Network  Version 7.5.176 and later
