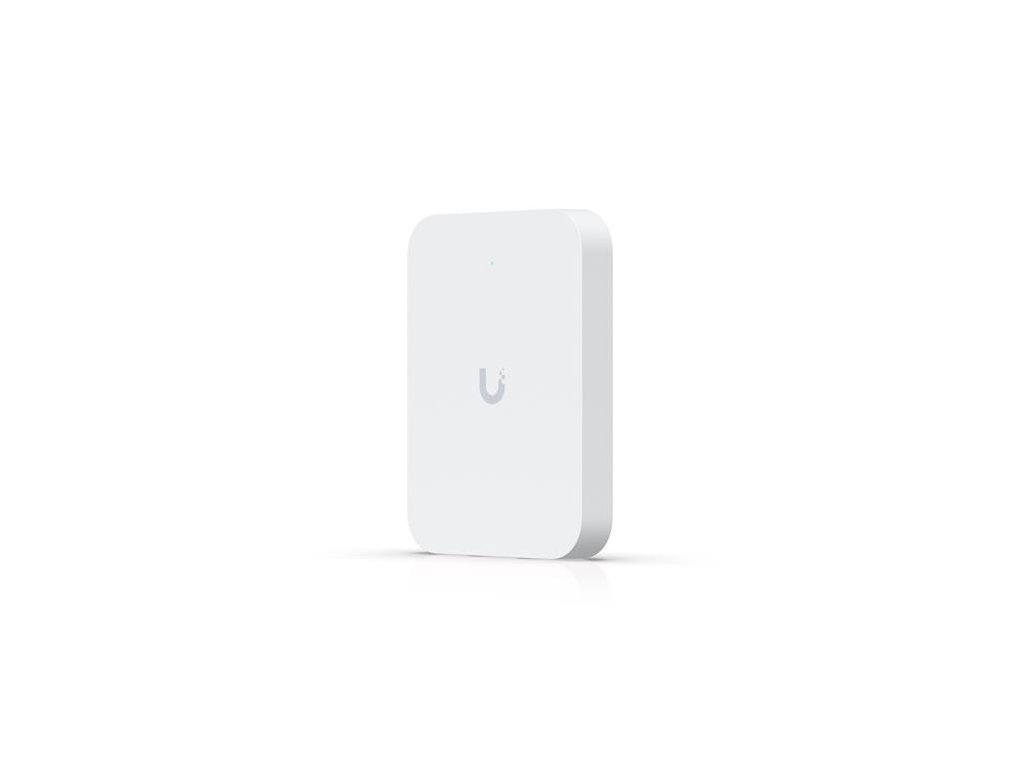

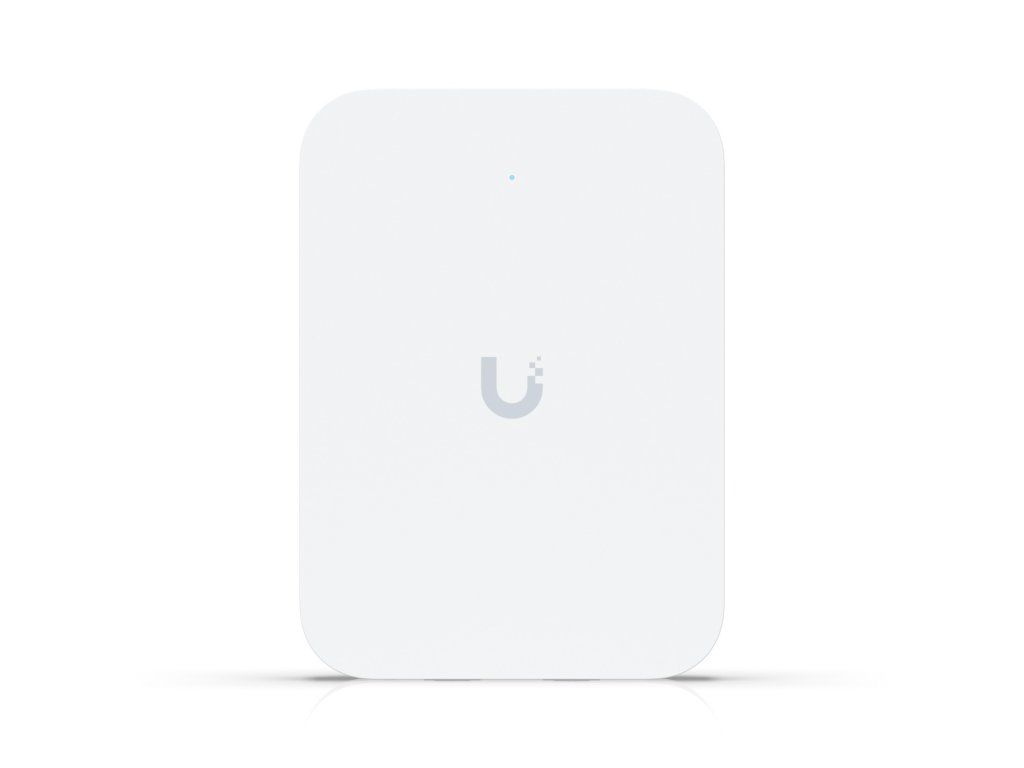

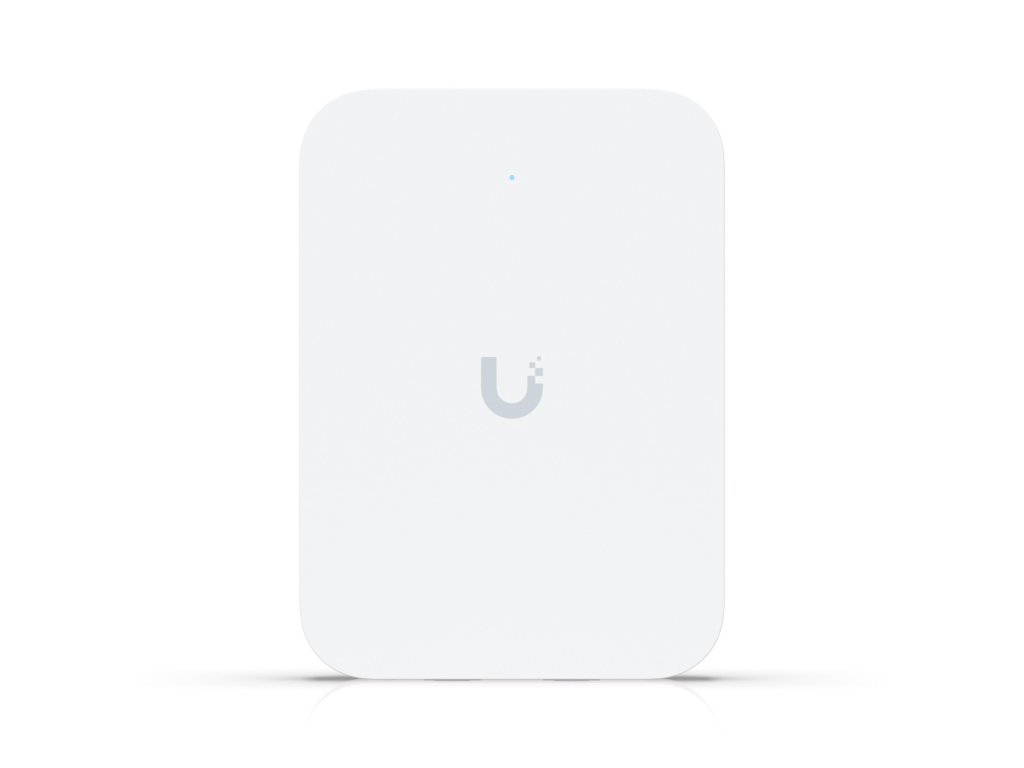

Ubiquiti UniFi AP 7 In Wall WiFi7 (688/43000/---Mbps) U7-IW

Popis produktu

Nástěnný WiFi 7 AP se 4 samostatnými streamy a s integrovaným switchem - 2x port 2.5 GbE PoE

- WiFi 7

- 4 samostatné streamy

- pokrytí 115 m2

- 200+ připojených zařízení

- napájeno přes POE *)

-  2.5 GbE uplink

*) PoE+ výstup na jednom portu

Technical Specifications

Mechanical

Dimensions 137 x 98.7 x 30.2 mm (5.4 x 3.9 x 1.2")

Weight 400 g (14.1 oz)

Enclosure material Polycarbonate, aluminum

Mount material Aluminum



Hardware

Networking interface (3) 1/2.5 GbE RJ45 ports

Management interface Ethernet

PoE interface (1) PoE+ input

(1) PoE output

Power method PoE

PoE+ (Required for PoE output)

Power supply UniFi PoE switch

Supported voltage range 42.5—57V DC

Max. power consumption 13W (Excluding PoE output)

Max. PoE wattage per port by PSE 12W

Max. TX power

2.4 GHz   23 dBm

5 GHz   24 dBm

6 GHz    -



MIMO

2.4 GHz   2 x 2 (DL/UL MU-MIMO)

5 GHz   2 x 2 (DL/UL MU-MIMO)

6 GHz    –



Max. data rate

2.4 GHz   688 Mbps (BW40)

5 GHz   4.3 Gbps (BW240*)

6 GHz    –



*Depends on regulatory region.

Antenna gain

2.4 GHz   4 dBi

5 GHz   8 dBi

6 GHz   --



LEDs White/blue

Button Factory reset

Mounting Wall (Included)

Ambient operating temperature -30 to 40° C (-22 to 104° F)

Ambient operating humidity 5 to 95% noncondensing

Certifications CE, FCC, IC



Software

WiFi standards 802.11a/b/g/n/ac/ax/be (WiFi 6, WiFi 7)

Wireless security WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)

BSSID 8 per radio

VLAN 802.1Q

Advanced QoS Per-user rate limiting

Guest traffic isolation Supported

Concurrent clients 200+



Supported Data Rates

802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11b 1, 2, 5.5, 11 Mbps

802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

802.11ac 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)

802.11ax (WiFi 6) 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)

802.11be (WiFi 7) 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240*)

*Depends on regulatory region.



Application Requirements

UniFi Network Version x and later

UniFi OS iOS™ version 10.20.0 and later

Android™ version 10.21.3 and later
