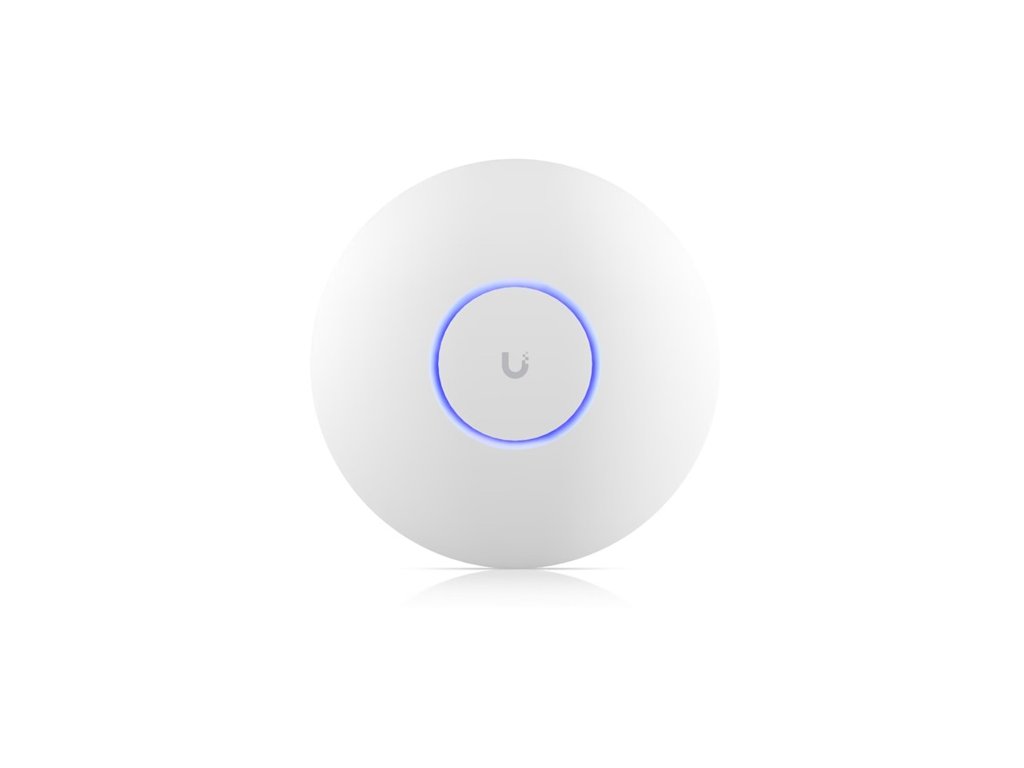

Ubiquiti UniFi 6 PRO Access Point (573,5Mbps/4800Mbps) indoor U6-Pro

Indoor, dual-band WiFi 6 access point that can support over 300 clients with its 5.3 Gbps aggregate throughput rate.

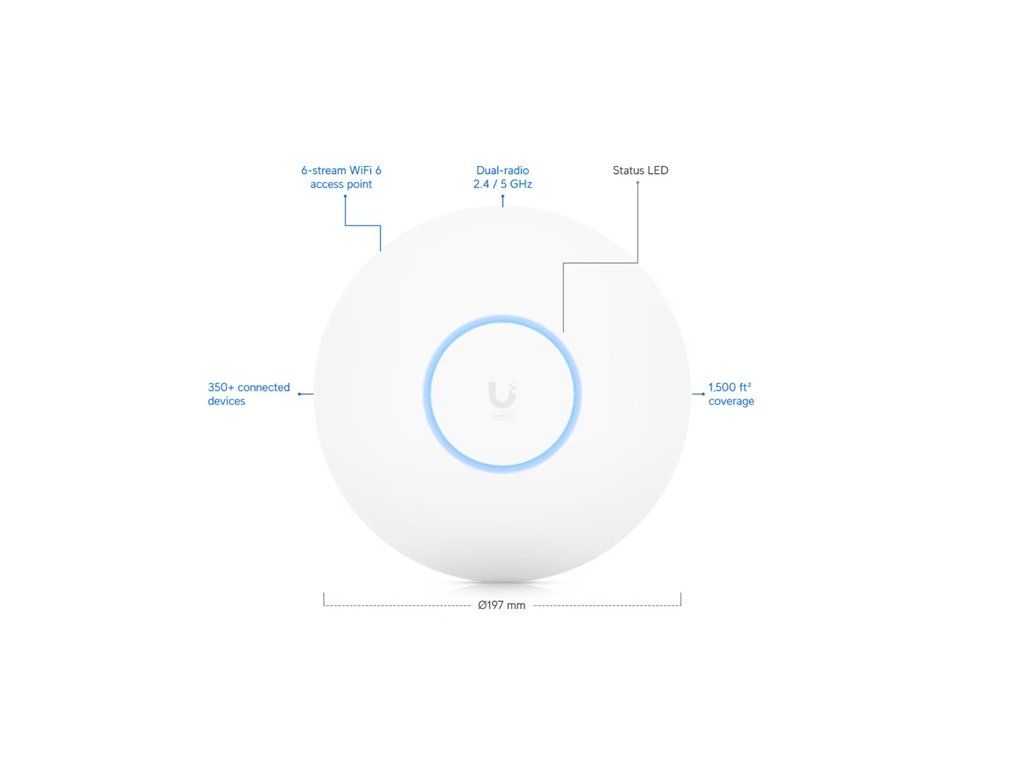

The Access Point WiFi 6 Pro (U6 Pro) is a high-performance, dual-band WiFi 6 access point ideal for home and office use. The U6 Pro is capable of reaching an aggregate throughput rate up to 5.3 Gbps with its 5 GHz (4x4 MIMO) and 2.4 GHz (2x2 MIMO) bands, which allows it to support over 300 concurrently connected clients while maintaining an even, reliable wireless experience across your entire network. It can also isolate your guest traffic to ensure optimal security and speed. The U6 Pro also operates at full 4x4 MIMO with 160 MHz channels to create high-capacity wireless uplinks and facilitate faster data transfer. It can be set up in minutes and fully managed with the UniFi Network application*.



Technical Specifications

Mechanical

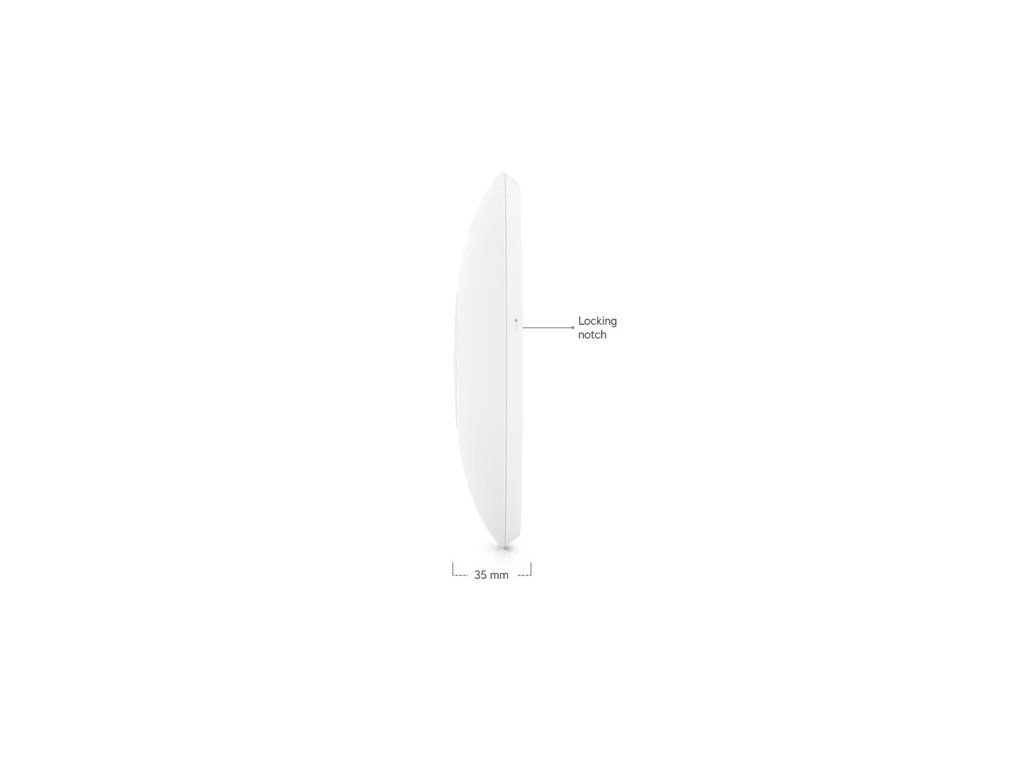

Dimensions O197 x 35 mm (O7.76 x 1.38")

Weight Without mount: 460 g (1.01 lb)

With mount: 600 g (1.32 lb)

Enclosure material Polycarbonate

Mount material Stainless steel (SUS304)

Weatherproofing IP54

Hardware

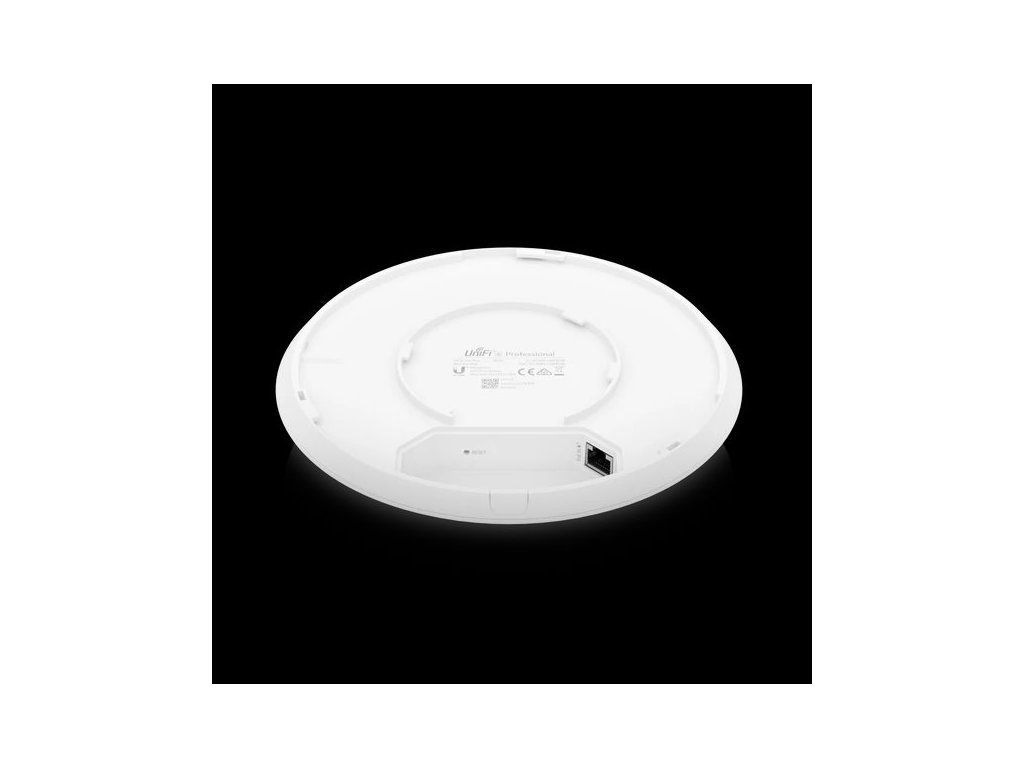

Networking interface (1) GbE RJ45 port

Management interface Ethernet

Bluetooth

Power method PoE

Power supply UniFi PoE switch

48V, 0.5A PoE adapter (not included)

Supported voltage range 44—57V DC

Max. power consumption 13W

Max. TX power

2.4 GHz

5 GHz

22 dBm

26 dBm

MIMO

2.4 GHz

5 GHz

2 x 2 (UL MU-MIMO)

4 x 4 (DL/UL MU-MIMO)

Throughput rate

2.4 GHz

5 GHz

573.5 Mbps

4.8 Gbps

Antenna gain

2.4 GHz

5 GHz

4 dBi

6 dBi

LEDs White/blue

Button Factory reset

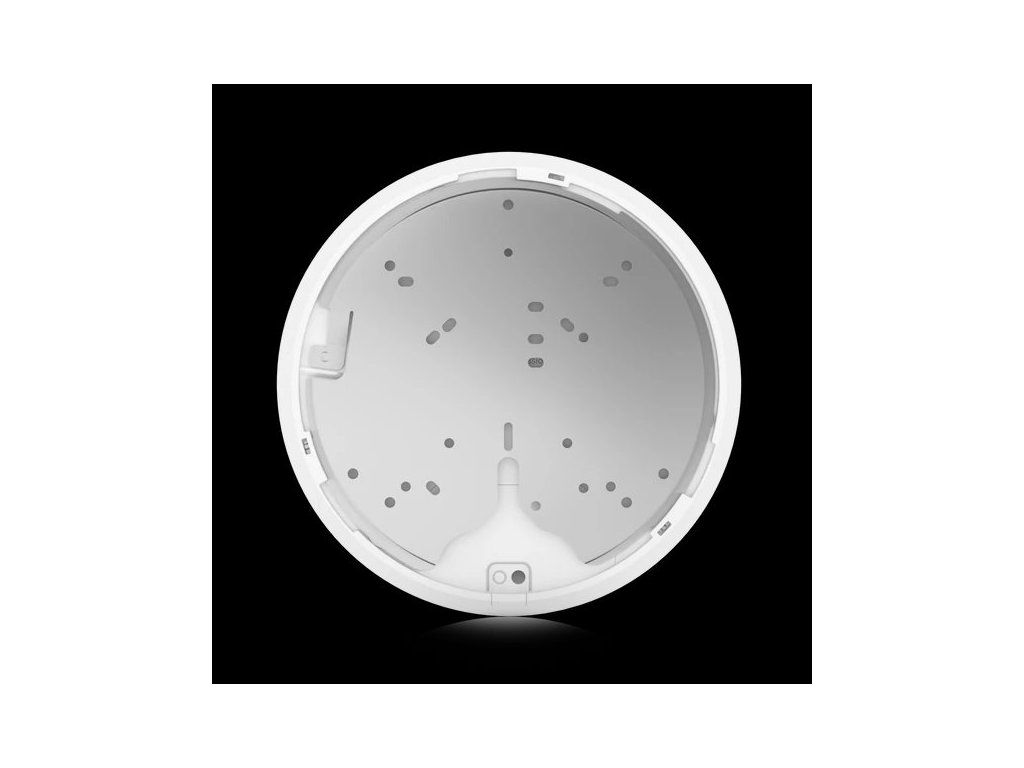

Mounting Wall/ceiling (Included)

Operating temperature -30 to 60° C (-22 to 140° F)

Operating humidity 5 to 95% noncondensing

Certifications CE, FCC, IC

Software

WiFi standards 802.11a/b/g

WiFi 4/WiFi 5/WiFi 6

Wireless security WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)

BSSID 8 per radio

VLAN 802.1Q

Advanced QoS Per-user rate limiting

Guest traffic isolation Supported

Concurrent clients 350+

Zero wait DFS Yes*

*Supported with upcoming firmware versions

Supported Data Rates

802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11b 1, 2, 5.5, 11 Mbps

802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n (WiFi 4) 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)

802.11ac (WiFi 5) 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)

802.11ax (WiFi 6) 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)

Application Requirements

UniFi Network Version 6.1.56 and later
