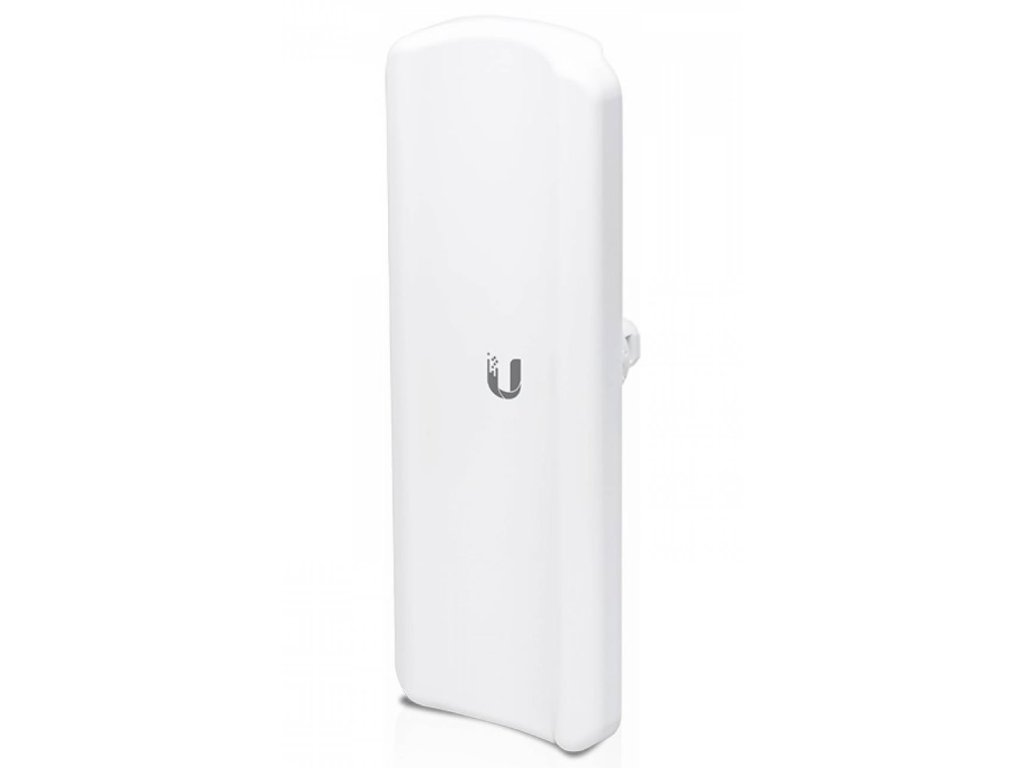

Ubiquiti UISP airMAX Lite AC AP, 5 GHz, GPS Access Point (LAP-GPS)

Powerful and affordable 5 GHz sector access point. GPS synchronized units provide up to 450+ Mbps data throughput.

Integrated 5 GHz antenna, 12+ km link range

450+ Mbps throughput

50+ client capacity

Dedicated spectral analysis radio

Integrated GPS sync

Technical Specifications

Mechanical

Dimensions 361 x 124.6 x 71.3 mm (14.2 x 4.9 x 2.8")

Weight 752 g (1.66 lb)

Wind survivability 200 km/h (125 mph)

Wind loading 77 N at 200 km/h (17.3 lbf at 125 mph)

Hardware

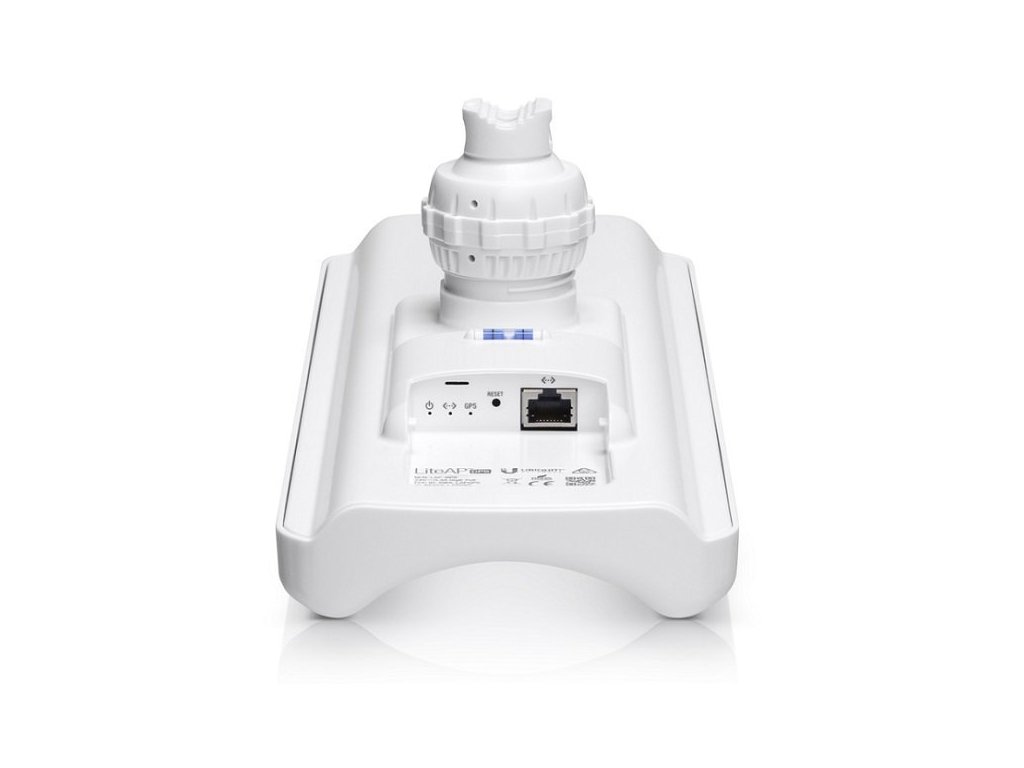

Networking interface (1) GbE RJ45 port

Power method Passive PoE 2-pair (4, 5+; 7, 8 return)

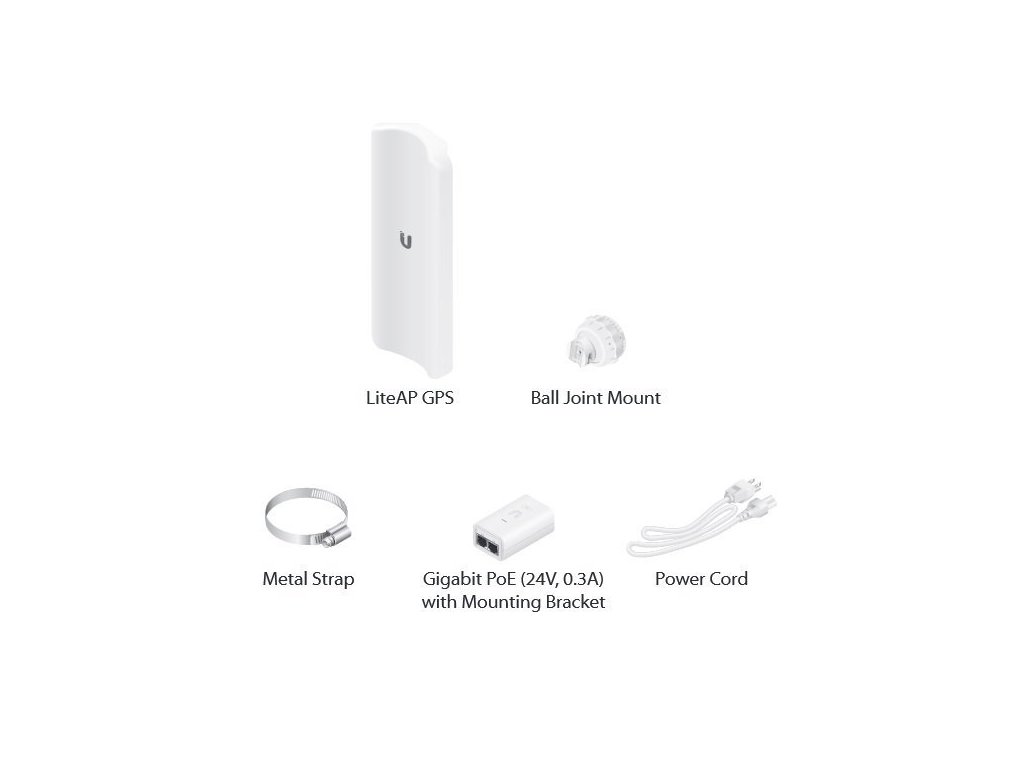

Power supply 24V, 0.3A gigabit PoE adapter (Included)

Supported voltage range 20—27V DC

Max. power consumption 7.1W

Max. TX power 25 dBm

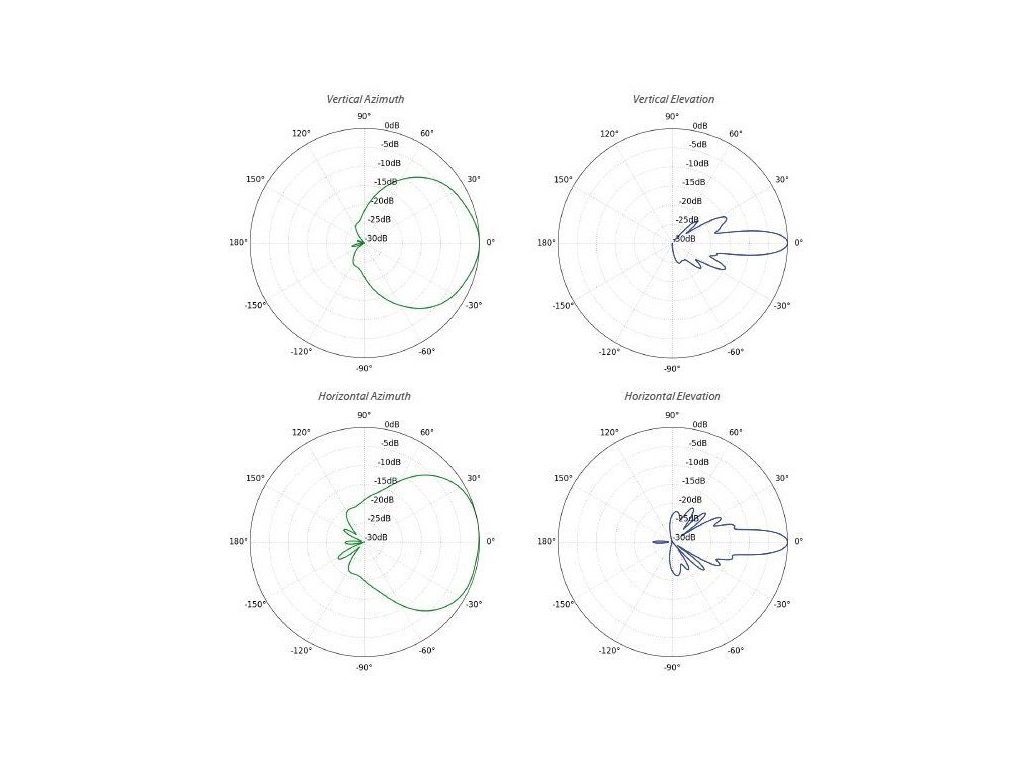

Antenna gain 17 dBi

ESD/EMP protection Air/contact ± 24kV

Shock and vibrations ETSI300-019-1.4

Ambient operating temperature -40 to 70° C (-40 to 158° F)

Ambient operating humidity 5 to 95% noncondensing

Certifications CE, FCC, IC

Operating Frequency (MHz)

Worldwide 5150-5875 MHz

USA

U-NII-1 5150-5250 MHz

U-NII-2A 5250-5350 MHz

U-NII-2C 5240-5725 MHz

U-NII-3 5725-5850 MHz



Management Radio (MHz)

US/CA 2412 - 2462 MHz

Worldwide 2412 - 2472 MHz
