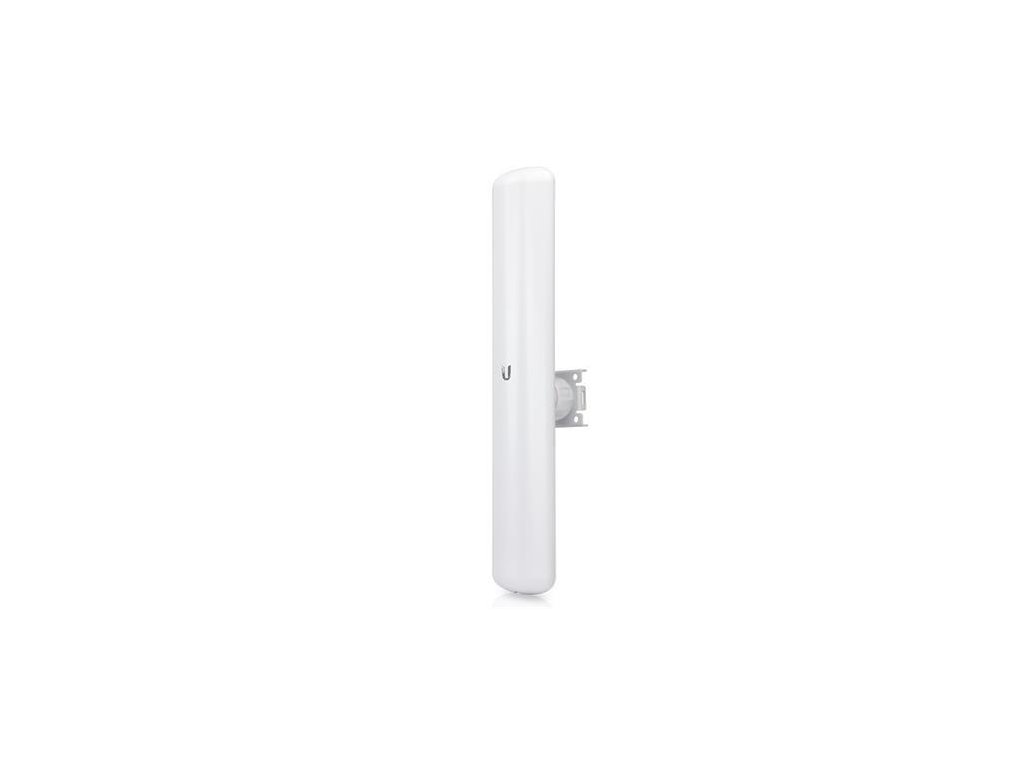

Ubiquiti LiteAP 5AC-16-120, LAP-120, 120°

Ultra-lightweight, 5 GHz access point with a versatile, ball-join mount.

Integrated 5 GHz antenna, 10+ km link range

450+ Mbps throughput

50+ client capacity

Dedicated spectral analysis radio

Technical Specifications

Mechanical

Dimensions 452.3 x 78.7 x 54.4 mm (17.8 x 3.1 x 2.14")

Weight 420 g (14.82 oz)

Wind survivability 200 km/h (125 mph)

Wind loading 77 N at 200 km/h (17.3 lbf at 125 mph)

Hardware

Networking interface (1) GbE RJ45 port

Power method Passive PoE 2-pair (4, 5+; 7, 8 return)

Power supply 24V, 0.5A gigabit PoE adapter (Included)

Supported voltage range 20—27V DC

Max. power consumption 8W

Antenna gain 16 dBi

ESD/EMP protection Air/contact ± 24kV

Shock and vibrations ETSI300-019-1.4

Ambient operating temperature -40 to 70° C (-40 to 158° F)

Ambient operating humidity 5 to 95% noncondensing

Certifications CE, FCC, IC

Operating Frequency (MHz)

Worldwide 5150-5875 MHz

USA

U-NII-1 5150-5250 MHz

U-NII-2A 5250-5350 MHz

U-NII-2C 5240-5725 MHz

U-NII-3 5725-5850 MHz
