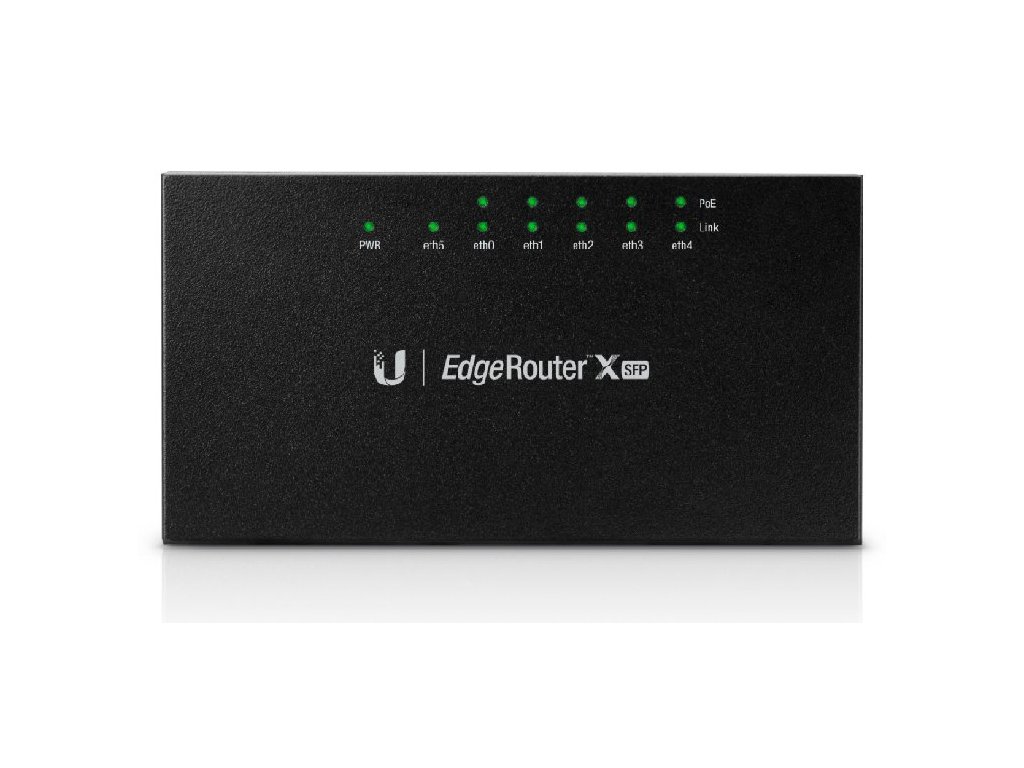

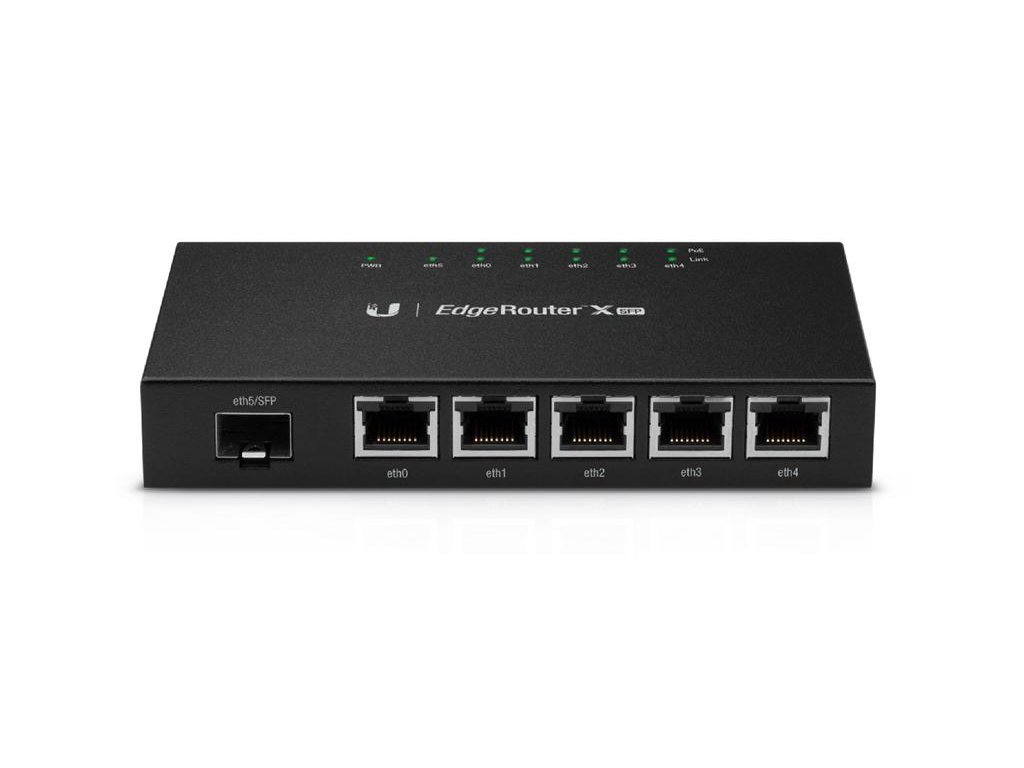

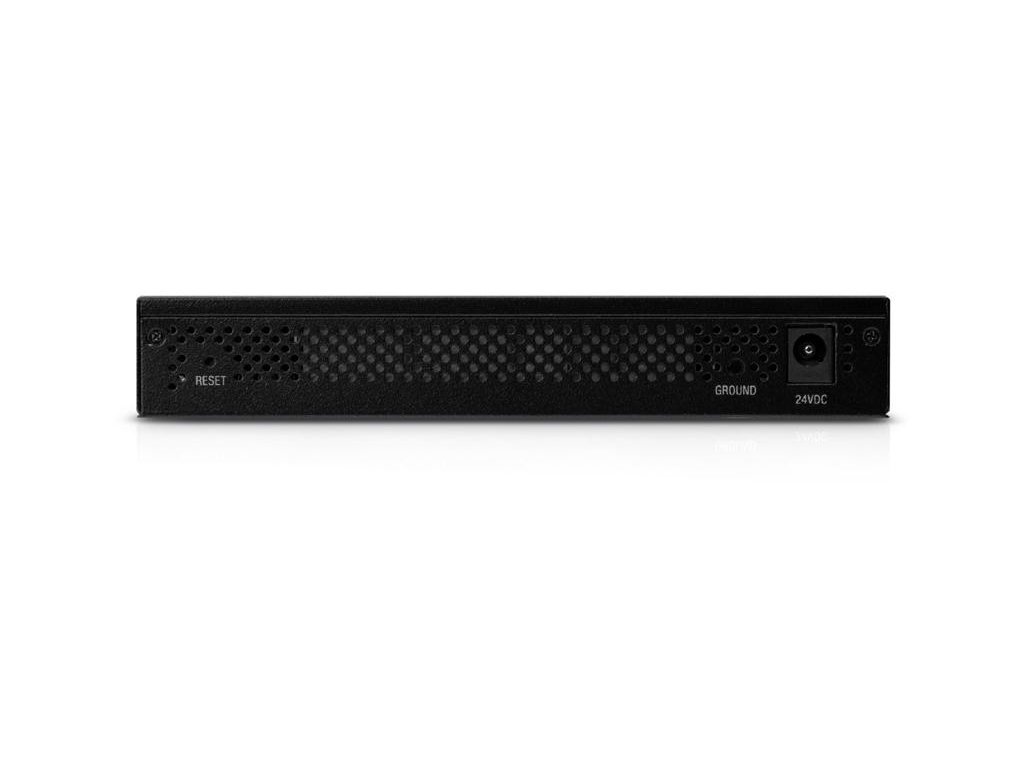

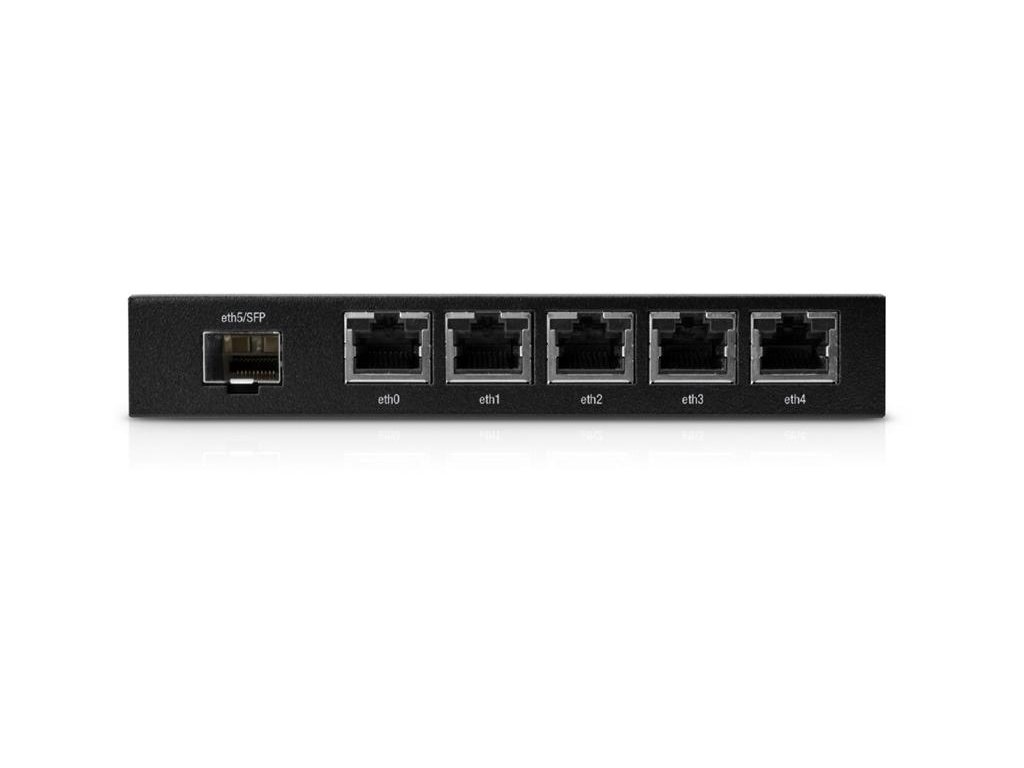

Ubiquiti EdgeRouter X SFP, 5x GLAN, 1x SFP WAN ER-X-SFP

Compact but powerful router sporting (5) Gigabit RJ45 ports with passive PoE support and an SFP port.

(5) GbE RJ45 ports with 24V passive PoE

(1) SFP port

50W total PoE availability

Technical Specifications

Mechanical

Dimensions 142 x 75 x 23 mm (5.6 x 3 x 0.9")

Weight 215 g (7.6 oz)

Hardware

Processor Dual-Core 880 MHz, MIPS1004Kc

Memory 256 MB DDR3 RAM

Code storage 256 MB NAND

Networking interface (5) 10/100/1000 RJ45 ports

(1) 100/1000 SFP port

Power method 24VDC, 2.5A power adapter (Included)

Power Supply External AC/DC adapter

Supported Voltage Range 9–26V DC

Max. power consumption 5W

PoE method Passive

PoE out voltage range 22-24V DC

Max. PoE wattage per port 12W (24V)

Max. PoE wattage combined/td> 50W

Buttons Factory reset

LEDs Power, Link/Activity (6), PoE (5)

Mounting Wall mount

Ambient operating temperature -10 to 45° C (14 to 113° F)

Ambient operating humidity 10 to 90% noncondensing

Certifications CE, FCC, IC
