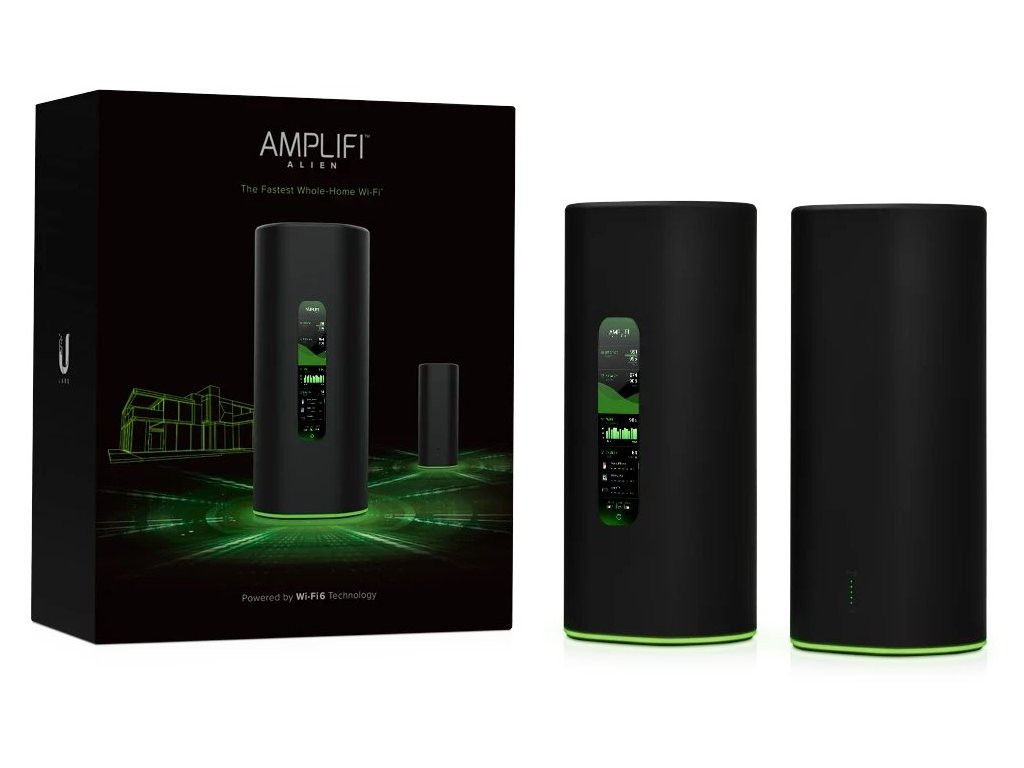

Ubiquiti AmpliFi Alien Router and MeshPoint Afi-ALN

Zažijte rozsah a výkon a výkon WiFi z tohoto světa s jediným 16/12-streamovým routerem WIFI na světě. Sada zahrnuje Meshpoint pro bezproblémové rozšíření pokrytí WIFi signálem.

WiFi 6

US: 16 souběžných streamů

EU: 12 souběžných streamů

560 m² (6,000 ft²) porytí plochy

120+ současně připojených zařízení

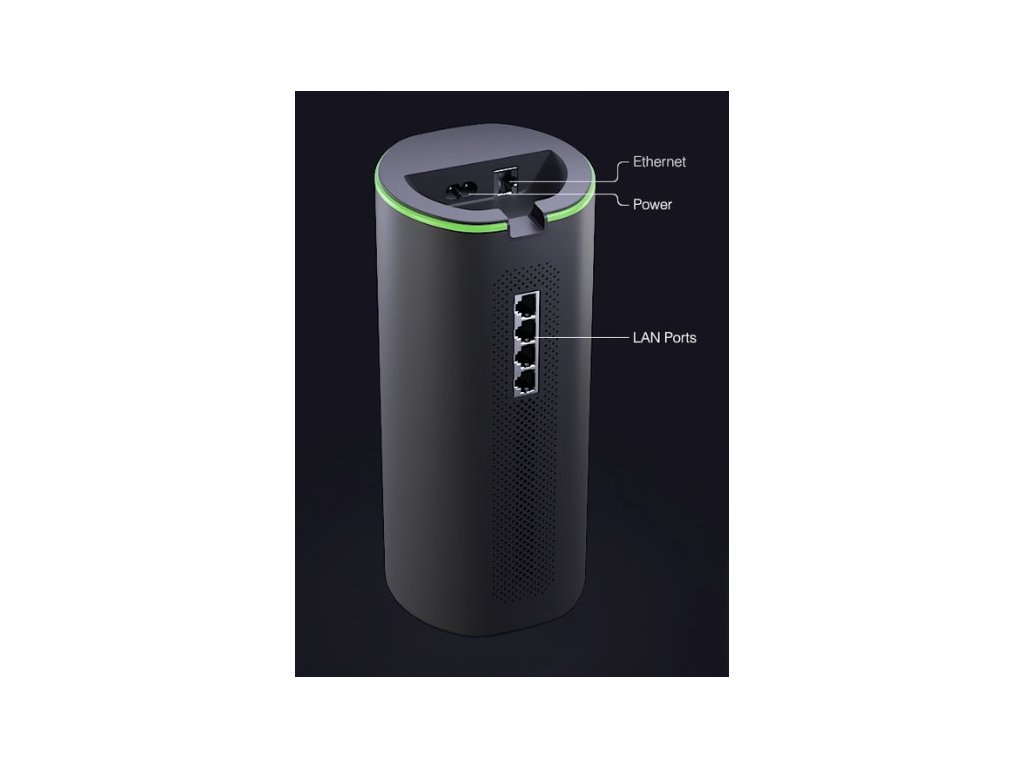

(4) GbE LAN and (1) GbE WAN port

4.7" LCM dotykový display

MeshPoint with (1) GbE LAN port

Technical Specifications

Mechanical

Dimensions Router 110 x 110 x 250 mm (4.3 x 4.3 x 9.8")

MeshPoint: 110 x 110 x 250 mm (4.3 x 4.3 x 9.8")

Weight Router 1.2 kg (2.7 lb)

MeshPoint: 1,1kg (2.4 lb)

Enclosure material Polycarbonate

Hardware

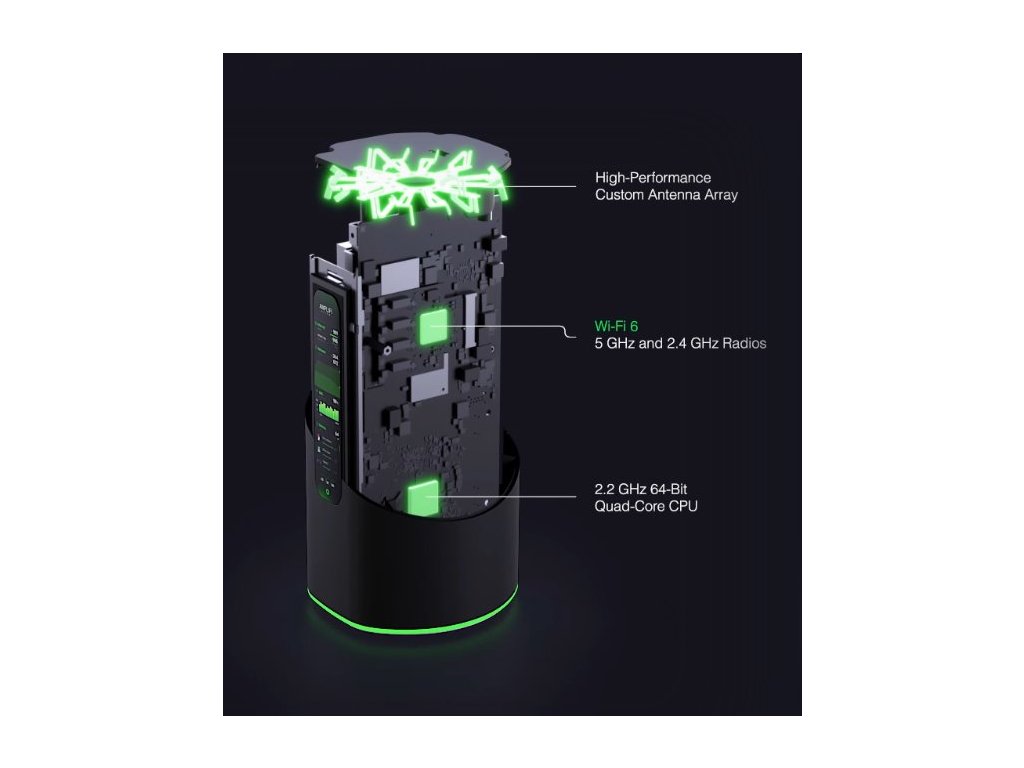

Processor Quad-Core ARM® Cortex® A53s at 2.2 GHz

Memory 1GB DDR3L

Management interface WiFi

Ethernet

Networking interface Router (1) GbE RJ45 WAN (4) GbE RJ45 LAN

Meshpoint (1) GbE RJ45 LAN

Power method Universal AC input, 100-240V AC, 1A Max., 50/60 Hz

Max. power consumption Router 35W

Meshpoint 34W

ESD/EMP protection Air/contact: ± 24kV

Max. TX power

International:

2.4 GHz 23 dBm*

5 GHz 20 dBm**

*Depends from the country selected, up to 30 dBm per chain.

**Depends from the country selected, up to 24 dBm per chain.

MIMO

International:

2.4 GHz 4 x 4

5 GHz 8 x 8

International:

2.4 GHz 1148 Mbps

5 GHz 4800 Mbps

Antenna gain

2.4 GHz 3 dBi

5 GHz 6 dBi

Antenna Internal dual-band metal stamp with 12 polarity

Haptics Yes

Display 4.7" diagonal, 274 x 1268, 279 ppi, G+F touch, full color

LED Green ring

Button Factory reset

Ambient operating temperature -10 to 45° C (14 to 113° F)

Ambient operating humidity 5 to 95% noncondensing

Certifications CE, FCC, IC

Software

WiFi standards Up to WiFi 6

WiFi functions MU-MIMO, OFDMA, TX-beamforming

Wireless security WPA2

VLAN Yes

Advanced QoS Yes

Guest traffic isolation Yes

Power save Yes

Supported data rates 802.11a: 54 Mbps

802.11b: 11 Mbps

802.11g: 54 Mbps

802.11n: 600 Mbps + 600 Mbps

802.11ac: 1733 Mbps + 800 Mbps

802.11ax: 4800 Mpbs Router-Mesh connection (Backbone)

802.11ax: 4800 Mbps + 1148 Mbps (Available to clients)

Operating frequency*

2.4 GHz 2412 - 2472 MHz

5 GHz 5150 - 5875 MHz

* Depends on regulatory region.
