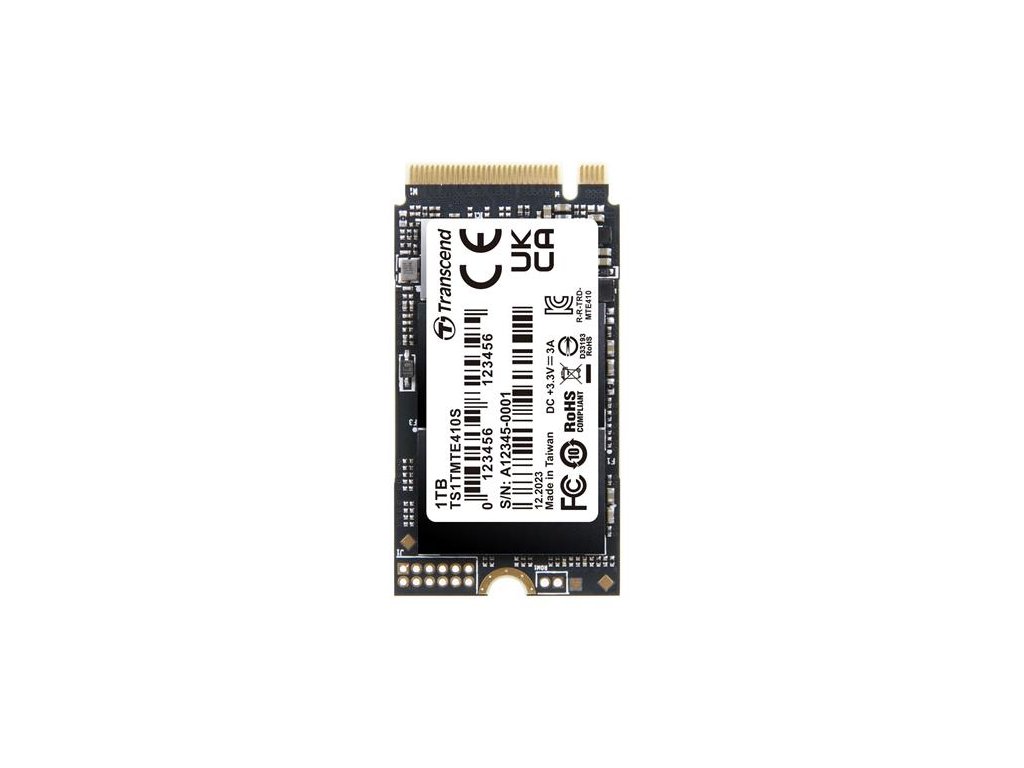

Transcend MTE410S 1TB SSD disk M.2 2242, NVMe PCIe Gen4 x4 5000MB/s R 3500MB/s W TS1TMTE410S
Transcend MTE410S 1TB SSD disk M.2 2242, NVMe PCIe Gen4 x4 5000MB/s R 3500MB/s W
Transcend's PCIe Gen 4x4 M.2 SSD MTE410S has a compact form factor and high-quality 3D NAND flash, making it easy to upgrade Ultrabooks, lightweight notebooks, tablets, and handheld gaming PCs. It is designed with multiple firmware optimization technologies, such as SLC caching and the LDPC ECC mechanism, which help to improve both storage reliability and extend the drive lifespan. The MTE410S is a fantastic choice for boosting the performance of modern work platforms.
Featuring a high-speed PCIe Gen 4x4 interface, Transcend's MTE410S SSD delivers lightning-fast transfer speeds. Transcend's MTE410S offers optimal peak performance without consuming minimal power in your ultra-thin devices.
At just 42mm in length, Transcend's MTE410S SSD is ideal for Ultrabooks, lightweight notebooks, tablets, and handheld gaming PCs. With a single-sided design, Transcend's MTE410S SSD gives your device a much-needed boost while being space-efficient!
Appearance
Dimensions Single-sided 42 mm x 22 mm x 2.23 mm (1.65" x 0.87" x 0.09")
Weight 5 g (0.18 oz)
Type
M.2 2242
Interface
Bus Interface
NVMe PCIe Gen4 x4
Storage
Flash Type
3D NAND flash
Capacity
1 TB
Operating Environment
Operating Temperature 0°C (32°F) ~ 70°C (158°F)
Operating Voltage
3.3V±5%
Performance
Sequential Read/Write (CrystalDiskMark)
Up to 5,000/3,500 MB/s
4K Random Read/Write (IOmeter)
Up to 330,000/690,000 IOPS
Terabytes Written (TBW)
600 TBW
Mean Time Between Failures (MTBF) 2,000,000 hour(s)
Drive Writes Per Day (DWPD) 0.33 (5 yrs)
Note
Speed may vary due to host hardware, software, usage, and storage capacity.
The workload used to rate DWPD may be different from your actual workload, which may vary due to host hardware, software, usage, and storage capacity.
Terabytes Written (TBW) expresses the endurance under the highest capacity.
Some motherboards only provide PCIe x2 connections for the M.2 slot, creating a bottleneck on even the fastest drives.
Warranty
Certificate
CE/UKCA/FCC/KC/RCM
Warranty
Five-year Limited Warranty
Warranty Policy
Please click here for more information about the Transcend Warranty Policy.
Warranty does not apply when SSD Scope's lifetime indicator displays 0% within the warranty coverage.
System Requirement
Operating System
Microsoft Windows 7 or later
Linux Kernel 2.6.31 or later
Note
Systems for use with the PCIe M.2 SSD must have an M.2 connector with only an M key. B-key connectors are not compatible. Improper insertion may lead to damage. Please click here for more information.
Technology
S.M.A.R.T.
Technology
S.M.A.R.T.
Yes
Advanced Garbage Collection
Yes
RAID Engine
Yes
LDPC Coding
Yes
DRAM Cache
No
Transcend's PCIe Gen 4x4 M.2 SSD MTE410S has a compact form factor and high-quality 3D NAND flash, making it easy to upgrade Ultrabooks, lightweight notebooks, tablets, and handheld gaming PCs. It is designed with multiple firmware optimization technologies, such as SLC caching and the LDPC ECC mechanism, which help to improve both storage reliability and extend the drive lifespan. The MTE410S is a fantastic choice for boosting the performance of modern work platforms.
Featuring a high-speed PCIe Gen 4x4 interface, Transcend's MTE410S SSD delivers lightning-fast transfer speeds. Transcend's MTE410S offers optimal peak performance without consuming minimal power in your ultra-thin devices.
At just 42mm in length, Transcend's MTE410S SSD is ideal for Ultrabooks, lightweight notebooks, tablets, and handheld gaming PCs. With a single-sided design, Transcend's MTE410S SSD gives your device a much-needed boost while being space-efficient!
Appearance
Dimensions Single-sided 42 mm x 22 mm x 2.23 mm (1.65" x 0.87" x 0.09")
Weight 5 g (0.18 oz)
Type
M.2 2242
Interface
Bus Interface
NVMe PCIe Gen4 x4
Storage
Flash Type
3D NAND flash
Capacity
1 TB
Operating Environment
Operating Temperature 0°C (32°F) ~ 70°C (158°F)
Operating Voltage
3.3V±5%
Performance
Sequential Read/Write (CrystalDiskMark)
Up to 5,000/3,500 MB/s
4K Random Read/Write (IOmeter)
Up to 330,000/690,000 IOPS
Terabytes Written (TBW)
600 TBW
Mean Time Between Failures (MTBF) 2,000,000 hour(s)
Drive Writes Per Day (DWPD) 0.33 (5 yrs)
Note
Speed may vary due to host hardware, software, usage, and storage capacity.
The workload used to rate DWPD may be different from your actual workload, which may vary due to host hardware, software, usage, and storage capacity.
Terabytes Written (TBW) expresses the endurance under the highest capacity.
Some motherboards only provide PCIe x2 connections for the M.2 slot, creating a bottleneck on even the fastest drives.
Warranty
Certificate
CE/UKCA/FCC/KC/RCM
Warranty
Five-year Limited Warranty
Warranty Policy
Please click here for more information about the Transcend Warranty Policy.
Warranty does not apply when SSD Scope's lifetime indicator displays 0% within the warranty coverage.
System Requirement
Operating System
Microsoft Windows 7 or later
Linux Kernel 2.6.31 or later
Note
Systems for use with the PCIe M.2 SSD must have an M.2 connector with only an M key. B-key connectors are not compatible. Improper insertion may lead to damage. Please click here for more information.
Technology
S.M.A.R.T.
Technology
S.M.A.R.T.
Yes
Advanced Garbage Collection
Yes
RAID Engine
Yes
LDPC Coding
Yes
DRAM Cache
No
Dodatočné parametre
Kategória: | SSD mSATA, M.2, PCIe |
---|---|
Záruka: | 24 mesiacov |
Hmotnosť: | 0.01 kg |
Kapacita (pevné disky): | 1 TB |
Výrobca (pevné disky): | Transcend |
Typ (pevné disky): | SSD |
Prevedenie (pevné disky): | Interní |
Rozhranie (pevné disky): | PCI Express |
Rozmer (pevné disky): | M.2 slot |
