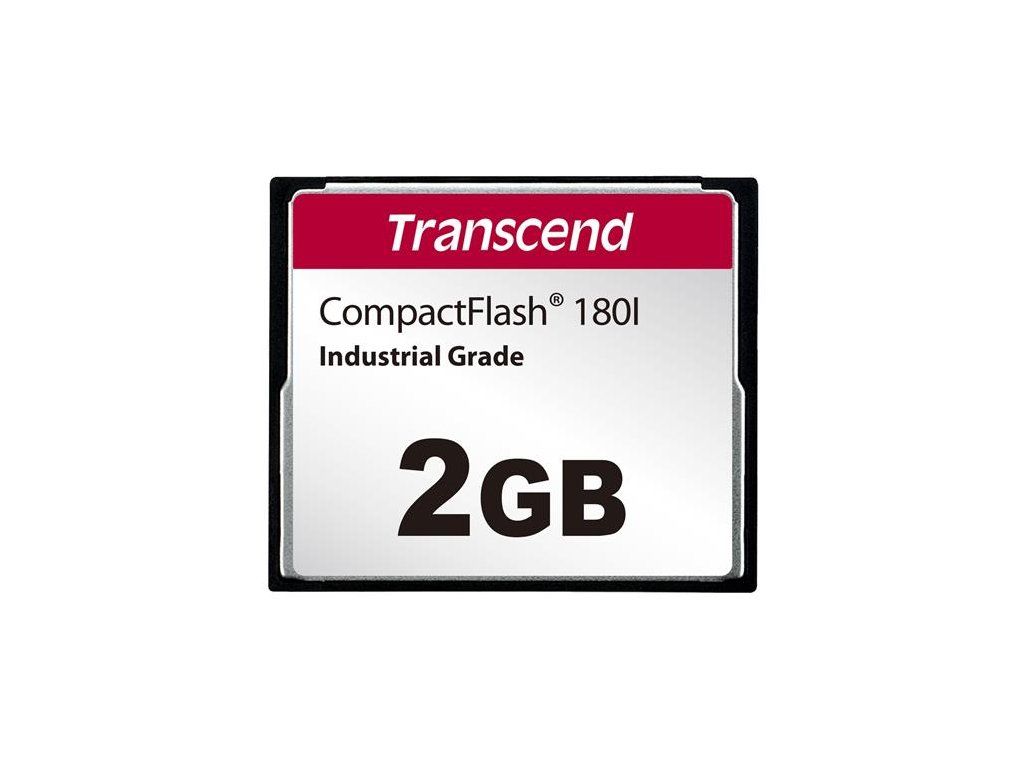

Transcend 2GB INDUSTRIAL TEMP CF180I CF CARD, (MLC) paměťová karta (SLC mode), 85MB/s R, 70MB/s W TS2GCF180I

Popis produktu

Transcend 2GB INDUSTRIAL TEMP CF180I CF CARD, (MLC) paměťová karta (SLC mode), 85MB/s R, 70MB/s W

Transcend's SLC Mode technology is a cost-effective solution that offers performance close to that of SLC NAND flash at a more affordable price. Boasting a high-speed data transfer rate, Transcend's SLC Mode CF180I CompactFlash cards are perfect for embedded systems, medical instruments, road surveillance systems, and other industrial applications having high performance and capacity demands. Thanks to their use of Static Data Refresh technology, CF180I CF cards feature error correction capability, maintain data integrity, and have an extended lifespan. With wide temperature (-40°C ~ 85°C) capabilities, CF180I CF cards ensure sustained functionality, enhanced endurance and optimal reliability in mission-critical applications.

Technologies:
- SLC Mode
- Wide Temperature
- Garbage Collection
- Wear Leveling
- Bad Block Management
- Power Loss Protection (PLP)
- Early Move

Firmware Features:
- Based on Ultra DMA Mode 5
- True IDE Mode supported: UDMA0-5 (default), MDMA0-4, PIO0-6
- True IDE Mode: Fixed Disk (Standard)
- Operation modes supported: PC Card Memory mode, PC Card IO mode, and True IDE mode
- Built-in ECC (Error Correction Code) functionality
- Static Data Refresh
- Erase Count Monitoring
- Supports S.M.A.R.T. function to conduct health monitoring, analysis, and reporting for storage devices
- Wear-Leveling
- Security Command

Hardware Features:
- Compliant with RoHS standards
- Compliant with CompactFlash specification 6.0
- High-quality MLC NAND flash and SLC mode (also called SuperMLC) for exceptional endurance and reliability
- Durability: 10,000 insertion/removal cycles
- Power Loss Protection (PLP) to prevent data loss in the event of sudden power outage
- Promised operational reliability in a wide temperature range (from -40°C to 85°C)

Specifications:
Dimensions: 42.8 mm x 36.4 mm x 3.3 mm
Pin Count: 50 pin
Form Factor: Compact flash card
Flash Type: MLC NAND flash (SLC mode)
Capacity: 2 GB
Operating Voltage: 3.3V±5%, 5V±10%
WideTemp.: -40°C ~ 85°C
Storage Temperature: -40°C ~ 85°C
Humidity: 0% ~ 95%
Shock: 1500 G, 0.5 ms, 3 axis
Vibration (Operating): 20 G (peak-to-peak), 20 Hz ~ 2,000 Hz (frequency)
Power Consumption (Max.): 0.6 watt(s)
Performance:
- Read Speed (Max.): up to 85 MB/s
- Write Speed (Max.): up to 70 MB/s
Mean Time Between Failures (MTBF): 3,000,000 hour(s)
Terabytes Written (TBW): up to 210 TBW

Note
Speed may vary due to host hardware, software, usage, and storage capacity.
Terabytes Written (TBW) expresses the endurance under the highest capacity.

Certificate : CE/FCC/UKCA
Warranty: Three-year Limited Warranty

Due to the complexity and variety of industrial applications, Transcend cannot guarantee 100% compatibility with all platforms and under all scenarios. For special applications and environments, it is strongly suggested that you contact Transcend beforehand for clarification.
