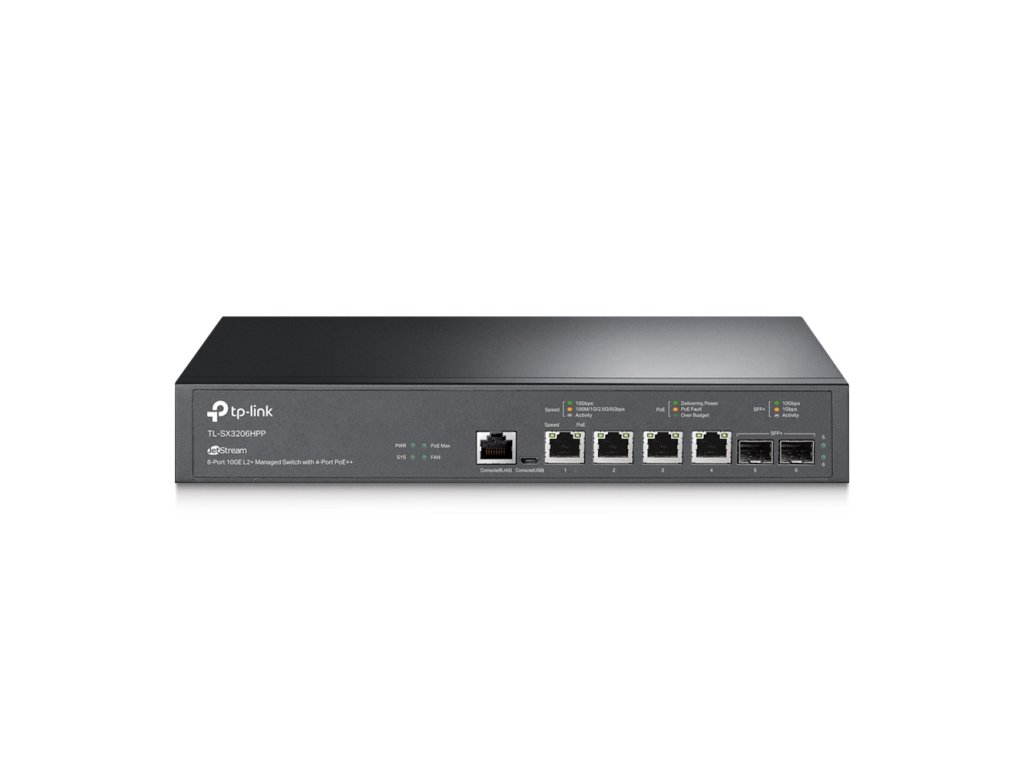

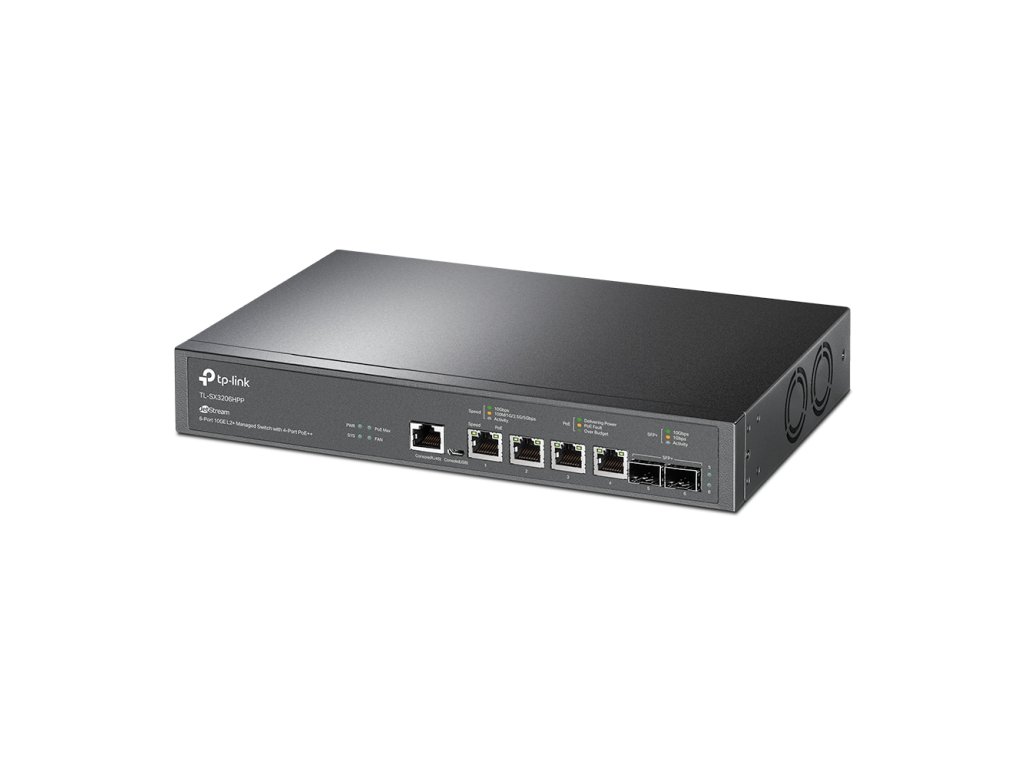

TP-Link TL-SX3206HPP 4x10G 2xSFP+ L2+ POE++ TP-link

TL-SX3206HPP

6portový riadený switch JetStream 10GE L2+ so 4 PoE++ portami

Bleskurýchle pripojenie s plnou 10G rýchlosťou: Ponúka pripojenie s veľkou šírkou pásma pomocou štyroch 10Gbit/s RJ45 portov a dvoch 10Gbit/s SFP+ slotov.

Napájanie PoE++ s výstupným výkonom až 200 W†: Štyri 10G RJ45 porty podporujúce 802.3af/at/bt PoE++ napájanie až 60 W na port sú ideálne pre nasadenie prístupových bodov Omada WiFi 6 a WiFi 6E.

Multi-Gigabitové siete: 10G RJ45 porty podporujú 5 rýchlostí pripojenia (100M/1G/2,5G/5G/10G) a SFP+ sloty je možné osadiť 10G aj 1G transceivery

Pokročilé L2 a L2+ funkcie: Podporuje kompletnú sadu L2 a L2+ funkcií, ako sú statický routing, QoS na podnikovej úrovni a IGMP Snooping.

Robustná bezpečnostná stratégia: Pomáha chrániť investície do miestnej siete pomocou integrovanej funkcie viazania na IP-MAC-Port, ACL, zabezpečením portov, overovaním 802.1X a ďalšími funkciami.

Statický routing: Pomáha smerovať internú prevádzku pre efektívnejšie využitie sieťových prostriedkov.

Centralizovaná cloudová správa: Integrácia s platformou Omada SDN pre cloudový prístup a vzdialenú správu.

Samostatná správa: Web, CLI (konzola port, Telnet, SSH), SNMP, RMON a Dual Image prinášajú výkonné možnosti správy.



HARDWARE FEATURES

Interface • 4× 100/1000/2500/5000/10000 Mbps RJ45 Ports

• 2× 10G SFP+ Slots

• 1× RJ45 Console Port

• 1× Micro-USB Console Port

Fan Quantity 2

Power Supply 100-240 V AC~50/60 Hz

PoE Ports (RJ45) • Standard: 802.3bt/at/af compliant

• PoE+ Ports: 4 Ports, up to 60 W per port

• Power Budget: 200 W

Dimensions ( W x D x H ) 11.6 × 7.1 × 1.7 in (294× 180 × 44 mm)

Mounting • Rack Mountable

• Desktop

Max Power Consumption • 27.29 W (110V/60Hz) (no PD connected)

• 244.90 W (110V/60Hz) (with 200 W PD connected)

Max Heat Dissipation • 93.12 BTU/h (110 V/60 Hz) (no PD connected)

• 835.67 BTU/h (110 V/60 Hz) (with 200 W PD connected)

PERFORMANCE

Switching Capacity 120 Gbps

Packet Forwarding Rate 89.28 Mpps

MAC Address Table 32 K

Jumbo Frame 9 KB

SOFTWARE FEATURES

Quality of Service • 8 priority queues

• 802.1p CoS/DSCP priority

• Queue scheduling

- SP (Strict Priority)

- WRR (Weighted Round Robin)

- SP+WRR

• Bandwidth Control

- Port/Flow based Rating Limiting

• Smoother Performance

• Action for Flows

- Mirror (to supported interface)

- Redirect (to supported interface)

- Rate Limit

- QoS Remark

L2 and L2+ Features • Link Aggregation

- static link aggregation

- 802.3ad LACP

- Up to 8 aggregation groups, containing 8 ports per group

• Spanning Tree Protocol

- 802.1d STP

- 802.1w RSTP

- 802.1s MSTP

- STP Security: TC Protect, BPDU Filter, Root Protect

• Loopback Detection

- Port based

- VLAN based

• Flow Control

- 802.3x Flow Control

- HOL Blocking Prevention

• Mirroring

- Port Mirroring

- CPU Mirroring

- One-to-One

- Many-to-One

- Tx/Rx/Both

L2 Multicast • IGMP Snooping

- IGMP v1/v2/v3 Snooping

- Fast Leave

- IGMP Snooping Querier

- IGMP Authentication

• IGMP Authentication

• MLD Snooping

- MLD v1/v2 Snooping

- Fast Leave

- MLD Snooping Querier

- Static Group Config

- Limited IP Multicast

• MVR

• Multicast Filtering: 256 profiles and 16 entries per profile

VLAN • VLAN Group

- Max 4K VLAN Groups

• 802.1Q Tagged VLAN

• MAC VLAN: 10 Entries

• Protocol VLAN: Protocol Template 16, Protocol VLAN 16

• Private VLAN

• GVRP

• VLAN VPN (QinQ)

- Port-Based QinQ

- Selective QinQ

• Voice VLAN

Access Control List • Time-based ACL

• MAC ACL

- Source MAC

- Destination MAC

- VLAN ID

- User Priority

- Ether Type

• IP ACL

-Source IP

- Destination IP

- Fragment

- IP Protocol

- TCP Flag

- TCP/UDP Port

- DSCP/IP TOS

- User Priority

• Combined ACL

• Packet Content ACL

• IPv6 ACL

• Policy

- Mirroring

- Redirect

- Rate Limit

- QoS Remark

• ACL apply to Port/VLAN

Security • IP-MAC-Port Binding

- 512 Entries

- DHCP Snooping

- ARP Inspection

- IPv4 Source Guard: 100 Entries

• IPv6-MAC-Port Binding

- 512 Entries

- DHCPv6 Snooping

- ND Detection

- IPv6 Source Guard: 100 Entries

• DoS Defend

• Static/Dynamic Port Security

- Up to 64 MAC addresses per port

• Broadcast/Multicast/Unicast Storm Control

- kbps/ratio control mode

• 802.1X

- Port base authentication

- Mac base authentication

- VLAN Assignment

- MAB

- Guest VLAN

- Support Radius authentication andaccountability

• AAA (including TACACS+)

• Port Isolation

• Secure web management through HTTPS with SSLv3/TLS 1.2

• Secure Command Line Interface (CLI) management with SSHv1/SSHv2

• IP/Port/MAC based access control

IPv6 • IPv6 Dual IPv4/IPv6

• Multicast Listener Discovery (MLD) Snooping

• IPv6 ACL

• IPv6 Interface

• Static IPv6 Routing

• IPv6 neighbor discovery (ND)

• Path maximum transmission unit (MTU) discovery

• Internet Control Message Protocol (ICMP) version 6

• TCPv6/UDPv6

• IPv6 applications

- DHCPv6 Client

- Ping6

- Tracert6

- Telnet (v6)

- IPv6 SNMP

- IPv6 SSH

- IPv6 SSL

- Http/Https

- IPv6 TFTP

L3 Features • 16 IPv4/IPv6 Interfaces

• Static Routing

- 48 static routes

• Static ARP

- 128 Static Entries

• Proxy ARP

• Gratuitous ARP

• DHCP Server

• DHCP Relay

- DHCP Interface Relay

- DHCP VLAN Relay

• DHCP L2 Relay

Advanced Features • Automatic Device Discovery

• Batch Configuration

• Batch Firmware Upgrading

• Intelligent Network Monitoring

• Abnormal Event Warnings

• Unified Configuration

• Reboot Schedule

MIBs • MIB II (RFC1213)

• Interface MIB (RFC2233)

• Ethernet Interface MIB (RFC1643)

• Bridge MIB (RFC1493)

• P/Q-Bridge MIB (RFC2674)

• RMON MIB (RFC2819)

• RMON2 MIB (RFC2021)

• Radius Accounting Client MIB (RFC2620)

• Radius Authentication Client MIB (RFC2618)

• Remote Ping, Traceroute MIB (RFC2925)

• Support TP-Link private MIB

MANAGEMENT

Omada App Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.

Centralized Management • Omada Cloud-Based Controller

• Omada Hardware Controller (OC300)

• Omada Hardware Controller (OC200)

• Omada Software Controller

Cloud Access Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.

Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.

Management Features • Web-based GUI

• Command Line Interface (CLI) through the console port, telnet

• SNMP v1/v2c/v3

- Trap/Inform

- RMON (1,2,3,9 groups)

• SDM Template

• DHCP/BOOTP Client

• 802.1ab LLDP/LLDP-MED

• DHCP AutoInstall

• Dual Image, Dual Configuration

• CPU Monitoring

• Cable Diagnostics

• EEE

• Password Recovery

• SNTP

• System Log

OTHERS

Certification CE, FCC, RoHS

Package Contents •TL-SX3206HPP Switch

• Power Cord

• Quick Installation Guide

• Rackmount Kit

• Rubber Feet

System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.

Environment • Operating Temperature: 0–50 ? (32–122 ?);

• Storage Temperature: -40–70 ? (-40–158 ?)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing
