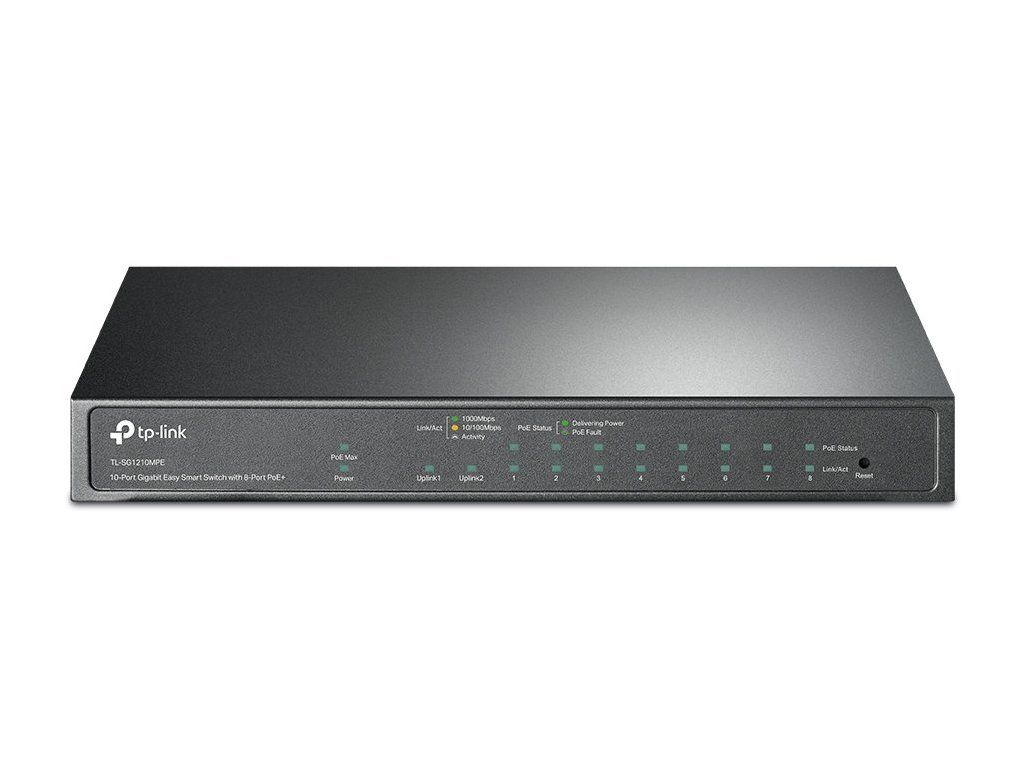

TP-Link TL-SG1210MPE 10xGb easy smart 8xPOE+ 123W switch TP-link

Popis produktu

TL-SG1210MPE

10portový gigabitový Easy Smart switch

s 8 portami PoE+

9 gigabitových portov RJ45 a 1 kombinovaný gigabitový port SFP/RJ45

Switch je vybavený ôsmimi portami 802.3af/at PoE+ s výkonom napájania až 30 W na každý port a prenáša dáta aj napájanie cez jediný kábel

Podporuje napájanie PoE s celkovým výkonom až 123 W zo všetkých portov PoE*

Poskytuje monitorovanie siete, riadenie prevádzky podľa priorít, funkcie VLAN a automatické obnovenie PoE

Jednoduché nastavenie siete a pripojenie plug-and-play

Webové používateľské rozhranie a konfiguračný nástroj Easy Smart zjednodušujú nastavenie

Konštrukcia bez ventilátora znižuje spotrebu energie a eliminuje prevádzkovú hlučnosť



HARDWARE FEATURES

Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af,

IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at, IEEE 802.3z

Interface 9× 10/100/1000 Mbps RJ45 Ports

1× 1000 Mbps Combo SFP/RJ45 Port

AUTO Negotiation/AUTO MDI/MDIX

Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

EIA/TIA-568 100? STP (maximum 100m)

100BASE-TX: UTP category 5, 5e cable (maximum 100m)

EIA/TIA-568 100? STP (maximum 100m)

1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)

EIA/TIA-568 100? STP (maximum 100m)

Fan Quantity Fanless

Power Supply External Power Adapter (Output: 53.5 VDC/2.43 A)

PoE Ports (RJ45) Standard: 802.3 af/at compliant

PoE Ports: Port 1- Port 8

PoE Power Budget: 123 W

Dimensions ( W x D x H ) 8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm)

Max Power Consumption 7.66 W (220V / 50Hz with no PD connected)

141.54 W (220V / 50Hz with 123 W PD connected)

Max Heat Dissipation 26.12 BTU/h (220V / 50Hz with no PD connected)

482.65 BTU/h (220V / 50Hz with 123 W PD connected)

PERFORMANCE

Switching Capacity 20 Gbps

Packet Forwarding Rate 14.88 Mpps

MAC Address Table 4 K

Jumbo Frame 16 KB

SOFTWARE FEATURES

Quality of Service Support Port-Based/802.1p/DSCP priority

Support 4 priority queues

Rate Limit

Storm Control

L2 Features IGMP Snooping V1/V2/V3

Static Link Aggregation

Port Mirroring

Cable Diagnostics

Loop Prevention

VLAN Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)

MTU/Port/Tag VLAN

PoE Extend Mode**

PoE Auto Recovery

Management Web-based GUI

Easy Smart Configuration Utility

Transmission Method Store-And-Forward

OTHERS

Certification FCC, CE, RoHS

Package Contents TL-SG1210MPE

Power Adapter

Installation Guide

Rubber Feet

System Requirements Microsoft® Windows® for running Utility

Environment Operating Temperature: 0?~40? (32?~104?)

Storage Temperature: -40?~70? (-40?~158?)

Operating Humidity: 10%~90%RH non-condensing

Storage Humidity: 5%~95%RH non-condensing
