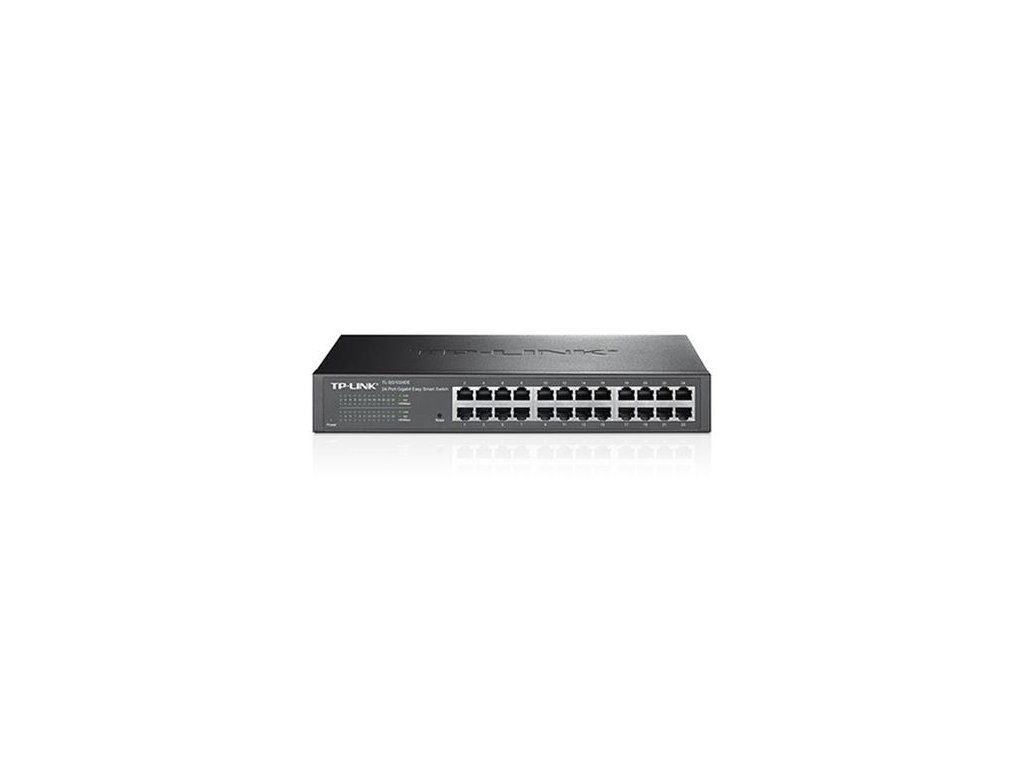

TP-Link TL-SG1024DE 24x Gigabit Fanless Easy Smart Switch TP-link
24portový gigabitový switch Easy Smart
TL-SG1024DE
24 portů 10/100/1 000 Mbit/s RJ45
Poskytuje monitorování sítě, prioritizaci přenosů a funkce VLAN
Inovativní technologie úspory energie ušetří až 40 % spotřeby
Jednoduché nastavení sítě a připojení plug-and-play
Centralizovaná správa všech Easy Smart switchů s Easy Smart Configuration Utility
HARDWARE FEATURES
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
Interface 24 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100? STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
Fan Quantity Fanless
Power Supply 100-240VAC, 50/60Hz
Power Consumption Maximum: 14.86W (220V/50Hz)
Dimensions ( W x D x H ) 11.6*7.1*1.7 in. (294*180*44 mm)
Mounting Rack Mountable
Max Power Consumption 33.52W (220V/50Hz)
Max Heat Dissipation 114.37 BTU/h
PERFORMANCE
Switching Capacity 48Gbps
Packet Forwarding Rate 35.7Mpps
MAC Address Table 8K
Packet Buffer Memory 512KB
Jumbo Frame 9KB
SOFTWARE FEATURES
Quality of Service Support Port-based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control
L2 Features IGMP Snooping V1/V2/V3
Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
VLAN Supports up to 128 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN
Transmission Method Store-And-Forward
OTHERS
Certification FCC, CE, RoHS
Package Contents TL-SG1024DE, Power Cord, Installation Guide, Resource CD, Rackmount Kit, Rubber Feet
System Requirements Microsoft® Windows® for running Utility
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
TL-SG1024DE
24 portů 10/100/1 000 Mbit/s RJ45
Poskytuje monitorování sítě, prioritizaci přenosů a funkce VLAN
Inovativní technologie úspory energie ušetří až 40 % spotřeby
Jednoduché nastavení sítě a připojení plug-and-play
Centralizovaná správa všech Easy Smart switchů s Easy Smart Configuration Utility
HARDWARE FEATURES
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
Interface 24 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100? STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
Fan Quantity Fanless
Power Supply 100-240VAC, 50/60Hz
Power Consumption Maximum: 14.86W (220V/50Hz)
Dimensions ( W x D x H ) 11.6*7.1*1.7 in. (294*180*44 mm)
Mounting Rack Mountable
Max Power Consumption 33.52W (220V/50Hz)
Max Heat Dissipation 114.37 BTU/h
PERFORMANCE
Switching Capacity 48Gbps
Packet Forwarding Rate 35.7Mpps
MAC Address Table 8K
Packet Buffer Memory 512KB
Jumbo Frame 9KB
SOFTWARE FEATURES
Quality of Service Support Port-based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control
L2 Features IGMP Snooping V1/V2/V3
Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
VLAN Supports up to 128 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN
Transmission Method Store-And-Forward
OTHERS
Certification FCC, CE, RoHS
Package Contents TL-SG1024DE, Power Cord, Installation Guide, Resource CD, Rackmount Kit, Rubber Feet
System Requirements Microsoft® Windows® for running Utility
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Dodatočné parametre
| Kategória: | Prepínače (switch) |
|---|---|
| Záruka: | 24 mesiacov |
| Hmotnosť: | 2.25 kg |
| LAN port: | 24 |
