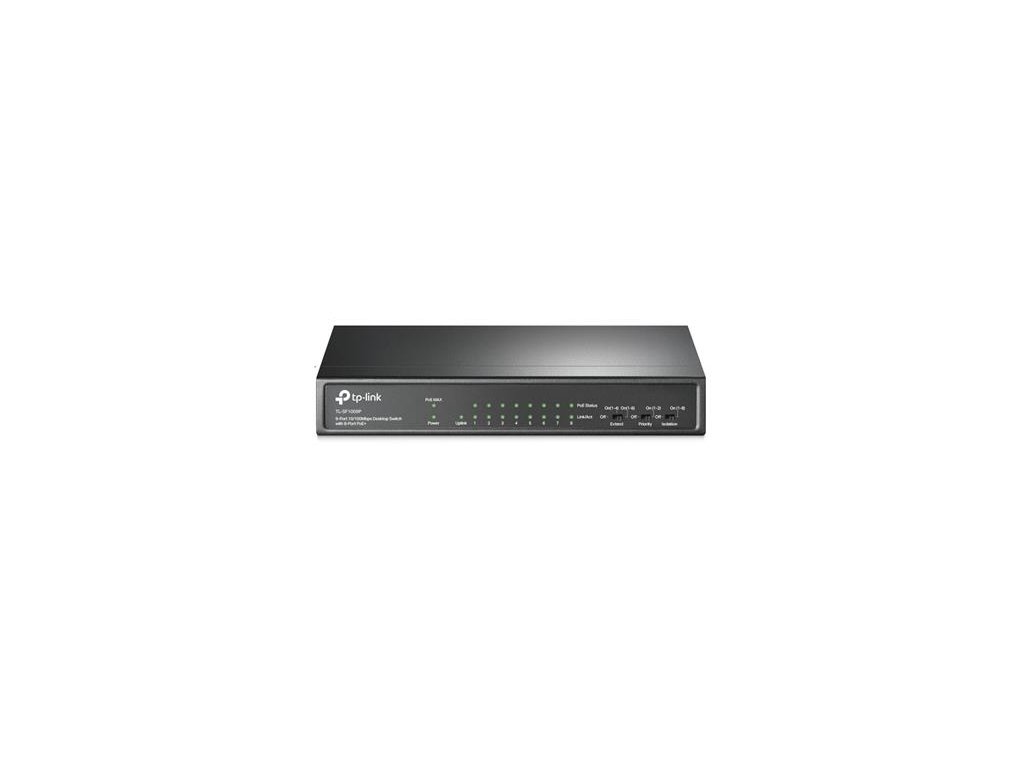

TP-Link TL-SF1009P 8x10/100 POE+ 65W,1x10/100 RJ45 nonPOE,desktop CCTV switch,kov.tělo TP-link

Popis produktu

HARDWARE FEATURES

Interface • 9× 10/100 Mbps RJ45 Ports (8× 10/100 Mbps 802.3af/at PoE+ ports)

• AUTO Negotiation

• AUTO MDI/MDIX

Network Media • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

• EIA/TIA-568 100? STP (maximum 100m)

• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)

• EIA/TIA-568 100? STP (maximum 100m)

Fan Quantity Fanless

Physical Security Lock Yes

External Power Supply External Power Adapter (Output: 53.5VDC / 1.31A)

Packet Forwarding Rate 1.3392 Mpps

PoE Ports (RJ45) • Standard: 802.3 af/at compliant

• PoE Ports: Ports 1–8

• Power Supply: 65 W

Mac Address Table 2K

Jumbo Frame 2 KB

Switching Capacity 1.8 Gbps

Dimensions ( W x D x H ) 6.7 × 3.9 × 1.1 in (171 × 98 × 27 mm)

Max Power Consumption • 3.6 (220/50 Hz. no PD connected)

• 77.08 (220/50 Hz. with 65 W PD connected)

Max Heat Dissipation • 12.28 BTU/h (no PD connected)

• 262.84 BTU/h (with 65 W PD connected)

SOFTWARE FEATURES

Transmission Method Store-And-Forward

Advanced Functions • Compatible With IEEE 802.3af/at Compliant PDs

• Extend Mode Button (Ports 1–4 and Ports 1–8, Up to 250 m PoE power supply and data transmission)

• Priority Mode Button (Ports 1–2)

• Isolation Mode Button (Ports 1–8)

• Mac Address Auto-Learning and Auto-Aging

• IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode

OTHERS

Certification FCC, CE, RoHS

Package Contents • TL-SF1009P

• Power Adapter

• Installation Guide

Environment • Operating Temperature: 0–40 ? (32–104 ?)

• Storage Temperature: -40–70 ? (-40–158 ?)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing
