TP-Link SM5110LSB-10 10Gb WDM SM SFP+ TP-link

Popis produktu

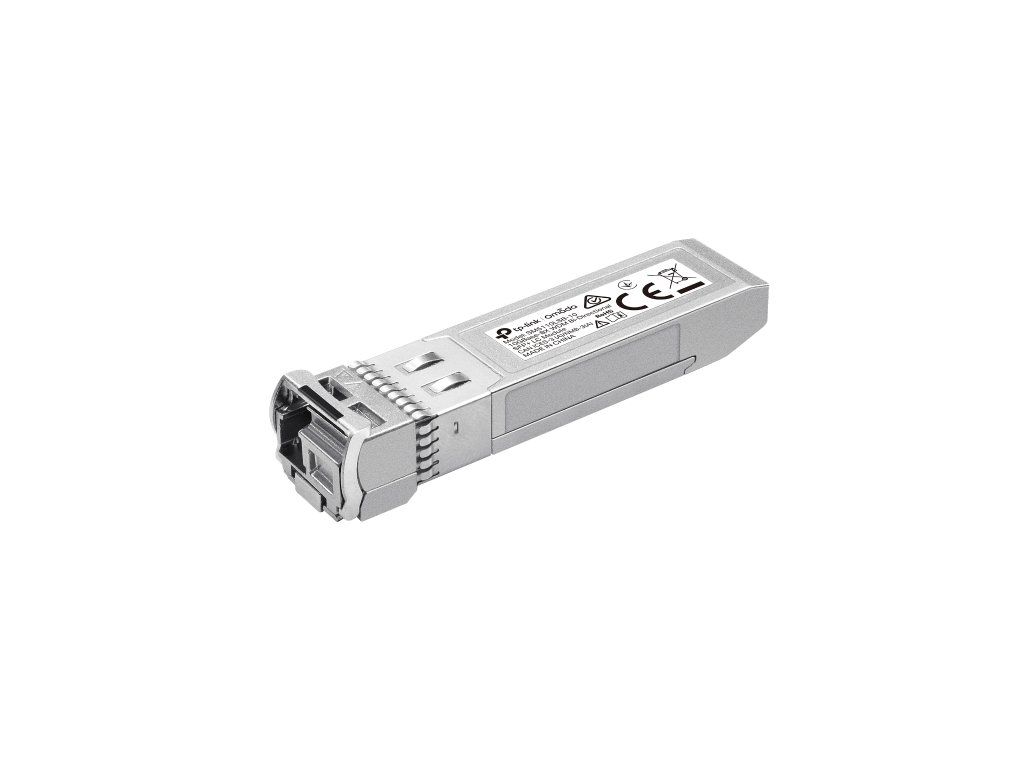

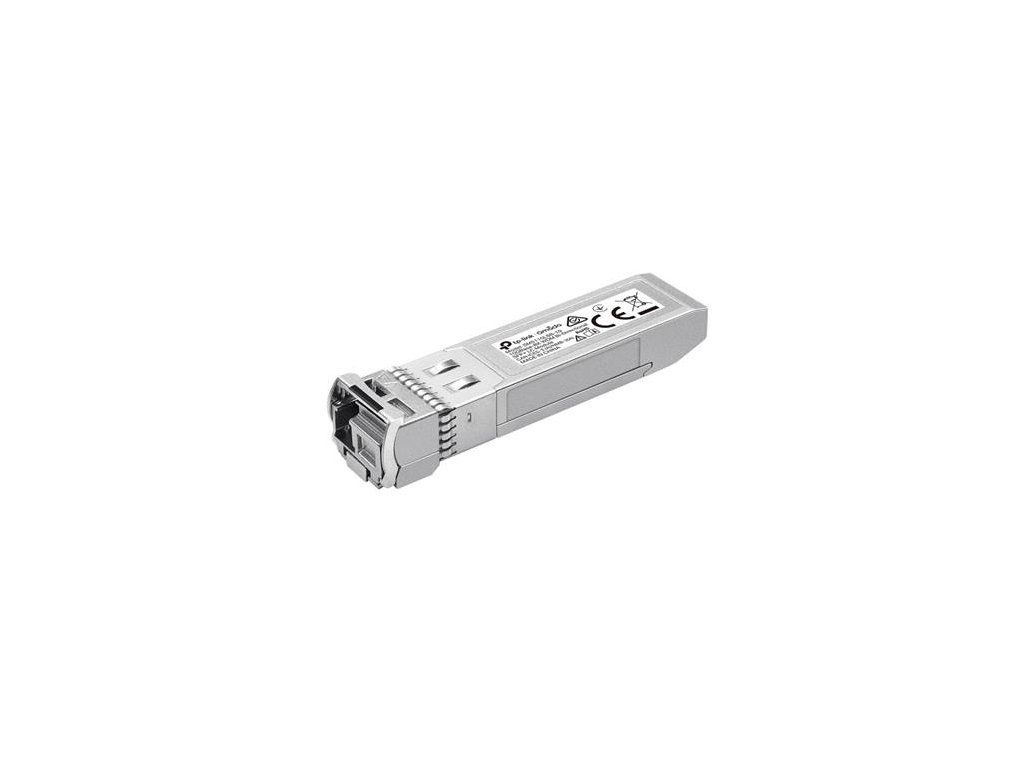

SM5110LSB-10

Omada 10GBase-BX WDM jednovláknový SFP+ LC modul

Podporuje WDM Bi-Di technológiu, používa jedno vlákno, čo šetrí náklady

Single mode SFP+ LC transceiver

Vlnové dĺžky TX 1270 nm, RX 1330 nm

Vymeniteľný za chodu s maximálnou flexibilitou

Podporuje digitálne diagnostické monitorovanie (DDM)

Kompatibilný s 10G Small Form Pluggable Multi-Source Agreement (SFP+)

Kompatibilný s prepínačmi s 10G portami, ako sú SG3428X, SG3452X, SX3008F, SX3016F a pod.



Transceiver

Standards and Protocols • IEEE 802.3ae

• SFF 8431, SFF 8432, SFF-8472

Wavelength •TX: 1270nm

•RX: 1330nm

Power Supply 3.3V

Fiber Type 9µm/125µm Single-Mode

Max. Cable Length 10km

Data Rate 10.3125 Gbps

Connector LC/UPC

Regulatory Compliance CE, FCC, RoHS

Environment • Operating Temperature: 0°C to 70°C (32–158 ?)

• Storage Temperature: -40°C to 85°C (-40°F to 185°F)

• Operating Humidity: 10% to 90% RH non-condensing

• Storage Humidity: 5% to 90% RH non-condensing

HARDWARE FEATURES

DDM Yes

Hot Swappable Yes

Dimensions ( W x D x H ) 2.24*0.55*0.47 in (57*14*12.0 mm)

PACKAGE CONTENTS

Package Contents • SM5110LSB-10

• Installation Guide
