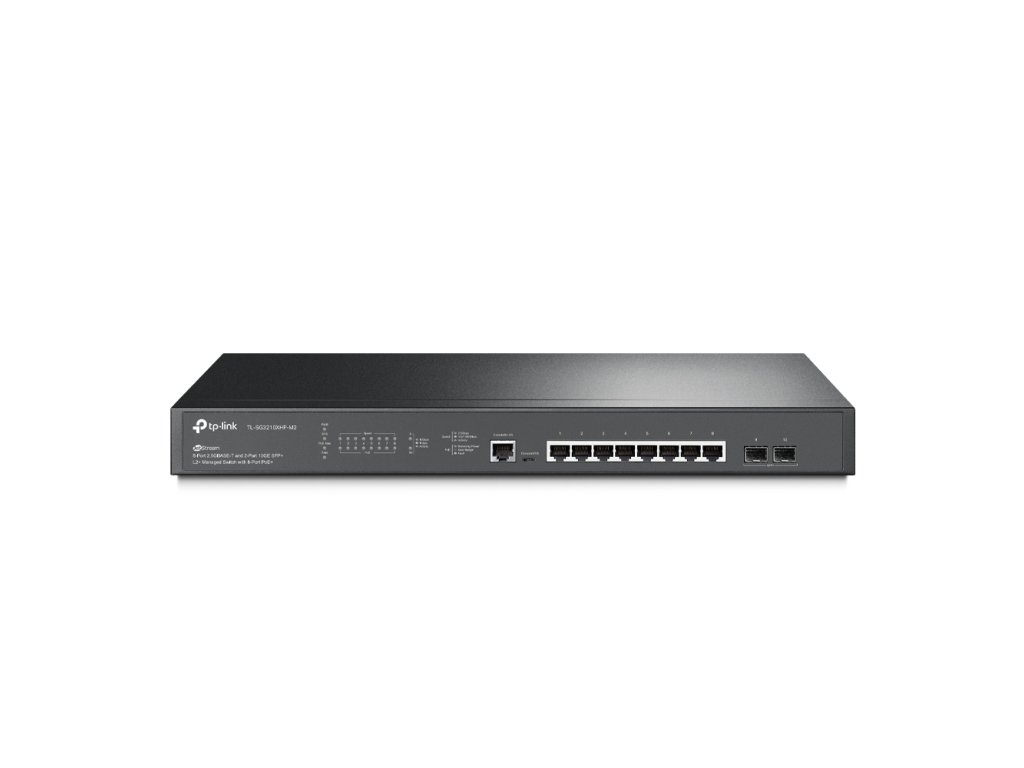

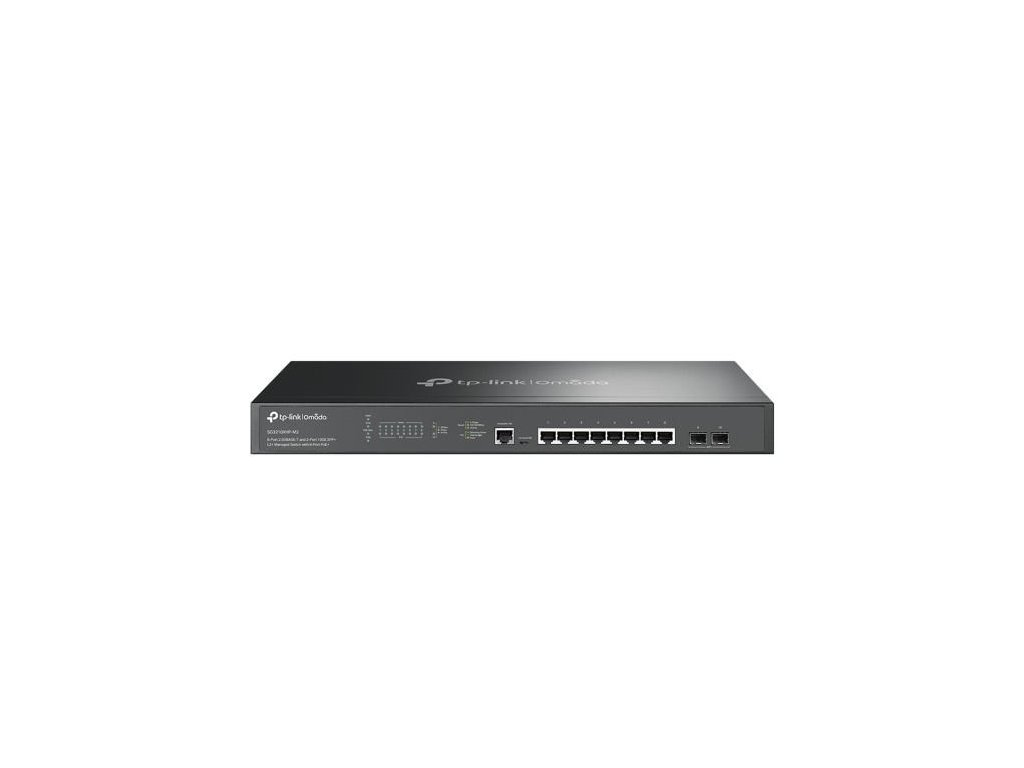

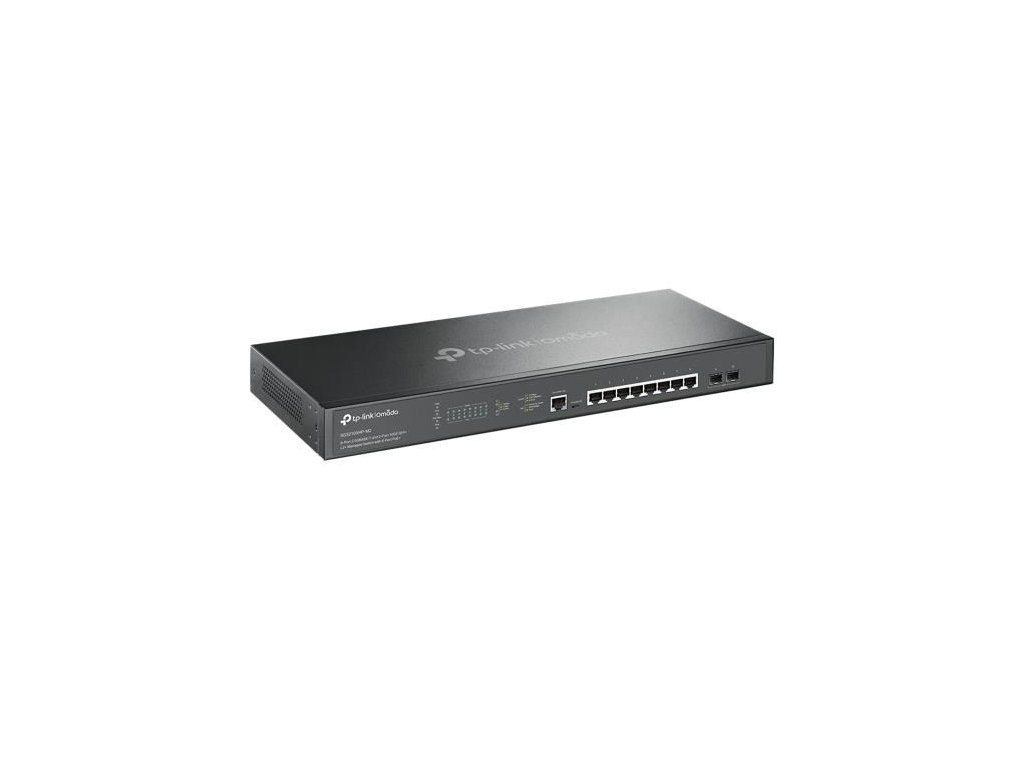

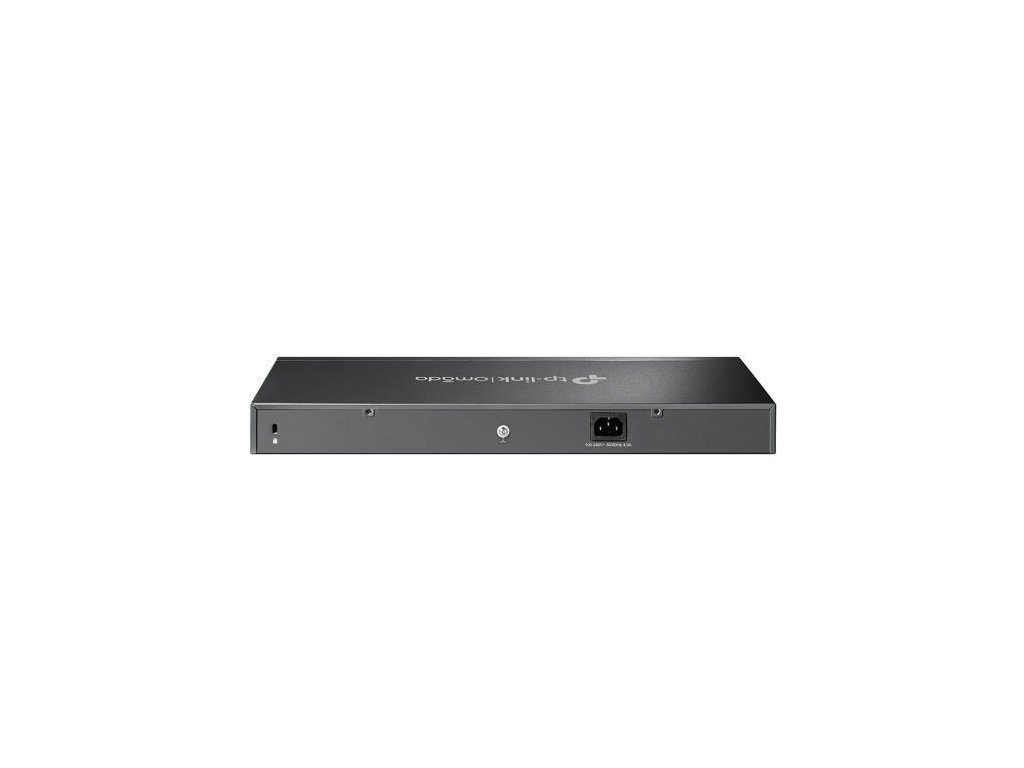

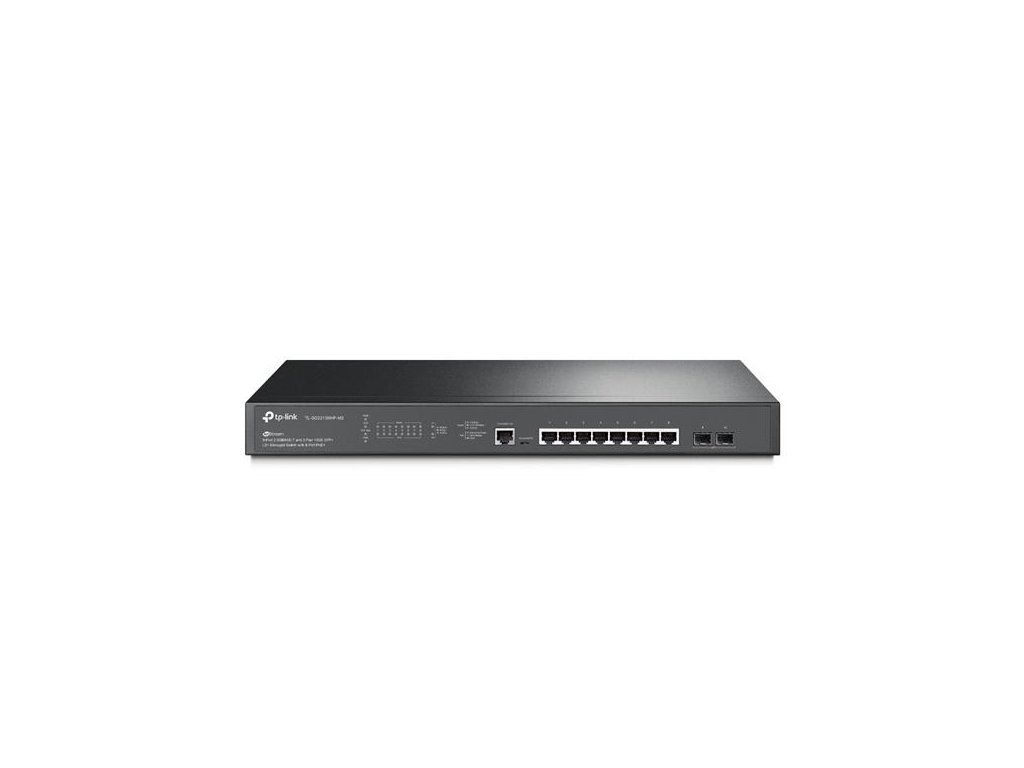

TP-Link SG3210XHP-M2 8x2.5Gb 2xSFP+ L2+ switch 240W POE+ Omada SDN TP-link

JetStream 8-Port 2.5GBASE-T and 2-Port 10GE SFP+ L2+ Managed Switch with 8-Port PoE+

2.5G PoE+ Ports for WiFi 6: 8× 2.5 Gbps ports smash the gigabit barrier and unlock the full potential of WiFi 6 APs.
10G Lightning-Fast Uplink: 2× 10 Gbps SFP+ slots enable high-bandwidth connectivity and non-blocking switching capacity.
240 W PoE Budget: 8× 802.3at/af-compliant PoE+ ports with a total power supply of 240 W*.
Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.
Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
Static Routing: Helps route internal traffic for more efficient use of network resources.
Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.

HARDWARE FEATURES
Interface • 8× 100/1000/2500 Mbps RJ45 Ports
• 2× 10G SFP+ Slots
• 1× RJ45 Console Port
• 1× Micro-USB Console Port
Fan Quantity 2
Power Supply 100-240 V AC~50/60 Hz
Dimensions ( W x D x H ) 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
Mounting Rack Mountable
Max Power Consumption 17.24 W (110V/60Hz) (no PD connected)
291.49 W (110V/60Hz) (with 240 W PD connected)
Max Heat Dissipation 58.82 BTU/h (110 V/60 Hz) (no PD connected)
994.56 BTU/h (110 V/60 Hz) (with 240 W PD connected)


PERFORMANCE
Switching Capacity 80 Gbps
Packet Forwarding Rate 59.52 Mpps
MAC Address Table 16 K
Jumbo Frame 9 KB

SOFTWARE FEATURES

Quality of Service • 8 priority queues
• 802.1p CoS/DSCP priority
• Queue scheduling
- SP (Strict Priority)
- WRR (Weighted Round Robin)
- SP+WRR
• Bandwidth Control
- Port/Flow based Rating Limiting
• Smoother Performance
• Action for Flows
- Mirror (to supported interface)
- Redirect (to supported interface)
- Rate Limit
- QoS Remark

L2 and L2+ Features • Link Aggregation
- static link aggregation
- 802.3ad LACP
- Up to 8 aggregation groups, containing 8 ports per group
• Spanning Tree Protocol
- 802.1d STP
- 802.1w RSTP
- 802.1s MSTP
- STP Security: TC Protect, BPDU Filter, Root Protect
• Loopback Detection
- Port based
- VLAN based
• Flow Control
- 802.3x Flow Control
- HOL Blocking Prevention
• Mirroring
- Port Mirroring
- CPU Mirroring
- One-to-One
- Many-to-One
- Tx/Rx/Both

L2 Multicast • IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave
- IGMP Snooping Querier
- IGMP Authentication
• IGMP Authentication
• MLD Snooping
- MLD v1/v2 Snooping
- Fast Leave
- MLD Snooping Querier
- Static Group Config
- Limited IP Multicast
• MVR
• Multicast Filtering: 256 profiles and 16 entries per profile

VLAN • VLAN Group
- Max 4K VLAN Groups
• 802.1Q Tagged VLAN
• MAC VLAN: 7 Entries
• Protocol VLAN: Protocol Template 16, Protocol VLAN 16
• Private VLAN
• GVRP
• VLAN VPN (QinQ)
- Port-Based QinQ
- Selective QinQ
• Voice VLAN

Access Control List • Time-based ACL
• MAC ACL
- Source MAC
- Destination MAC
- VLAN ID
- User Priority
- Ether Type
• IP ACL
-Source IP
- Destination IP
- Fragment
- IP Protocol
- TCP Flag
- TCP/UDP Port
- DSCP/IP TOS
- User Priority
• Combined ACL
• Packet Content ACL
• IPv6 ACL
• Policy
- Mirroring
- Redirect
- Rate Limit
- QoS Remark
• ACL apply to Port/VLAN

Security • IP-MAC-Port Binding
- 512 Entries
- DHCP Snooping
- ARP Inspection
- IPv4 Source Guard: 100 Entries
• IPv6-MAC-Port Binding
- 512 Entries
- DHCPv6 Snooping
- ND Detection
- IPv6 Source Guard: 100 Entries
• DoS Defend
• Static/Dynamic Port Security
- Up to 64 MAC addresses per port
• Broadcast/Multicast/Unicast Storm Control
- kbps/ratio control mode
• 802.1X
- Port base authentication
- Mac base authentication
- VLAN Assignment
- MAB
- Guest VLAN
- Support Radius authentication andaccountability
• AAA (including TACACS+)
• Port Isolation
• Secure web management through HTTPS with SSLv3/TLS 1.2
• Secure Command Line Interface (CLI) management with SSHv1/SSHv2
• IP/Port/MAC based access control

IPv6 • IPv6 Dual IPv4/IPv6
• Multicast Listener Discovery (MLD) Snooping
• IPv6 ACL
• IPv6 Interface
• Static IPv6 Routing
• IPv6 neighbor discovery (ND)
• Path maximum transmission unit (MTU) discovery
• Internet Control Message Protocol (ICMP) version 6
• TCPv6/UDPv6
• IPv6 applications
- DHCPv6 Client
- Ping6
- Tracert6
- Telnet (v6)
- IPv6 SNMP
- IPv6 SSH
- IPv6 SSL
- Http/Https
- IPv6 TFTP

L3 Features • 16 IPv4/IPv6 Interfaces
• Static Routing
- 48 static routes
• Static ARP
- 128 Static Entries
• Proxy ARP
• Gratuitous ARP
• DHCP Server
• DHCP Relay
- DHCP Interface Relay
- DHCP VLAN Relay
• DHCP L2 Relay

Management • Web-based GUI
• Command Line Interface (CLI) through the console port, telnet
• SNMP v1/v2c/v3
- Trap/Inform
- RMON (1,2,3,9 groups)
• SDM Template
• DHCP/BOOTP Client
• 802.1ab LLDP/LLDP-MED
• DHCP AutoInstall
• Dual Image, Dual Configuration
• CPU Monitoring
• Cable Diagnostics
• EEE
• Password Recovery
• SNTP
• System Log

Advanced Features • Support Omada Hardware Controller (OC200/OC300), Software Controller, Cloud-Based Controller
• Automatic Device Discovery
• Batch Configuration
• Batch Firmware Upgrading
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
• ZTP (Zero-Touch Provisioning)**

MIBs • MIB II (RFC1213)
• Interface MIB (RFC2233)
• Ethernet Interface MIB (RFC1643)
• Bridge MIB (RFC1493)
• P/Q-Bridge MIB (RFC2674)
• RMON MIB (RFC2819)
• RMON2 MIB (RFC2021)
• Radius Accounting Client MIB (RFC2620)
• Radius Authentication Client MIB (RFC2618)
• Remote Ping, Traceroute MIB (RFC2925)
• Support TP-Link private MIB

OTHERS

Certification CE, FCC, RoHS

Package Contents •TL-SG3210XHP-M2 Switch
• Power Cord
• Quick Installation Guide
• Rackmount Kit
• Rubber Feet

Environment • Operating Temperature: 0–45 ? (32–113 ?);
• Storage Temperature: -40–70 ? (-40–158 ?)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
