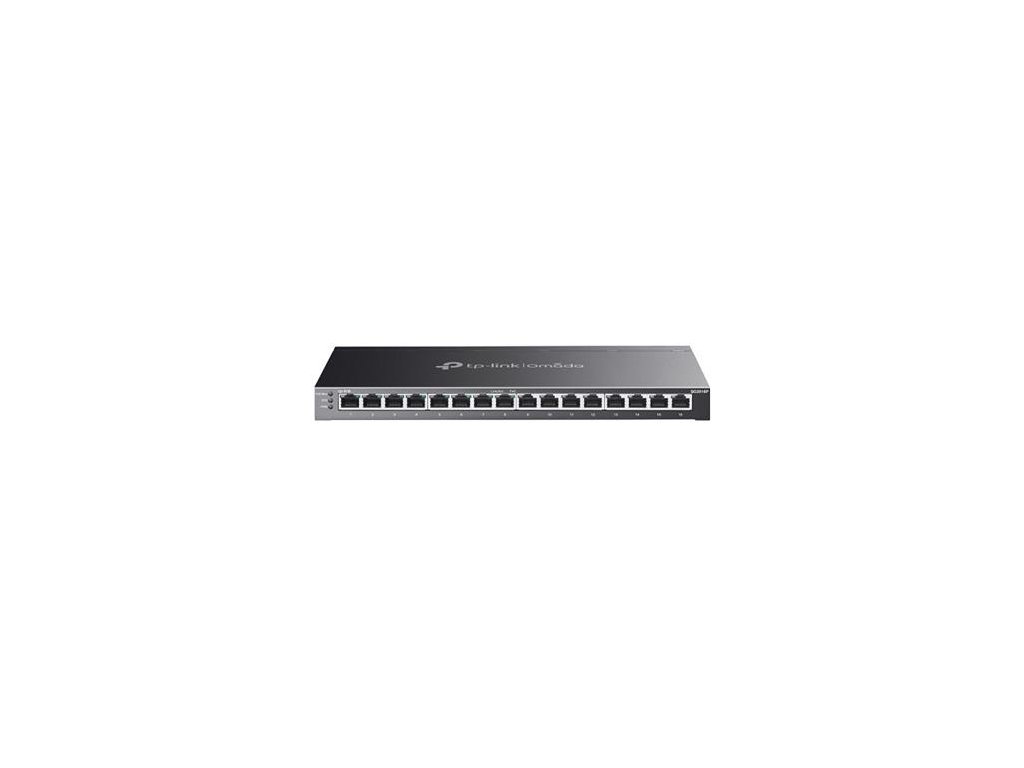

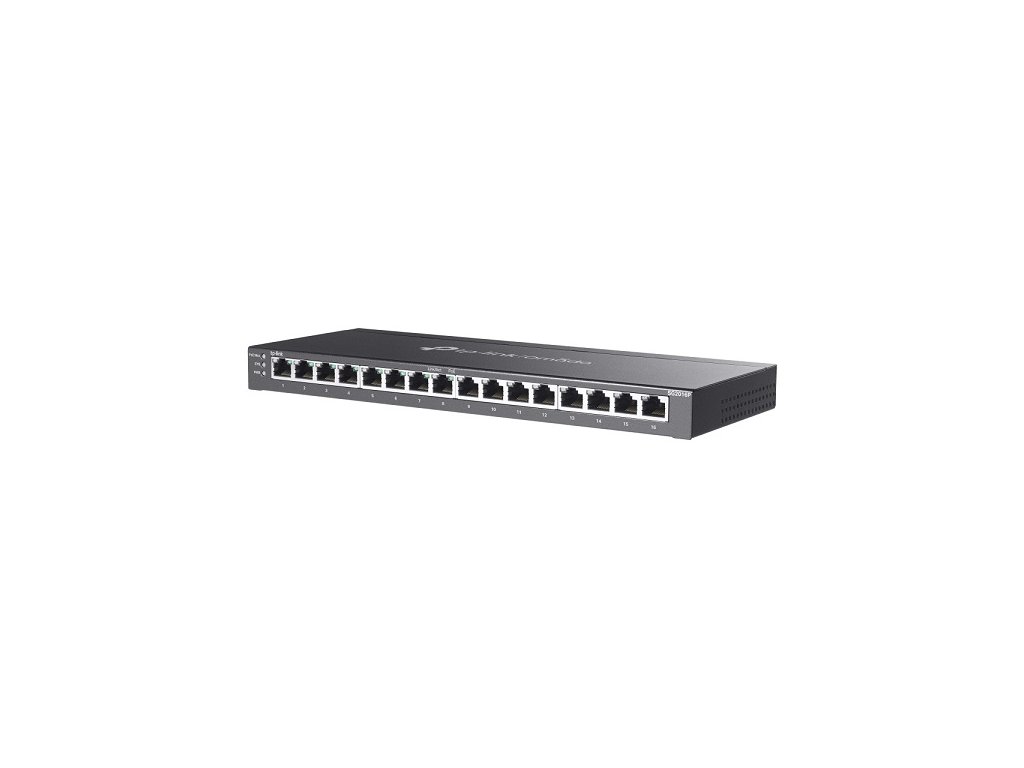

TP-Link SG2016P Omada 16-Port Gigabit Smart Switch with 8-Port PoE+ TP-link

Model: TL-SG2016P HARDWARE FEATURES Standards and Protocols: *IEEE 802.3i *IEEE 802.3ab *IEEE 802.3ad *IEEE 802.3af *IEEE 802.3at *IEEE 802.3x *IEEE 802.1d *IEEE 802.1s *IEEE 802.1w *IEEE 802.1q *IEEE 802.1p *IEEE 802.1x Interface: *16× 10/100/1000 Mbps RJ45 Ports (Ports 1–8 Support 802.3at/af PoE+) *Auto-Negotiation/Auto MDI/MDIX Network Media * 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) * 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) Fan Quantity *Fanless Power Supply * External Power Adapter (Output: 53.5 VDC/ 2.43 A) PoE Ports (RJ45) * Standard: 802.3af/at compliant * PoE Ports: 8 Ports * Power Supply: 120 W* Dimensions ( W x D x H ) *11.3 x 4.4 x 1.0 in (286 x 111.7 x 25.4 mm) Max Power Consumption *146.5 W (110 V/60 Hz) (with 120 W PD connected) Max Heat Dissipation *499.98 BTU/hr (110 V/60 Hz) (with 120 W PD connected) PERFORMANCE Bandwidth/Backplane: *16 Gbps MAC Address Table: *8k Packet Buffer Memory: *4.1 Mbit Jumbo Frame: *9 KB SOFTWARE FEATURES Quality of Service: * 802.1p CoS/DSCP priority * 8 priority queues * Priority Schedule Mode - SP (Strict Priority) - WRR (Weighted Round Robin) * Queue Weight Config * Bandwidth Control - Port/Flow-based Rating Limit * Smoother Performance * Storm Control - Multiple Control Modes(kbps/ratio) - Broadcast/Multicast/Unknown-Unicast Control L2 and L2+ Features: * DHCP Relay - DHCP VLAN Relay * DHCP L2 Relay * Link Aggregation - Static link aggregation - 802.3ad LACP - Up to 8 aggregation groups and up to 8 ports per group * Spanning Tree Protocol - 802.1D STP - 802.1w RSTP - 802.1s MSTP - STP Security: TC Protect, BPDU Filter/Protect, Root Protect * Loopback Detection * Flow Control - 802.3x Flow Control * Mirroring - Port Mirroring - CPU Mirroring - One-to-One - Many-to-One - Flow-Based - Ingress/Egress/Both * Device Link Detect Protocol (DLDP) * 802.1ab LLDP/ LLDP-MED L2 Multicast: * 511 IPv4, IPv6 shared multicast groups * IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave - IGMP Snooping Querier - Static Group Config * Multicast VLAN Registration (MVR) * Multicast Filtering * MLD Snooping - MLD v1/v2 Snooping - Fast Leave - MLD Snooping Querier - Static Group Config * Limited IP Multicast (256 profiles and 16 entries per profile) IPv6 Support: * IPv6 Dual IPv4/IPv6 * Multicast Listener Discovery (MLD) Snooping * IPv6 neighbor discovery (ND) * Path maximum transmission unit (MTU) discovery * Internet Control Message Protocol (ICMP) version 6 * TCPv6/UDPv6 * IPv6 applications - DHCPv6 Client - Ping6 - Tracert6 - Telnet (v6) - IPv6 SNMP - IPv6 SSH - IPv6 SSL - Http/Https - IPv6 TFTP VLAN: * VLAN Group - Max. 4K VLAN Groups * 802.1Q tag VLAN * MAC VLAN: 12 Entries * Protocol VLAN * GVRP * Voice VLAN Access Control List: * Support up to 230 entries * Time-Range - Time Slice - Week Time-Range - Absolute Time-Range - Holiday * Time-based ACL * MAC ACL - Source MAC - Destination MAC - VLAN ID - User Priority - Ether Type * IP ACL - Source IP - Destination IP - IP Protocol - TCP Flag - TCP/UDP Source Port - TCP/UDP Destination Port - DSCP/IP TOS * IPv6 ACL * Combined ACL * Rule Operation - Permit/Deny * Policy Action - Mirror - Rate Limit - Redirect - QoS Remark * ACL Rules Binding - Port Binding - VLAN Binding * Actions for flows - Mirror (to supported interface) - Redirect (to supported interface) - Rate Limit - QoS Remark Security: * AAA * 802.1X - Port-based authentication - MAC (Host) based authentication - Authentication Method includes PAP/EAP-MD5 - MAB - Guest VLAN - Support Radius authentication and accountability * IP/IPv6-MAC Binding - 512 Binding Entries - DHCP Snooping - DHCPv6 Snooping - ARP Inspection - ND Detection * IP Source Guard - 253 Entries - Source IP+Source MAC * IPv6 Source Guard - 183 Entries - Source IPv6 Address+Source MAC * DoS Defend * Static/Dynamic/Permanent Port Security - Up to 64 MAC addresses per port * Broadcast/Multicast/Unicast Storm Control - kbps/ratio control mode * Port Isolation * Secure web management through HTTPS with SSLv3/TLS 1.2 * Secure Command Line Interface (CLI) management with SSHv1/SSHv2 * IP/Port/MAC-based access control Advanced Features: * Automatic Device Discovery * Batch Configuration * Batch Firmware Upgrading * Intelligent Network Monitoring * Abnormal Event Warnings * Unified Configuration * Reboot Schedule MIBs: * MIB II (RFC1213) * Bridge MIB (RFC1493) * P/Q-Bridge MIB (RFC2674) * Radius Accounting Client MIB (RFC2620) * Radius Authentication Client MIB (RFC2618) * Remote Ping, Traceroute MIB (RFC2925) * Support TP-Link private MIBs * RMON MIB(RFC1757, rmon 1,2,3,9) MANAGEMENT Omada App: Yes, through * Omada Cloud-Based Controller * OC300 * OC200 * Omada Software Controller Centralized Management: * Omada Cloud-Based Controller * Omada Hardware Controller (OC300) * Omada Hardware Controller (OC200) * Omada Software Controller Cloud Access: Yes, through * Omada Cloud-Based Controller * OC300 * OC200 * Omada Software Controller Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller Management Features: * Web-based GUI * Command Line Interface (CLI) through telnet * SNMPv1/v2c/v3 * SNMP Trap/Inform * RMON (1,2,3,9 groups) * SDM Template * DHCP/BOOTP Client * Dual Image, Dual Configuration * CPU Monitoring * Cable Diagnostics * EEE * SNTP * System Log OTHERS Certification: CE, FCC, RoHS Package Contents: * TL-SG2016P * Power Adapter * Installation Guide * Rubber Feet System Requirements: Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux. Environment: * Operating Temperature: 0–40 ? (32–104 ?), * Storage Temperature: -40–70 ? (-40–158 ?) * Operating Humidity: 10–90% RH non-condensing * Storage Humidity: 5–90% RH non-condensing
