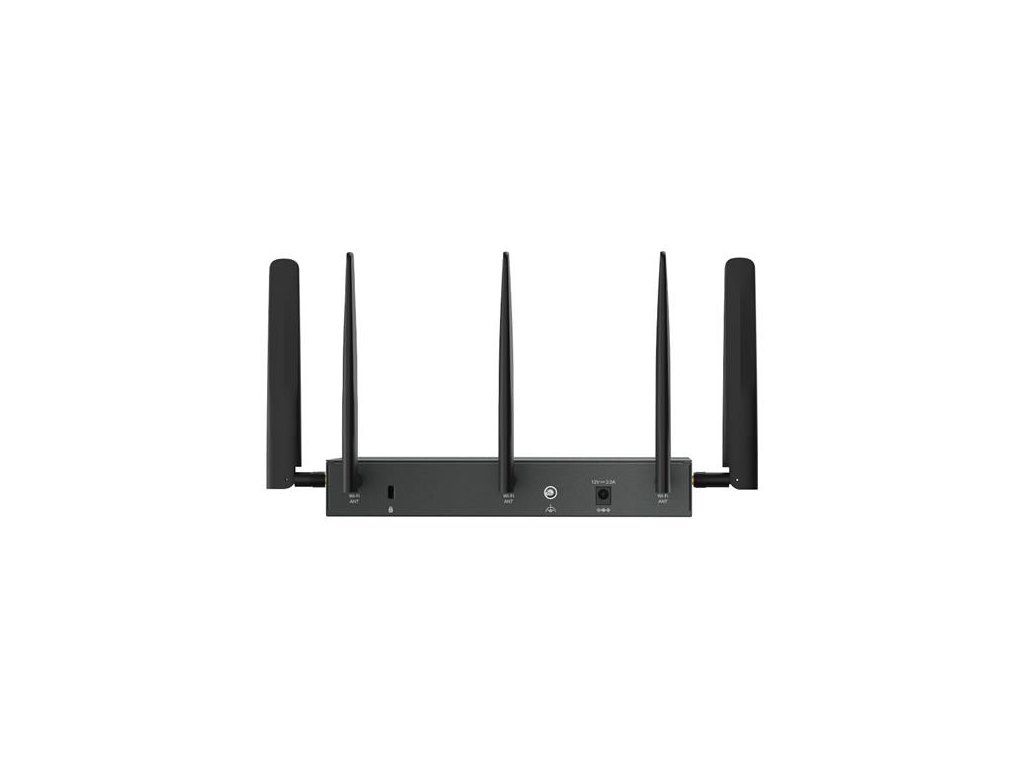

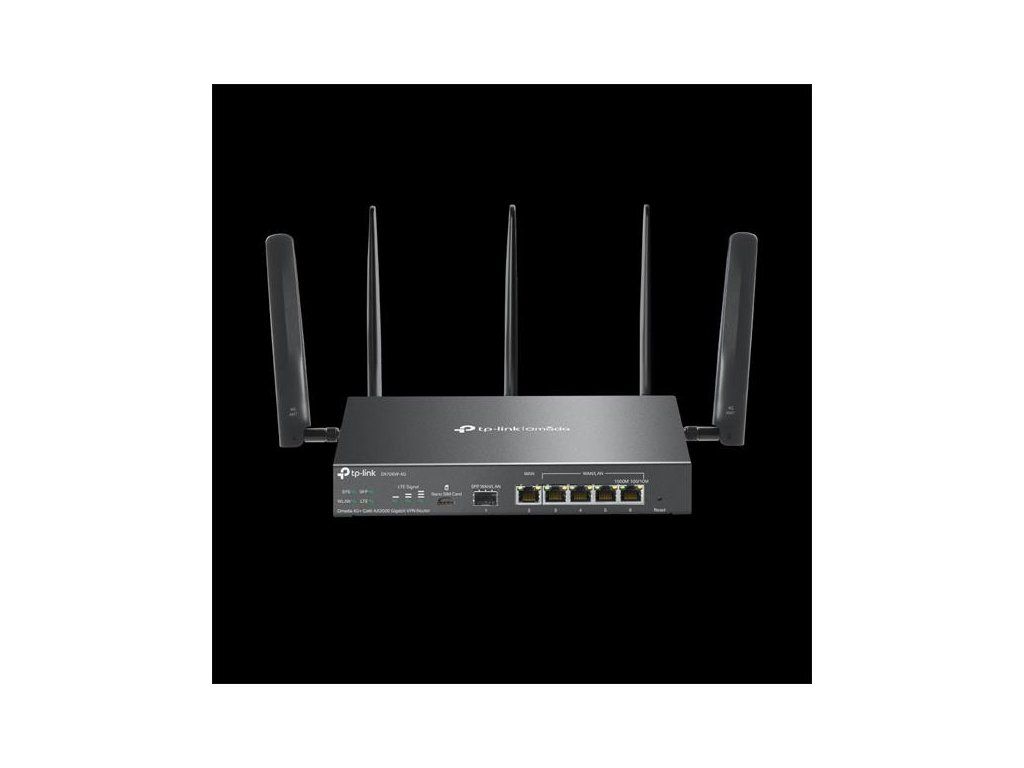

TP-Link ER706W-4G OMADA VPN 4G+Cat6 router (AX3000,1xSFP WAN/LAN,1xGbEWAN,4xGbELAN/WAN,1xnanoSIM) TP-link

ER706W-4G

Gigabitový VPN router Omada 4G+ Cat6 AX3000

Podpora 4G+ Cat6: Vložte kartu Nano SIM a používajte rýchlosť až 300 Mb/s.**

Dvoupásmový router s Wi-Fi 6 AX3000: Podporuje 2402 Mb/s na frekvencii 5 GHz a 574 Mb/s na frekvencii 2,4 GHz*

6 gigabitových ethernetových portov: Poskytujú vysokorýchlostné káblové pripojenie.

5 odnímateľných antén s vysokým ziskom: Rozširujú a koncentrujú signály Wi-Fi.

Centralizovaná správa: Cloudový prístup a aplikácia Omada pre ľahkou správu.

Omada Mesh: Bezproblémové pripojenie k zariadeniam EAP, ktorá podporuje technológiu mesh.*?

Vysoko zabezpečená sieť VPN: Podporuje siete IPSec / SSL / WireGuard / OpenVPN / PPTP / L2TP VPN.



4G

Network Type LTE Band of EU:

• 4G LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32 (2100/1800/850/2600/900/800/700/1450 MHz)

• 4G LTE-TDD: B38/B40/B41 (2600/2300/2500 MHz)

• 3G DC-HSDPA/HSPA+/HSDPA/HSUPA/WCDMA: B1/B3/B5/B8 (2100/1800/850/900 MHz)



Carrier Aggregation of EU:

B1+B1/B3/B5/B7/B8/B20/B28/B38/B40/B41

B3+B3/B5/B7/B8/B20/B28/B38/B40/B41

B5+B5/B7/B38/B40/B41

B7+B7/B8/B20/B28/B32

B8+B32/B38/B40/B41

B20+B32/B38/B40

B28+B32/B38/B40/B41

B38+B38

B40+B40

B41+B41



LTE Band of US:

• 4G LTE-FDD: B2/B4/B5/B7/B12/B13/B14/B25/B26/B29/B30/B66/B71

(1950/2100/850/2600/750/750/750/1950/850/700/2350/2150/650 MHz)

• 4G LTE-TDD: B41/B48 (2500/3600 MHz)



Carrier Aggregation of US:

B2+B2/B4/B5/B7/B12/B13/B14/B29/B30/B48/B66/B71

B4+B4/B5/B7/B12/B13/B29/B30/B71

B5+B5/B7/B25/B30/B41/B66

B7+B7/B12/B66

B12+B12/B25/B30/B66

B13+B66

B14+B30/B66

B25+B25/B26/B41

B26+B41

B29+B30/B66

B30+B66

B41+B41

B48+B48

B66+B66/B71

SIM Type 1× Nano SIM Card

Frequency • Downlink: 300 Mbps;

• Uplink: 50 Mbps

SECURITY

Access Control Source/Destination IP Based Access Control

Filtering • Web Group Filtering†

• URL Filtering

• Web Security†

ARP Inspection • Sending GARP Packets

• ARP Scanning†

• IP-MAC Binding

Attack Defense • TCP/UDP/ICMP Flood Defense

• Block TCP Scan (Stealth FIN/Xmas/Null)

• Block Ping from WAN

HARDWARE FEATURES

Interface • 1 Gigabit SFP WAN/LAN Port

• 1 Gigabit WAN Port

• 4 Gigabit LAN/WAN Ports

Network Media • 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m)

• 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m)

• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)

Button Reset Button

Power Supply 12VDC / 2A Power Adapter

Wi-Fi Frequency & Signal Rate • 2.4 GHz: 574 Mbps

• 5 GHz: 2402 Mbps (HE160)

Flash 128 MB NAND

DRAM 512 MB DDR4

LED SYS, WLAN, SFP, LTE Signal, WAN (1000M Link/Act, 100/10M Link/Act), WAN/LAN (1000M Link/Act, 100/10M Link/Act)

Dimensions ( W x D x H ) 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) (Antenna dimensions are not included)

Antenna • Wi-Fi: Three 5GHz 5.5dBi & 2.4GHz 4.5dBi dual-band detachable antennas

• LTE: Two 4.0dBi omnidirectional detachable antennas

Mounting Desktop/Wall-Mounting

Max Power Consumption EU: 15.4W

US: 17.3W

PERFORMANCE

GRE • Unencrypted: 545.3Mbps

• Encrypted: 282.6Mbps

WireGuard VPN 387.7Mbps

Concurrent Session 150,000

New Sessions /Second 5,100

NAT (Static IP) 947.1Mbps / 940.1Mbps

NAT(DHCP) 949.2Mbps / 941.1Mbps

NAT(PPPoE) 942.6Mbps / 941.1Mbps

NAT (L2TP) 875.4Mbps / 892.0Mbps

NAT (PPTP) 881.2Mbps / 895.8Mbps

IPsec VPN Throughput • ESP-SHA1-AES256: 652.2Mbps

• ESP-SHA256-AES256: 654.4Mbps

• ESP-SHA384-AES256: 646.5Mbps

• ESP-SHA512-AES256: 670.5 Mbps

OpenVPN 115.5Mbps

L2TP VPN Throughput • Unencrypted: 990.0Mbps

• Encrypted: 475.0Mbps

PPTP VPN Throughput • Unencrypted: 1177.9Mbps

• Encrypted: 177.4Mbps

SSL VPN Throughput 122.5Mbps

66 Byte Packet forwarding rate 1,453,489 pps / 1,453,488 pps

1,518 Byte Packet forwarding rate 81274 pps / 91275 pps

WIRELESS FEATURES

Advanced Functions • Seamless Roaming

• Mesh (with EAP that supports Mesh)

• OFDMA

• Beamforming

• MU-MIMO

• Rate Limit: Based on SSID/Client

• Airtime Fairness

• Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise

• Multiple SSIDs: 16 in total (8 per radio)

Guest Network Support

BASIC FUNCTIONS

WAN Connection Type • Static IP

• Dynamic IP

• PPPoE (supports MRU Configuration)

• PPTP

• L2TP

MAC Clone Modify WAN Address

DHCP • DHCP Server

• DHCPv6 PD Server (only in Standalone Mode)

• DHCP Options Customization

• DHCP Address Reservation

• Multi-IP Interfaces

• Multi-Net DHCP

SMS Receive / Send SMS

IPv6 StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode

VLAN 802.1Q VLAN

IPTV IGMP v2/v3 Proxy, Custom Mode, Bridge Mode

ADVANCED FUNCTIONS

ACL IP/Port/Protocol/Domain Name Filtering

Advanced Routing • Static Routing

• Policy Routing

• RIP†

• OSPF†

Bandwidth Control IP-Based Bandwidth Control

Load Balance • Intelligent Load Balance

• Application Optimized Routing

• Link Backup(Timing, Failover)

• Online Detection

NAT • One-to-One NAT

• Multi-Net NAT

• Virtual Server

• Port Triggering†

• NAT-DMZ

• FTP/H.323/SIP/IPSec/PPTP ALG

• UPnP

Session Limit IP-Based Session Limit

VPN

GRE Only in Standalone Mode

SSL VPN 50 Tunnels

IPsec VPN • 100 IPSec VPN Tunnels

• LAN-to-LAN, Client-to-LAN

• Main, Aggressive Negotiation Mode

• DES, 3DES, AES128, AES192, AES256 Encryption Algorithm

• IPsec Failover

• IKE v1/v2

• MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm

• NAT Traversal (NAT-T)

• Dead Peer Detection (DPD)

• Perfect Forward Secrecy (PFS)

PPTP VPN • PPTP VPN Server

• PPTP VPN Client (10)?

• 50 Tunnels

• PPTP with MPPE Encryption

L2TP VPN • L2TP VPN Server

• L2TP VPN Client (10)?

• 50 Tunnels

• L2TP over IPSec

OpenVPN • OpenVPN Server

• OpenVPN Client (5)?

• 55 OpenVPN Tunnels

• "Certificate + Account" Mode

• Full Mode

AUTHENTICATION

Web Authentication • No Authentication

• Simple Password§

• Hotspot (Local User / Voucher§ / SMS§ / Radius§)

• External Radius Sever

• External Portal Sever§

• LDAP

MANAGEMENT

Omada App Yes.

Centralized Management • Omada Cloud-Based Controller

• Omada Hardware Controller (OC300)

• Omada Hardware Controller (OC200)

• Omada Software Controller

Cloud Access Yes.

Service Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)

Maintenance • Web Management Interface

• Remote Management

• Export & Import Configuration

• SNMP v1/v2c/v3

• Diagnostics (Ping & Traceroute)†

• NTP Synchronize†

• Port Mirroring

• CLI (only in Standalone Mode)

• Syslog Support

Zero-Touch Provisioning Yes. Require the use of Omada Cloud-Based Controller.

Management Features • Automatic Device Discovery

• Intelligent Network Monitoring

• Abnormal Event Warnings

• Unified Configuration

• Reboot Schedule

• Captive Portal Configuration

OTHERS

Certification CE, FCC, RoHS

Package Contents • ER706W-4G

• Power Adapter

• Quick Installation Guide

System Requirements • Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11

• MAC OS, NetWare, UNIX or Linux

Environment • Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)

• Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)

• Operating Humidity: 10% to 90% non-condensing

• Storage Humidity: 5% to 90% non-condensing
