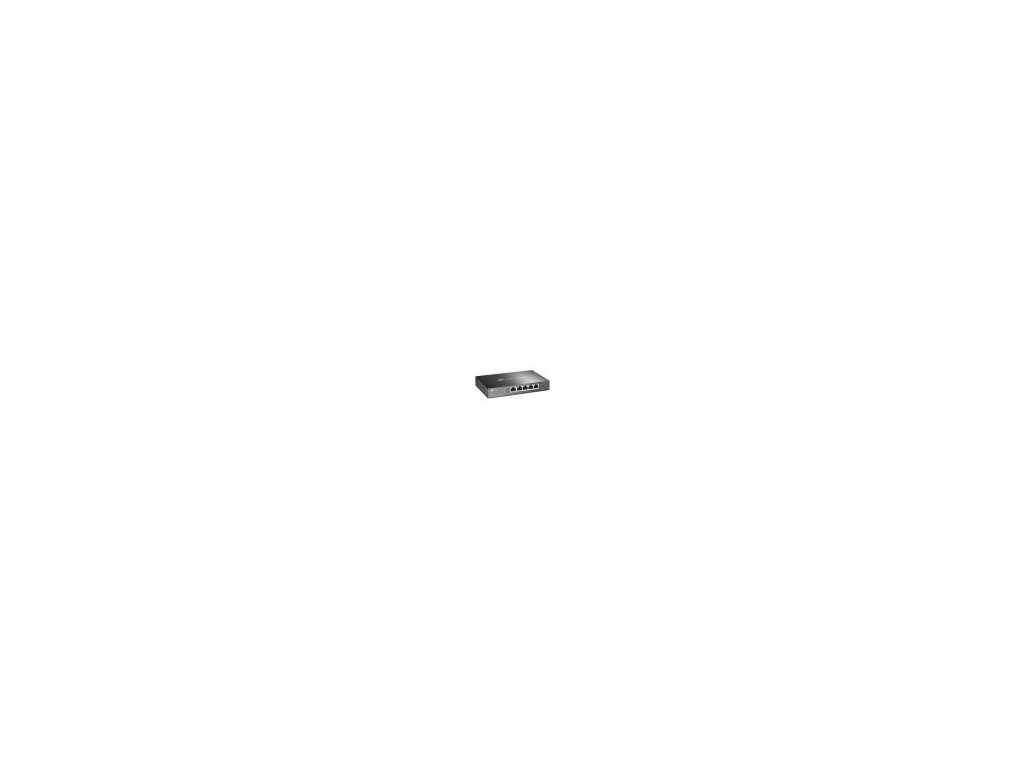

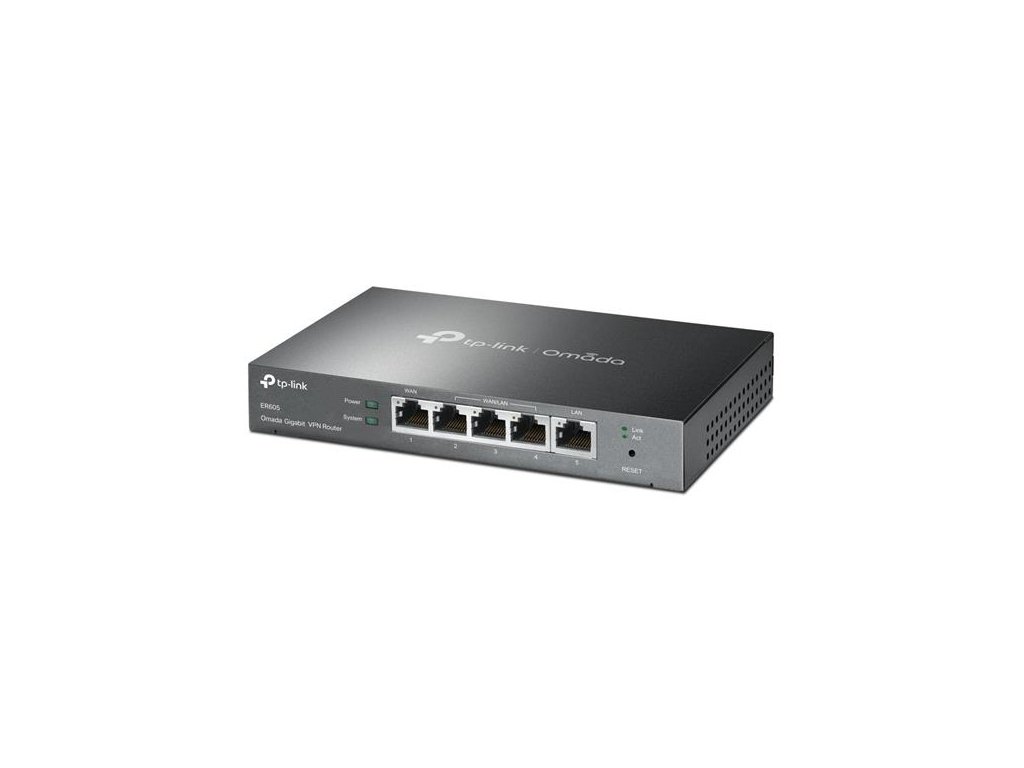

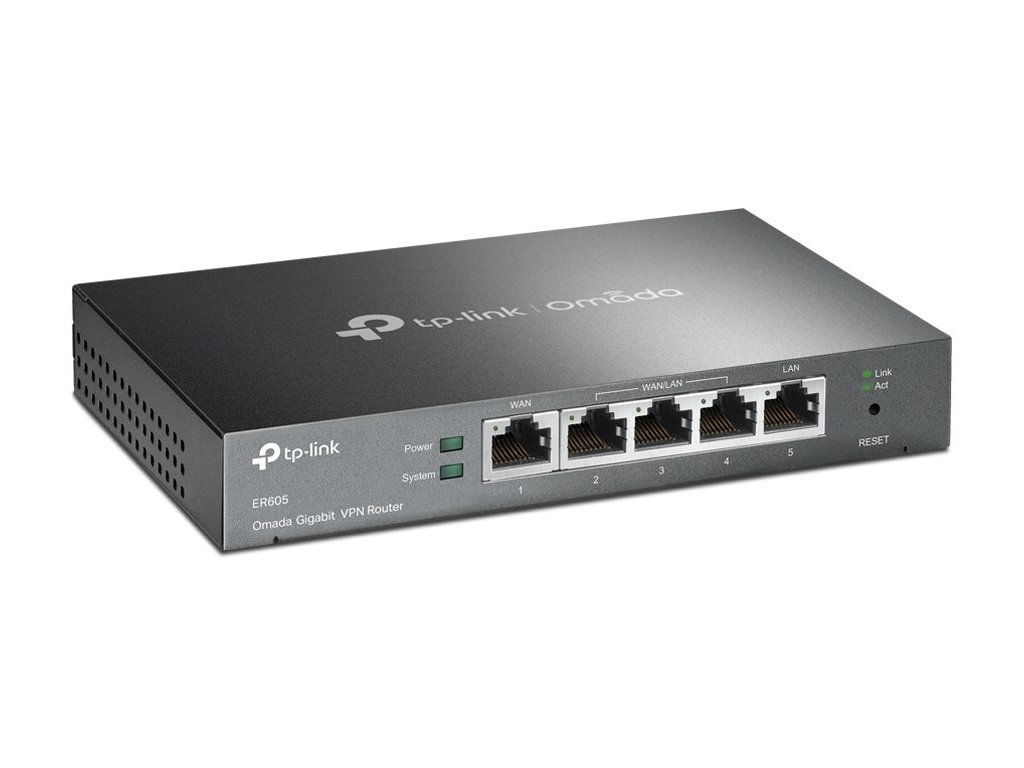

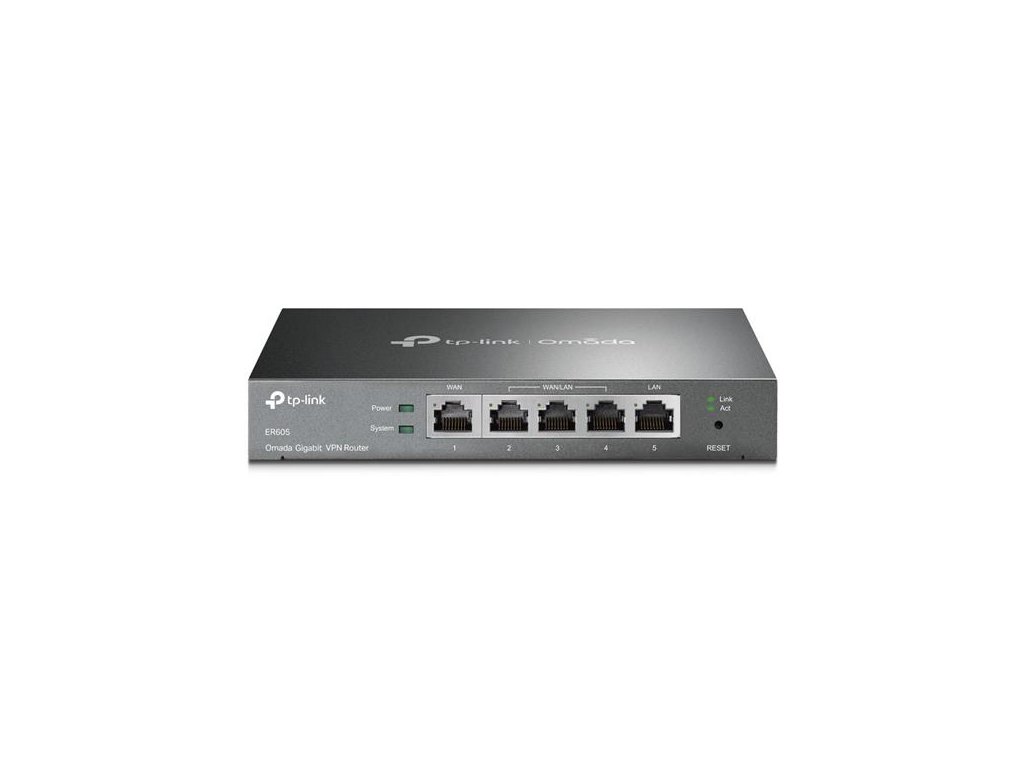

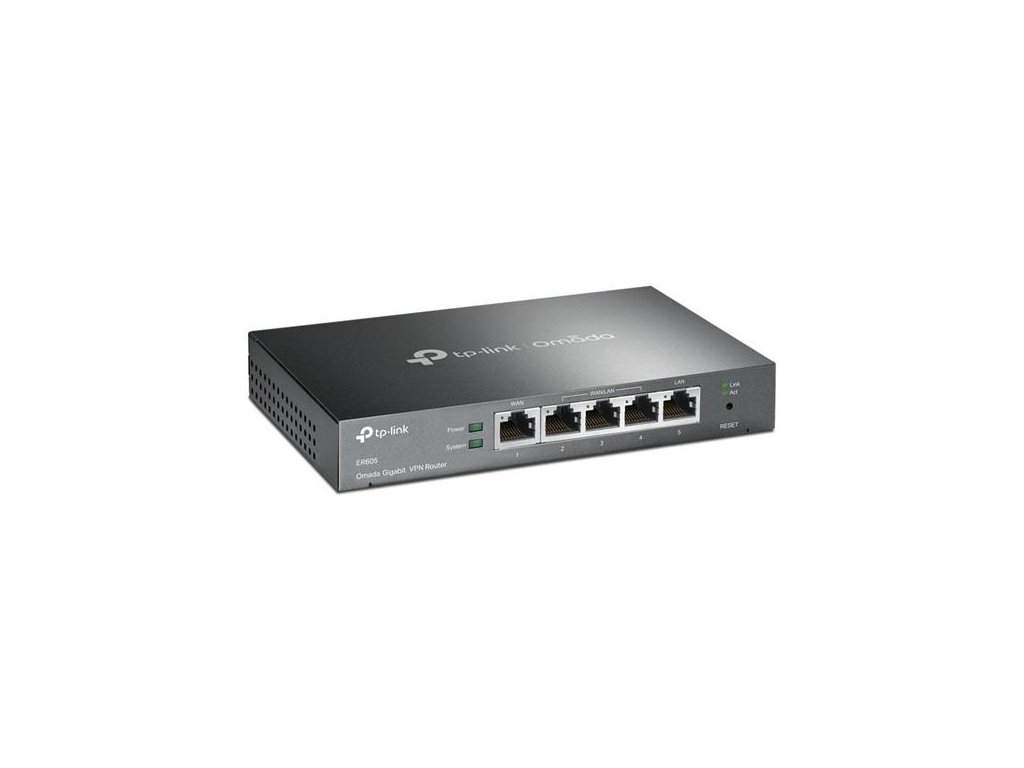

TP-Link ER605 [Gigabitový VPN router Omada] TP-link

Popis produktu

Integrované do platformy Omada SDN: Funkcia ZŤP (Zero-Touch Provisioning), ** centralizovaná cloudové správa a inteligentné monitorovanie.

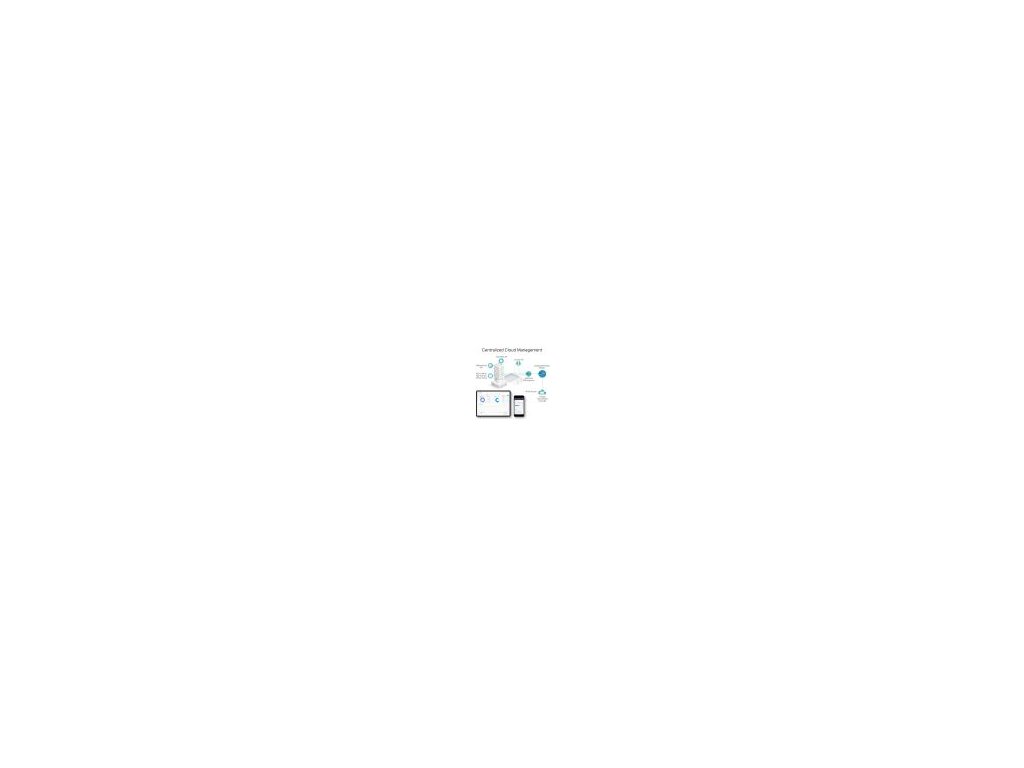

Centralizovaná správa: typu Cloud prístup a aplikácie Omada pre maximálne pohodlie a jednoduchú správu.

Päť gigabitových portov: Vysokorýchlostné káblová konektivita.

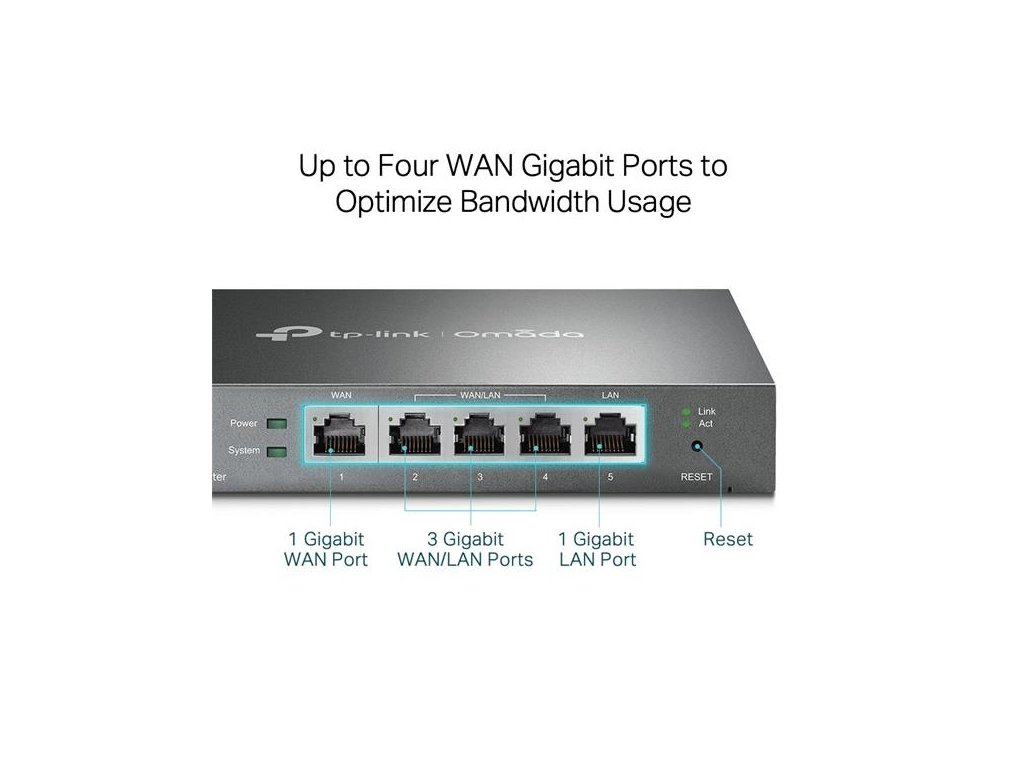

Až 4 porty WAN: 1 gigabitový port WAN a 3 gigabitové porty WAN / LAN s funkciou vyrovnávanie zaťaženia zvyšujú mieru využitia vícelinkového širokopásmového pripojenia.

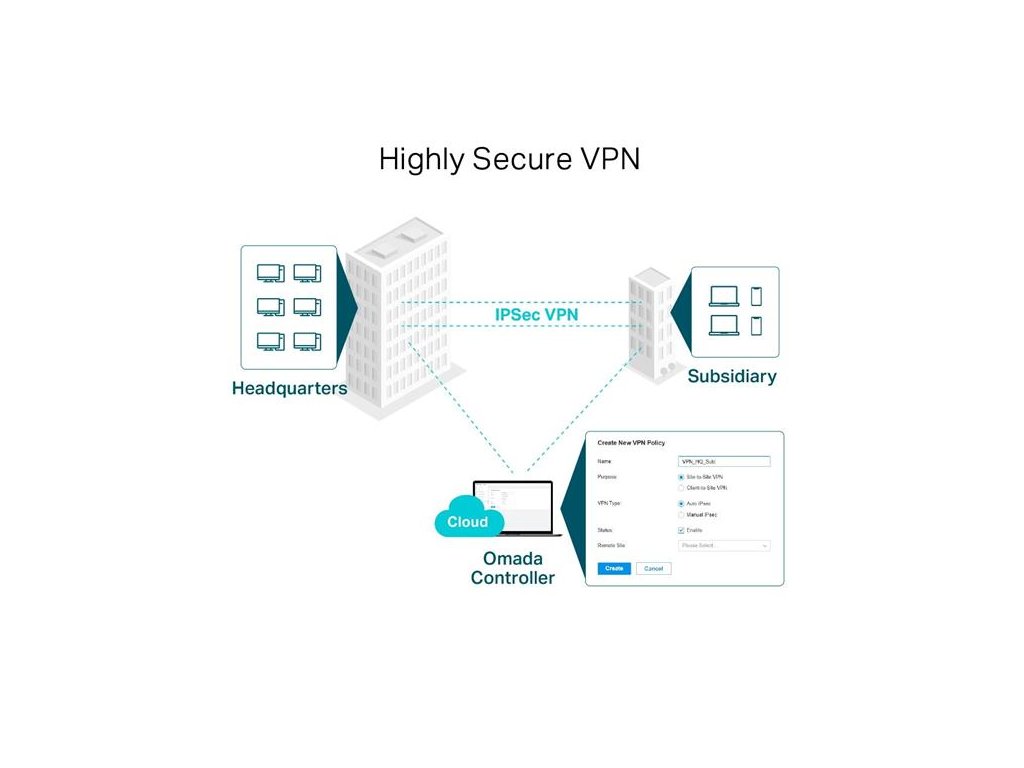

VPN s vysokým zabezpečením: Podporuje pripojenie až 20 × LAN-LAN IPsec, 16 × OpenVPN, * 16 × L2TP a 16 × PPTP VPN.

Mnoho funkcií zabezpečenia: Pokročilé zásady firewallu, ochrana proti útokom DoS, filtrovanie adries IP / MAC / URL a ďalšie bezpečnostné funkcie na ochranu vašej siete a dát.



HARDWARE FEATURES

Standards and Protocols • IEEE 802.3, 802.3u, 802.3ab, IEEE 802.3x, IEEE 802.1q

• TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP

Interface • 1 Fixed Gigabit WAN Port

• 1 Fixed Gigabit LAN Port

• 3 Changeable Gigabit WAN/LAN Ports

Network Media • 10BASE-T: UTP category 3, 4, 5 cable (Max 100m)

EIA/TIA-568 100? STP (Max 100m)

• 100BASE-TX: UTP category 5, 5e cable (Max 100m)

EIA/TIA-568 100? STP (Max 100m)

• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)

Button Reset Button

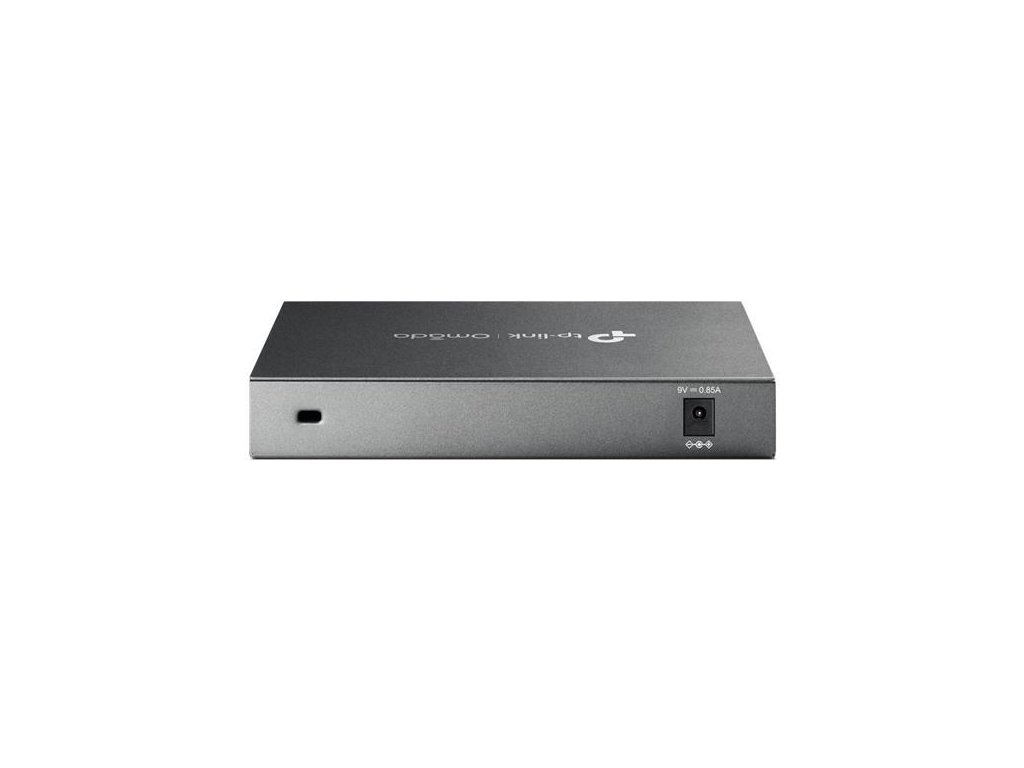

Power Supply External 9V/0.85A DC Adapter

Flash SPI 16MB

DRAM 128 MB

LED PWR, SYS, WAN, LAN

Dimensions ( W x D x H ) 6.2 × 4.0 × 1.0 in (158 × 101 × 25mm)

PERFORMANCE

Concurrent Session 25,000

IPsec VPN Throughput 41.5 Mbps

BASIC FUNCTIONS

WAN Connection Type • Static/Dynamic IP

• PPPoE

• PPTP

• L2TP

MAC Clone Modify WAN/LAN MAC Address†

DHCP • DHCP Server/Client

• DHCP Address Reservation

• Multi-net DHCP*

• Multi-IP Interfaces*

IPv6 Developing‡

VLAN 802.1Q VLAN

IPTV IGMP v2/v3 Proxy

ADVANCED FUNCTIONS

ACL IP/Port/Protocol/Domain Name Filtering

Advanced Routing • Static Routing

• Policy Routing

Bandwidth Control • IP/Port-based Bandwidth Control

• Guarantee & Limited Bandwidth

Load Balance • Intelligent Load Balance

• Application Optimized Routing

• Link Backup (Timing§, Failover)

• Online Detection

NAT • One-to-One NAT§

• Multi-Net NAT

• Virtual Server

• Port Triggering§

• NAT-DMZ

• FTP/H.323/SIP/IPSec/PPTP ALG, UPnP

Security • SPI Firewall

• VPN Passthrough

• FTP/H.323/PPTP/SIP/IPsec ALG

• DoS Defence, Ping of Death

• Local Management

Session Limit IP-based Session Limit

VPN

IPsec VPN • 20 IPsec VPN Tunnels

• LAN-to-LAN, Client-to-LAN

• Main, Aggressive Negotiation Mode

• DES, 3DES, AES128, AES192, AES256 Encryption Algorithm

• IKEv1/v2*

• MD5, SHA1 Authentication Algorithm

• NAT Traversal (NAT-T)

• Dead Peer Detection (DPD)

• Perfect Forward Secrecy (PFS)



*These functions require the use of Omada Hardware Controller, Software Controller, or Cloud-Based Controller

PPTP VPN • PPTP VPN Server

• 10 PPTP VPN Clients?

• 16 Tunnels

• PPTP with MPPE Encryption

L2TP VPN • L2TP VPN Server

• 10 L2TP VPN Clients?

• 16 Tunnels

• L2TP over IPSec

OpenVPN • OpenVPN Server*

• 10 OpenVPN Clients*?

• 16 OpenVPN Tunnels*

SECURITY

Filtering WEB Group Filtering§

URL Filtering

Web Security§

ARP Inspection • Sending GARP Packets§

• ARP Scanning§

• IP-MAC Binding§

Attack Defense • TCP/UDP/ICMP Flood Defense

• Block TCP Scan (Stealth FIN/Xmas/Null)

• Block Ping from WAN

Access Control Source/Destination IP Based Access Control

AUTHENTICATION

Web Authentication • No Authentication

• Simple Password*

• Hotspot(Local User / Voucher* / SMS* / Radius*)

• External Radius Sever

• External Portal Sever*

• Facebook*

MANAGEMENT

Omada App Yes

Centralized Management • Omada Cloud-Based Controller

• Omada Hardware Controller (OC300)

• Omada Hardware Controller (OC200)

• Omada Software Controller

Cloud Access Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)

Service Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)

Maintenance • Time Setting

• Diagnostic

• Firmware Upgrade

• Factory Defaults/Reboot

• Backup&Restore

• System Log

• Remote Management

• Statistics

• Controller Settings

• SNMP

Management Features • Automatic Device Discovery

• Intelligent Network Monitoring

• Abnormal Event Warnings

• Unified Configuration

• Reboot Schedule

• Captive Portal Configuration

• ZTP (Zero-Touch Provisioning)**

OTHERS

Certification CE, FCC, RoHS

Package Contents • Gigabti VPN Router ER605

• Power Adapter

• RJ45 Ethernet Cable

• Quick Installation Guide

System Requirements Microsoft® Windows® 10, 8, 7,Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux

Environment • Operating Temperature: 0–40 ? (32–104 ?);

• Storage Temperature: -40–70 ? (-40–158 ?)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing
