TP-Link EAP772 BE9300 WiFi7 Access Point TP-link

EAP772

Tripásmový prístupový bod s Wi-Fi 7 BE9300 pre montáž na strop
BE9300 Tri-Band Wi-Fi 7 (5760 Mb/s na 6 GHz + 2880 Mb/s na 5 GHz + 574 Mb/s na 2,4 GHz).†
Čisté pásmo 6 GHz prináša čistejšie a širšie zdroje.‡
1× 2,5G port uvoľňuje plný potenciál Wi-Fi 7.
Šírka pásma 320 MHz umožňuje oveľa viac súčasných prenosov.‡
Prevádzka s viac linkami a viac jednotkami zabezpečuje vysoký výkon vašej siete.‡
Pokročilé funkcie: Centralizovaná správa, mesh a AI roaming.



HARDWARE FEATURES

Interface 1× 2.5G Ethernet Port

Button Reset

Power Supply 802.3at PoE or 12V/2.5A DC

Power Consumption • 24.05 W (For PoE);

• 20.92 W (For DC)

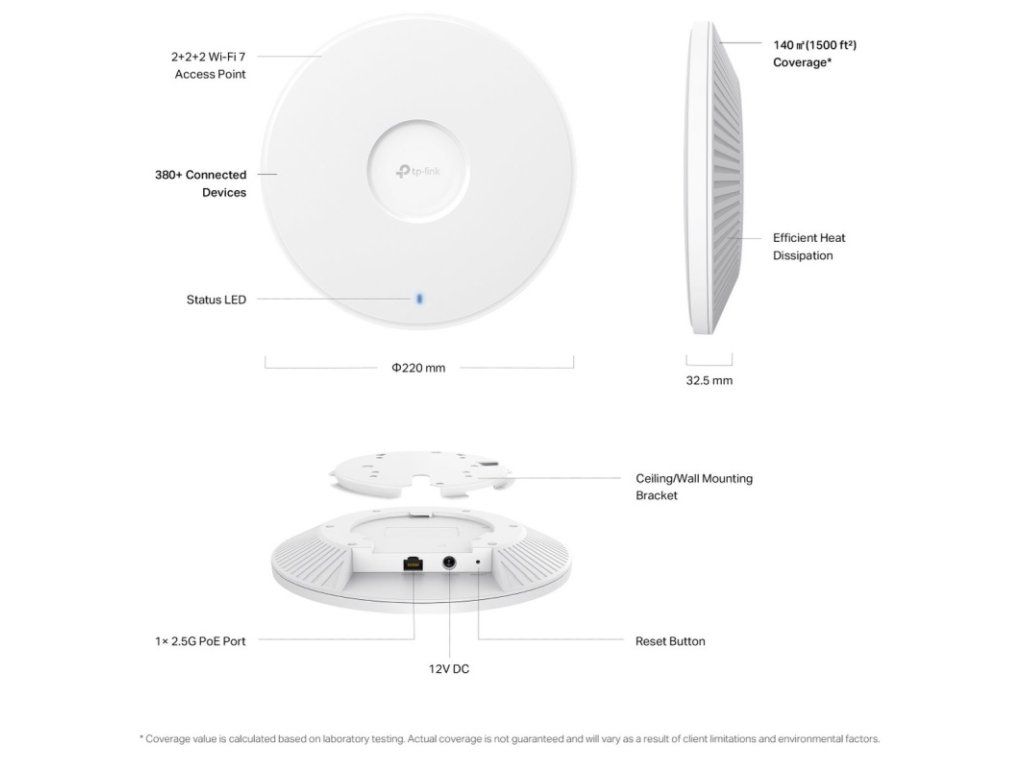

Dimensions ( W x D x H ) 8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm)

Antenna Type • 2.4 GHz: 2× 4.0 dBi

• 5 GHz: 2× 5.0 dBi

• 6 GHz: 2× 5.0 dBi

Bluetooth 1 × 4.0 dBi, Bluetooth 5.2

*Firmware update may be required.

Mounting Ceiling / Wall Mounting (Kits Included)

WIRELESS FEATURES

Wireless Client Capacity 380+**

Wireless Standards IEEE 802.11 a/b/g/n/ac/ax/be

Frequency 6 GHz, 5 GHz, and 2.4 GHz

Signal Rate 574 Mbps (2.4 GHz) + 2880 Mbps (5 GHz) + 5760 Mbps (6 GHz)†

Wireless Functions • MLO‡

• 4K-QAM‡

• Seamless Roaming(802.11k/v/r)

• MU-MIMO‡

• EHT320‡

• Mesh?

• BSS Coloring‡

• OFDMA‡

• Load Balance

• Band Steering

• Beamforming

• Airtime Fairness

• Multiple SSIDS:24(8 on each band)

• Wireless Schedule

• Reboot Schedule

• QoS(WMM)

• Rate Limit

• Static IP/Dynamic IP

• RADIUS Accounting

• MAC Authentication

Wireless Security • Captive Portal Authentication?

• Access Control

• Maximum number of MAC Filter: 4,000

• Wireless Isolation Between Clients

• VLAN

• Rogue AP Detection

• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

Transmission Power < 20 dBm (2.4 GHz, EIRP)

< 23 dBm (5 GHz, band 1&band 2, EIRP)

< 28 dBm (5 GHz, band 3, EIRP)

< 23dBm (6 GHz, EIRP)

MANAGEMENT

Omada App Yes

Centralized Management • Omada Cloud-Based Controller

• Omada Hardware Controller (OC300)

• Omada Hardware Controller (OC200)

• Omada Software Controller

Cloud Access Yes. Require the use of an OC300, OC200, Omada Software Controller, or an Omada Cloud-Based Controller.

Email Alerts Yes

LED ON/OFF Control Yes

Management MAC Access Control Yes

SNMP v1, v2c, v3

System Logging Local/Remote Syslog Yes

Web-based Management Yes

OTHERS

Certification CE, FCC, RoHS, IC

Package Contents • EAP772

• Installation Guide

• Ceiling/Wall Mounting Kit

Note: Power Adapter is NOT included.

Environment • Operating Temperature: 0 °C–40 °C (32 °F–104 °F);

• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);

• Operating Humidity: 10%–90% non-condensing;

• Storage Humidity: 5%–90% non-condensing;
