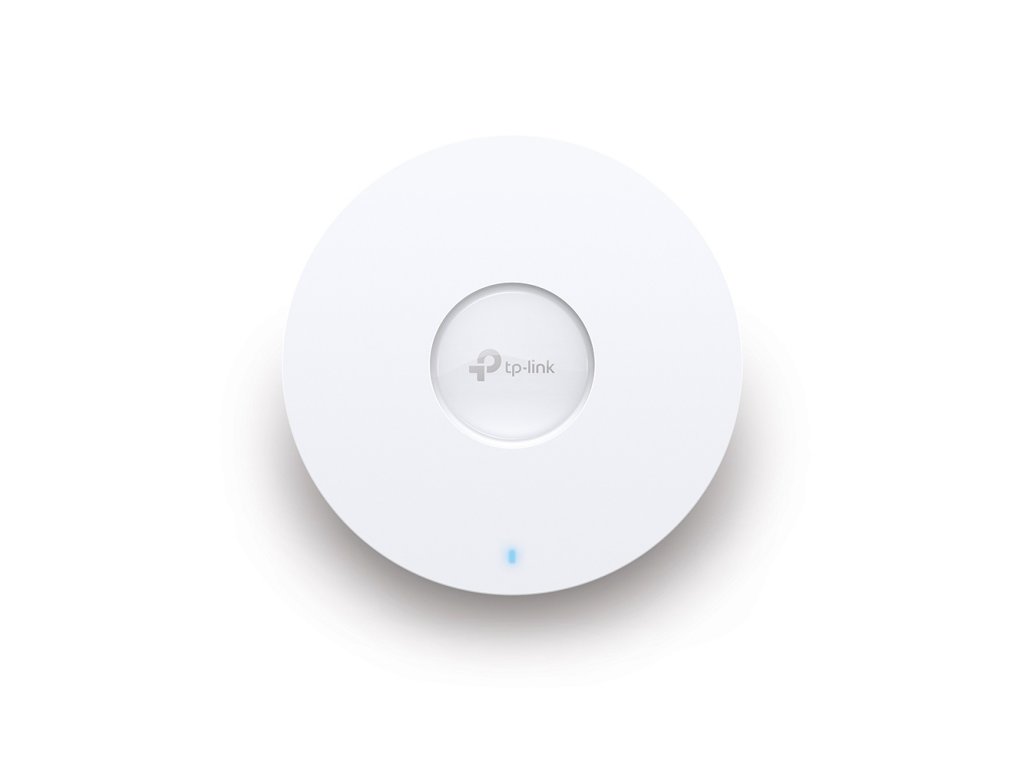

TP-Link EAP653 UR - AX3000 WIFI 6 přístupový bod Omada 1X GLAN POE+ montáž na strop/zeď (adaptér není součástí balení) TP-link

Popis produktu

EAP653 UR

Prístupový bod AX3000 Wi-Fi 6 pre montáž na strop

Veľmi rýchle WiFi 6 rýchlostí: 2402 Mb/s na 5 GHz t+ 574 Mb/s na 2,4 GHz†

Bezdrôtové pokrytie s mimoriadnym dosahom vďaka väčšiemu počtu antén s vyšším vysielacím výkonom

Podpora technológií WiFi 6, ako je HE160, 1024-QAM atď‡

Pokročilé funkcie: Omada Mesh, bezproblémový roaming atď§

Napájanie PoE+: Podporuje štandard 802.3at PoE+ aj jednosmerný prúd (adaptér nie je súčasťou dodávky)

Veľmi tenký design: Elegantný dizajn ?16cm × 3,3cm prináša väčšiu agilitu.

Integrácia s platformou Omada SDN pre centralizovanú správu



HARDWARE FEATURES

Interface 1× Gigabit PoE+ Port

Button Reset

Power Supply • 802.3at PoE

• 12V DC / 1.5 A (Power Adapter IS NOT included)

• 48V Passive PoE

Power Consumption • EU: 14.2 W

• US: 15.5 W

Dimensions ( W x D x H ) 6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm)

Antenna Type Internal Omni

• 2.4 GHz: 2× 5 dBi

• 5 GHz: 3× 5 dBi

Mounting • Ceiling /Wall Mounting (Kits included)

• Junction Box Mounting

WIRELESS FEATURES

Coverage 185 ? (2000 ft2)***

Concurrent Clients 250+**

Wireless Standards IEEE 802.11ax/ac/n/g/b/a

Frequency 2.4 GHz and 5 GHz

Signal Rate • 5 GHz: Up to 2402 Mbps†

• 2.4 GHz: Up to 574 Mbps†

Wireless Functions • 1024-QAM

• 4× Longer OFDM Symbol

• OFDMA

• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)

• Enable/Disable Wireless Radio

• Automatic Channel Assignment

• Transmit Power Control (Adjust Transmit Power on dBm)

• QoS(WMM)

• MU-MIMO(2G: 2*2 MU-MIMO DL/UL; 5G:2*2 MU-MIMO DL/UL)

• HE160 (160 MHz Bandwidth)‡

• Seamless Roaming(802.11k/v/r)§

• Omada Mesh§

• Band Steering

• Load Balance

• Airtime Fairness

• Beamforming

• Rate Limit

• Reboot Schedule

• Wireless Schedule

• Wireless Statistics based on SSID/AP/Client

Wireless Security • Captive Portal Authentication§

• Access Control

• Wireless Mac Address Filtering

• Wireless Isolation Between Clients

• SSID to VLAN Mapping

• Rogue AP Detection

• 802.1X Support

• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

Transmission Power • CE:

<20 dBm(2.4 GHz, EIRP)

<23 dBm(5 GHz, Band1 & Band2, EIRP)

<29 dBm(5 GHz, Band3, EIRP)



• FCC:

<26 dBm (2.4 GHz)

<27 dBm (5 GHz)

MANAGEMENT

Omada App Yes

Centralized Management • Omada Hardware Controller (OC300)

• Omada Hardware Controller (OC200)

• Omada Software Controller

• Omada Cloud-Based Controller

Cloud Access Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.

Email Alerts Yes

LED ON/OFF Control Yes

Management MAC Access Control Yes

SNMP v1, v2c, v3

System Logging Local/Remote Syslog Local/Remote Syslog

SSH Yes

Web-based Management HTTP/HTTPS

L3 Management Yes

Multi-site Management Yes

Management VLAN Yes

Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.

OTHERS

Certification CE, FCC, RoHS

Package Contents • EAP653 UR

• Ceiling/Wall Mounting Kit

• Installation Guide



Note: DC adapter is not included in the package, and is sold separately.

System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux

Environment • Operating Temperature: 0–40 ? (32–104 ?)

• Storage Temperature: -40–70 ? (-40–158 ?)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing
