TP-Link EAP650-Desktop AX3000 Desktop WiFi6 AP TP-link

Popis produktu

EAP650-Desktop

Omada AX3000 Wi-Fi 6 stolný prístupový bod

Bleskovo rýchle rýchlosti AX3000 Wi-Fi 6: 574 Mb/s na 2,4 GHz a 2402 Mb/s na 5 GHz, čo celkom činí 2976 Mb/s WiFi rýchlosťou. †

Viac gigabitových portov: Pripojte viac zariadení pomocou 4× Gigabit Ethernet portov.

Pohodlné nasadenie: Podporuje ako 802.3bt PoE++, tak DC (adaptér je súčasťou balenia) pre jednoduché a rýchle nasadenie.

Bez nutnosti inštalácie: Podporuje stolnú inštaláciu bez potreby ďalšieho nastavenia.

Vysoká flexibilita: Poskytuje flexibilné možnosti inštalácie pre stolnú aj nástennú montáž.

Pokročilé funkcie: Omada Mesh, bezproblémové roaming, centralizovaná cloudová správa.



HARDWARE FEATURES

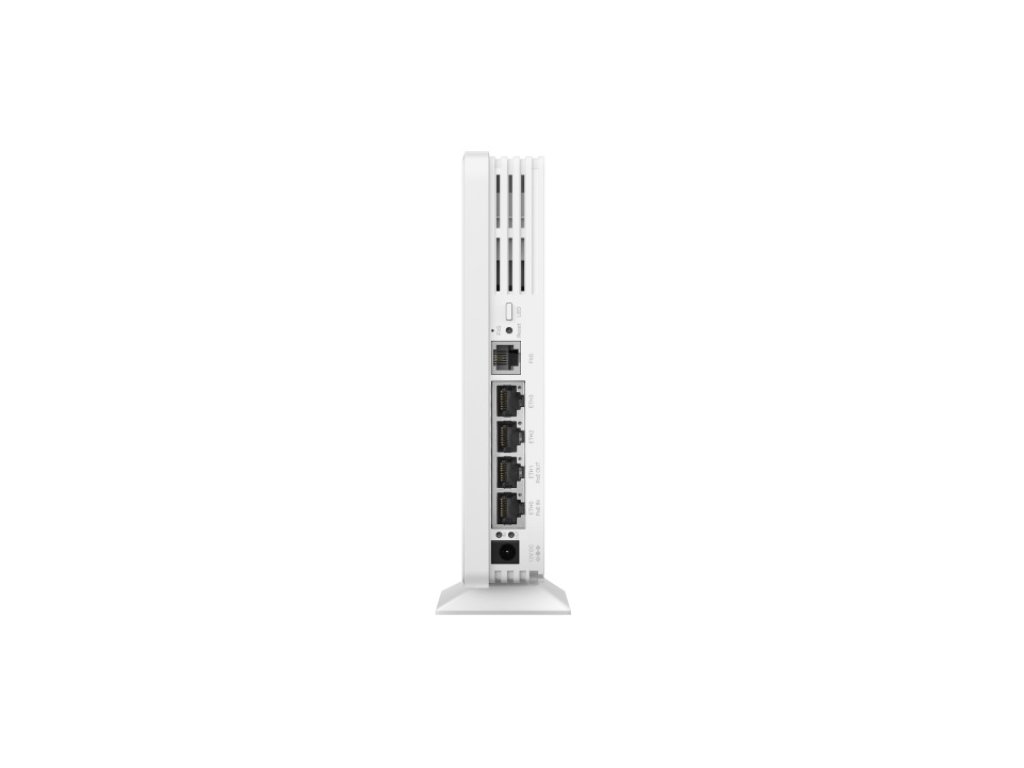

Interface 4× 1Gbps Ethernet Ports + 1× FXS Port

(One Ethernet port supports PoE Out: 802.3at/af output at 802.3bt input, 802.3af class 2 output at 802.3at input)

Button • Reset

• LED

Power Supply 802.3 af/at/bt PoE or 12V/1.5A DC

*PoE Out requires 802.3at/bt PoE power supply

Power Consumption 17.3W (PoE Out Off)

Weight 452g (excluding mounting base)

Dimensions ( W x D x H ) 6.9 × 5.5 × 1.3 in (175 × 140 × 33 mm)

Antenna Type Internal Omni

• 2.4 GHz: 2× 5 dBi

• 5 GHz: 3× 4.7 dBi

Range 140?(1500 ft2)*

Mounting Desktop / Wall mouting (Kits included)

WIRELESS FEATURES

Concurrent Clients 250+*

Wireless Standards IEEE 802.11 a/b/g/n/ac/ax

Frequency 2.4 GHz and 5 GHz

Signal Rate • 5 GHz: 2402 Mbps†

• 2.4 GHz: 574 Mbps

Wireless Functions • 2×2 (2.4G & 5G) MU-MIMO‡

• HE160 (160 MHz Bandwidth)‡

• OFDMA‡

• Omada Mesh

• Seamless Roaming §

• Multiple SSIDs (16 SSIDs, 8 on each band)

• Enable/Disable SSID Broadcast

• Enable/Disable Wireless Radio

• Guest Network

• Automatic Channel Assignment

• Beamforming

• Rate Limit (Based on SSID/Client)

• Band Steering

• Load Balance

• Airtime Fairness

• Transmit Power Control (Adjust Transmit Power on dBm)

• QoS (WMM)

• RADIUS Accounting

• MAC Authentication

• Reboot Schedule

• Wireless Schedule and Statistics

• Static IP/Dynamic IP

Wireless Security • Captive Portal Authentication§

• Access Control

• Wireless Mac Address Filtering

• Wireless Isolation Between Clients

• VLAN

• Rogue AP Detection

• 802.1X Support

• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

Transmission Power • CE:

<20 dBm(2.4 GHz, EIRP)

<23 dBm(5 GHz, band1 & band2, EIRP)

<29 dBm(5 GHz, band3, EIRP)



• FCC:

<26 dBm (2.4 GHz)

<27 dBm (5 GHz)

MANAGEMENT

Omada App Yes

Centralized Management • Omada Hardware Controller

• Omada Software Controller

• Omada Cloud-Based Controller

Cloud Access Yes.

Email Alerts Yes

LED ON/OFF Control Yes

Management MAC Access Control Yes

SNMP v1, v2c, v3

System Logging Local/Remote Syslog System Log

SSH Yes

Web-based Management Yes

Zero-Touch Provisioning Yes.Reauire the use of Omada Cloud-Based controller

OTHERS

Certification CE, FCC, RoHS, IC

Package Contents • EAP650-Desktop

• Desktop/Wall Mounting Kit

• Installation Guide

System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux

Environment • Operating Temperature: 0–40 ? (32–104 ?)

• Storage Temperature: -40–70 ? (-40–158 ?)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing
