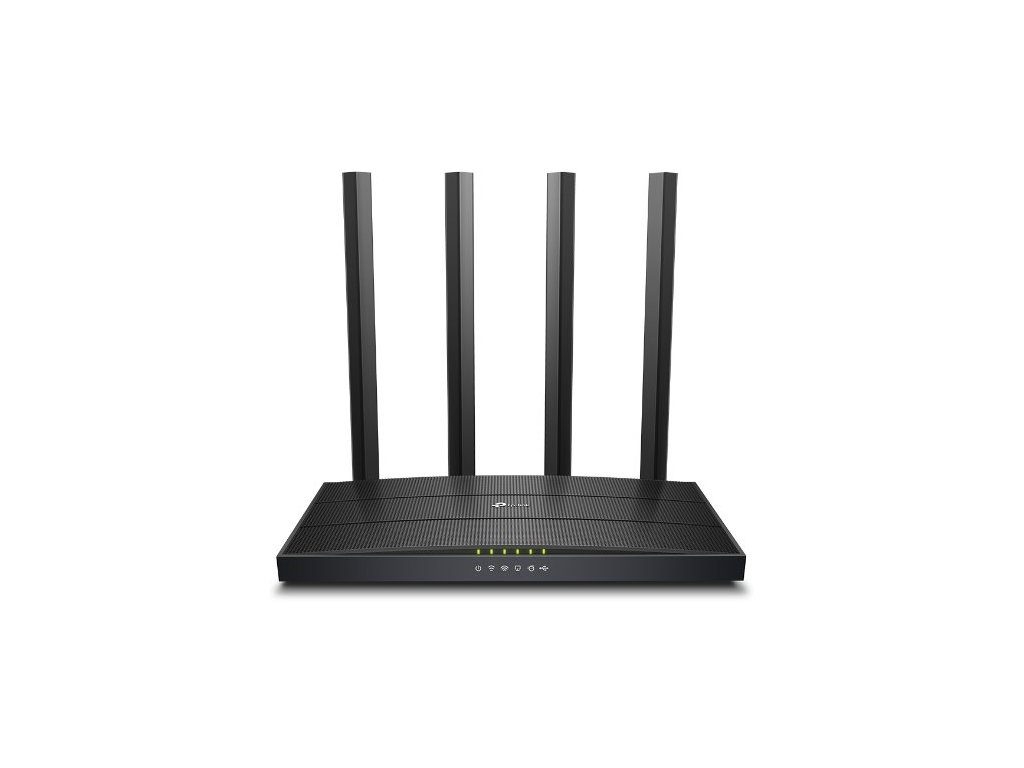

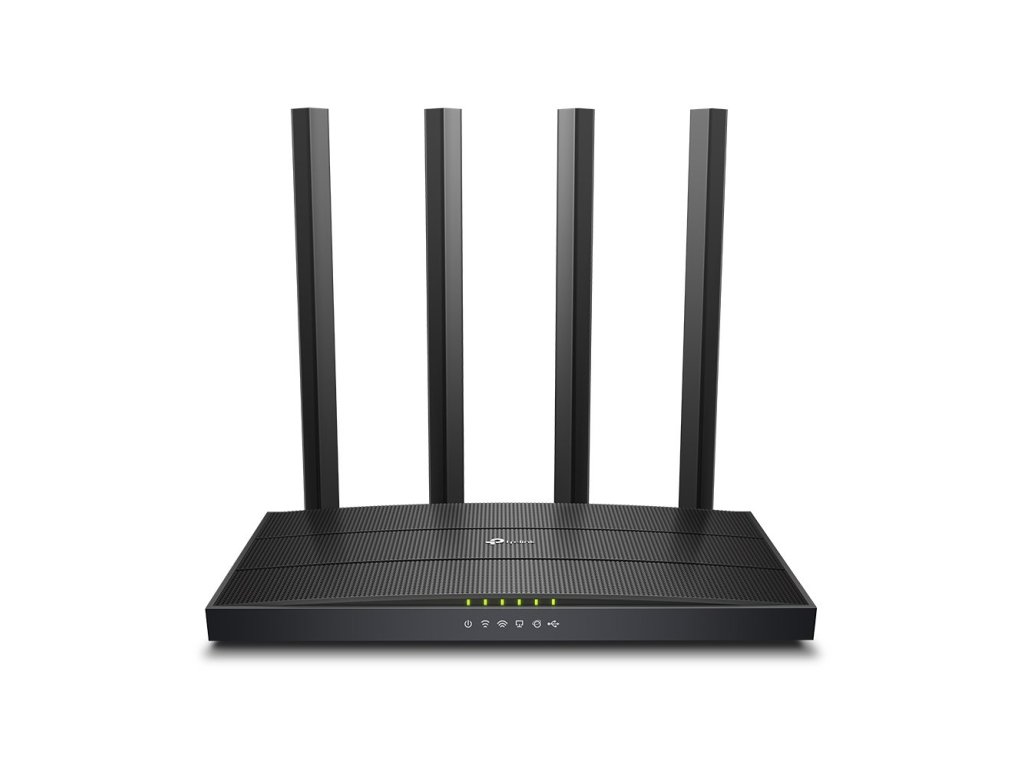

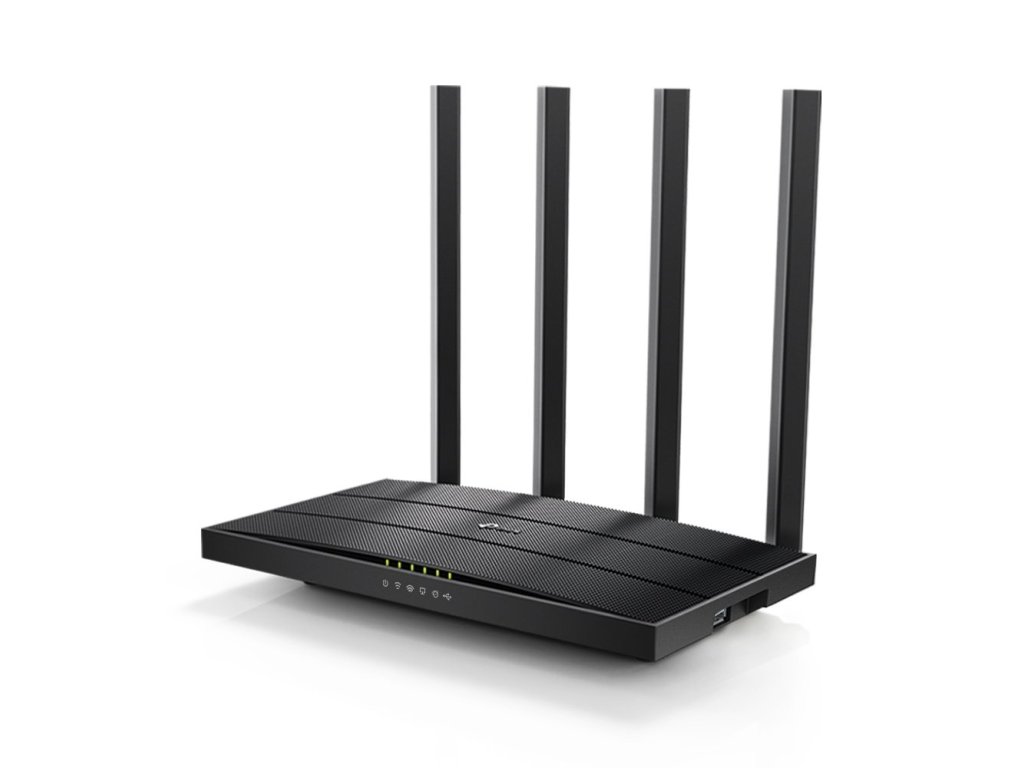

TP-Link Archer C6U AC1200 WiFi DualBand Router, USB 2.0, 5xGb LAN, 4x anténa TP-link

WIRELESS

Standards Wi-Fi 5

IEEE 802.11ac/n/a 5 GHz

IEEE 802.11n/b/g 2.4 GHz

WiFi Speeds AC1200

5 GHz: 867 Mbps (802.11ac)

2.4 GHz: 300 Mbps (802.11n)

WiFi Range 3 Bedroom Houses

4× Fixed High-Performance Antennas

Multiple antennas form a signal-boosting array to cover more directions and large areas

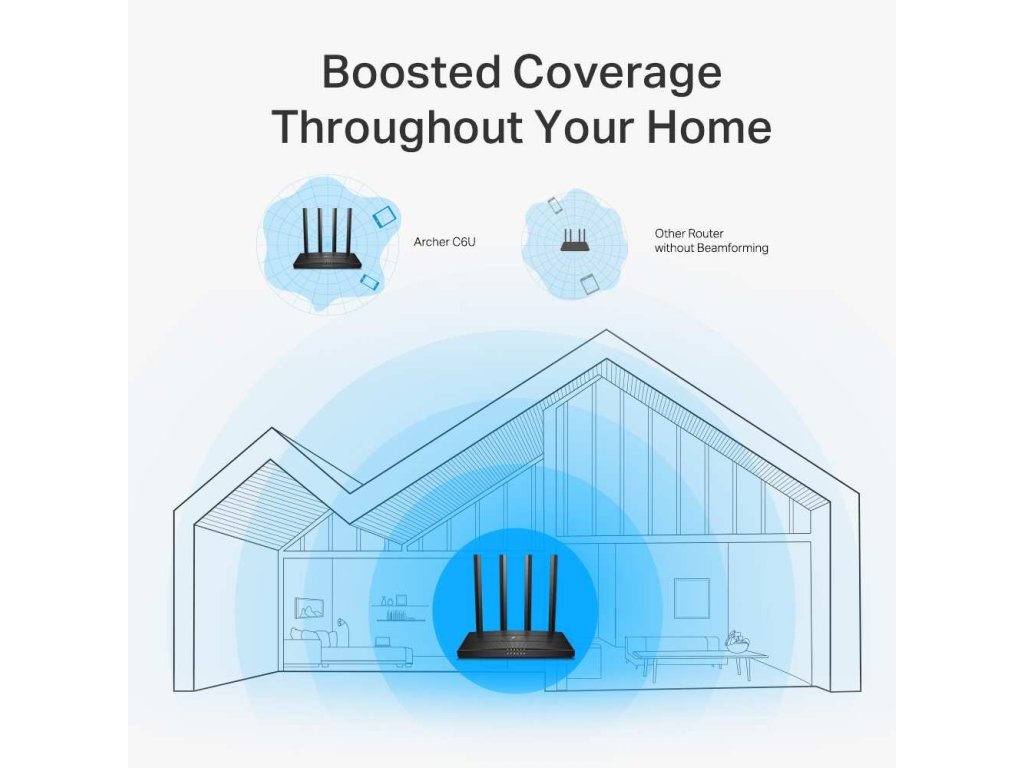

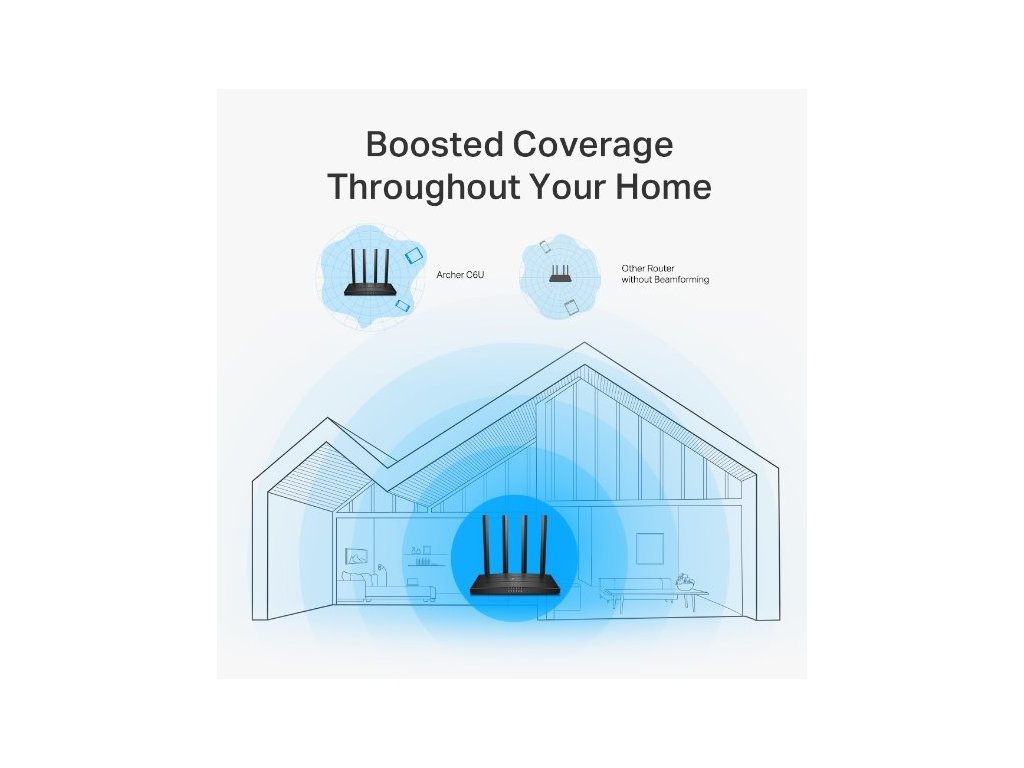

Beamforming

Concentrates wireless signal strength towards clients to expand WiFi range

WiFi Capacity Medium

Dual-Band

Allocate devices to different bands for optimal performance



MU-MIMO

Simultaneously communicates with multiple MU-MIMO clients



Airtime Fairness

Improves network efficiency by limiting excessive occupation

Working Modes Router Mode

Access Point Mode

HARDWARE

Processor Dual-Core CPU

Ethernet Ports 1× Gigabit WAN Port

4× Gigabit LAN Ports

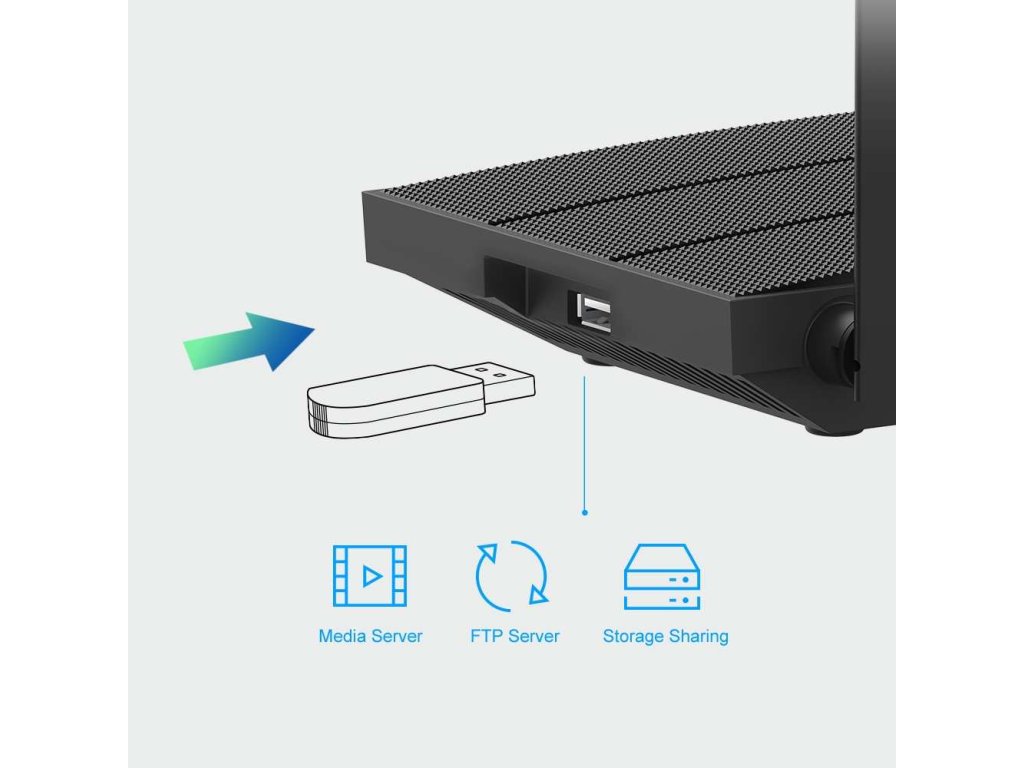

USB Support 1× USB 2.0 Port



Supported Partition Formats:

NTFS, exFAT, HFS+, FAT32



Supported Functions:

Apple Time Machine

FTP Server

Media Server

Buttons WPS/Wi-Fi Button

Power On/Off Button

Reset Button

Power 12 V ? 1 A

SECURITY

WiFi Encryption WEP

WPA

WPA2

WPA/WPA2-Enterprise (802.1x)

Network Security SPI Firewall

Access Control

IP & MAC Binding

Application Layer Gateway

Guest Network 1× 5 GHz Guest Network

1× 2.4 GHz Guest Network

VPN Server OpenVPN

PPTP

SOFTWARE

Protocols IPv4

IPv6

Parental Controls URL Filtering

Time Controls

WAN Types Dynamic IP

Static IP

PPPoE

PPTP

L2TP

Quality of Service QoS by Device

Cloud Service OTA Firmware Upgrade

TP-Link ID

DDNS

NAT Forwarding Virtual Servers

Port Forwarding

Port Triggering

DMZ

UPnP

IPTV IGMP Proxy

IGMP Snooping

Bridge

Tag VLAN

DHCP Address Reservation

DHCP Client List

Server

DDNS TP-Link

NO-IP

DynDNS

Management Tether App

Webpage

Check Web Emulator>

PHYSICAL

Dimensions (W×D×H) 8.5 × 8.5 × 0.8 in

(215 × 217 × 22 mm)

Package Contents Wi-Fi Router Archer C6U

Power Adapter

RJ45 Ethernet Cable

Quick Installation Guide

OTHER

System Requirements Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser



Cable or DSL Modem (if needed)



Subscription with an internet service provider (for internet access)

Certifications FCC, CE, RoHS

Environment Operating Temperature: 0?~40? (32? ~104?)

Storage Temperature: -40?~70? (-40? ~158?)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

TEST DATA

WiFi Transmission Power CE EIRP:

<20dBm(2.4GHz)

<23dBm(5GHz)

FCC:

<30dBm(2.4GHz & 5GHz)

WiFi Reception Sensitivity 5GHz:

11a 6Mbps:-93dBm;11a 54Mbps:-78dBm;

11ac HT20 mcs8:69dBm;11ac HT40 mcs9:-65dBm;

11ac HT80 mcs9:-62dBm;

2.4GHz:

11g 54Mbps:-78dBm;

11n HT20 mcs7:-74dBm;

11n HT40 mcs7:-71dbm
