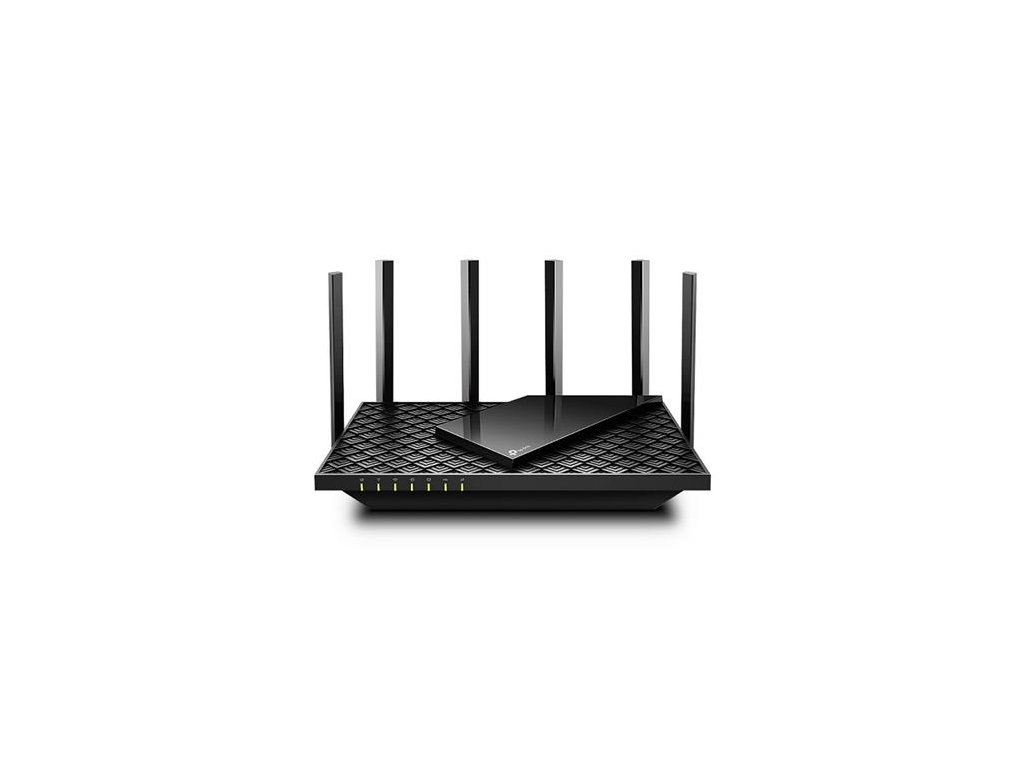

TP-Link Archer AX72, AX5400 USB3.0 WiFi6 router TP-link

Archer AX72

Dvojpásmový gigabitový WiFi 6 router AX5400

Gigabitová WiFi sieť pre streamovanie v rozlíšení 8K - 5 400Mbit / s WiFi sieť pre rýchlejšie prehliadanie webových stránok, streamovanie a sťahovanie, a to všetko súčasne. †

WiFi 6 s plnou výbavou - so špičkovou technológiou 4T4R a HE160 v pásme 5 GHz poskytuje ultra rýchle pripojenie s rýchlosťou 4,8 Gbit / s.

Pripojenie viac než 100 zařízení§ - router podporuje technológie MU-MIMO a OFDM, ktoré znižujú zahltenie siete a štvornásobne zvyšujú priemernú priepustnosť. ‡ **

Široké pokrytie - 6 antén a technológie Beamforming zaisťujú rozsiahle pokrytie.

HomeShield - prémiové služby zabezpečenia spoločnosti TP-Link chráni vašu domácu sieť vďaka vyspelým funkciám na ochranu siete a zariadenia IoT. *

Lepšie odvetrávanie, menej tepla - vďaka vylepšeným ventilačným otvorom môže celý router pracovať na plný výkon.

Port USB pre zdieľanie - 1 port USB 3.0 umožňuje jednoduché zdieľanie médií a vytvorenie privátneho cloudu.

Jednoduché nastavenie - s aplikáciou Tether nastavíte router za pár minút.



WIRELESS

Standards Wi-Fi 6

IEEE 802.11ax/ac/n/a 5 GHz

IEEE 802.11ax/n/b/g 2.4 GHz

WiFi Speeds AX5400

5 GHz: 4804 Mbps (802.11ax, HE160)

2.4 GHz: 574 Mbps (802.11ax)

WiFi Range 3 Bedroom Houses

6× Fixed High-Performance Antennas

Multiple antennas form a signal-boosting array to cover more directions and large areas



Beamforming

Concentrates wireless signal strength towards clients to expand WiFi range



High-Power FEM

Improves transmission power to strengthen signal coverage



4T4R

Multiple streams in the same band strengthen the fault tolerance in transmission

WiFi Capacity High

Dual-Band

Allocate devices to different bands for optimal performance



4×4 MU-MIMO

Simultaneously communicates with multiple MU-MIMO clients



OFDMA

Simultaneously communicates with multiple Wi-Fi 6 clients



Airtime Fairness

Improves network efficiency by limiting excessive occupation



DFS

Access an extra band to reduce congestion



6 Streams

Connect your devices to more bandwidth

Working Modes Router Mode

Access Point Mode

HARDWARE

Processor 1 GHz Dual-Core CPU

Ethernet Ports 1× Gigabit WAN Port

4× Gigabit LAN Ports



Static Link Aggregation (LAG) available with 2× LAN ports

USB Support 1× USB 3.0 Port



Supported Partition Formats:

NTFS, exFAT, HFS+, FAT32



Supported Functions:

Apple Time Machine

FTP Server

Media Server

Samba Server

Buttons Wi-Fi On/Off Button

Power On/Off Button

LED On/Off Button

WPS Button

Reset Button

Power 12 V ? 2.5 A

SECURITY

WiFi Encryption WPA

WPA2

WPA3

WPA/WPA2-Enterprise (802.1x)

Network Security SPI Firewall

Access Control

IP & MAC Binding

Application Layer Gateway



HomeShield Security

Real-Time IoT Protection

Malicious Site Blocker

Intrusion Prevention System

DDoS Attack Prevention

Home Network Scanner

Guest Network 1× 5 GHz Guest Network

1× 2.4 GHz Guest Network

VPN Server OpenVPN

PPTP

SOFTWARE

Protocols IPv4

IPv6

Service Kits HomeShield

Learn More>

OneMesh™ OneMesh™ Supported

Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.

Learn More>

All OneMesh Products>

Parental Controls HomeShield Parental Controls

Custom Profiles

Professional Content Filter Library

Family Time

Bedtime

Off Time

Time Rewards

Family Online Time Ranking

Pause the Internet

Weekly and Monthly Reports

WAN Types Dynamic IP

Static IP

PPPoE

PPTP

L2TP

Quality of Service QoS by Device

Cloud Service Auto Firmware Upgrade

TP-Link ID

DDNS

NAT Forwarding Port Forwarding

Port Triggering

DMZ

UPnP

Virtual Server

IPTV IGMP Proxy

IGMP Snooping

Bridge

Tag VLAN

DHCP Address Reservation

DHCP Client List

Server

DDNS TP-Link

NO-IP

DynDNS

Management Tether App

Webpage

PHYSICAL

Dimensions (W×D×H) 10.7 × 5.8 × 1.9 in

(272.5 × 147.2 × 49.2 mm)

Package Contents Wi-Fi Router Archer AX72

Power Adapter

RJ45 Ethernet Cable

Quick Installation Guide

OTHER

System Requirements Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser



Cable or DSL Modem (if needed)



Subscription with an internet service provider (for internet access)

Certifications FCC, CE, RoHS

Environment Operating Temperature: 0?~40? (32? ~104?)

Storage Temperature: -40?~70? (-40? ~158?)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

TEST DATA

WiFi Transmission Power CE:

<20dBm{2.4GHz}

<23dBm{5.15GHz~5.35GHz}

<30dBm{5.47GHz~5.725GHz}

FCC:

<24dBm{5.25GHz~5.35GHz&5.47GHz~5.725GHz }

<30dBm{2.4GHz &5.15GHz~5.25GHz&5.725GHz~5.825GHz }

WiFi Reception Sensitivity 2.4GHz:

11ac VHT20 MCS0:-94.5dBm

11ac VHT20 MCS8:-72.5dBm

11ac VHT40 MCS0:-92.5dBm

11ac VHT40 MCS9:-69.5dBm

11ax HE20 MCS0:-95dBm

11ax HE20 MCS11:-64.5dBm

11ax HE40 MCS0:-92.5dBm

11ax HE40 MCS11:-62dBm

5GHz:

11ac VHT20 MCS0:-97dBm

11ac VHT20 MCS8:-74dBm

11ac VHT40 MCS0:-95dBm

11ac VHT40 MCS9:-70dBm

11ac VHT80 MCS0:-91.5dBm

11ac VHT80 MCS9:-66dBm

11ac VHT160 MCS0:-86dBm

11ac VHT160 MCS9:-61dBm

11ax HE20 MCS0:-95dBm

11ax HE20 MCS11:-64dBm

11ax HE40 MCS0:-91.5dBm

11ax HE40 MCS11:-62dBm

11ax HE80 MCS0:-88dBm

11ax HE80 MCS11:-58dBm

11ax HE160 MCS0:-85.5dBm

11ax HE160 MCS11:-55dBm
