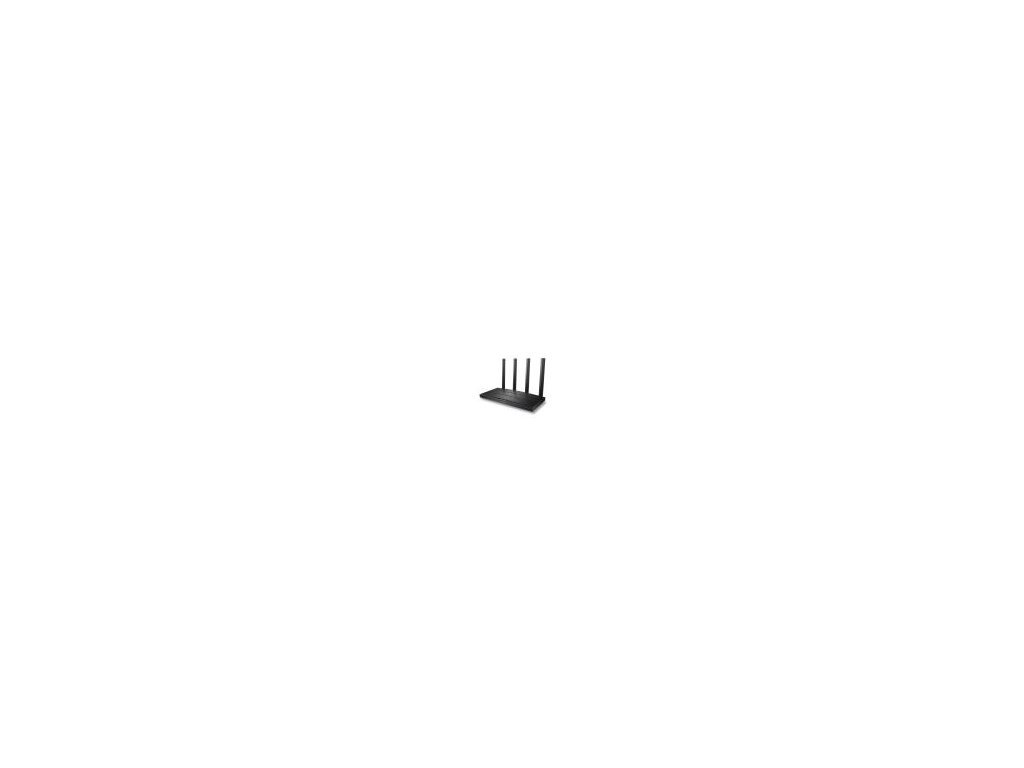

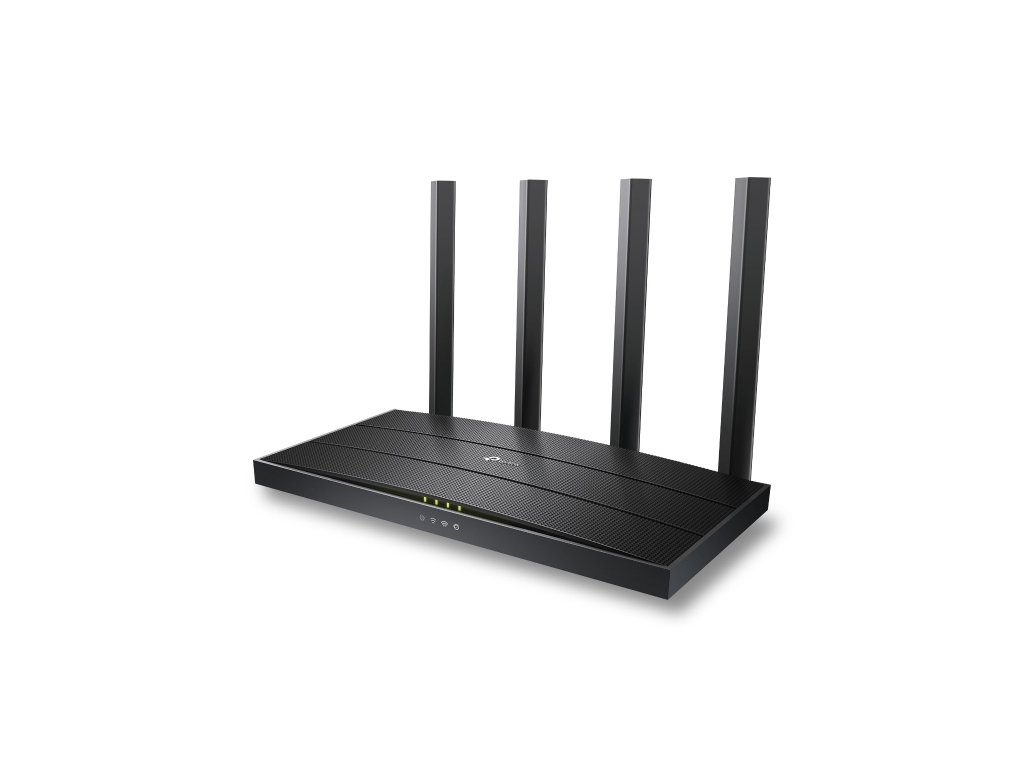

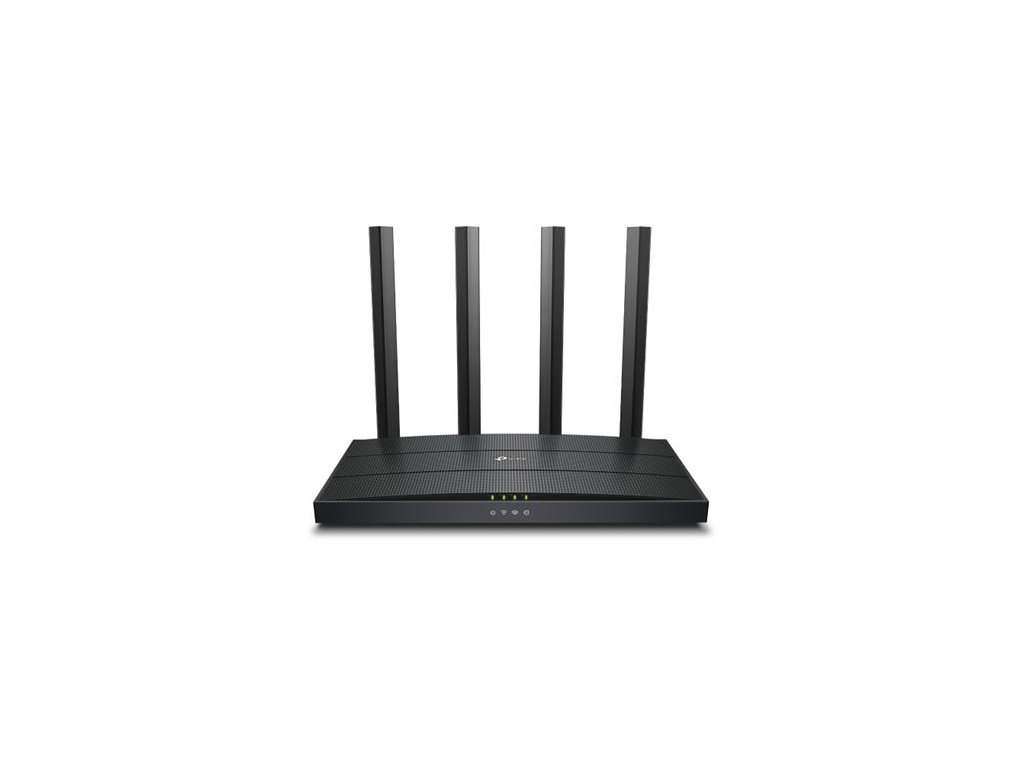

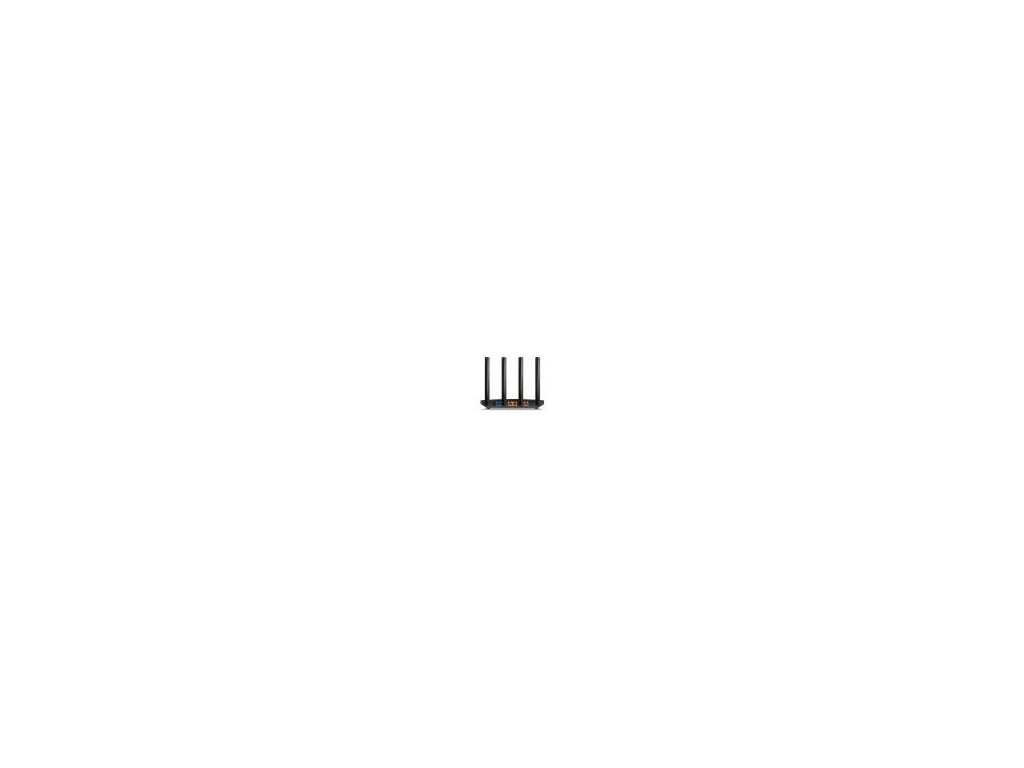

TP-Link Archer AX12, AX1500 WiFi6 4xGb Router TP-link

Dvojpásmový gigabitový Wi-Fi 6 router

Technológia Wi-Fi 6: Archer AX12 je vybavený najnovšou bezdrôtovou technológiou Wi-Fi 6 prinášajúcou vyššie rýchlosti, väčšiu kapacitu a nižšie zahlcovanie siete.

Rýchlosti 1,5 Gb/s budúcej generácie: Dvojpásmový router Archer AX12 dosahuje ešte vyššie rýchlosti – až 1,5 Gb/s (1 201 Mb/s v pásme 5 GHz a 300 Mb/s v pásme 2,4 GHz)15

Pripojenie viacerých zariadení: Technológia Wi-Fi 6 dokáže komunikovať s väčším počtom zariadení pomocou revolučných technológií OFDMA a MU-MIMO a súčasne znižuje oneskorenie dátových prenosov24

Spoľahlivejšie pokrytie: S routerom Archer AX12 dosiahnete najsilnejšie a najspoľahlivejšie pokrytie Wi-Fi signálom, pretože pomocou technológie Beamforming a štvorice antén sústredí silu signálu priamo do vašich zariadení.

Dlhšia výdrž batérie: Technológia Target Wake Time znižuje spotrebu energie zariadenia a predlžuje tak výdrž ich batérie.3

Jednoduché nastavenie: S výkonnou aplikáciou TP-Link Tether nastavíte router za pár minút.

Spätná kompatibilita: Archer AX12 podporuje všetky predchádzajúce štandardy 802.11 a všetky Wi-Fi zariadenia.



WIRELESS

Standards Wi-Fi 6

IEEE 802.11ax/ac/n/a 5 GHz

IEEE 802.11n/b/g 2.4 GHz

WiFi Speeds AX1500

5 GHz: 1201 Mbps (802.11ax)

2.4 GHz: 300 Mbps (802.11n)

WiFi Range 2-3 Bedroom Houses

4× Fixed High-Performance Antennas

Multiple antennas form a signal-boosting array to cover more directions and large areas



Beamforming

Concentrates wireless signal strength towards clients to expand WiFi range

WiFi Capacity High

Dual-Band

Allocate devices to different bands for optimal performance



OFDMA

Simultaneously communicates with multiple Wi-Fi 6 clients



Airtime Fairness

Improves network efficiency by limiting excessive occupation



4 Streams

Connect your devices to more bandwidth

Working Modes Router Mode

Access Point Mode

HARDWARE

Ethernet Ports 1× Gigabit WAN Port

3× Gigabit LAN Ports

Buttons WPS/Reset Button

Power 12 V ? 1 A

SECURITY

WiFi Encryption WPA2-PSK

WPA2-PSK/WPA-PSK

WPA3-Personal

WPA3-Personal/WPA2-PSK

WPA2-Enterprise

WPA/WPA2-Enterprise encryptions

Network Security SPI Firewall

Access Control

IP & MAC Binding

Application Layer Gateway

Guest Network 1× 5 GHz Guest Network

1× 2.4 GHz Guest Network

VPN Server OpenVPN

PPTP

SOFTWARE

Protocols IPv4

IPv6

Parental Controls URL Filtering

Time Controls

WAN Types Dynamic IP

Static IP

PPPoE/PPTP(Dual Access)/L2TP(Dual Access)

Quality of Service QoS by Device

Cloud Service Auto Firmware Upgrade

OTA Firmware Upgrade

TP-Link ID

DDNS

NAT Forwarding Port Forwarding

Port Triggering

DMZ

UPnP

IPTV IGMP Proxy

IGMP Snooping

Bridge

Tag VLAN

DHCP Address Reservation

DHCP Client List

Server

DDNS TP-Link

NO-IP

DynDNS

Management Tether App

Webpage

Check Web Emulator>

OTHER

System Requirements Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10/11, MAC

OS, NetWare, UNIX or Linux

Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other

Java-enabled browser

Cable or DSL Modem

Subscription with an internet service provider (for internet access)

Certifications FCC, CE, RoHS

Environment Operating Temperature: 0?~40? (32? ~104?)

Storage Temperature: -40?~60? (-40? ~140?)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

TEST DATA

WiFi Transmission Power CE:

<20dBm(2.4 GHz)

<23dBm(5.15 GHz~5.25 GHz)

FCC:

<30dBm(2.4 GHz & 5.15 GHz~5.825 GHz)

WiFi Reception Sensitivity 5 GHz:

11a 6Mbps:-95dBm, 11a 54Mbps:-79dBm

11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS8:-66dBm

11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS9:-63dBm

11ac VHT80_MCS0:-91dBm, 11ac VHT80_MCS9:-60dBm

11ax HE20_MCS0:-95dBm, 11ax HE20_MCS11:-66dBm

11ax HE40_MCS0:-92dBm, 11ax HE40_MCS11:-65dBm

11ax HE80_MCS0:-89dBm, 11ax HE80_MCS11:-62dBm

2.4 GHz:

11g 6Mbps: -96 54Mbps: -80

HT20-MCS0: -97 MCS7: -78

HT40-MCS0: -94 MCS7: -75

PHYSICAL

Dimensions (W×D×H) 8.5 × 4.6 ×1.3 in

(215 × 117 × 32 mm)

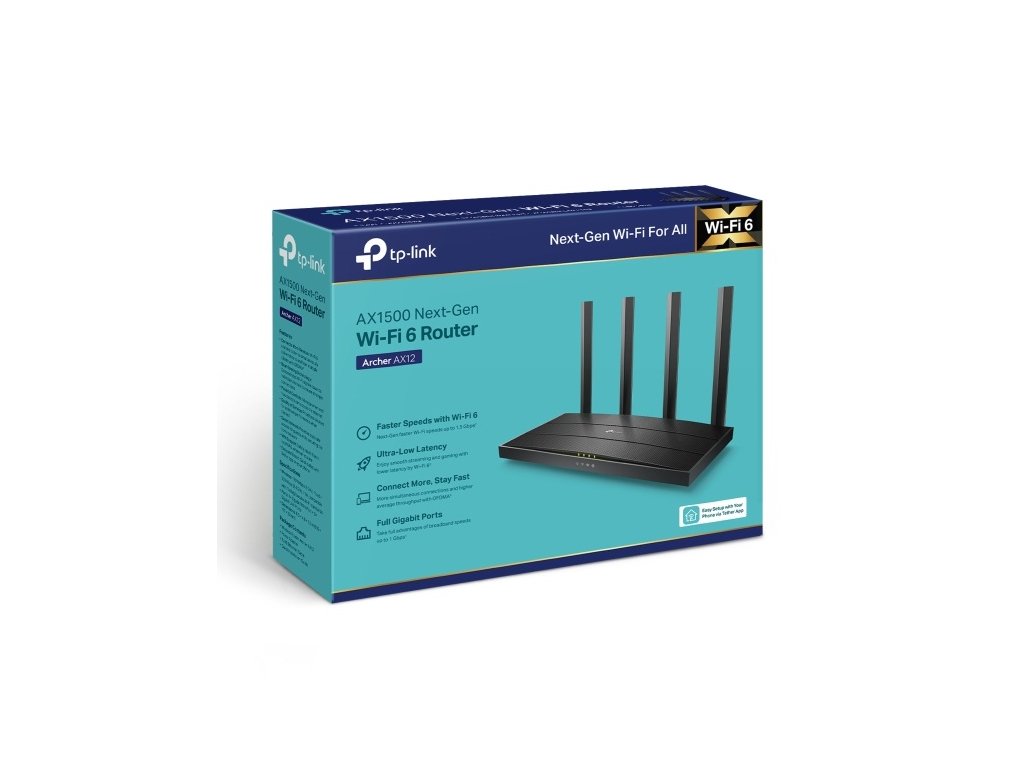

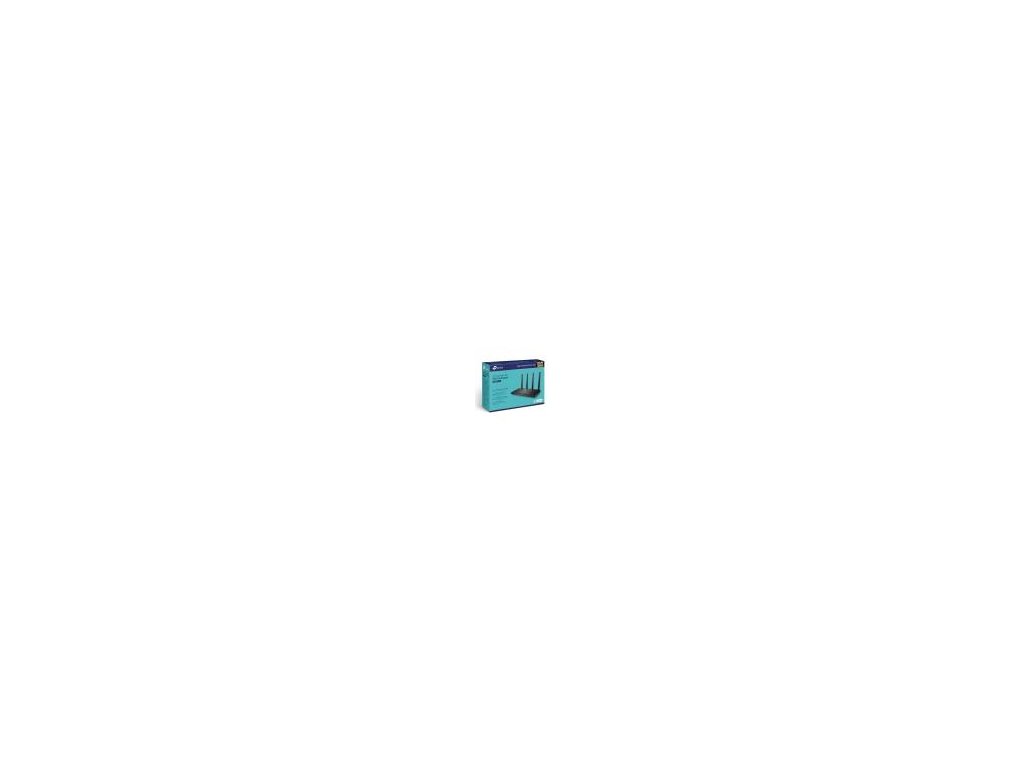

Package Contents Wireless Router Archer AX12

Power Adapter

RJ45 Ethernet Cable

Quick Installation Guide
