TP-LINK "Omada 5-Port Gigabit Easy Managed SwitchPORT: 5× Gigabit RJ45 PortsSPEC: Desktop Steel CaseFEATURE: Integrat ES205G TP-link

Popis produktu

ES205G

Omada 5portový gigabitový Easy Managed Switch

5× 10/100/1000Mb/s RJ45 portov

Jednoduché použitie: Podpora plug-and-play pre okamžité pripojenie a jednoduchá konfigurácia ďalších funkcií

Centralizovaná správa v cloude cez web alebo aplikáciu Omada†

Automatická prevencia slučiek, VLAN a IGMP Snooping

Bezventilátorový dizajn pre tichú prevádzku

Odolné kovové šasi a možnosť inštalácie na stôl alebo na stenu



HARDWARE FEATURES

Interface • 5× 10/100/1000 Mbps RJ45 Ports

• AUTO Negotiation/AUTO MDI/MDIX

Fan Quantity Fanless

Installation • Desktop

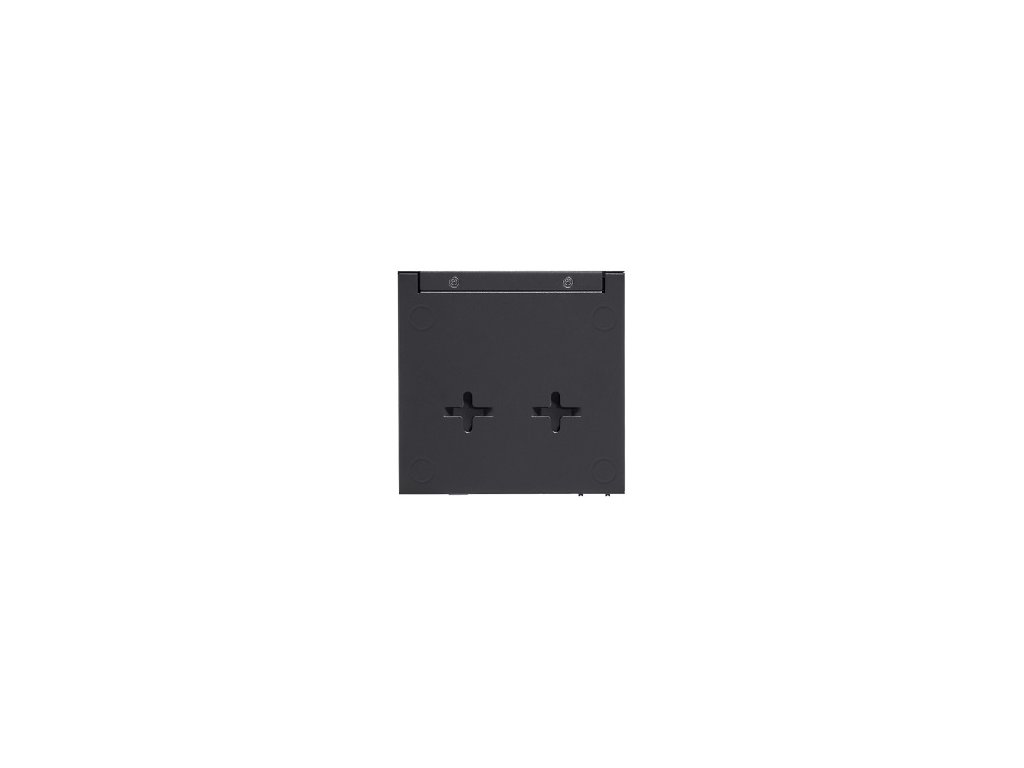

• Wall Mount

Physical Security Lock ?

Power Supply External DC Power Adapter (Output: 5 VDC/ 0.6 A)

Dimensions ( W x D x H ) 3.9 × 3.9 × 1.0 in (100 × 98 × 25 mm)

PERFORMANCE

Switching Capacity 10 Gbps

Packet Forwarding Rate 7.4 Mpps

MAC Address Table 8 K

Packet Buffer Memory 4 Mbits

Jumbo Frame 15 KB

SOFTWARE FEATURES

Quality of Service • Port-based/802.1p/DSCP QoS

• 8 Priority Queues

• Priority Schedule Mode

- WRR (Weighted Round Robin)

• Queue Weight Config

• Bandwidth Control

- Port-Based Rating Limit

• Storm Control

- Multiple Control Modes (kbps/pps)

- Broadcast/Multicast/Unknown-Unicast Control?

L2 Features • Static Link Aggregation

• Loop Prevention / Loopback Detection

• Flow Control

- 802.3x Flow Control

• Mirroring

- Port Mirroring

- One-to-One

- Many-to-One

- Ingress/Egress/Both

• Port Statistics

- Port Mirror Status

- Traffic Statistics

• 802.1ab LLDP

L2 Multicast • IGMP Snooping

- IGMP v1/v2/v3 Snooping

- Fast Leave

VLAN • MTU VLAN

• Port-Based VLAN

• 802.1Q Tag VLAN

- Max 32 VLAN Groups

- 4K VID

Transmission Method Store-And-Forward

MANAGEMENT

Omada App Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Centralized Management • Omada Cloud-Based Controller

• Omada Hardware Controller

• Omada Software Controller

Cloud Access Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Zero-Touch Provisioning Yes. Requires the use of Omada Cloud-Based Controller

Management Features • Web-based GUI

• DHCP Client

• Cable Diagnostics

• Automatic Device Discovery†

• Batch Configuration†

• Batch Firmware Upgrading†

• Unified Configuration†

OTHERS

Certification FCC, CE, RoHS

Package Contents • ES205G

• Power Adapter

• Installation Guide

• Rubber Feet

Environment • Operating Temperature: 0?~40? (32?~104?)

• Storage Temperature: -40?~70? (-40?~158?)

• Operating Humidity: 10%~90% non-condensing

• Storage Humidity: 5%~90% non-condensing
