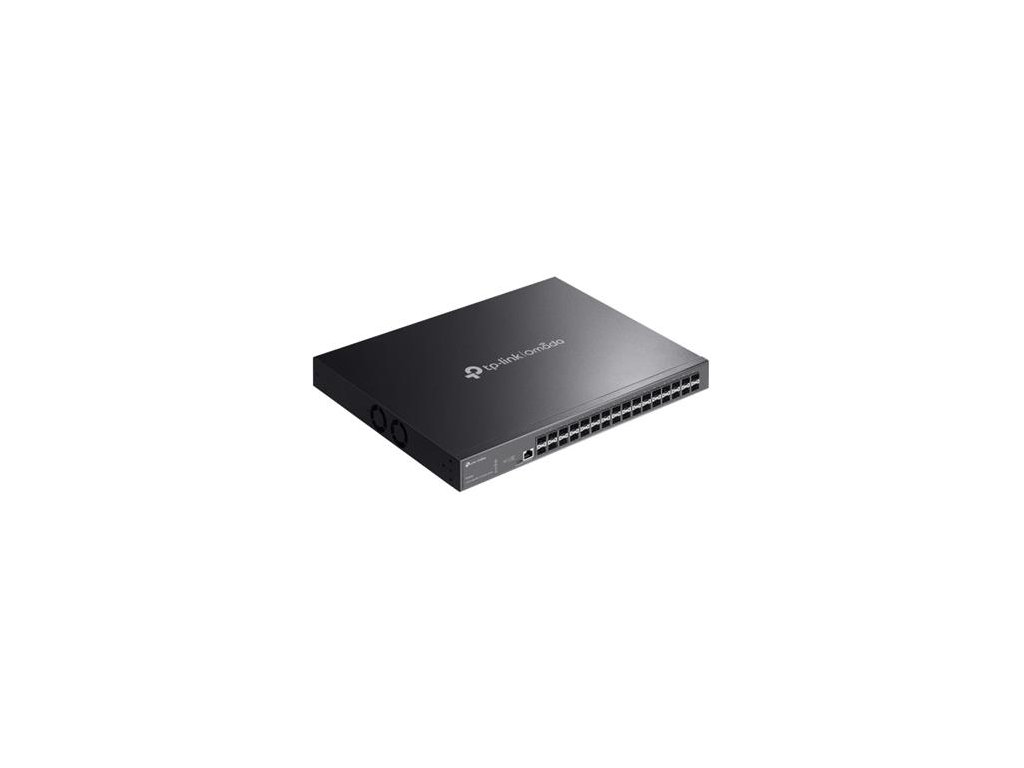

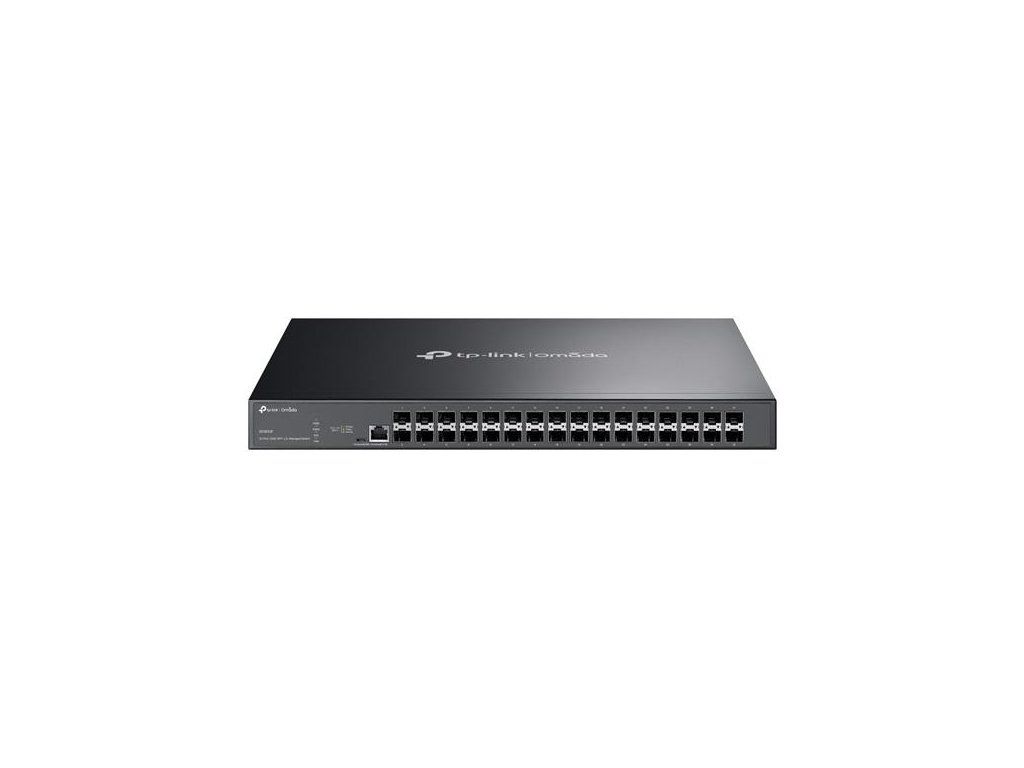

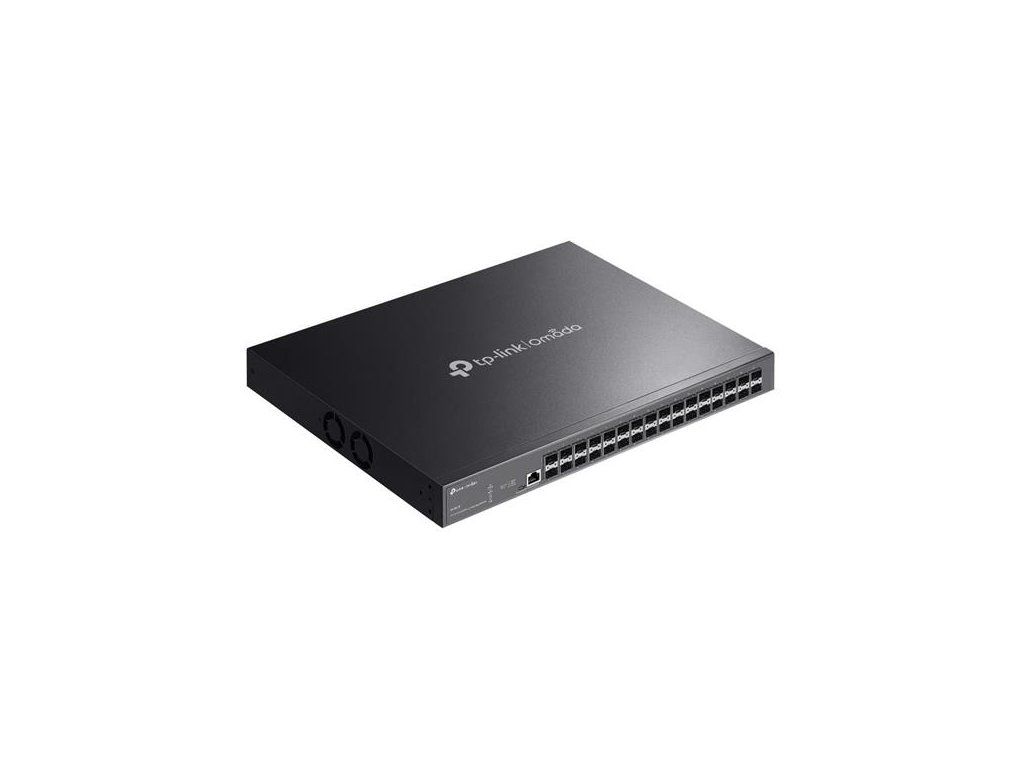

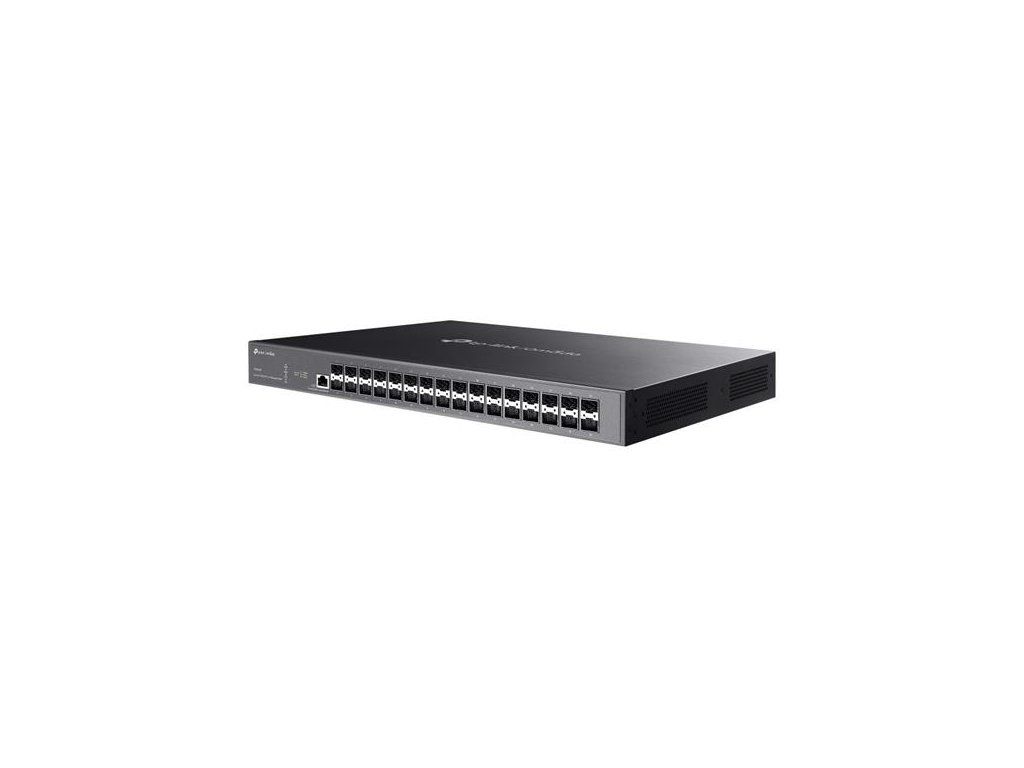

TP-LINK "Omada 32-Port 10GE SFP+ L2+ Managed SwitchPORT: 32× 10G SFP+ Slots, RJ45/Micro-USB Console PortSPEC: 1U 19-in SX3032F TP-link

SX3032F

Omada 32portový managed switch 10GE SFP+ L2+

32× 10 Gb/s SFP+ sloty

640 Gb/s prepínacia kapacita

Dva interné pevné napájacie moduly sa vzájomne zálohujú

Centralizované riadenie v cloude cez web alebo aplikáciu Omada†

Samostatné riadenie cez web, CLI, SNMP a RMON

Statické smerovanie pomáha smerovať internú prevádzku pre vyššiu efektivitu

VLAN, ACL, QoS, IGMP Snooping, OAM a DDM

ERPS podporuje rýchlu ochranu a obnovu v kruhovej topológii

Odolné kovové puzdro a dizajn pre montáž do racku



HARDWARE FEATURES

Interface • 32× 1/10Gbps SFP+ Slots

• 1× RJ45 Console Port

• 1× Micro-USB Console Port

Fan Quantity 2 internal fixed fans

Physical Security Lock ?

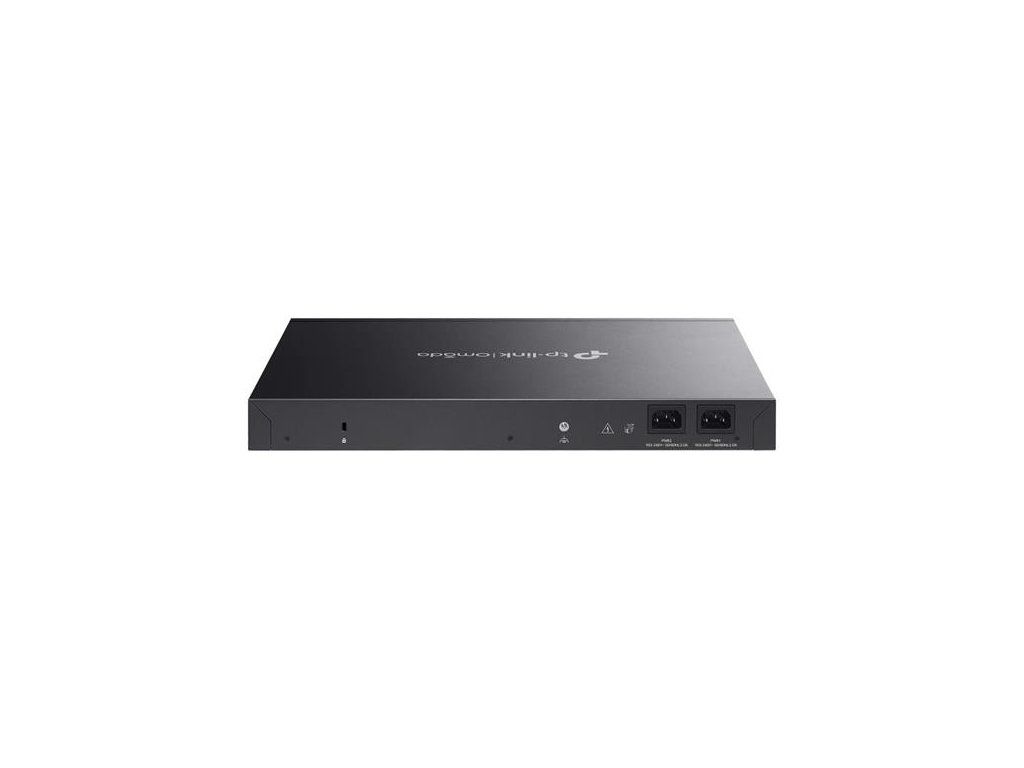

Power Supply • 1+1 Redundant Power Supply (internal fixed)

• 100-240 V AC~50/60 Hz

Dimensions ( W x D x H ) 17.3×13.0×1.7 in (440×330×44 mm)

Mounting Rack Mountable

Max Power Consumption 49.4 W (220 V / 50 Hz)

PERFORMANCE

Switching Capacity 640 Gbps

Packet Forwarding Rate 240 Mpps

MAC Address Table 32 K

Packet Buffer Memory 24 Mbit

Jumbo Frame 9 KB

SOFTWARE FEATURES

Quality of Service • 8 priority queues

• 802.1p CoS/DSCP priority

• Queue scheduling: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR

• Bandwidth Control: Port/Flow-based Rating Limiting

• Smoother Performance

• Action for Flows: QoS remark (802.1P Remark, DSCP Remark)

L2 and L2+ Features • 128 IP Interfaces: Support IPv4/IPv6 Interface

• Static Routing: 48 IPv4/IPv6 Static Routes

• Static ARP: 128 static entries

• 510 ARP Entries

• Proxy ARP

• Gratuitous ARP

• DHCP Server

• DHCP Relay: DHCP Interface Relay, DHCP VLAN Relay

• DHCP L2 Relay

• Link Aggregation

• Spanning Tree Protocol

• Loopback Detection

• 802.3x Flow Control

• Mirroring

L2 Multicast • Supports 4000 (IPv4, IPv6) IGMP groups

• IGMP Snooping

• IGMP Authentication

• Multicast VLAN Registration (MVR)

• MLD Snooping

• Multicast Filtering: 256 profiles and 16 entries per profile

Advanced Features • Automatic Device Discovery†

• Batch Configuration†

• Batch Firmware Upgrading†

• Intelligent Network Monitoring†

• Unified Configuration†

• Reboot Schedule†



ISP Features:

• L2PT (Layer 2 Protocol Tunneling)

• Device Link Detect Protocol (DLDP)

• PPPoE ID Insertion

• ERPS

• 802.3ah Ethernet Link OAM

• DDM

• sFlow

VLAN • VLAN Group (802.1q VLAN): Max 4K VLAN Groups

• 802.1Q Tagged VLAN

• MAC VLAN: 30 Entries

• Protocol VLAN

• GVRP

• VLAN VPN (QinQ): VLAN Mapping, VLAN Replace

• Voice VLAN

Access Control List • Time-based ACL

• MAC ACL: Source MAC, Destination MAC, VLAN ID, User Priority, Ether Type

• IP ACL: Source IP, Destination IP, Fragment, IP Protocol, TCP Flag, TCP/UDP Port, DSCP/IP TOS

• Combined ACL

• Packet Content ACL

• IPv6 ACL

• Policy: Mirroring, Redirect, Rate Limit, QoS Remark

• ACL applies to Port/VLAN

Security • IP-MAC-Port Binding

- 512 Entries

- DHCP Snooping

- ARP Inspection

- IPv4 Source Guard

• IPv6-MAC-Port Binding

- 512 Entries

- DHCPv6 Snooping

- ND Detection

- ND Snooping

- IPv6 Source Guard

• DoS Defend

• Static/Dynamic Port Security: Up to 64 MAC addresses per port

• Broadcast/Multicast/Unicast Storm Control: kbps/ratio control mode

• 802.1X

- Port base authentication

- MAC-based authentication

- VLAN Assignment

- MAB

- Guest VLAN

- Radius authentication and accountability support

• AAA (including TACACS+)

• Port Isolation

• Secure web management through HTTPS with SSLv3/TLS 1.2

• Secure Command Line Interface (CLI) management with SSHv1/SSHv2

• IP/Port/MAC-based access control

IPv6 • IPv6 Dual IPv4/IPv6

• Multicast Listener Discovery (MLD) Snooping

• IPv6 ACL

• IPv6 Interface

• Static IPv6 Routing

• IPv6 neighbor discovery (ND)

• Path maximum transmission unit (MTU) discovery

• Internet Control Message Protocol (ICMP) version 6

• TCPv6/UDPv6

• IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP

MIBs • MIB II (RFC1213)

• Interface MIB (RFC2233)

• Ethernet Interface MIB (RFC1643)

• Bridge MIB (RFC1493)

• P/Q-Bridge MIB (RFC2674)

• RMON MIB (RFC2819)

• RMON2 MIB (RFC2021)

• Radius Accounting Client MIB (RFC2620)

• Radius Authentication Client MIB (RFC2618)

• Remote Ping, Traceroute MIB (RFC2925)

• Support TP-Link private MIB

MANAGEMENT

Omada App Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Centralized Management • Omada Cloud-Based Controller

• Omada Hardware Controller

• Omada Software Controller

Cloud Access Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Zero-Touch Provisioning Yes. Requires the use of Omada Cloud-Based Controller.

Management Features • Web-based GUI

• Command Line Interface (CLI) through the console port, telnet

• SNMP v1/v2c/v3: Trap/Inform, RMON (1,2,3,9 groups)

• SDM Template

• DHCP/BOOTP Client

• 802.1ab LLDP/LLDP-MED

• DHCP Auto Install

• Dual Image, Dual Configuration

• CPU Monitoring

• Password Recovery

• SNTP

• System Log

OTHERS

Certification CE, FCC, RoHS

Package Contents • SX3032F Switch

• 2× Power Cords

• Quick Installation Guide

• Rackmount Kit

• Rubber Feet

System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.

Environment • Operating Temperature: -5–45 °C (23–113 °F);

• Storage Temperature: -40–70 ? (-40–158 ?)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing
