TP-LINK "5G AX1800 Wireless Dual Band Gigabit RouterBuild-In 5G ModemSPEED: 1201 Mbps at 5 GHz + 574 Mbps at 2.4 GHz, Archer NX200 TP-link

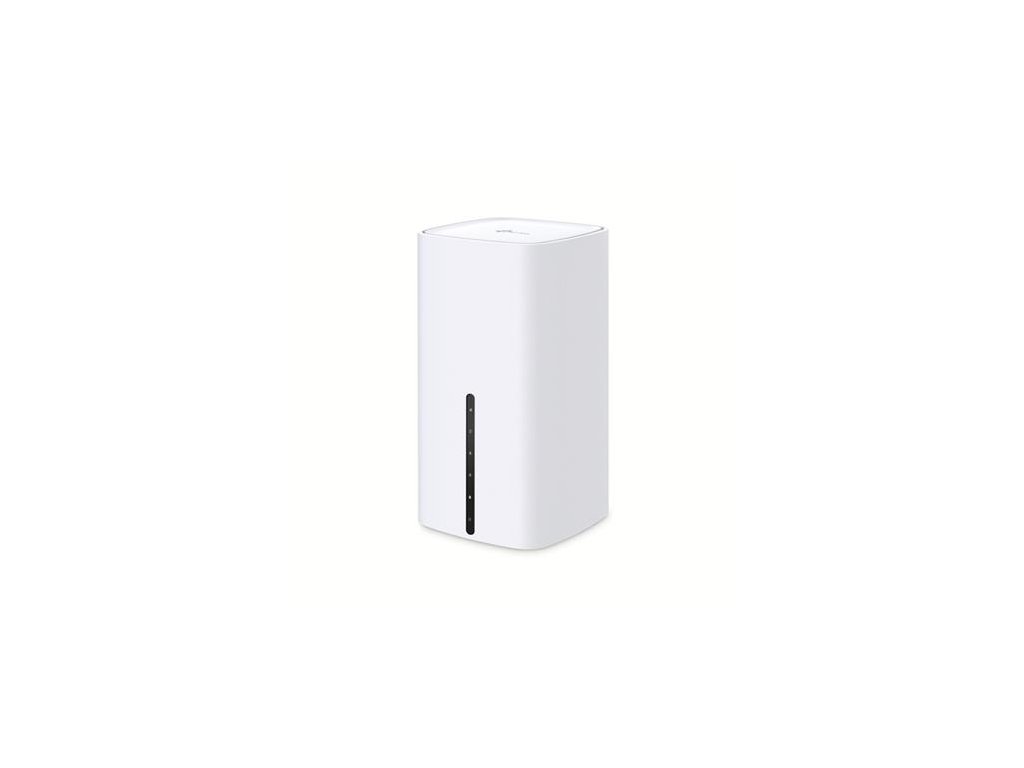

Archer NX200

Bezdrôtový dvojpásmový gigabitový router 5G AX1800

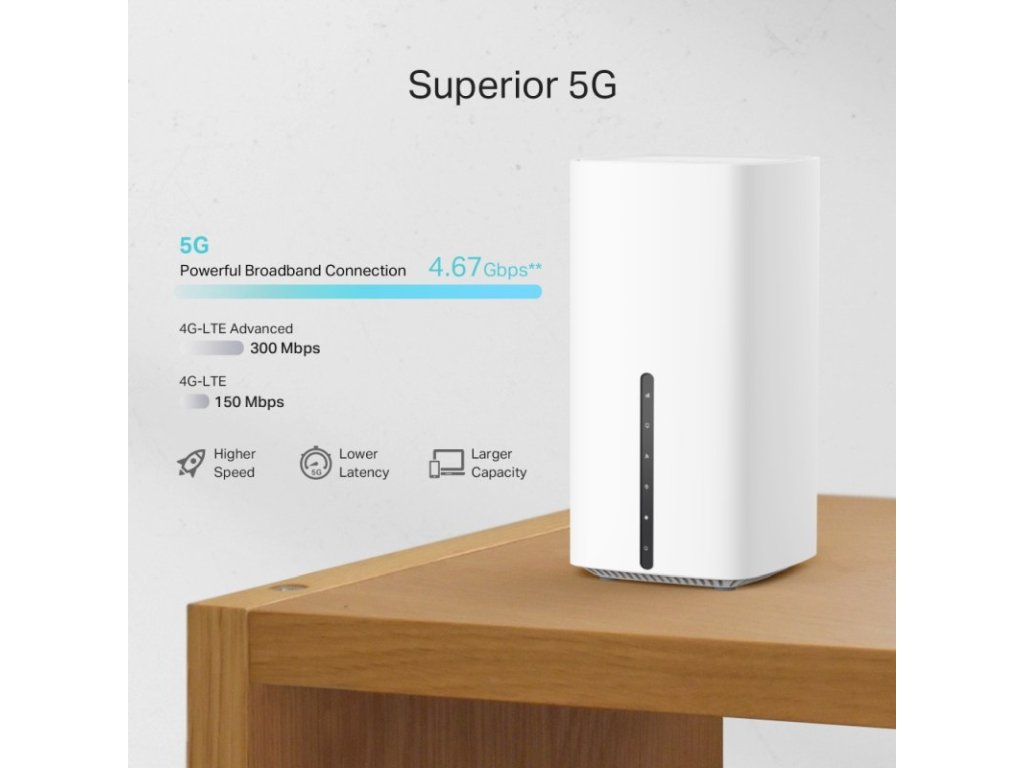

Upgradujte na rýchlosť 5G - Zažite výhody sofistikovanej 5G siete s rýchlosťou sťahovania až 4,67 Gbit/s. Zdieľajte svoju 5G sieť s niekoľkými Wi-Fi zariadeniami a tešte sa na plynulé sledovanie filmov v rozlíšení UHD, bleskurýchle sťahovanie súborov a neprerušované videochaty a videokonferencie.

Dvojpásmová rýchlosť Wi-Fi 6 - 1201 Mb/s (5 GHz) + 574 Mb/s (2.4 GHz).

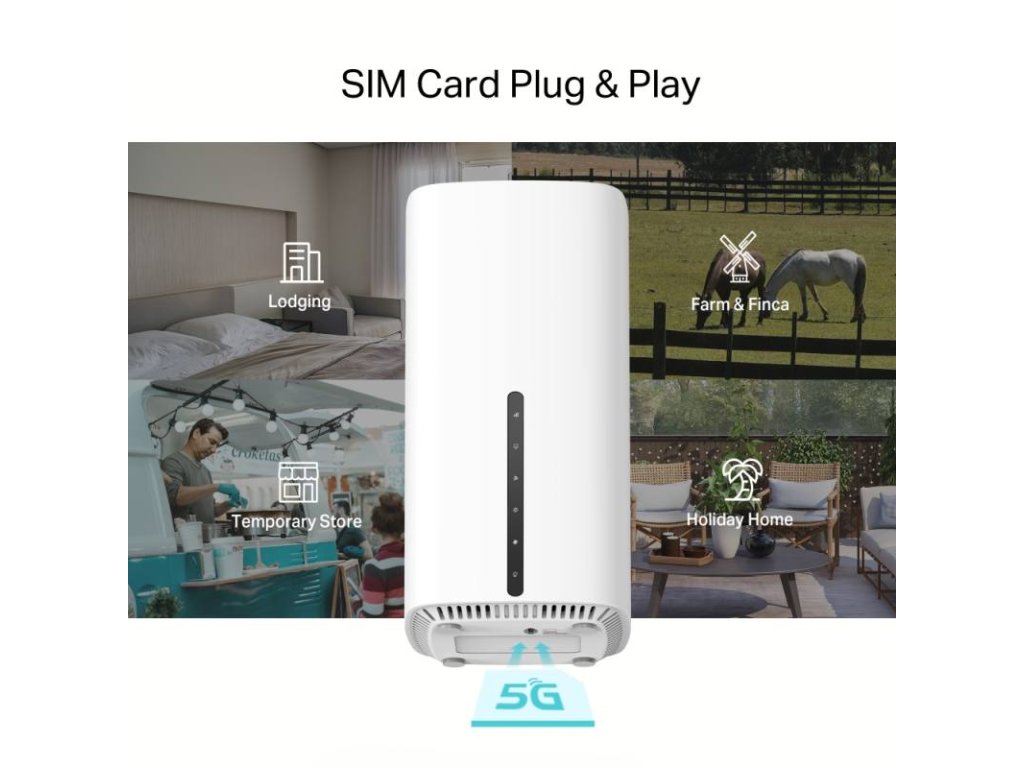

Plug & Play - Využívanie siete 5G ihneď po vložení SIM karty.

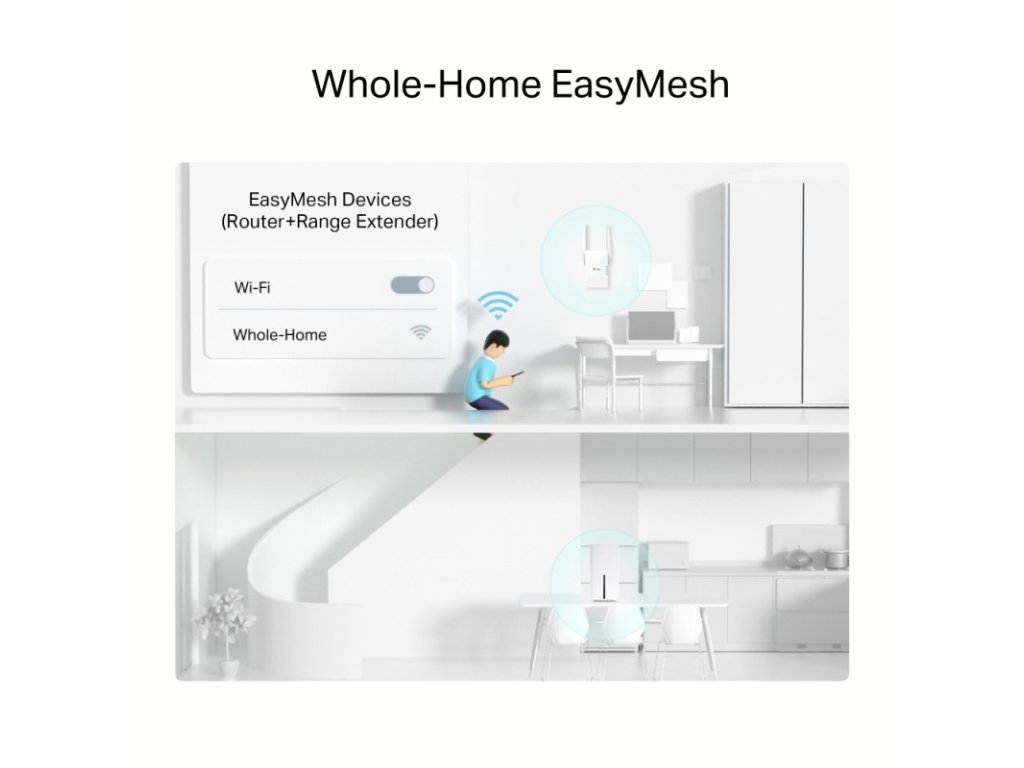

Kompatibilný s EasyMesh - Spolupracuje s produktmi podporujúcimi technológiu EasyMesh, s ktorými dokáže vytvoriť flexibilnejšiu a cenovo dostupnejšiu sieť mesh s jedným názvom Wi-Fi siete, ktorá zaistí bezproblémové pokrytie celej domácnosti.

Gigabitový port WAN/LAN - Gigabitový port WAN/LAN umožňuje routeru NX200 fungovať v režime tradičného bezdrôtového routera, ktorý je kompatibilný s káblovými, optickými a DSL modemami.



HARDWARE FEATURES

Interface 1 × 10/100/1000 Mbps LAN/WAN Port

2 × 10/100/1000 Mbps LAN Ports

1 × Nano SIM Card Slot

2 × 5G/4G External Antenna Ports

Button WPS Button, Reset Button, Power On/Off Button, Wi-Fi On/Off Button

External Power Supply Power Adapter: Input Power 100-240v~50/60 Hz 0.6A

Output parameter 12VDC 2A

Dimensions ( W x D x H ) 3.9 × 3.9 × 7.5 in ( 99 × 99 × 190 mm)

Antenna 8 × 5G/LTE Internal Antennas

2 × Wi-Fi Internal Antennas

WIRELESS FEATURES

Wireless Standards IEEE 802.11ax/ac/n/a 5 GHz

IEEE 802.11ax/n/b/g 2.4 GHz

Frequency 2.4 GHz and 5 GHz

Signal Rate 574 Mbps at 2.4 GHz, 1201 Mbps at 5 GHz

Reception Sensitivity 5GHz:

11a 54M:-80 dBm

11ax HE20:-68 dBm

11ax HE40:-65 dBm

11ax HE80:-62 dBm

11ac VHT20:-76 dBm

11ac VHT40:-72 dBm

11ac VHT80:-68 dBm

11n HT20:-79 dBm

11n HT40:-75 dBm

2.4GHz

11g 54M:-78 dBm

11ax HE20:-65 dBm

11ax HE40:-62 dBm

11ac VHT20:-73 dBm

11ac VHT40:-68 dBm

11n HT20:-75 dBm

11n HT40:-72 dBm

Transmit Power <23dBm (5.15GHz~5.35GHz)

<30dBm (5.47GHz~5.71GHz)

<20dBm (2.4GHz)

Wireless Functions Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless

Statistics

WAN Failover Yes

Wireless Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions

Network Type 5G: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78 (2100/1800/850/2600/900/800/700/2600/2300/2500/3700/3500 MHz)

FDD-LTE: B1/B3/B5/B7/B8/B20/B28/B32 (2100/1800/850/2600/900/800/700/1500 MHz)

TDD-LTE: B38/B40/B41/B42/B43 (2600/2300/2500/3500/3700 MHz)

DC-HSDPA/HSPA+/HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz)

SOFTWARE FEATURES

Quality of Service Prioritizes network traffic by device or application

Security DoS, IPv4 SPI Firewall, IPv6 Firewal, IP and MAC Address Binding, Access Control

WAN Type Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)

Management TP-Link Cloud, Local Management, Remote Management

DHCP Server, DHCP Client List, Address Reservation

Port Forwarding ALG, Virtual Server, Port Triggering, UPnP, DMZ

Dynamic DNS TP-Link, DynDns, NO-IP

VPN PPTP VPN, IPSec VPN , OpenVPN

Access Control Parental Control, Local Management Control

Firewall Security DoS, SPI Firewall, IP Address Filter/Domain Filter,

IP and MAC Address Binding

Protocols IPv4, IPv6

Guest Network 2.4 GHz Guest Network x 1

5 GHz Guest Network x 1

OTHERS

Certification CE, RoHS

Package Contents 5G AX1800 Wireless Dual-Band Gigabit Router Archer NX200

1.5m Power Adapter

RJ45 Ethernet Cable

Quick Installation Guide

System Requirements Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS,

NetWare, UNIX or Linux

Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other

Java-enabled browser

Nano SIM Card

Environment Operating Temperature: 0?~40? (32? ~104?)

Storage Temperature: -40?~70? (-40? ~158?)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
