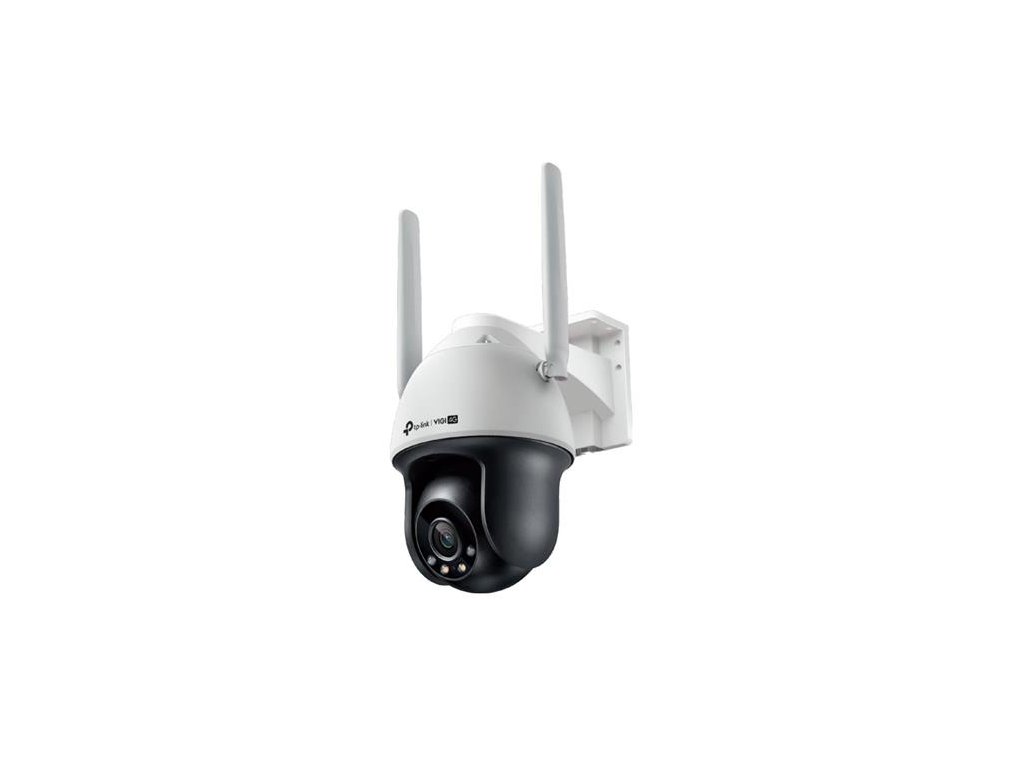

TP-LINK "4MP 4G LTE Full-Color Wi-Fi Pan/Tilt Network CameraSPEC: 4G Cat4 150/50 Mbps, LTE-FDD/LTE-TDD/HSPA+/UMTS, H.26 VIGI C540-4G(4mm) TP-link

VIGI C540-4G

VIGI 4MP vonkajšia plnofarebná 4GPan naklápacia sieťová kamera

4MP Super-High Definition: Fotoaparát je dodávaný so 4MP – viac než dostatočným počtom pixelov na zachytenie niektorých diskrétnejších detailov.

24-hodinové plné farby: Zažite jasné, živé 24-hodinové monitorovanie, dokonca aj v úplnej tme.

4G mobilná sieť: Vychutnajte si bezproblémovú inštaláciu a jednoduché monitorovanie na miestach, kde nie je dostupný internet.

360° monitorovanie: Pokryte každý roh a eliminujte slepé miesta.

Klasifikácia ľudí a vozidiel: Rozlišuje ľudí a vozidlá od iných objektov, takže dostávate presnejšie upozornenia na udalosti.

Inteligentná detekcia: Aktívne zisťuje abnormálne udalosti, ako je narušenie oblasti a prekročenie čiary, a okamžite vám posiela upozornenia.

Automatické sledovanie: Automaticky sleduje osoby alebo vozidlá, ktoré vás zaujímajú, a poskytuje plynulé a dlhšie video.

Aktívna obrana: Okamžite varujte potenciálnych narušiteľov zvukom a svetlom, keď dôjde k abnormálnym udalostiam.

Obojsmerný zvuk: Vďaka podpore hlasového interkomu môžete viesť obojsmernú konverzáciu pri sledovaní kanála odkiaľkoľvek.

H.265+: Komprimuje veľkosť videa bez obetovania kvality videa, znižuje zaťaženie siete a šetrí miesto na disku.

IP66 Vodotesný: Spoľahlivý IP66 pre stabilný vonkajší výkon.

Vzdialená správa: Prevezmite plnú kontrolu nad svojou bezpečnosťou kedykoľvek a kdekoľvek prostredníctvom aplikácie VIGI alebo PC klienta.

Palubné úložisko: Podpora zabudovaného úložiska až do 256 GB (slot na kartu SD).*



CAMERA

Image Sensor 1/3.06” Progressive Scan CMOS

Shutter Speed 1/3 to 1/10000 s

Slow Shutter Yes

Minimum Illumination 0.005 Lux; 0 Lux with IR/White Light

Day/Night Mechanism IR Cut Filter

Day/Night Switch Unified/ Scheduled/ Auto

LENS

Type Fixed Focal Lens

Focal Length 4 mm

Aperture F1.6

FOV Horizontal FOV: 80°, Vertical FOV: 43°, Diagonal FOV: 94°

Lens Mount M12*0.5

DORI Distance Detect: 80 m (262 ft)

Observe: 33 m (109 ft)

Recognize: 16 m (52 ft)

Identify: 8 m (26 ft)

PTZ

Pan/tilt Range Pan: 0° to 348°, Tilt: 0° to 120°

Pan/tilt Speed • Pan Speed:

Configurable from 8° to 44°/s; Preset Speed: 44°/s



• Tilt Speed:

Configurable from 8° to 44°/s, Preset Speed 44°/s

Manual Control Speed Configurable from 8° to 35°/s

Presets 300

Patrol Scan 8 patrols, up to 8 presets for each patrol

Power-off Memory Yes;

Auto restore to previous PTZ and lens status after power failure

Park Action Yes;

Preset; Patrol Scan

3D Positioning Yes

ANGLE ADJUSTMENT (MANUAL)

Range Pan: 0° to 348°

Tilt: 0° to 120°

ILLUMINATOR

IR LED Quantity: 2

Range: 30m;

Wavelength: 850nm

White LED Quantity: 2

Range: 30m

Illuminator On/Off Control Auto/Scheduled/Always on/Always off

VIDEO

Max. Resolution 2560 X 1440

Main Stream Frame Rate:

50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps



Resolution:

2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720



Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.

Sub-Stream Frame Rate:

50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps



Resolution:

640x480, 352x288, 320x240



Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.

Bit Rate Control CBR, VBR

Video Compression • Main Stream: H.265+/H.265/H.264+/H.264

• Sub-Stream: H.265/H.264

H.264 Type Main Profile/High Profile

H.264+ Main Stream Supported

H.265 Type Main Profile

H.265+ Main Stream Supported

Video Bit Rate Main Stream: 256 Kbps to 3 Mbps

Sub-Stream: 64 Kbps to 512 Kbps


Image Settings • Mirror

• Brightness

• Contrast

• Saturation

• Sharpness

• Exposure, WDR,

• White Balance

• Prevent Overexposure to Infrared Light

• HLC Adjustable by Client Software

• Rotation (90°/270°)

Image Enhancement BLC/3D DNR/HLC/SmartIR

Wide Dynamic Range DWDR

SNR ? 52 dB

Image Parameters Switch Yes

Privacy Mask Up to 4 Masks

ROI 1 Region

OSD Setting Yes

AUDIO

Audio Communication Two-Way Audio

Audio Input Yes

Audio Output Yes

Audio Compression Yes

Audio Sampling Rate 8KHz

Environment Noise Filtering Yes

Audio Bit Rate 64 Kbps(G.711 alaw)

NETWORK

Protocol TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS

ONVIF Yes

API ONVIF

Simultaneous Live View 2 Main Streams & 2 Sub-Streams

Client VIGI App, VIGI Security Manager, Web UI

Web Browser Google Chrome® 57 and above

Firefox® 52 and above

Safari® 11 and above

Microsoft® Edge 91 and above

Cloud Yes

Security Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

4G

Standard LTE-TDD/LTE-FDD/WCDMA

SIM Type Nano SIM

Category 4

Frequency LTE-FDD: B 1/3/5/7/8/20/28

LTE-TDD: B 38/40/41

WCDMA: B 1/5/8

ALARM AND EVENT MANAGEMENT

Smart Event • Human & Vehicle Classification

• Intrusion Detection

• Line-Crossing Detection

• Region Entering Detection

• Region Exiting Detection

• Object Abandoned Detection

• Object Removal Detection

• People Detection

• Vehicle Detection

Basic Event • Motion Detection

• Video Tampering Detection

• Exception (Illegal Login)

Alarm Linkage • Memory Card Video Recording

• Message Push

• Audible Warning

• White Light Flashing

Linkage Method N/A

Output Notification Message Push

INTERFACES

Network Interface 1 RJ45 10/100M Self-Adaptive Ethernet Port

Alarm N/A

Reset Button Yes

Power DC Power Port

On-board Storage Built-In Memory Card Slot, Support MicroSD Card, Up to 256 GB

Built-in Nano-SIM Card Slot Yes

Built-in Microphone Yes; Records Anything Going on within a 15-ft Radius of the Camera

Built-in Speaker Yes

Audio N/A

GENERAL

Operating Temperature -30–60 °C

Storage Temperature -40–60 °C

Operating Humidity 95% or Less (Non-Condensing)

Storage Humidity 95% or Less (Non-Condensing)

Package Contents • VIGI Network Camera

• Quick Start Guide

• Waterproof Cable Attachments

• Mounting Accessories

• Power Adapter

Material Plastic

Net Weight 0.69 Kg

Gross Weight 1.16 Kg

Power Supply 12V DC/1A, 5.5mm Coaxial Power Plug

Antenna • Quantity: 2



• Type:

690~960&1710~2690MHz Dipole Omni-Directional Antenna



• Gain:

Ant1:0.84dBi@690~960MHz, 2.85dBi@1710~2690MHz

Ant2:0.74dBi@690~960MHz, 3.06dBi@1710~2690MHz

Protection IP66

Product Dimensions (L x W x H) 120 × 182 × 201 mm (excluding antennas)

Certifications CE, RCM, BSMI, RoHS, NCC
