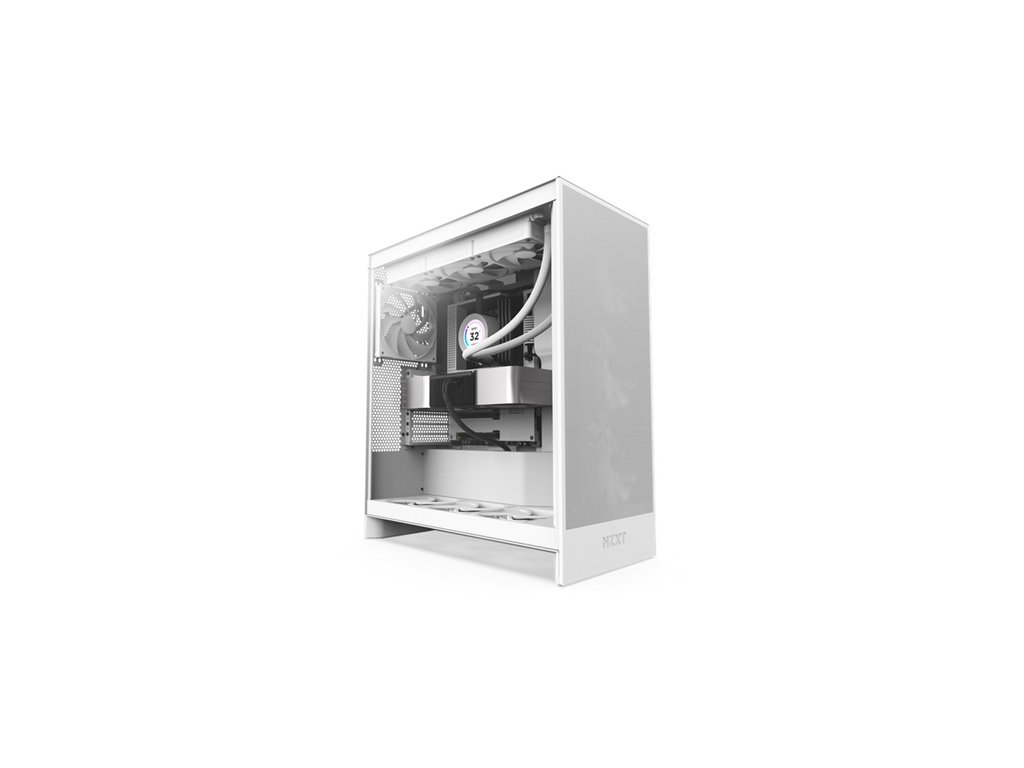

NZXT case H7 Flow / 2x 120 mm fan / tempered glass / mesh panel / white CM-H72FW-01
Overview
Details
The H7 Flow revolutionizes GPU cooling in a classic mid-tower form factor. Its vertical PSU layout allows space for 3 x 120mm bottom fans, offering efficient cooling without expanding the case footprint.
Supports three bottom-mounted 120mm fans for direct GPU cooling while retaining a narrow mid-tower footprint.
Comes equipped with three front-mounted 120mm fans for exceptional out-of-the-box cooling.
High-performance mesh panels maximize airflow for both intake and exhaust, as well as filter dust.
Supports up to 420mm radiators in the front and 360mm radiators in the top for powerful cooling potential.
Intuitive cable management system with wide channels, built-in hooks, and included straps for easy routing.
Capacity for up to 10 fans in total: 3 up top, 3 in front, 3 on bottom, and 1 in the rear.
Conveniently access 2 x USB-A and 1 x USB-C ports located on the top panel.
Tool-less access to the front, top, and side panels makes building and upgrading a breeze.
Inside the Box
H7 Flow1
F120Q Airflow Fan (pre-installed, case version)3
Installation Accessories1
Manual1
Tech Specs
Key Specs
Motherboard Support:E-ATX (Up to 27.7mm), ATX, Micro-ATX, Mini-ITX
Enclosure Type:Mid-Tower
Case Material:SGCC Steel, Ultra-Clear Tempered Glass (White), Dark Tinted Tempered Glass (Black)
Dimensions
Height (with feet):544 mm
Width:244 mm
Depth:468 mm
Weight:11.13 kg
Compatibility & Clearance
CPU Cooler Height:Up to 185 mm
GPU Length:Up to 410 mm
PSU Length:Up to 200 mm
Cable Management:Up to 34.5 mm
Top Mounted 140mm / 280mm Radiator & Fan Combined Thickness:Up to 57 mm
Front I/O Ports
USB 3.2 Gen 1 Type-A:2
USB 3.2 Gen 2 Type-C:1
Headset Audio Jack:1
Expansion Slots
Standard:7
Vertical:0
Drive Bays
2.5":2+2
3.5":2
Fan Support
Front:3 x 120 mm / 3 x 140 mm (3 x F120Q included)
Top:3 x 120 mm / 2 x 140 mm
Rear:1 x 120 mm / 1 x 140 mm
Filters:High-Performance Mesh
Radiator Support
Front:Up to 420 mm
Top:Up to 360mm
Rear:Up to 140mm
Fan Specs
Model:F120Q Airflow Fan (Case Version)
Speed:1,350 ± 150 RPM
Airflow:60.2 CFM
Static:1.05 mm - H2O
Noise:24.1 dBA
Fan Connector:3-pin
General
Warranty:2 Years
Model Number:CM-H72FB-01 (Black) / CM-H72FW-01 (White)
UPC:810074845557 (Black) / 810074845564 (White)
EAN:5056547205502 (Black) / 5056547205519 (White)
