NZXT case H6 Flow RGB / 3x120 mm fan / glass / mesh panel / white CC-H61FW-R1
Overview
Details

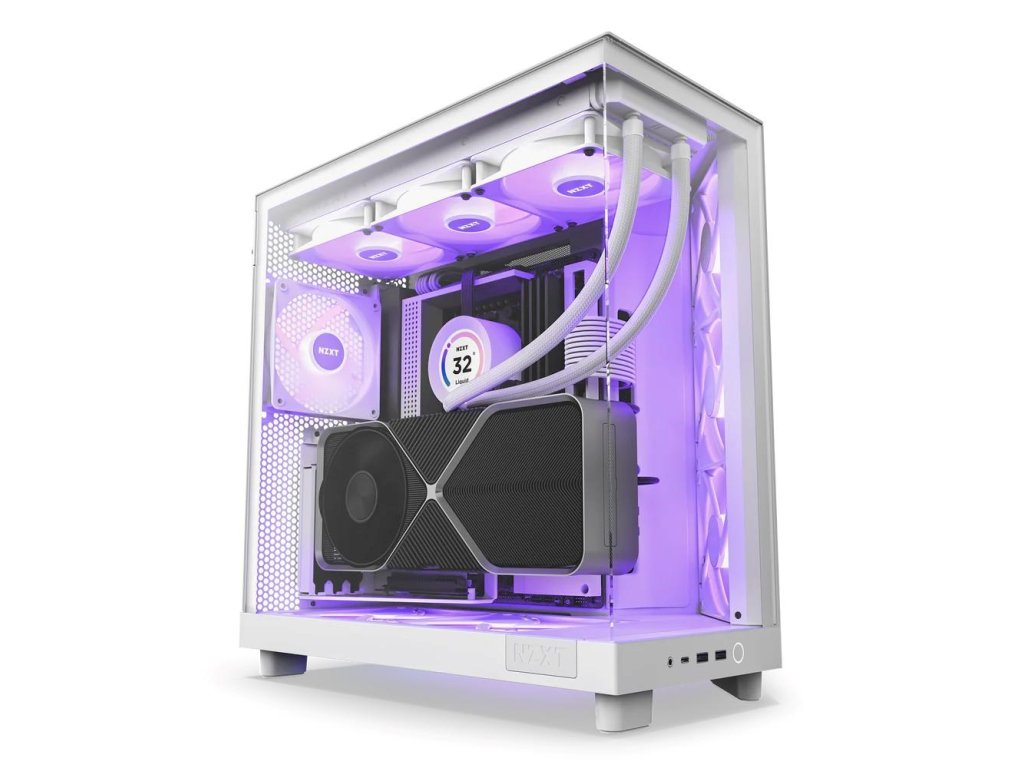

Experience peak performance and vibrant RGB within an innovative compact dual-chamber. Prioritizing GPU cooling, the H6 Flow's panoramic glass showcases the interior while freeing up space for improved airflow.
Wraparound glass panels with a seamless edge provides an unobstructed view of the inside to highlight key components.
Compact dual-chamber design improves overall thermal performance and creates a clean, uncrowded aesthetic.
Includes three pre-installed 120mm RGB fans positioned at an ideal angle for optimal out-of-the-box cooling and vibrant RGB lighting.

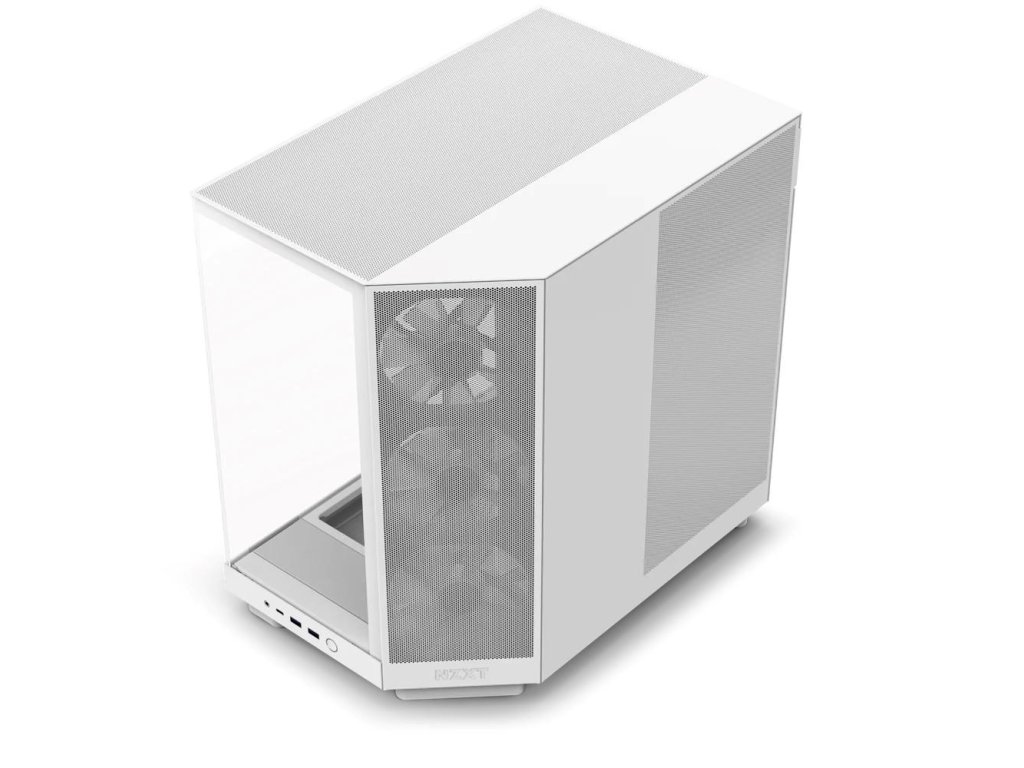

The top and side panels feature an airflow-optimized perforation pattern to enhance overall performance and filter dust.

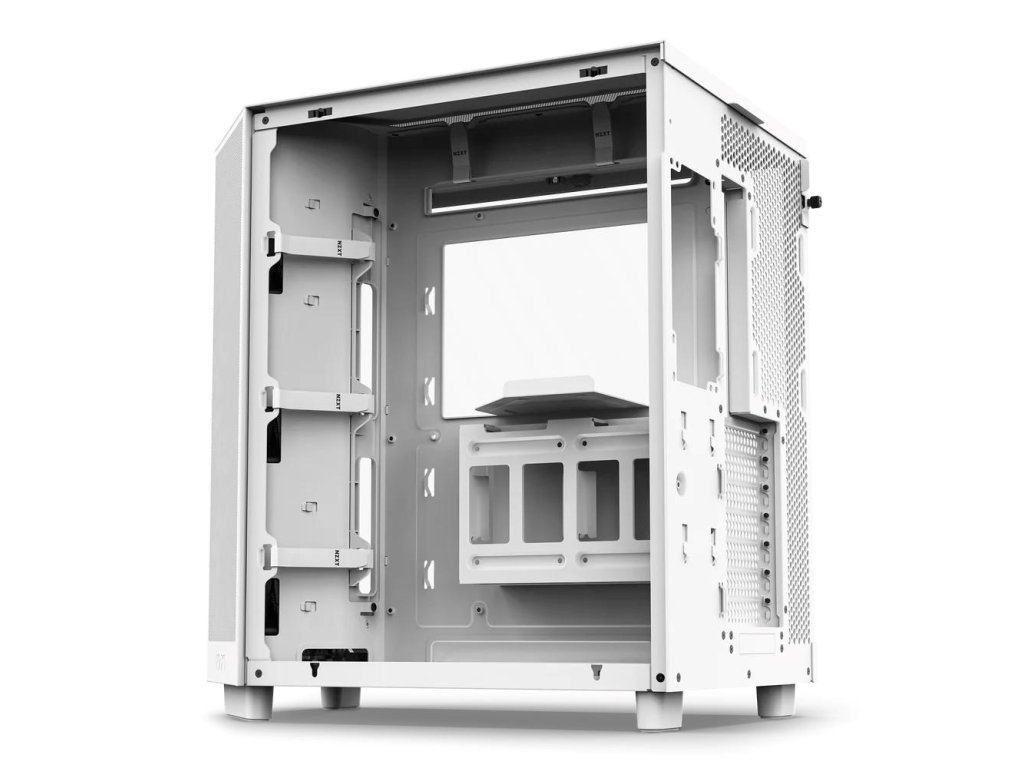

An intuitive cable management system simplifies the build process by using wide channels and straps.

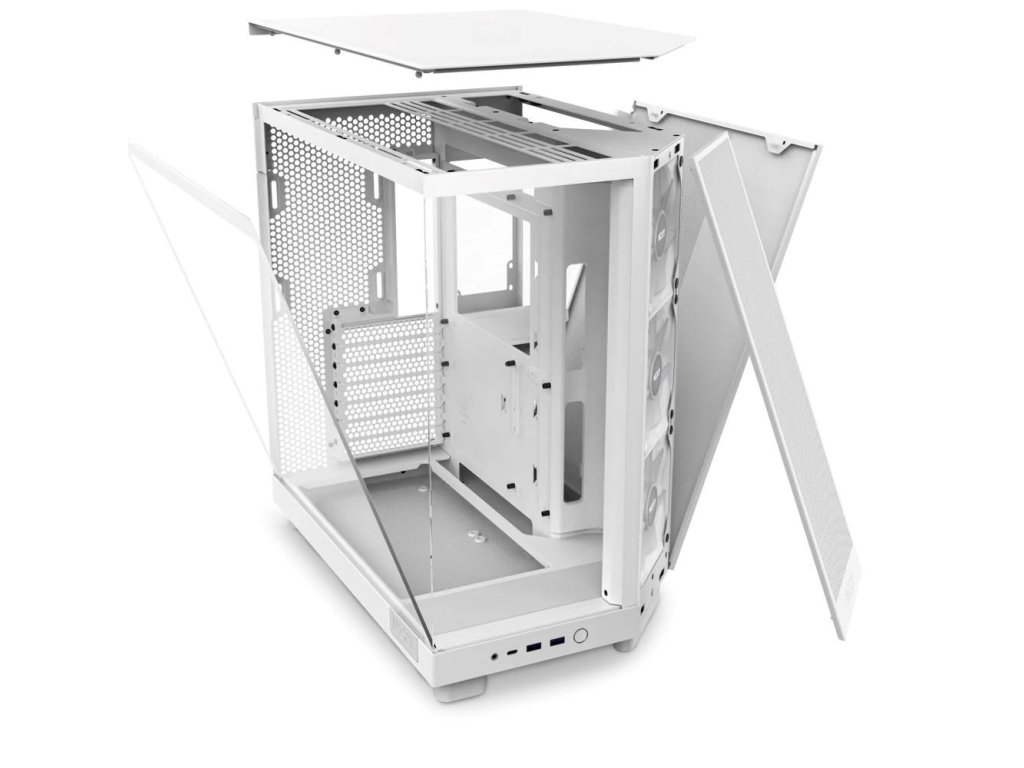

Tool-free access to the top and side panels makes upgrading quick and convenient.
Top panel supports radiators up to 360mm in length. Up to 365mm GPU and 200mm PSU clearance.
Inside the Box
H6 Flow RGB1
F120Q Airflow (Case Version)3
Installation Accessories1
User Guide1
Tech Specs
Key Specs
Motherboard Support:ATX, Micro-ATX, Mini-ITX
Enclosure Type:Mid-Tower
Case Material:SGCC Steel, Ultra-Clear Tempered Glass, Dark Tinted Tempered Glass (Black SKU only)
Dimensions
Height (with feet):435 mm / 17.13 in
Width:287 mm / 11.3 in
Depth:415 mm / 16.34 in
Weight:9.4 kg
Compatibility & Clearance
CPU Cooler Height:163 mm / 6.42 in
GPU Length:365 mm / 14.37 in
PSU Length:200 mm / 7.87 in
Cable Management:91 mm / 3.58 in
Top Radiator:30 mm / 1.18 in
Front I/O Ports
USB 3.2 Gen 1 Type-A:2
USB 3.2 Gen 2 Type-C:1
Headset Audio Jack:1
Expansion Slots
Standard:7
Vertical:0
Drive Bays
2.5":2
3.5":1
Fan Support
Front-Right:3 x 120 mm (3 x F120 RGB Core included)
Top:3 x 120 mm / 2 x 140 mm
Bottom:2 x 140 mm
Rear:1 x 120 mm
Filters:High-Performance Mesh
Radiator Support
Top:Up to 360 mm
Rear:Up to 120 mm
Fan Specs
Model:F120 RGB Core Fan (Case Version)
Speed:1300 ± 130 RPM
Airflow:55.17 CFM
Static:1.27 mm - H2O
Noise:26.1 dBA
Fan Connector:3-pin
General
Warranty:2 Years
Model Number:CC-H61FW-R1 (White) / CC-H61FB-R1 (Black)
UPC:810074844154 (White) / 810074844161 (Black)
EAN:5056547204062 (White) / 5056547204079 (Black)
