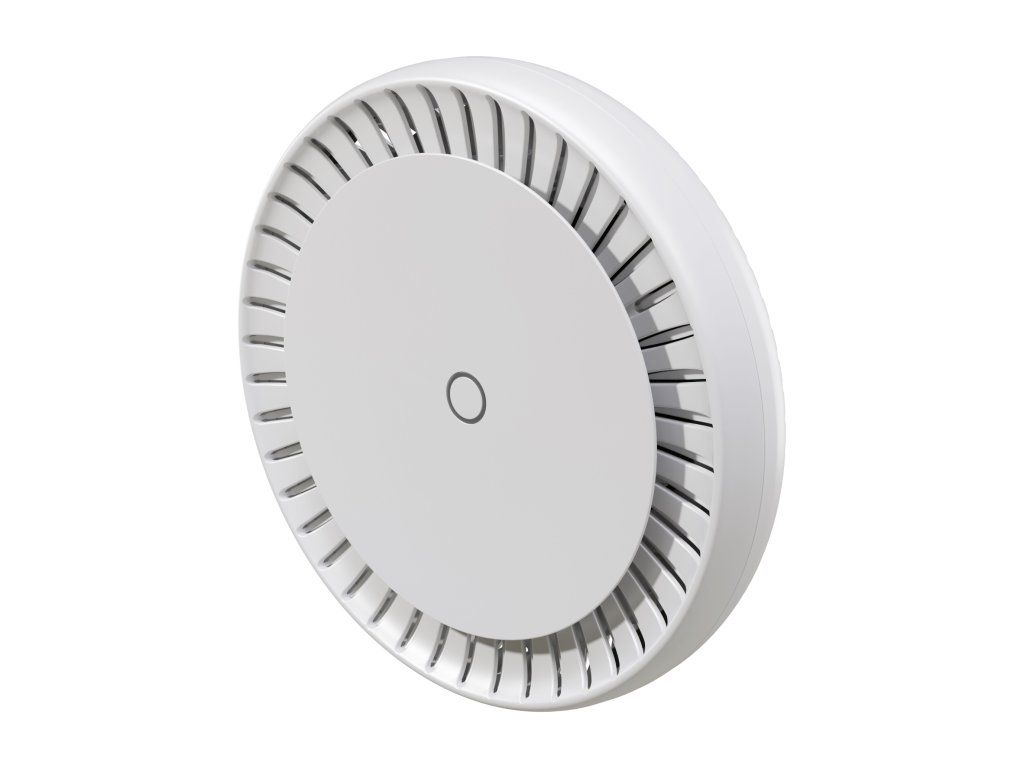

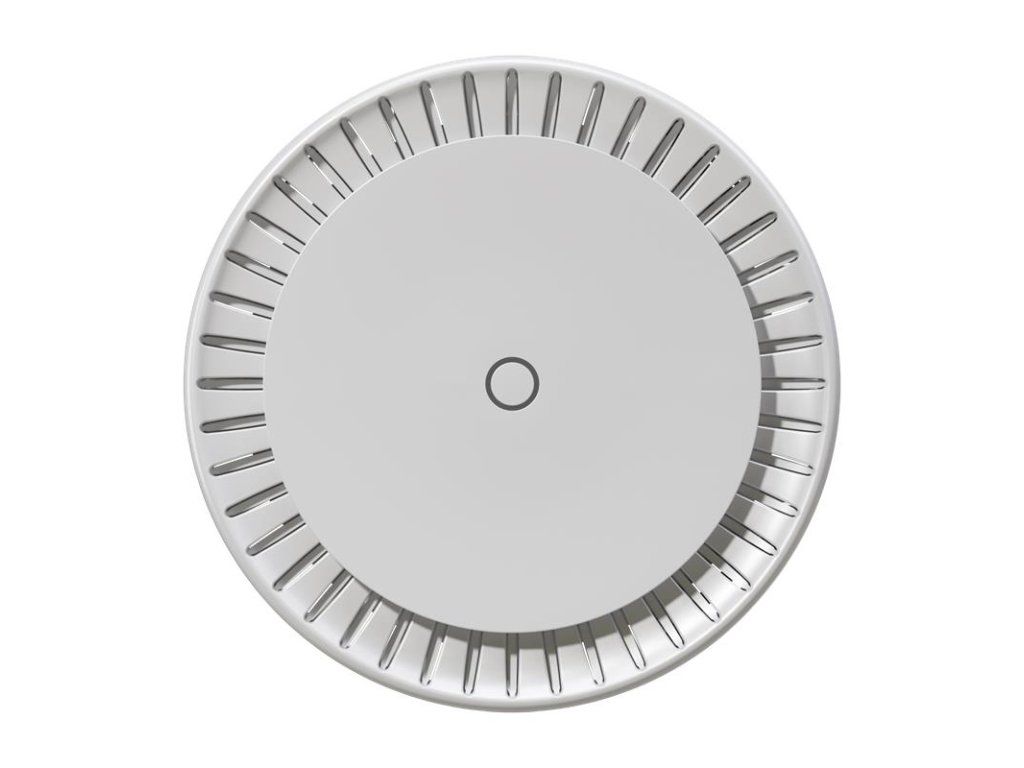

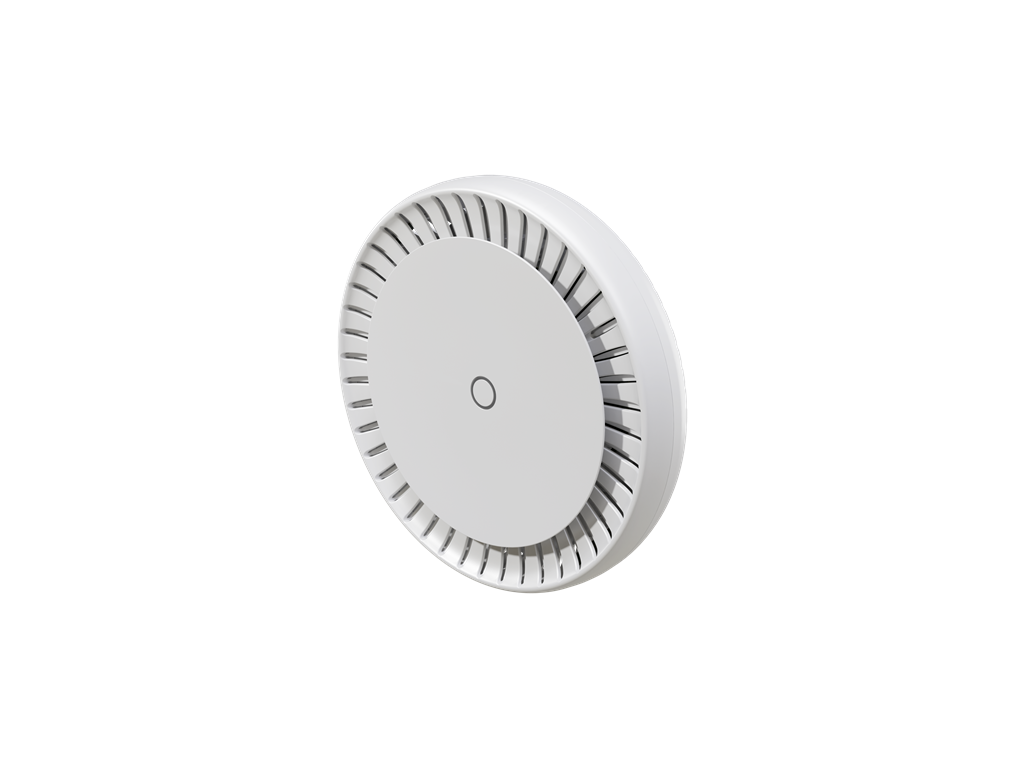

MikroTik RouterBOARD cAPG-5HaxD2HaxD, cAP ax cAPGi-5HaxD2HaxD
Specifications
| Details | |
|---|---|
| Product code | cAPGi-5HaxD2HaxD |
| Architecture | ARM 64bit |
| CPU | IPQ-6010 |
| CPU core count | 4 |
| CPU nominal frequency | auto MHz |
| Switch chip model | IPQ-6010 |
| RouterOS license | 4 |
| Operating System | RouterOS (v7 only) |
| Size of RAM | 1 GB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
Wireless capabilities
| Details | |
|---|---|
| Wireless 2.4 GHz Max data rate | 574 Mbit/s |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n/ax |
| Antenna gain dBi for 2.4 GHz | 6 |
| Wireless 2.4 GHz chip model | QCN-5022 |
| Wireless 2.4 GHz generation | Wi-Fi 6 |
| Wireless 5 GHz Max data rate | 1200 Mbit/s |
| Wireless 5 GHz number of chains | 2 |
| Wireless 5 GHz standards | 802.11a/n/ac/ax |
| Antenna gain dBi for 5 GHz | 5.5 |
| Wireless 5 GHz chip model | QCN-5052 |
| Wireless 5 GHz generation | Wi-Fi 6 |
| WiFi speed | AX1800 |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 2 |
| Number of 1G Ethernet ports with PoE-out | 1 |
Powering
| Details | |
|---|---|
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 18-57 V |
| Max power consumption | 28.2 W |
| Max power consumption without attachments | 9 W |
| Cooling type | Passive |
| PoE in | 802.3af/at |
| PoE in input Voltage | 18-57 V |
PoE-out
| Details | ||||||
|---|---|---|---|---|---|---|
| PoE-out ports | Ether2 | |||||
| PoE out | Passive PoE up to 57V | |||||
| Max out per port output (input 18-30 V) | 600 mA | |||||
| Max out per port output (input 30-57 V) | 400 mA | |||||
| Max total out (A) | 600 mA | |||||
| Total output current | 0.4 | |||||
| Total output po
