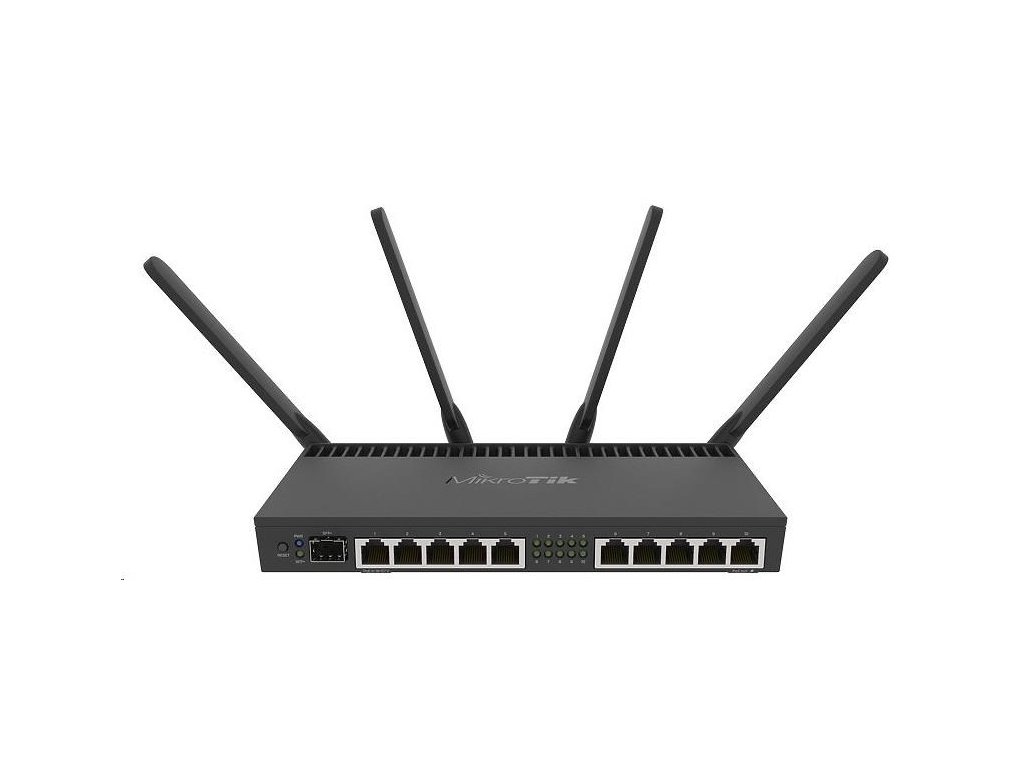

MIKROTIK RouterBOARD 4011iGS+5HacQ2HnD-IN + L5 (1,4GHz; 1GB RAM, 10xGLAN, 1xSFP+, LCD, desktop, zdroj) RB4011iGS+5HacQ2HnD-IN MikroTik
tabulka datové propustnosti
Specifications
| Details | |
|---|---|
| Product code | RB4011iGS+5HacQ2HnD-IN |
| Architecture | ARM 32bit |
| CPU | AL21400 |
| CPU core count | 4 |
| CPU nominal frequency | 1.4 GHz |
| Dimensions | 228 x 120 x 30 mm |
| License level | 5 |
| Operating System | RouterOS |
| Size of RAM | 1 GB |
| Storage size | 512 MB |
| Storage type | NAND |
| Tested ambient temperature | -40°C to 45°C |
Powering
| Details | |
|---|---|
| PoE in | Passive PoE |
| PoE out | Passive PoE up to 57V |
| PoE in input Voltage | 18-57 V |
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 12-57 V |
| Max out per port output (input > 30 V) | 420 mA |
| Max out per port output (input < 30 V) | 600 mA |
| Max total out (A) | 600 mA |
| Max power consumption | 44 W |
| Max power consumption without attachments | 23 W |
Wireless
| Details | |
|---|---|
| Wireless 5 GHz number of chains | 4 |
| Wireless 5 GHz Max data rate | 1733 Mbit/s |
| Wireless 5 GHz standards | 802.11ac MU-MIMO |
| AC speed | AC2000 |
| Antenna gain dBi for 5 GHz | 3 |
| Wireless 5 GHz chip model | QCA9984 |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz Max data rate | 300 Mbit/s |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 3 |
| Wireless 2.4 GHz chip model | R11e-2HnD |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 10 |
Fiber
| Details | |
|---|---|
| SFP+ ports | 1 |
Peripherals
| Details | |
|---|---|
| MiniPCI-e slots | 1 |
| Serial port | RJ45 |
Other
| Details | |
|---|---|
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |

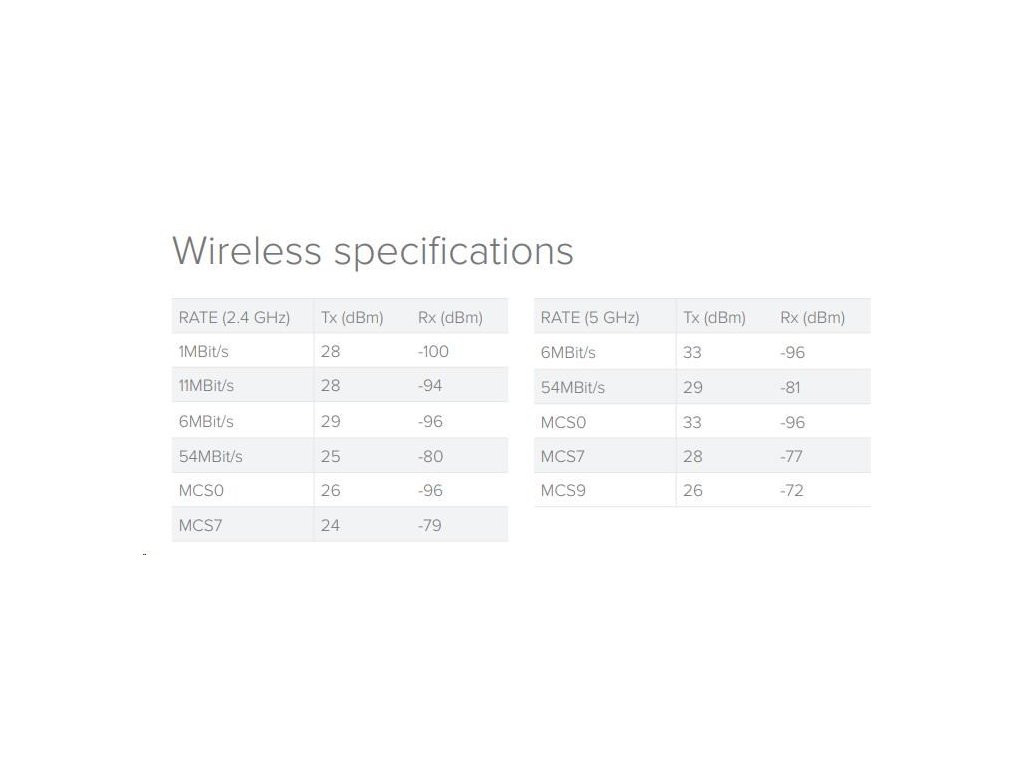

Wireless specifications
| 5 GHz | Transmit (dBm) | Receive Sensitivity | ||||
|---|---|---|---|---|---|---|
| 6MBit/s | 33 | -96 | ||||
| 54MBit/s | 29 | -81 | ||||
|
