Specifications
Details |
|---|
Product code |

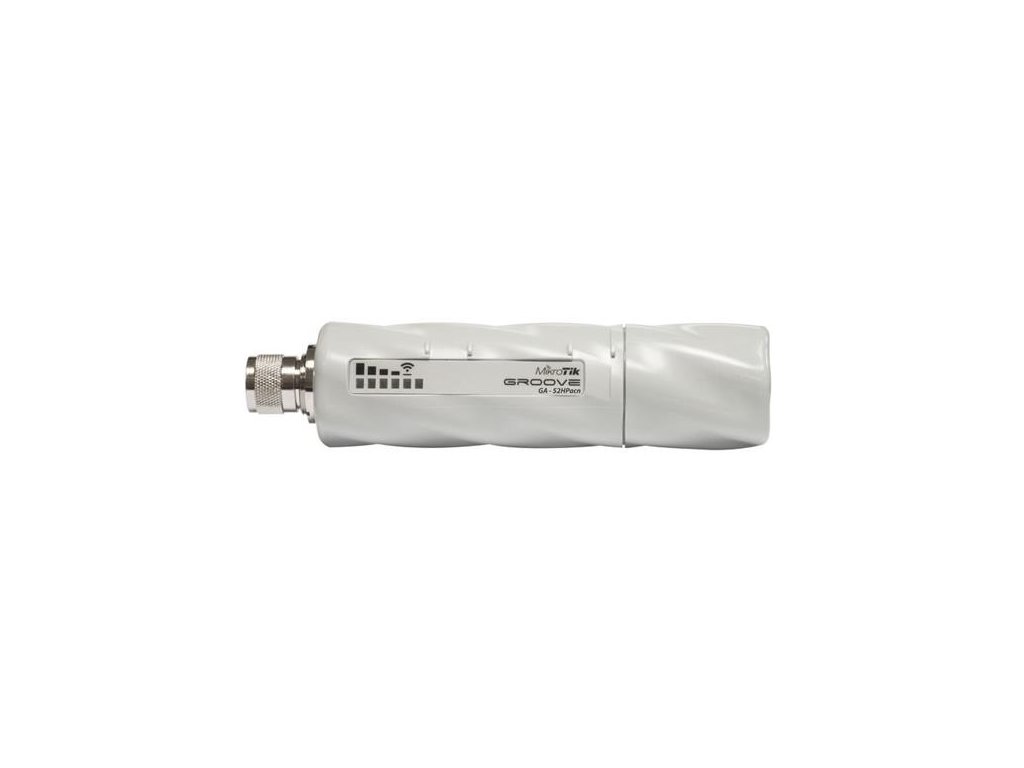

RBGrooveGA-52HPacn |
Architecture |
MIPSBE |
CPU |
QCA9556 |
CPU core count |
1 |
CPU nominal frequency |
720 MHz |
Dimensions |
177 x 44 x 44 mm |
RouterOS license |
4 |
Operating System |
RouterOS |
Size of RAM |
64 MB |
Storage size |
16 MB |
Storage type |
FLASH |
MTBF |
Approximately 100'000 hours at 25C |
Tested ambient temperature |
-40°C to 70°C |
Powering
Details |
|---|
Number of DC inputs |
1 (PoE-IN) |
Max power consumption |
5 W |
Cooling type |
Passive |
PoE in |
Passive PoE |
PoE in input Voltage |
10-30 V |
Wireless specifications
Details |
|---|
Wireless 5 GHz/2.4 GHz Max data rate |
433 Mbit/s |
Wireless 5 GHz/2.4 GHz number of chains |
1 |
Wireless 5 GHz/2.4 GHz standards |
802.11b/g/n, 802.11a/n/ac |
Antenna gain dBi for 5 GHz/2.4 GHz |
6 |
Wireless 5 GHz/2.4 GHz chip model |
QCA9889 |
Wireless 5 GHz/2.4 GHz generation |
Wi-Fi 4 |
Ethernet
Details |
|---|
10/100/1000 Ethernet ports |
1 |
Other
Details |
|---|
PCB temperature monitor |
Yes |
Voltage Monitor |
Yes |
Certification & Approvals
Details |
|---|
Certification |
CE, FCC, IC, EAC, ROHS |
IP |
IP55 |
