Specifications
Details |
|---|
Product code |

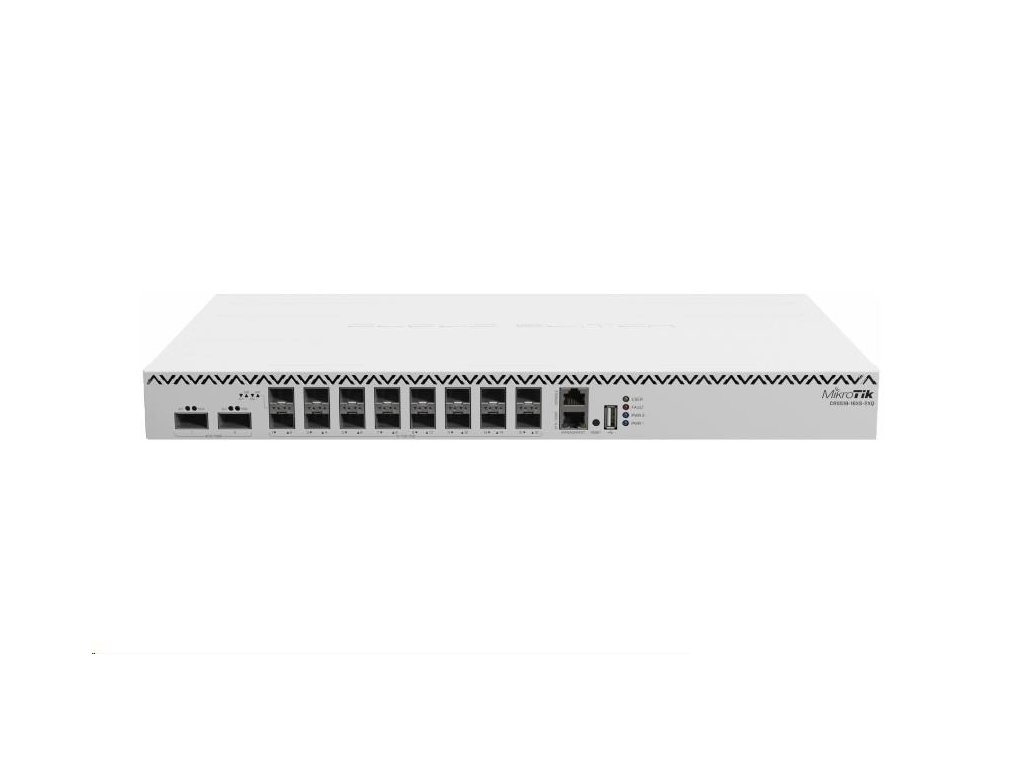

CRS518-16XS-2XQ-RM |
Architecture |
MIPSBE |
CPU |
QCA9531 |
CPU core count |
1 |
CPU nominal frequency |
650 MHz |
Switch chip model |
98DX8525 |
RouterOS license |
6 |
Operating System |
RouterOS (v7 only) |
Size of RAM |
64 MB |
Storage size |
16 MB |
Storage type |
FLASH |
MTBF |
Approximately 200'000 hours at 25C |
Tested ambient temperature |
-40°C to 70°C |
Powering
Details |
|---|
Number of AC inputs |
2 |
AC input range |
100-240 |
Frequency (Hz) |
47-63 |
Max power consumption |
95 W |
Max power consumption without attachments |
45 W |
Cooling type |
4 fans |
Ethernet
Details |
|---|
10/100 Ethernet ports |
1 |
Fiber
Details |
|---|
Number of 25G SFP28 ports |
16 |
Number of 100G QSFP28 ports |
2 |
Peripherals
Details |
|---|
Serial console port |
RJ45 |
Number of USB ports |
1 |
USB Power Reset |
Yes |
USB slot type |
USB type A |
Max USB current (A) |
1 |
Other
Details |
|---|
CPU temperature monitor |
Yes |
PCB temperature monitor |
Yes |
Voltage Monitor |
Yes |
Certification & Approvals
Details |
|---|
Certification |
CE, EAC, ROHS |
IP |
20 |
