Mercusys MB130-4G AC1200 4G LTE WiFi router

Mercusys MB130-4G AC1200 Wireless Dual Band 4G LTE Router
Functions 4G network

*Enjoy the 4G LTE download speeds up to 150 Mbps.

Plug a SIM card and play

*No configurations needed, compatibility of SIM cards are assured by years of field tests.

Dual Band 1200 Mbps WiFi

*Fast WiFi speeds up to 300 Mbps on the 2.4 GHz band and 867 Mbps on the 5 GHz band.

Simultaneous Connection

*Share internet access with up to 32 Wi-Fi devices.

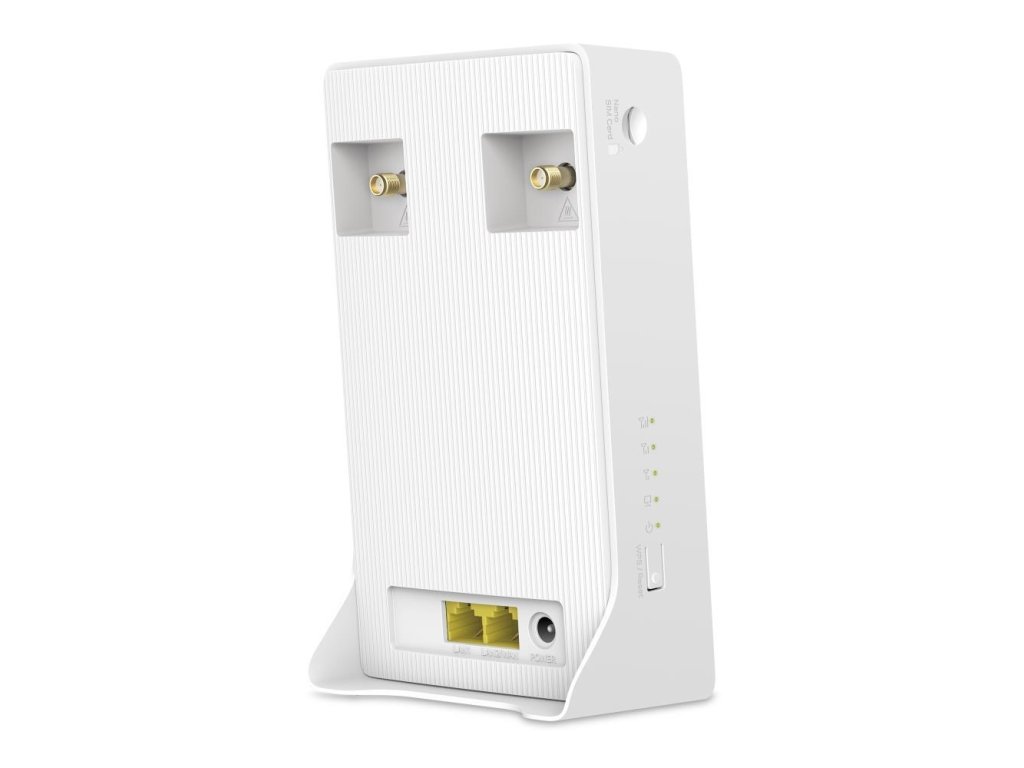

External Antennas Ports

*Plug in your 4G/3G Antennas to enhance the Network Signal.

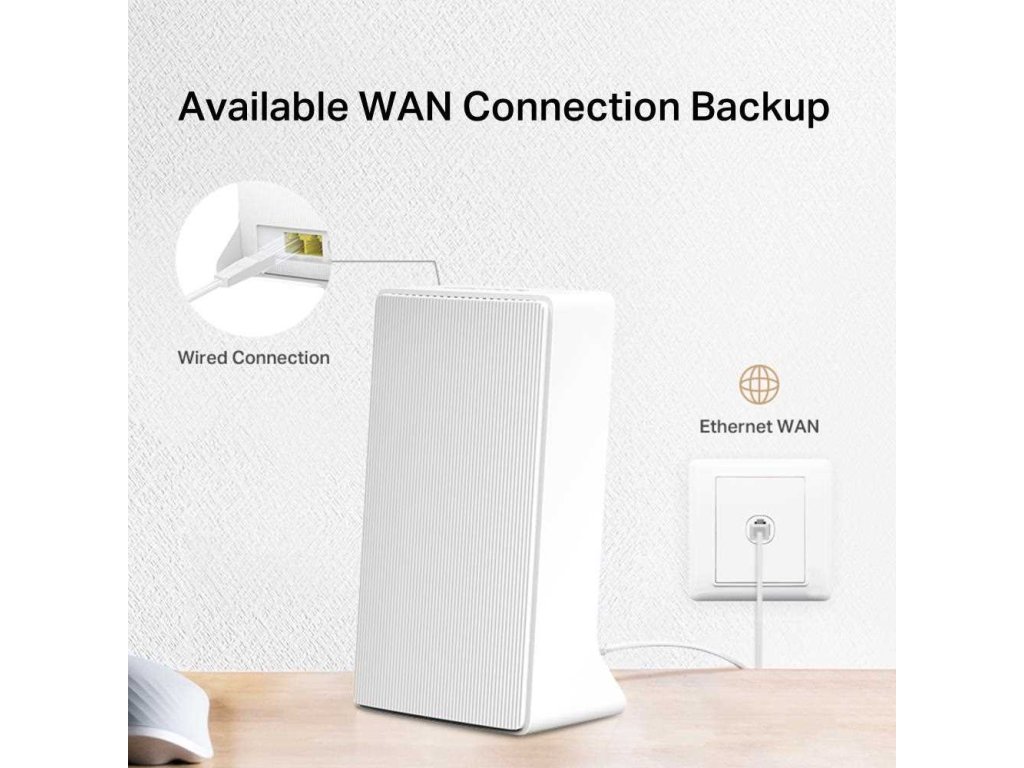

Wi-Fi router mode

*Plug an Ethernet cable into the LAN/WAN port for flexible access if you can't get a 4G connection.

Specifications

Wireless Wireless Standards *IEEE 802.11ac/a/b/g/n Frequency *5 GHz, 2.4 GHz WiFi Speeds *867 Mbps at 5 GHz *300 Mbps at 2.4 GHz Reception Sensitivity *11g 6Mbps: -95dBm *11g 54Mbps: -77dBm *11n HT20 MCS7: -74dBm *11n HT40 MCS7: -71dBm *11a 6Mbps: -92dBm *11a 54Mbps: -75dBm *11ac VHT20 MCS8: -70dBm *11ac VHT40 MCS9: -65dBm *11ac VHT80 MCS9: -61dBm Transmission Power *2.4 GHz < 20dBm (EIRP) *5 GHz < 23dBm (EIRP) Wireless Security *WPA-PSK / WPA2-PSK Wireless Functions *Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless, Statistics Hardware Dimensions *95×61.05×165.97 mm Interfaces *1× 10/100Mbps LAN/WAN Port *1× 10/100Mbps LAN Port *2× 4G/3G External Antenna Ports *1× Nano SIM Card Slot Button *WPS/Reset Button Ethernet Ports *1× 10/100 Mbps LAN/WAN Port + 1× 10/100 Mbps LAN Network Type *EU: *FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz) *TDD-LTE: B38/B40 (2600/2300 MHz) *HSPA+/UMTS: B1/B5/B8 (2100/850/900 MHz) Software DHCP *Server
