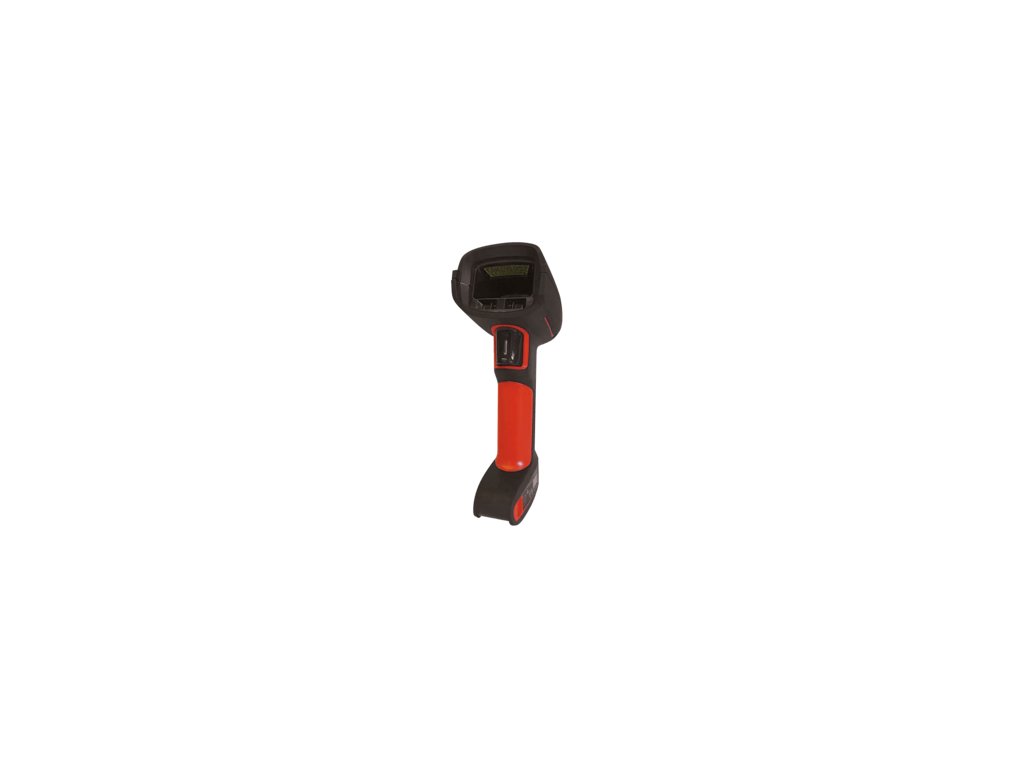

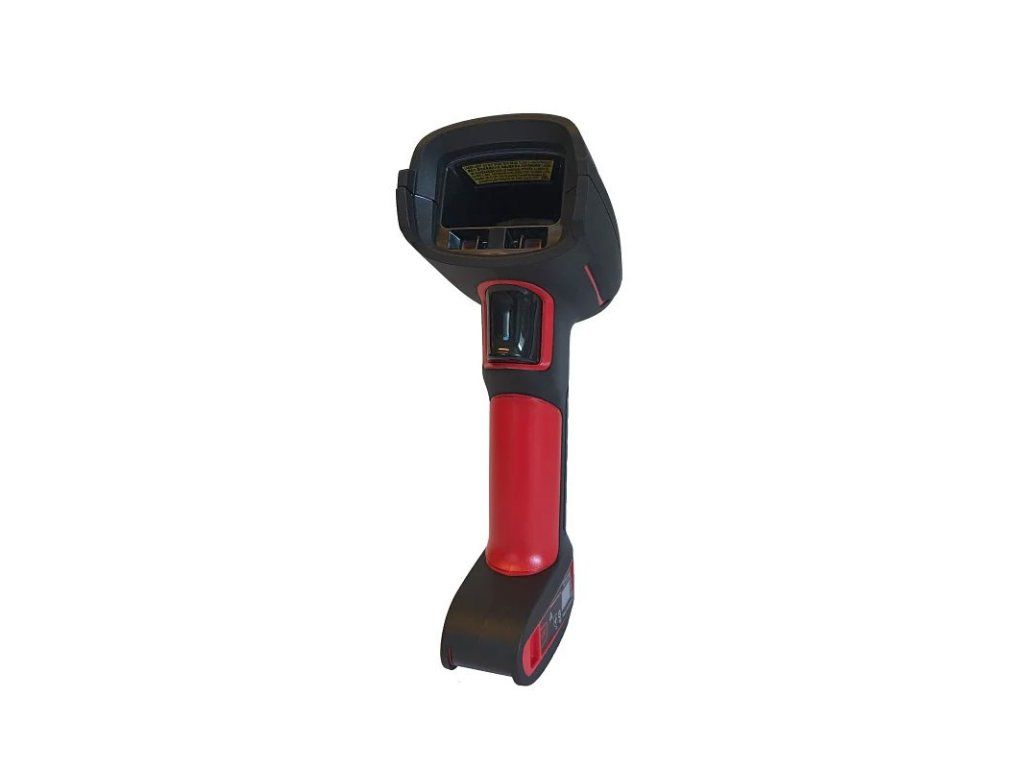

Honeywell Granit 1990i Standard Range, USB kit 1990ISR-3USB-R

Popis produktu

MECHANICAL Dimensions (L x W x H): 192 mm x 76 mm x 100 mm (7.6 in x 3.0 in x 3.9 in) Weight - Corded: 320 g (11.3 oz) User Indicators: Good Decode LEDs, Beeper (adjustable tone and volume), Vibration (adjustable) ELECTRICAL Input Voltage: 4.0 VDC to 5.5 VDC Operating Power - Corded: 2.35 W (470 mA @ 5 VDC) Standby Power - Corded: 0.5 W (100 mA @ 5 VDC) Host System Interfaces: USB, Keyboard Wedge, RS-232 TTL ENVIRONMENTAL Operating Temperature - Corded: -30°C to 50°C (-22°F to 122°F) Storage Temperature: -40°C to 70°C (-40°F to 158°F) Humidity: Up to 95% relative humidity, non-condensing Drop: *2 m (6.5 ft): 50 drops from -30°C to 50°C (-22°F to 122°F), uncontrolled RH *2.4 m (8 ft): 20 drops at 25°C (77°F), 55% RH *3 m (10 ft): MIL-STD-810G, 25°C (77°F), 55% RH Tumble: 7,000 1 m (3.3 ft) tumbles Environmental Sealing: IP67 and IP65 Light Levels: 0 to 100,000 lux (9,290 foot-candles) ESD: ±20 kV air discharge, ±8 kV contact discharge SCAN PERFORMANCE Scan Pattern: Area Imager (1280 x 800 pixel array) Motion Tolerance: Up to 4500 mm/s (177 in/s) Scan Angle: Horizontal: 40°, Vertical: 30° Print Contrast: 20% minimum reflectance difference Roll, Pitch, Skew: -360°, 45°, 65° Decode Capabilities: Reads standard 1D, PDF, 2D, Postal, Digimarc, DOT Code and OCR symbologies Warranty - Scanner: Three-year factory warranty Warranty - Battery Pack: One-year factory warranty
