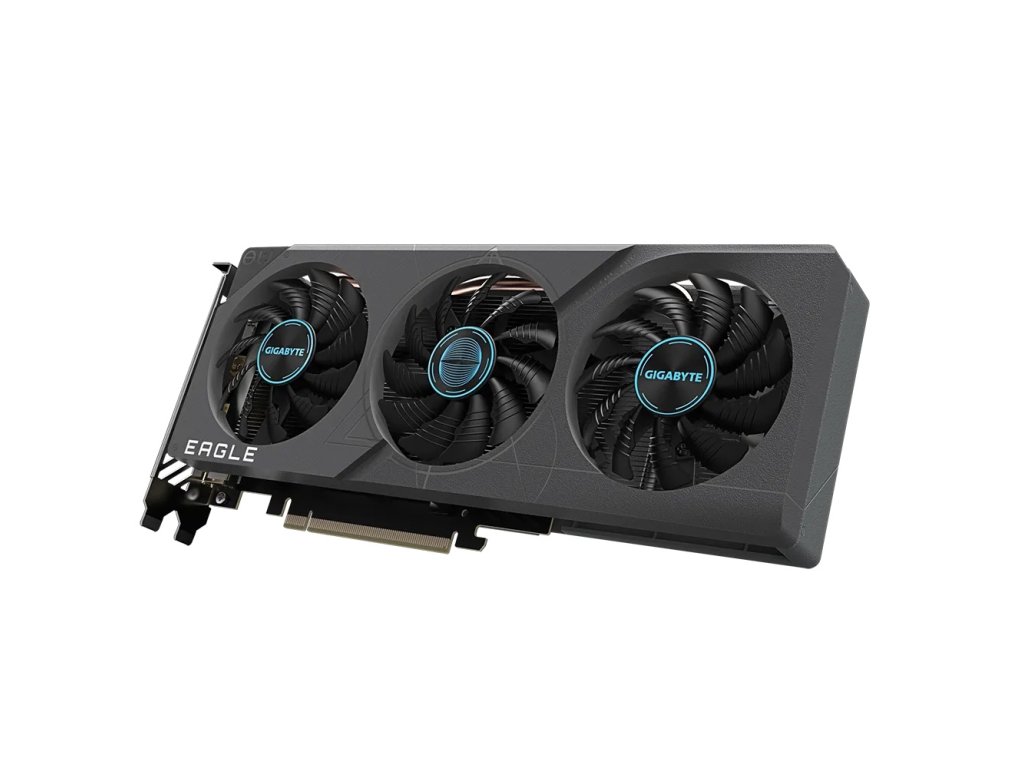

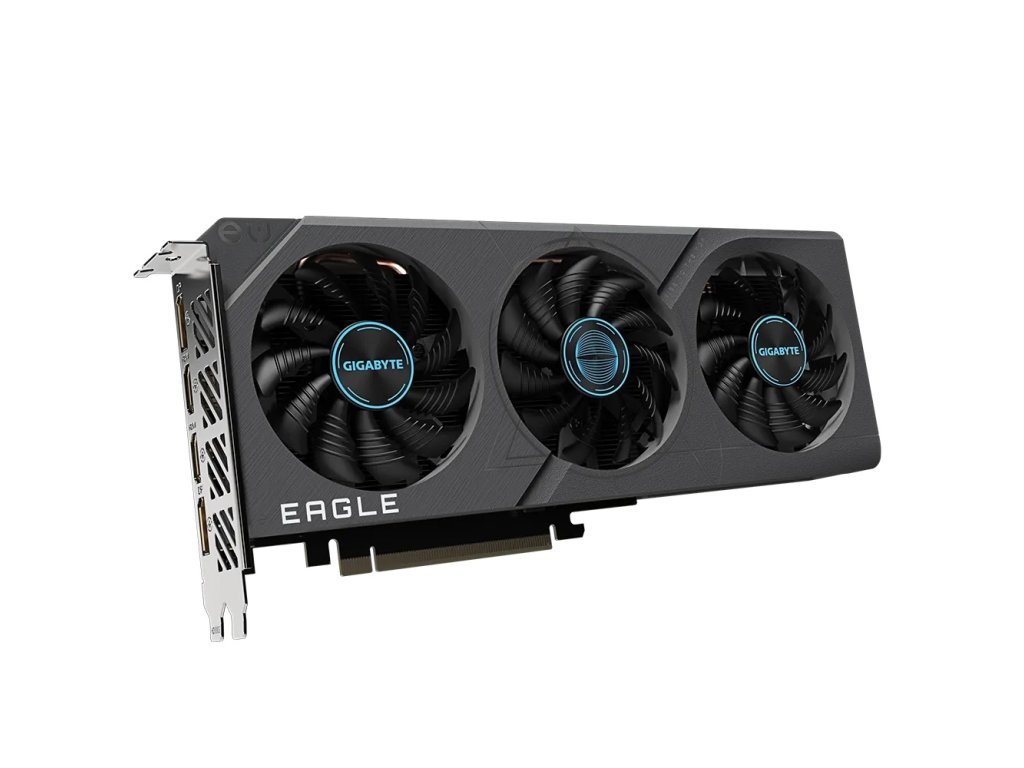

GIGABYTE VGA NVIDIA GeForce RTX 4060 EAGLE 8G OC, RTX 4060, 8GB GDDR6, 2xDP, 2xHDMI GV-N4060EAGLE OC-8GD Gigabyte

KEY FEATURE

Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
3rd Generation RT Cores: Up to 2X ray tracing performance
Powered by GeForce RTX™ 4060
Integrated with 8GB GDDR6 128bit memory interface
WINDFORCE cooling system
Dual BIOS

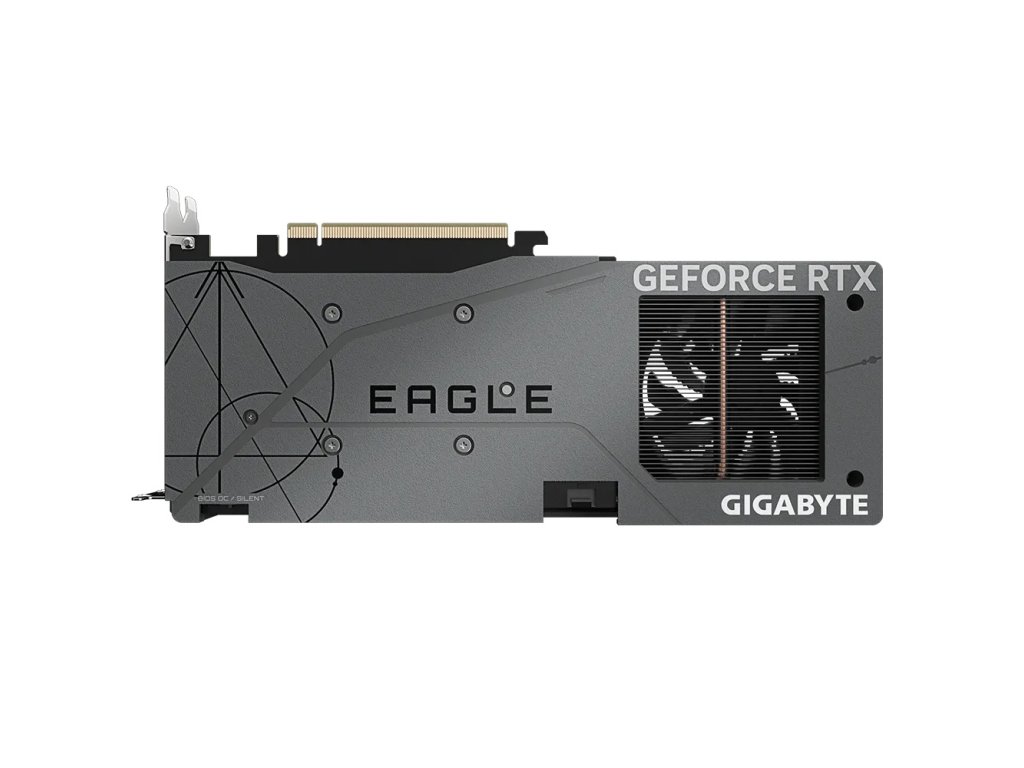

Protection back plate

CORE CLOCK

2505 MHz (Reference card: 2460 MHz)



Graphics Processing
GeForce RTX™ 4060
Core Clock
2505 MHz (Reference card: 2460 MHz)
CUDA® Cores
3072
Memory Clock
17 Gbps
Memory Size
8 GB
Memory Type
GDDR6
Memory Bus
128 bit
Card Bus
PCI-E 4.0
Digital max resolution
7680x4320
Multi-view
4
Card size
L=272 W=115 H=40 mm
PCB Form
ATX
DirectX
12 Ultimate
OpenGL
4.6
Recommended PSU
450W

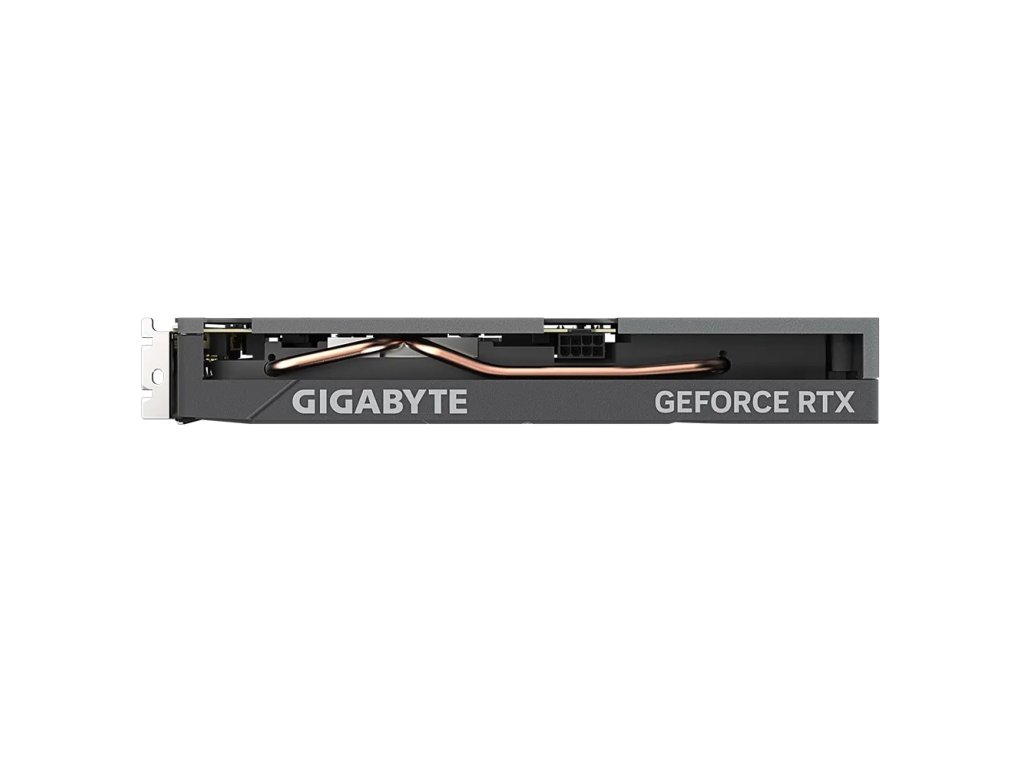

Power Connectors
8 Pin*1

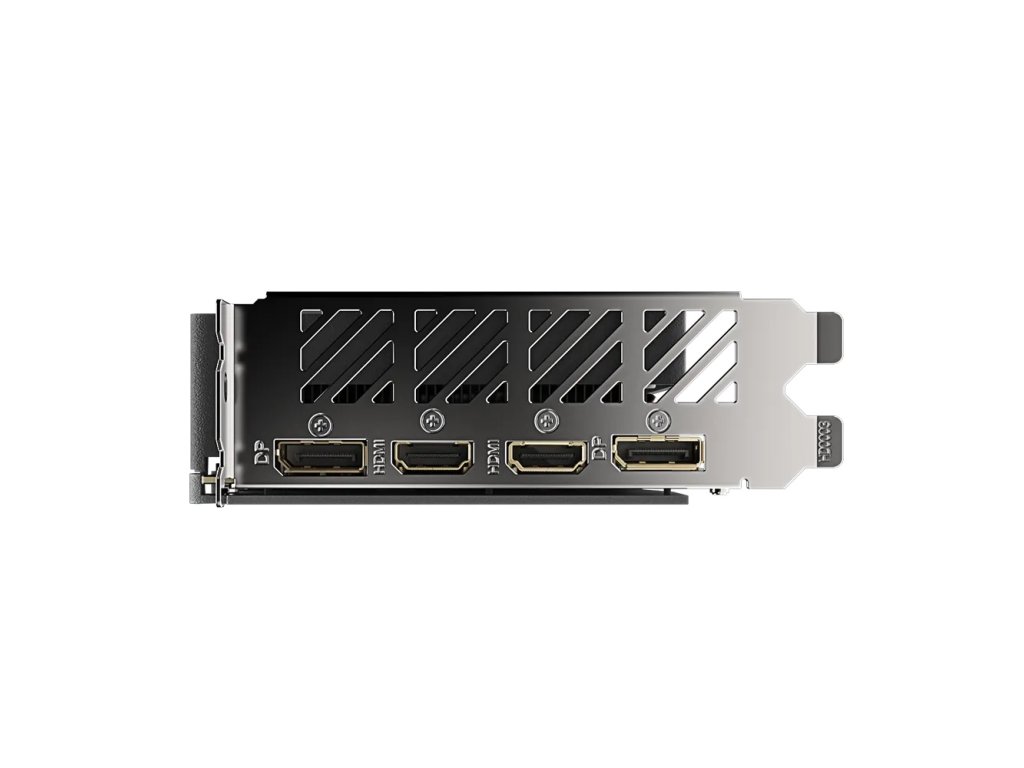

Output
DisplayPort 1.4a *2
HDMI 2.1a *2
Accessories
Quick guide
