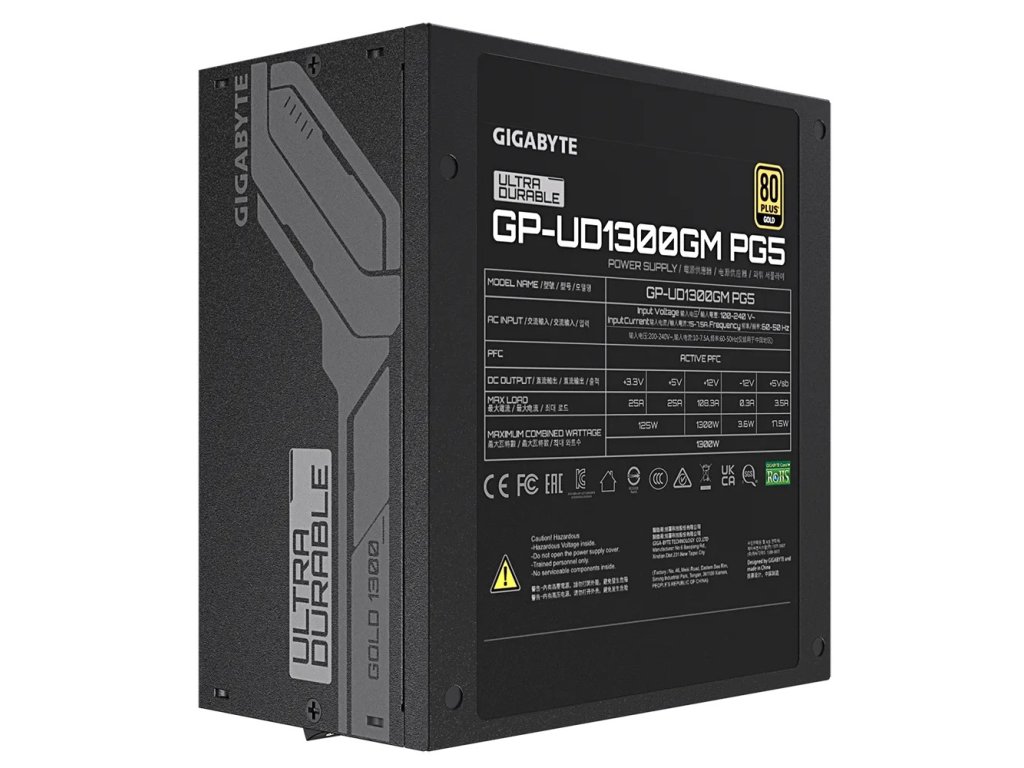

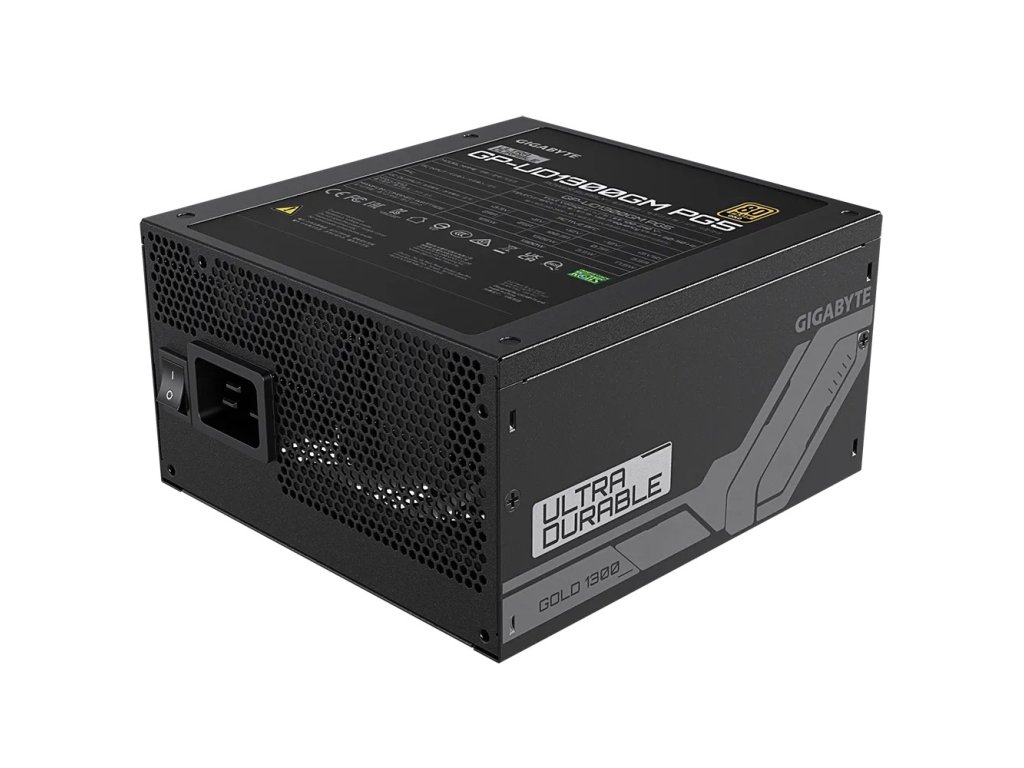

Gigabyte UD1300GM/1300W/ATX 3.0/80PLUS Gold/Modular GP-UD1300GM PG5
KEY FEATURE
Ultra Durable
Main Japanese capacitors
Enhanced thermal solution

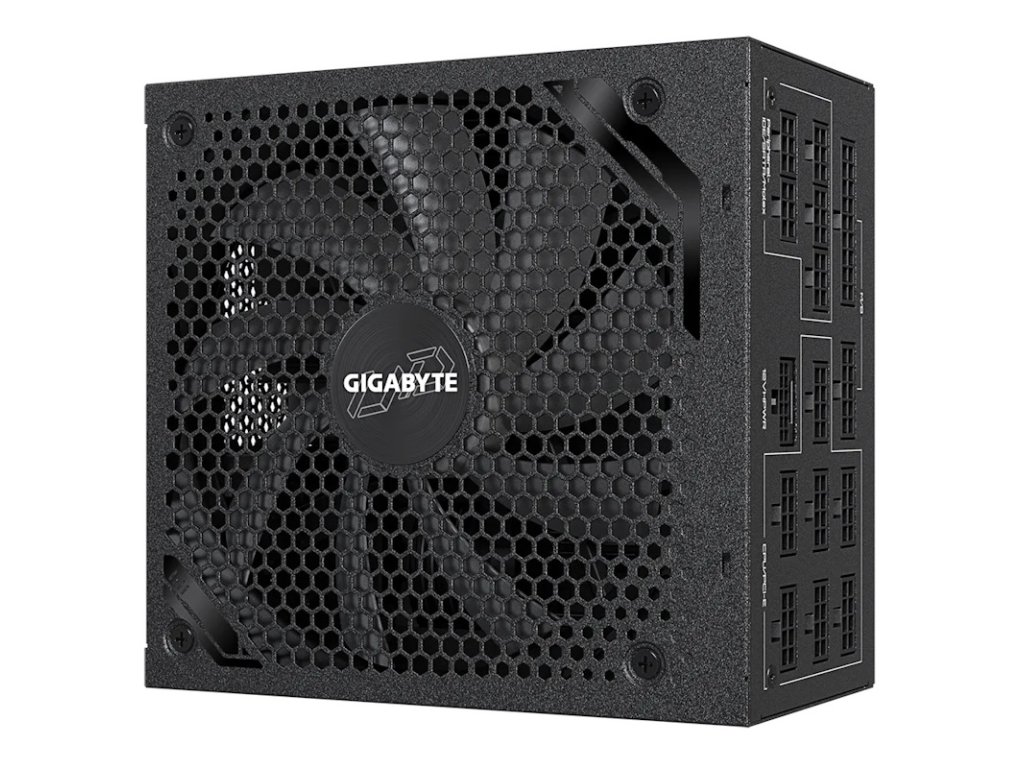

140mm smart hydraulic bearing (HYB) fan
OVP/OPP/SCP/UVP/OCP/OTP protection
Support PCIe Gen 5.0 graphics card
Support Intel ATX 3.0 standard
80 PLUS Gold certified
Fully modular design
Compact size
10 years warranty (Adjusted according to different regions)
UD1300GM PG5
Key Features Specification Support News & Awards Gallery Buy
Model
GP-UD1300GM PG5
Type
Intel Form Factor ATX 12V v3.0
PFC
Active PFC (>0.9 typical)
Input Voltage
100-240 Vac (full range)
Input Current
15-6.5A
Input Frequency
60-50 Hz
Output Capacity
1300W
Dimension
150 x 160 x 86 mm
Fan Type
140mm Hydraulic Bearing(HYB)fan
80 PLUS
Gold
Efficiency
90% at typical load
MTBF
>100,000 hours
Protection
OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal
100-150ms
Hold Up Time
>16ms
Cable Type
Flat, All black

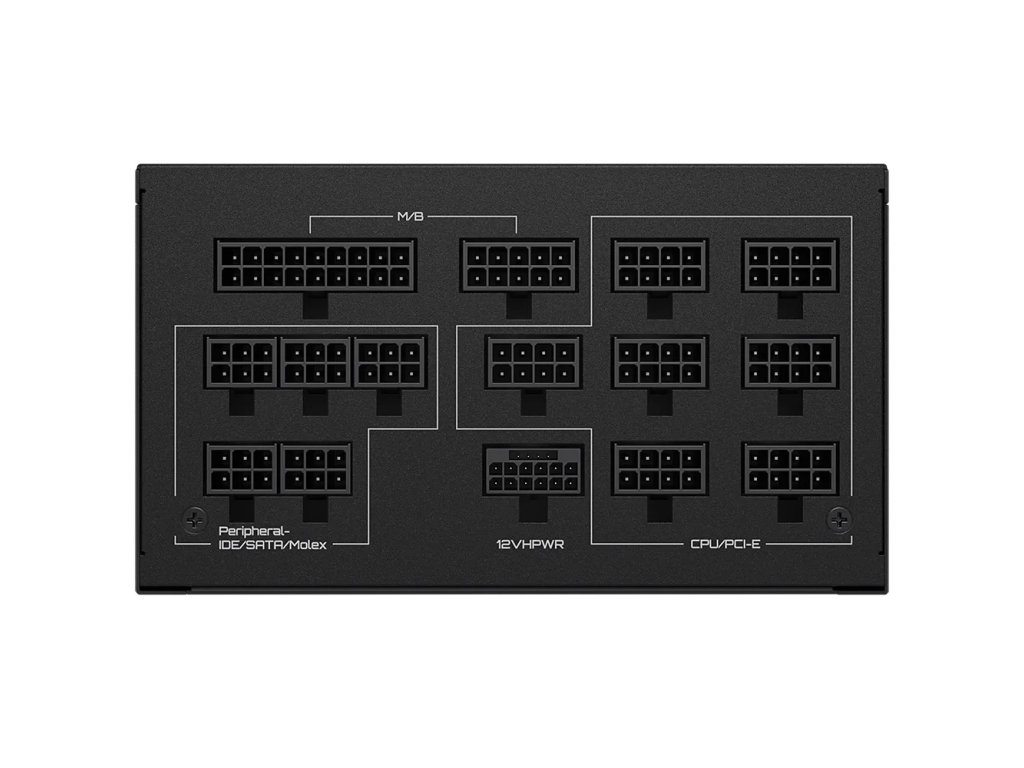

Connectors
ATX/MB 20+4 Pin x 1 : 610mm*1
CPU/EPS 4+4 Pin x 2 : 650mm*2
PCIe 16 Pin x 1: 700mm*1
PCIe 6+2 Pin x 8 : 650mm+150mm*3, 650mm*2
SATA x 12 : 650mm+150mm+150mm+150mm*3
4 Pin Peripheral x 6+4-Pin floppy x 2 : 600mm+150mm+150mm+150mm*2
