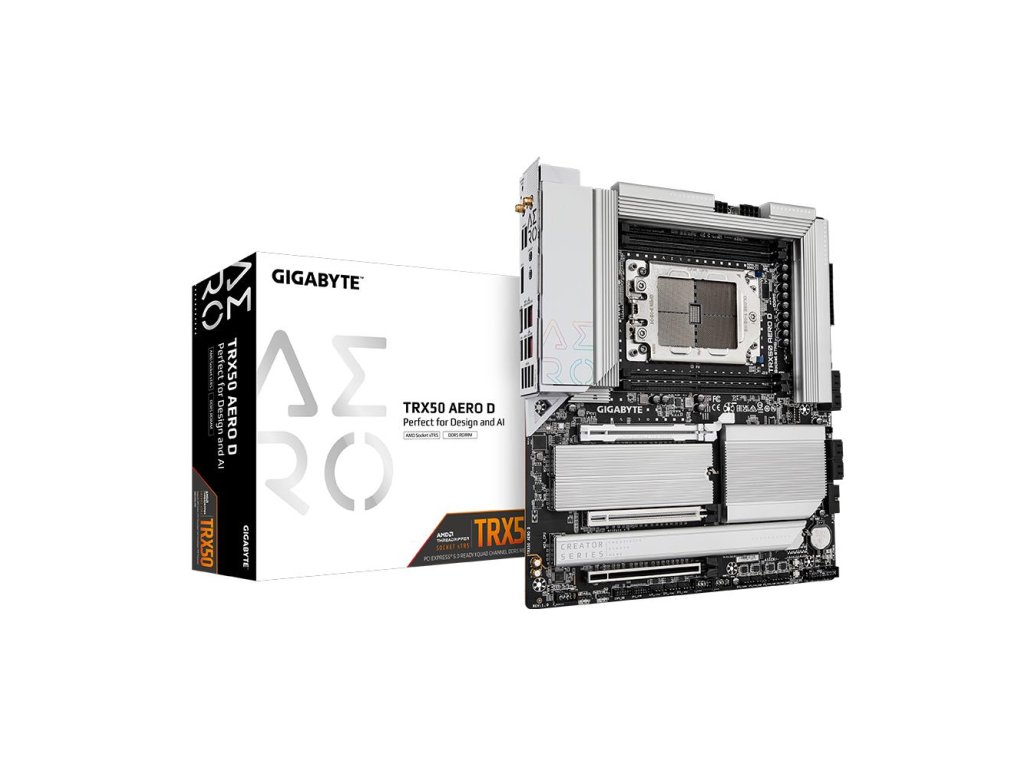

GIGABYTE TRX50 AERO D Gigabyte

Popis produktu

HEDT motherboard designed for AI, content creation scientific computing

Key Features

Supports AMD Ryzen™ Threadripper™ PRO 7000 series/ Ryzen™ Threadripper™ 7000 series Processors?
Breakthrough Performance:16+8+4 Phases Digital VRM Solution
Quad Channel DDR5:4*SMD R-DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
Reinforced Overall Thermal:VRM Thermal Armor Advanced & M.2 Thermal Guard
Ultimate Scalibility: 3*PCIe x16 slots for Multi-GPU and 4*PCIe x4 M.2 slots
Next-gen Connectivity: Dual USB4® Type-C ports
Blazing Fast Networks: 10GbE + 2.5 GbE Dual LAN and Wi-Fi 7
PCIe UD Slot X:PCIe 5.0 x16 slot with 10X strength for graphics card
EZ-Latch Click:M.2 heatsinks with screwless design
EZ-Latch Plus:M.2 slots with quick release design
Hi-Fi Audio with DTS:X® Ultra:ALC4080+ALC897 CODEC
UC BIOS:User-Centred intuitive UX with Quick Access function



CPU
AMD Socket sTR5, support for:
AMD Ryzen™ Threadripper™ PRO 7000 processors / AMD Ryzen™ Threadripper™ 7000 Series processors
(Go to GIGABYTE's website for the latest CPU support list.)
Chipset
AMD TRX50
Memory
Support for DDR5 7800(O.C.)/7600(O.C.)/7200(O.C.)/7000(O.C)/6800(O.C.)/6400(O.C.)/6000(O.C.)/5600(O.C.)/5200/4800/4400 MT/s ECC Registered memory modules (RDIMM/RDIMM-3DS)
4 x DDR5 DIMM sockets supporting up to 1TB (256 GB single DIMM capacity) of system memory
Quad channel memory architecture
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Audio
Realtek® ALC4080 CODEC (rear panel audio)
- Support for DTS:X® Ultra
- High Definition Audio
- 2-channel
Realtek® ALC897 CODEC (front panel audio)
LAN
Marvell® AQtion AQC113C 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) (LAN1)
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) (LAN)
Wireless Communication module
Qualcomm® Wi-Fi 7 QCNCM865
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11be 320MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)

Note:
Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10)
Wi-Fi 7 channels on 6GHz band availability depends on individual country's regulations.
Expansion Slots
CPU:
- 2 x PCI Express x16 slots, supporting PCIe 5.0 and running at x16 (PCIEX16_1/PCIEX16_2)

* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16_1 slot.

- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16(PCIEX16_3)
Storage Interface
CPU:
- 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2C_CPU)
- 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU/M2B_CPU)
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2D_CPU)

CPU+Chipset:
- 8 x SATA 6Gb/s connectors

RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB
CPU:
- 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

Chipset+Intel® JHL8540 USB4® controller:
- 2 x USB4® USB Type-C® ports on the back panel

Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
- 2 x USB 3.2 Gen 1 ports available through the internal USB header

CPU+USB 3.2 Gen 1 Hub:
- 4 x USB 3.2 Gen 1 ports on the back panel

Chipset+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
4 x system fan headers
4 x system fan/water cooling pump headers
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x M.2 Socket 3 connectors
8 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x noise detection header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
1 x power button
1 x Clear CMOS button
1 x reset button
1 x reset jumper
2 x temperature sensor headers
1 x Clear CMOS jumper
Back Panel Connectors
1 x Q-Flash Plus button
2 x SMA antenna connectors (2T2R)
1 x DisplayPort In port
1 x USB4® USB Type-C® port (DisplayPort)
1 x USB4® USB Type-C® port
4 x USB 3.2 Gen 2 Type-A ports (red)
4 x USB 3.2 Gen 1 ports
2 x RJ-45 ports
2 x audio jacks
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control

* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

Noise detection
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for GIGABYTE Control Center (GCC)

* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

Support for Q-Flash
Support for Q-Flash Plus
Bundled Software
Norton® Internet Security (OEM version)
LAN bandwidth management software
Operating System
Support for Windows 11 64-bit
Form Factor
E-ATX Form Factor; 30.5cm x 26.4cm
