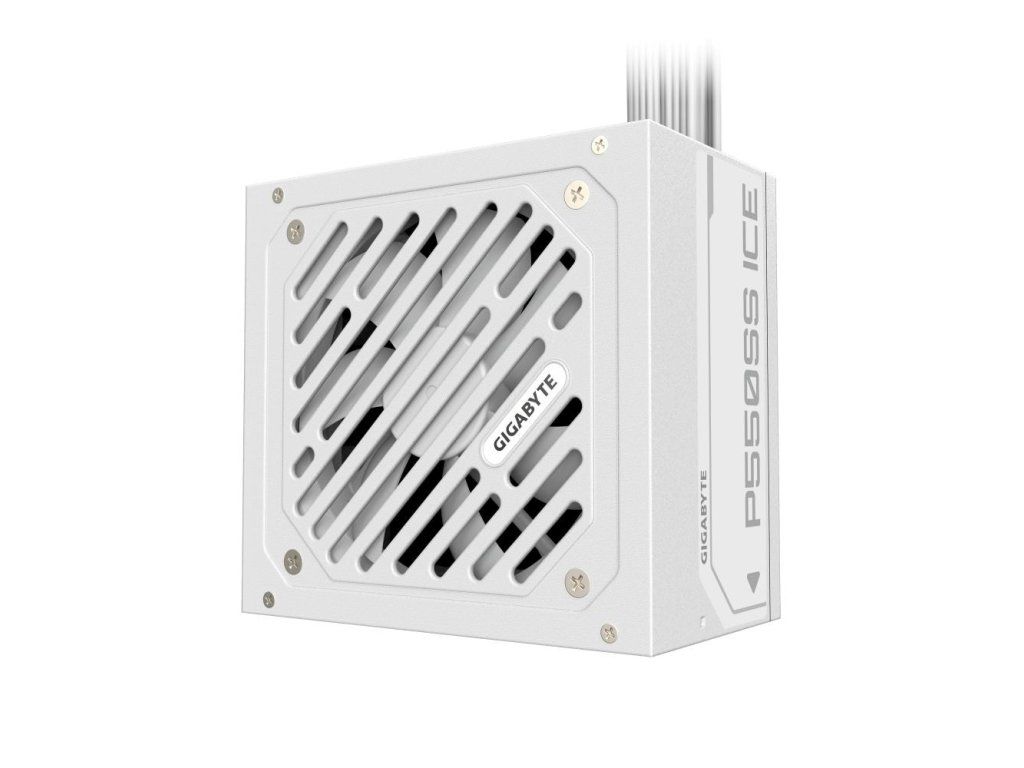

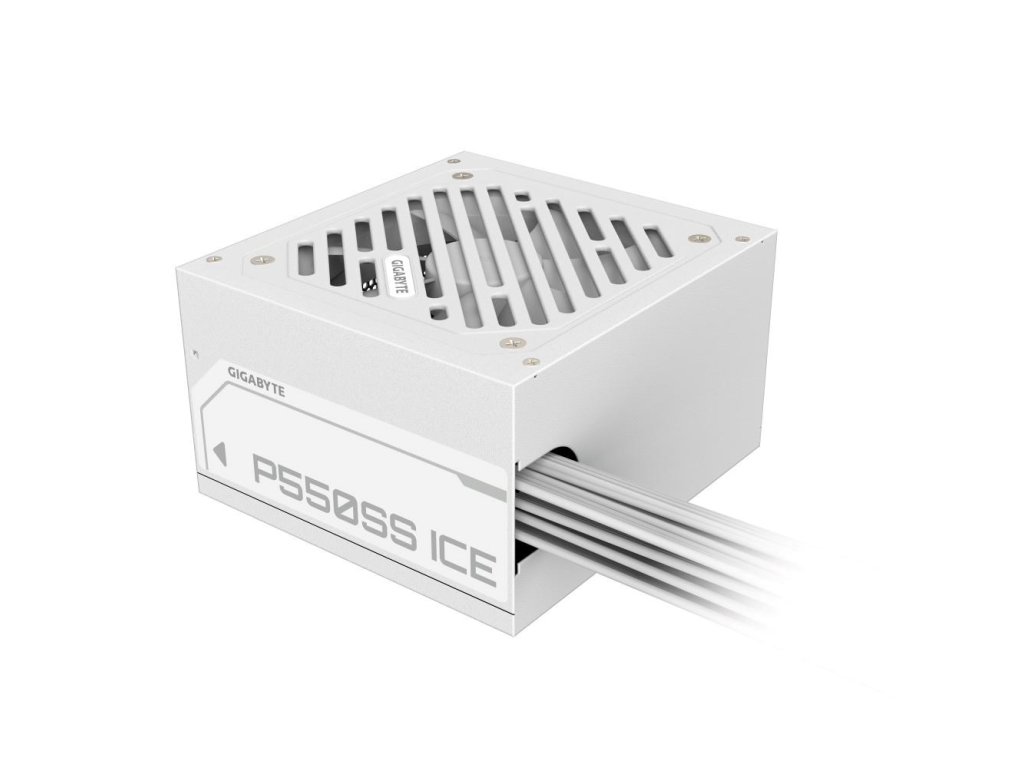

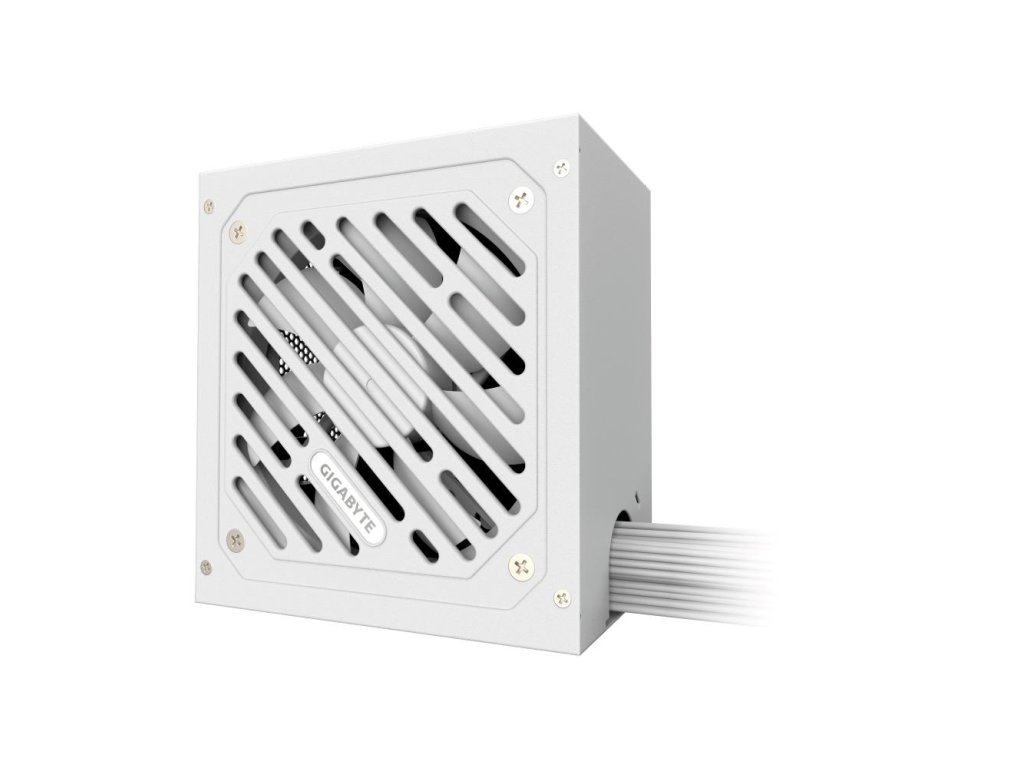

Gigabyte P550SS ICE 550W 80+ Silver GP-P550SS ICE

Popis produktu

KEY FEATURE

Ice white aesthetics
80 PLUS Silver certified (230V EU)
Support Intel ATX 3.0 standard (compatible with ATX 3.1)
120mm Fluid Dynamic Bearing (FDB) Fan
Flat cable design
Powerful single +12V rail
OVP/OPP/SCP/UVP/OCP/OTP protection
3 years warranty (Adjusted according to different regions)

Model
GP-P550SS ICE
Type
Intel Form Factor ATX 12V v3.0 (compatible with ATX 3.1)
PFC
Active PFC (>0.9 typical)
Input Voltage
155-240 Vac
Input Current
6.3A
Input Frequency
50-60 Hz
Output Capacity
550W
Dimension
150 x 140 x 86 mm
Fan Type
120mm Fluid Dynamic Bearing (FDB) fan
80 PLUS
Silver
Efficiency
90% at typical load (230V EU)
MTBF
>100,000 hours
Protection
OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal
100-150ms
Hold Up Time
>16ms
Cable Type
Flat, All white
Connectors
ATX/MB 20+4 Pin x 1 : 600mm*1
CPU/EPS 4+4 Pin x 1 : 650mm*1
PCI-e 6+2 Pin x 2 : 600mm+120mm*1
SATA x 3 + 4 Pin Peripheral x 1 : 500mm+120mm+120mm+120mm*1
SATA x 2 + 4 Pin Peripheral x 2 : 500mm+120mm+120mm+120mm*1
